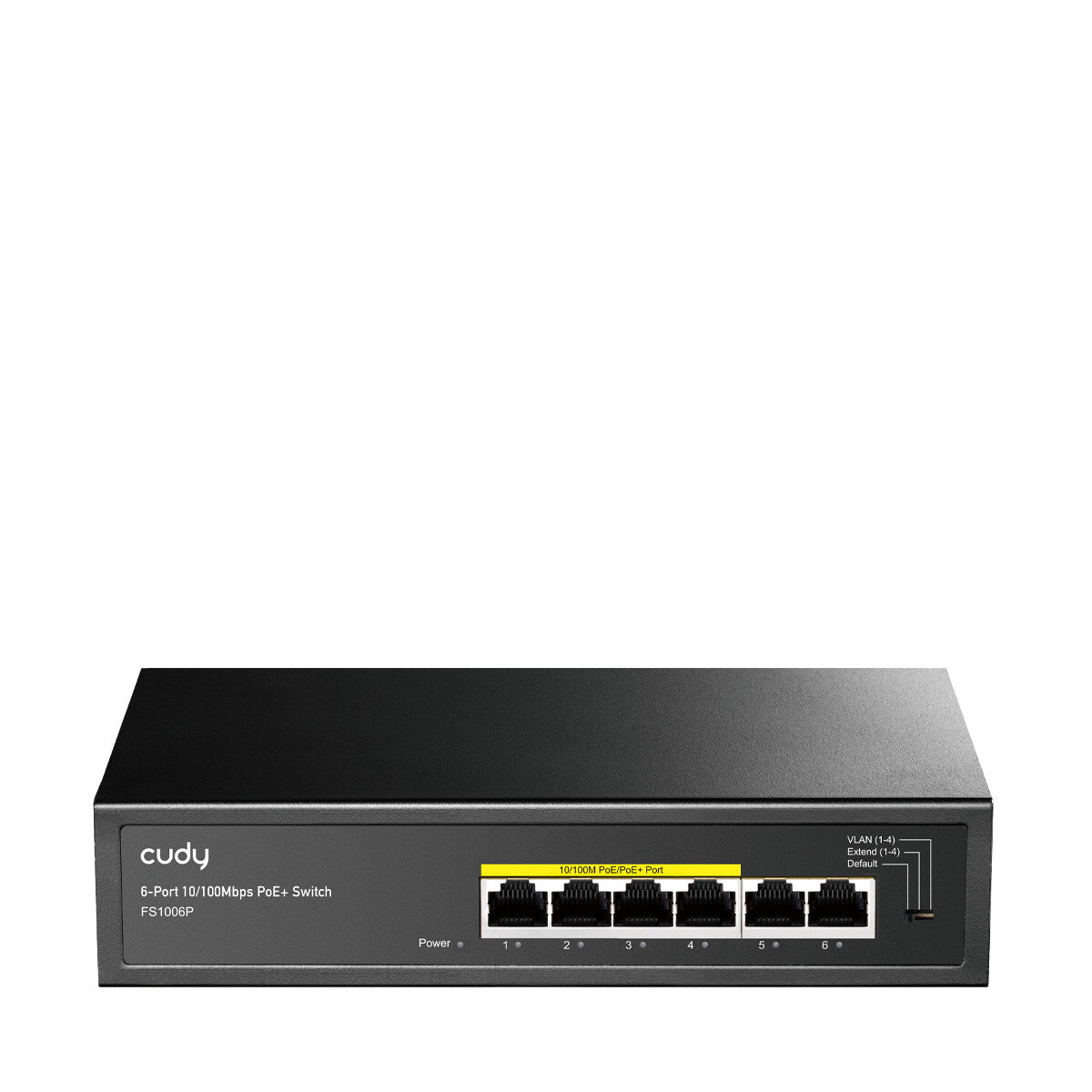

6-Port 10/100M PoE+ Switch
A 6-port PoE switch with 65W power perfect for surveillance and smart building project. Features silent operation, 250m extended range mode, VLAN support, and auto-recovery Watchdog function.
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Cloud-managed |
No |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
6 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Uplink ports quantity |
2 |
| Power connector |
AC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Data transmission |
|---|
| MAC address table |
1000 entries |
| Store-and-forward |
Yes |
| Packet buffer memory |
0.448 MB |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Activity, Link, PoE, Power |
| Wall mountable |
Yes |
| Performance |
|---|
| Plug and Play |
Yes |
| Fanless |
Yes |
| Mean time between failures (MTBF) |
100000 h |
| Technical details |
|---|
| Products per shipping (inner) case |
16 pc(s) |
| Power |
|---|
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Output voltage |
52 V |
| Output current |
1.25 A |
| Power consumption (typical) |
1 W |
| Power consumption (max) |
65 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet plus (PoE+) ports quantity |
1 |
| Power over Ethernet (PoE) voltage |
52 V |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
60 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
200 mm |
| Depth |
118 mm |
| Height |
44 mm |
| Weight |
568 g |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Package type |
Box |
| Package width |
249 mm |
| Package depth |
207 mm |
| Package height |
60 mm |
| Package weight |
947.5 g |
| Logistics data |
|---|
| Country of origin |
China |
| Other features |
|---|
| Bandwidth |
1.2 Gbit/s |
| Warranty period |
1 year(s) |
