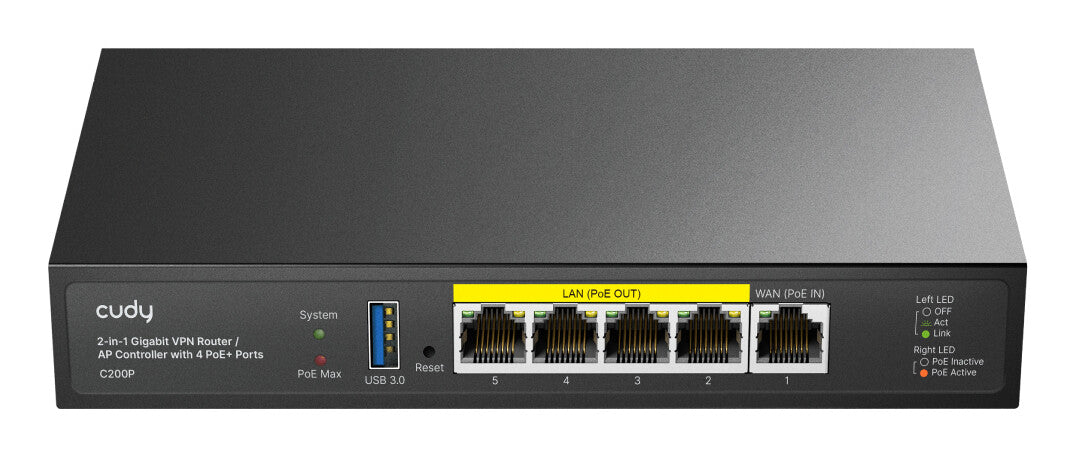

2-IN-1 Gigabit VPN Router / AP Controller with 4 PoE+ Ports, C200P
Centralized AP Management
Cudy C200P is compatible with Cudy Access Points and enables centralized management of up to 200 APs through a unified interface*, enabling efficient batch configuration and firmware updates.
Customized Captive Portal for Guest Network
Enhance brand visibility with a customized login page. Captive portal lets you engage new users instantly and promote your brand as they connect to your network. Supports both no-authentication and local password portal types for flexible access control.
Easier Network Maintenance
Multi-Device Network Maintenance
Simplify network maintenance with centralized control—manage multiple devices across sites and deploy firmware updates remotely, without on-site configuration or handling each device individually.(*Available via future firmware update.)
Smart Scheduling
Automate routine tasks for effortless network management. Includes Upgrade Scheduler for seamless firmware updates.
Flexible Traffic Control
Bandwidth Control and Session Limit enables the administrators to flexibly manage network bandwidth to optimize usage (*Available via future fireware update).
Compact Desktop Design
Durable metal casing and desktop/wall-mounting design suited for different environments.
| Performance |
|---|
| Firewall throughput |
1000 Mbit/s |
| Number of LAN Access Points (max) |
200 |
| Number of users |
100 user(s) |
| Concurrent IPSec tunnels |
16 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3af, IEEE 802.11k, IEEE 802.11v |
| Cabling technology |
10/100/1000 |
| Wi-Fi |
No |
| Management features |
|---|
| Web-based management |
Yes |
| Access Control List (ACL) |
Yes |
| VLAN support |
Yes |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| AC (power) in |
No |
| Power |
|---|
| Power supply |
60 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 / 60 Hz |
| Input current |
1.11 A |
| Number of power supply units |
1 |
| Power consumption (typical) |
60 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Rack capacity |
0.6U |
| Product colour |
Black |
| Built-in display |
No |
| Power LED |
Yes |
| LED indicators |
System, PoE, Link, Activity |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 100% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Width |
190 mm |
| Depth |
100 mm |
| Height |
28 mm |

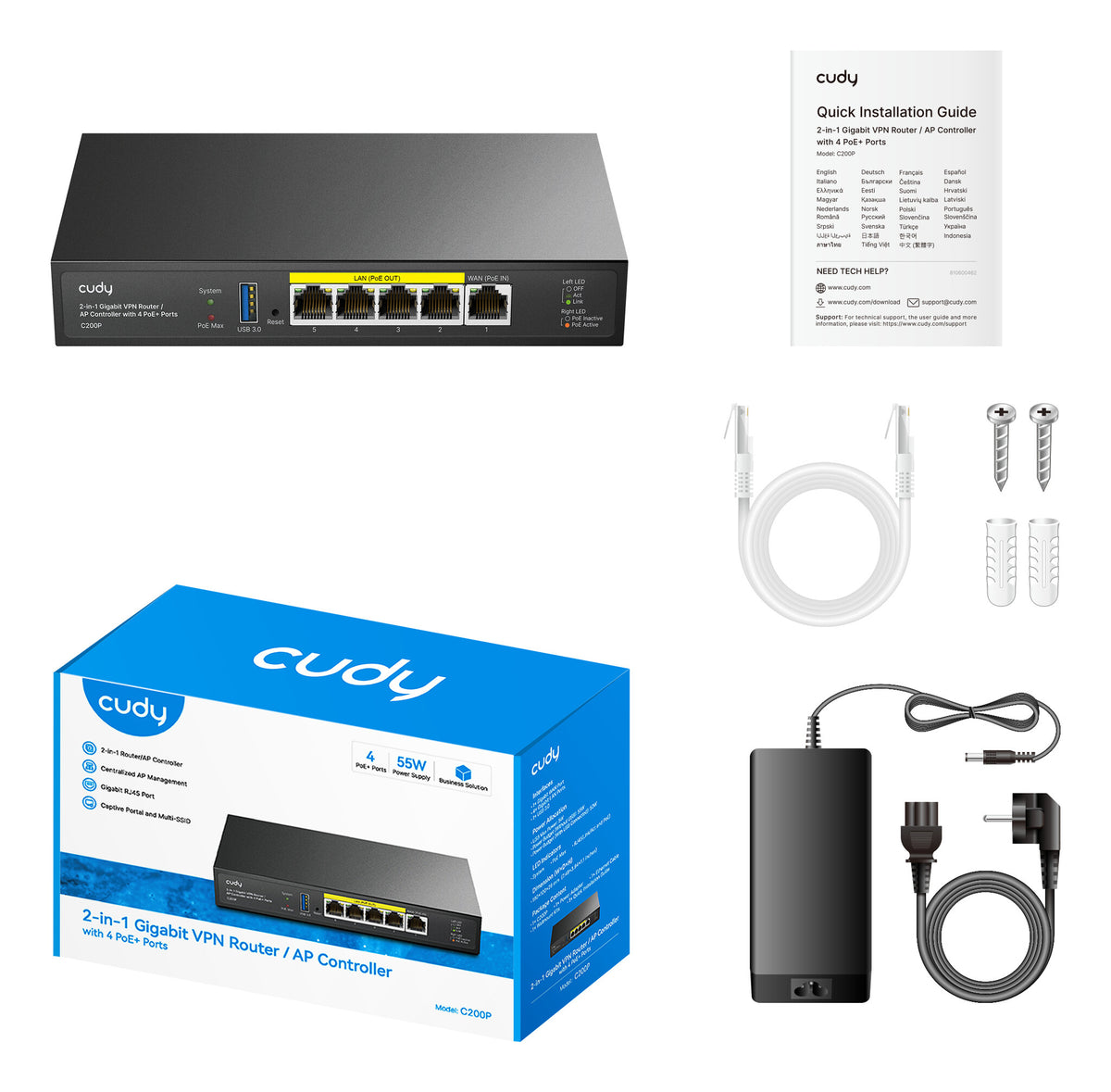

| Packaging content |
|---|
| Cables included |
UTP |
| Manual |
Yes |
| Packaging data |
|---|
| Package width |
209 mm |
| Package depth |
132 mm |
| Package height |
81.5 mm |
| Package weight |
1.02 kg |
| Logistics data |
|---|
| Country of origin |
China |
