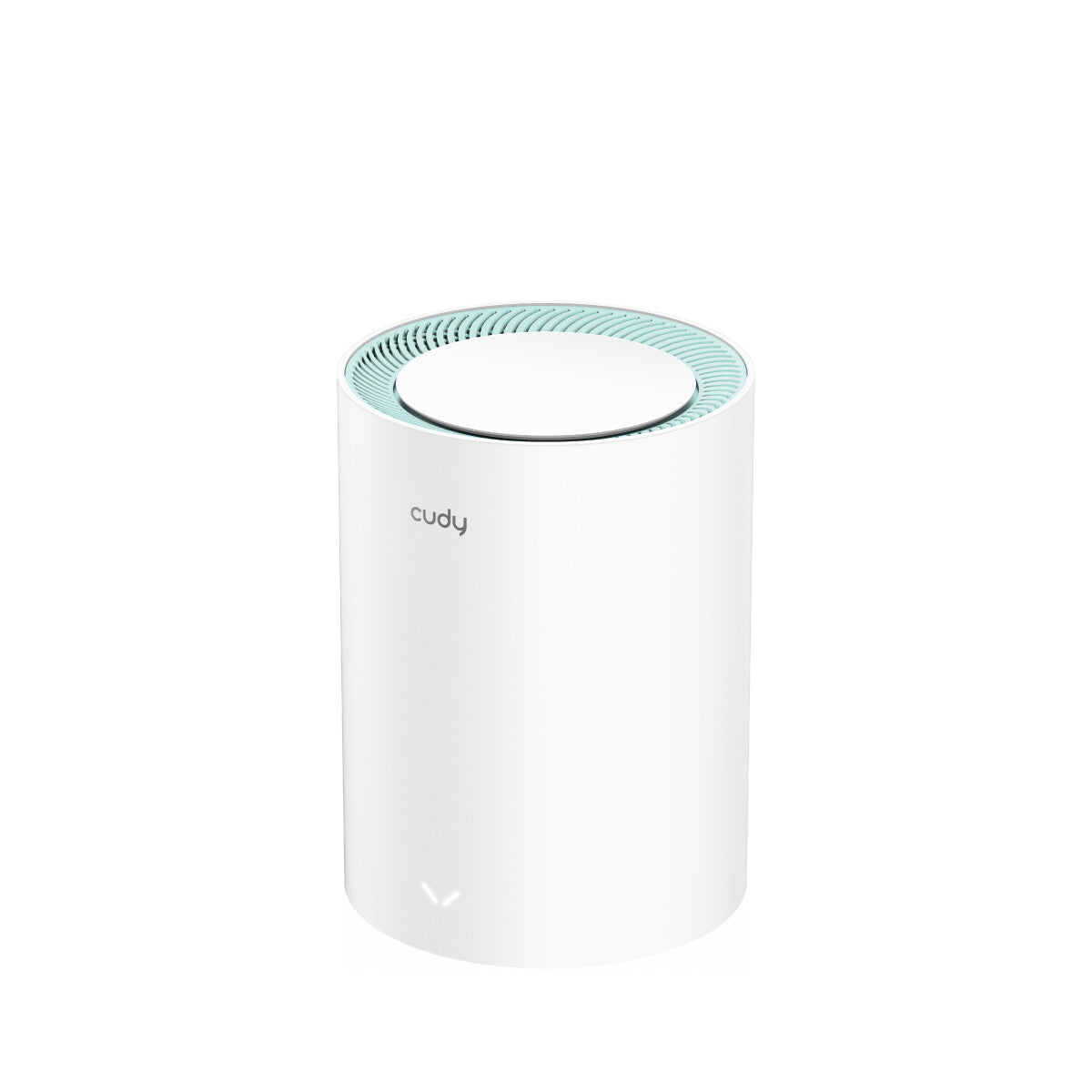

AX1500 Gigabit Mesh Wi-Fi 6 System, M1500 1-PACK 1.0
A mesh WiFi system ideal for large homes with 4K streaming and gaming demands, Installation is easy—set up one unit and auto-sync the rest.
Always Connected to the Best Signal
Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds – ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.
Wired Power Meets Whole-Home Performance
Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 1000 Mbps per port, M1500 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.
Parental Controls
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.
| Design |
|---|
| Product colour |
White |
| Product type |
Mesh router |
| LED indicators |
System |
| Antenna type |
Internal |
| Antennas quantity |
2 |
| Antenna direction type |
Omni-directional |
| Reset button |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
1201 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
1201 Mbit/s |
| Number of guest networks (5 GHz) |
1 |
| Security algorithms |
WPA, WPA2, WPA3 |
| Number of guest networks (2.4 GHz) |
1 |
| Point-to-point protocol over Ethernet (PPPoE) |
Yes |
| Static IP |
Yes |
| IGMP proxy |
Yes |
| IGMP snooping |
Yes |
| Features |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1 GHz |
| Processor cores |
1 |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| WPS push button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Port forwarding |
Yes |
| Firewall security |
Y |
| Universal Plug and Play (UPnP) |
Yes |
| DHCP client |
Yes |
| Parental control features |
Off time, Time controls, Pause the Internet, Content filter |
| Parental control |
Yes |
| Firmware upgradeable via |
Network |
| MU-MIMO technology |
Yes |
| MIMO |
Yes |
| Protocols |
|---|
| DHCP server |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| Ethernet WAN |
Yes |
| DC-in jack |
Yes |
| Power |
|---|
| Power consumption (typical) |
10 W |
| AC input voltage |
100 - 240 V |
| AC adapter input current |
1 A |
| AC input frequency |
50 - 60 Hz |
| AC adapter output voltage |
12 V |
| AC adapter output current |
1 A |
| Certificates |
|---|
| Compliance certificates |
Federal Communications Commission (FCC), CE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Master (outer) case width |
570 mm |
| Master (outer) case height |
260 mm |
| Master (outer) case length |
560 mm |
| Master (outer) case gross weight |
12.1 kg |
| Weight & dimensions |
|---|
| Width |
110 mm |
| Depth |
110 mm |
| Height |
154.5 mm |
| Weight |
299.1 g |
| Package width |
145 mm |
| Package depth |
130 mm |
| Package height |
265 mm |
| Package weight |
677 g |

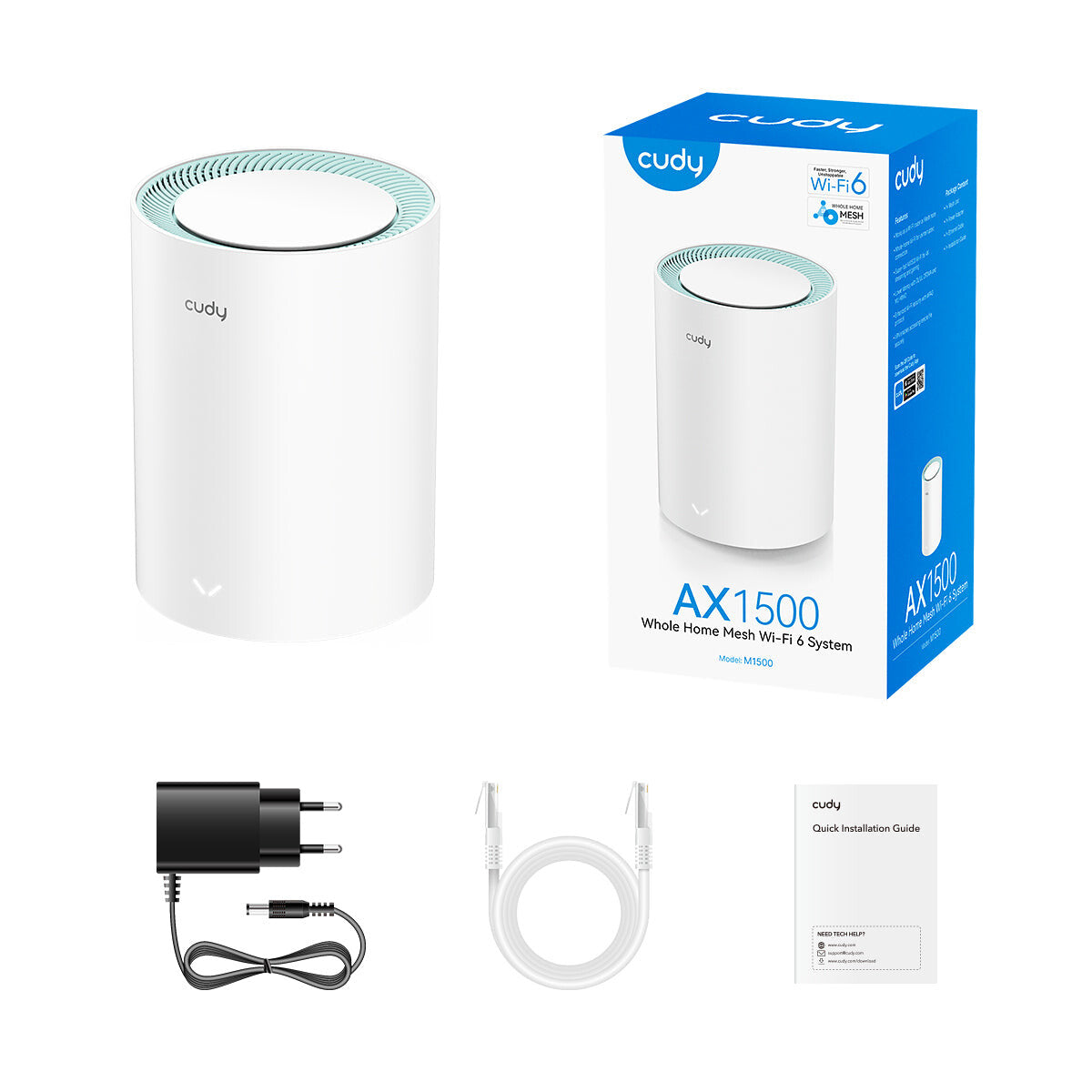

| Packaging content |
|---|
| Number of products included |
1 pc(s) |
| AC adapter included |
Yes |
| Ethernet cable |
Yes |
| Quick installation guide |
Yes |
