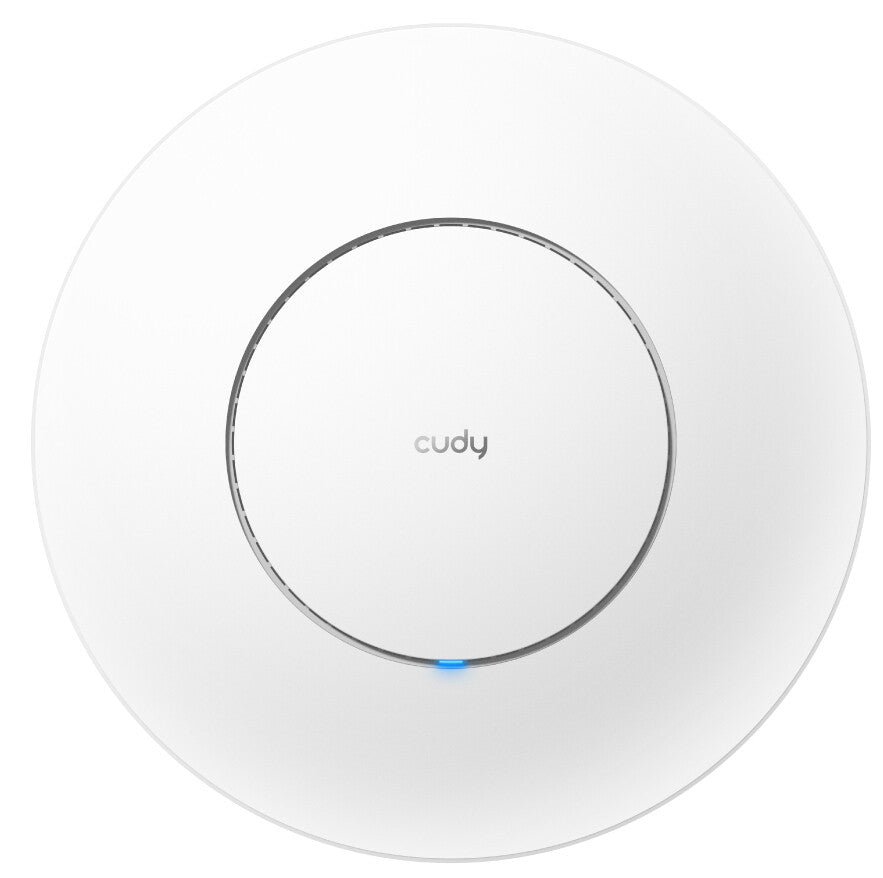

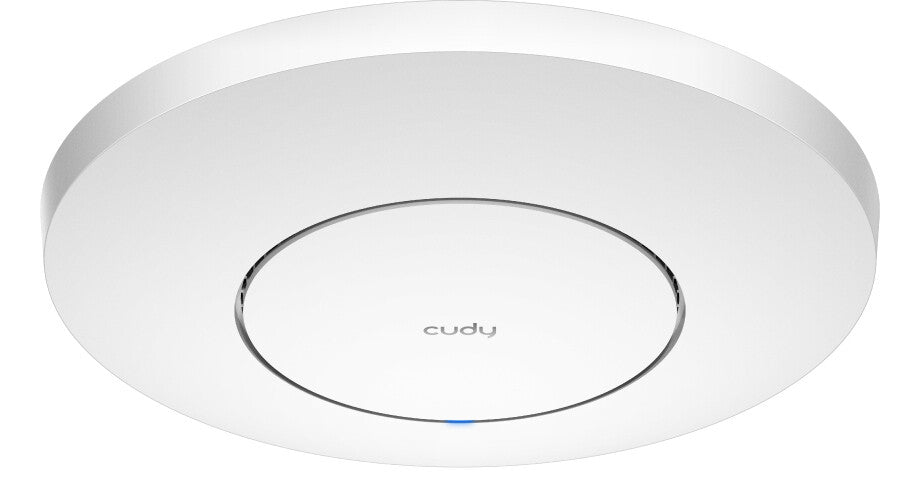

BE3600 2.5G Wi-Fi 7 Access Point
A wall/ceiling-mounted WiFi 7 AP designed for malls, offices, campuses, and other high-density scenarios, featuring a 2.5G PoE IN port and a PoE Out port.
| Features |
|---|
| 2.4 GHz |
Yes |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
2882 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2882 Mbit/s |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Networking standards |
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Bluetooth |
No |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA3, WPA2 |
| Number of SSID supported |
8 |
| Guest access |
Yes |
| IGMP snooping |
Yes |
| Protocols |
|---|
| DHCP server |
Yes |
| Management features |
|---|
| Cloud-managed |
Yes |
| Syslog |
Yes |
| Ports & interfaces |
|---|

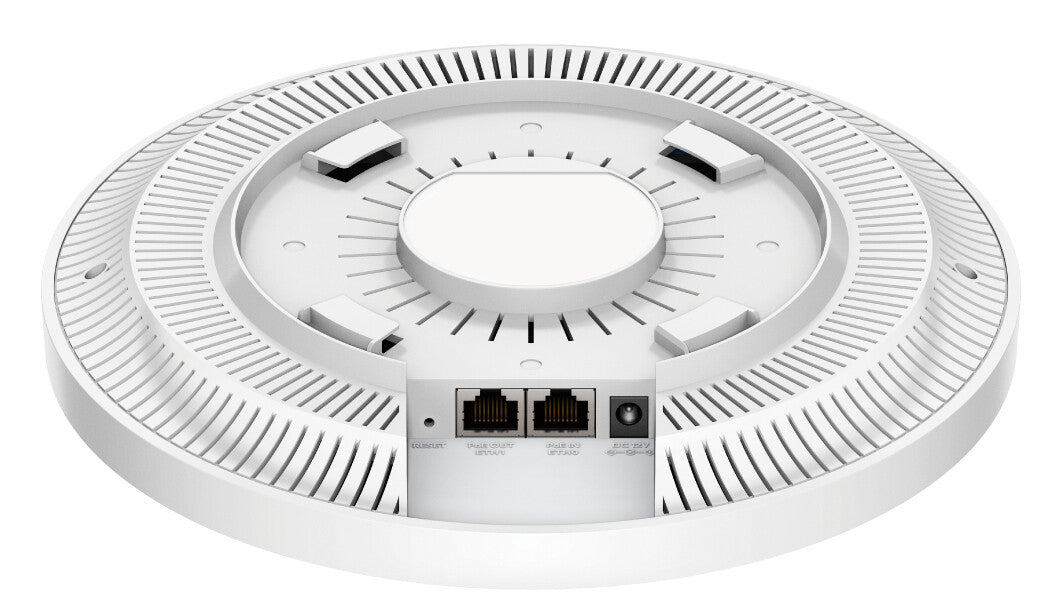

| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Power over Ethernet (PoE) |
Yes |
| DC voltage range |
48-57 V |
| Output voltage |
12 V |
| Output current |
1 A |
| Power consumption (max) |
10 W |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
System |
| Antenna |
|---|
| Antenna type |
Internal |
| Antennas quantity |
4 |
| Antenna gain level (max) |
5.5 dBi |
| Performance |
|---|
| Built-in processor |
Yes |
| Processor frequency |
2000 MHz |
| Internal memory |
512 MB |
| Flash memory |
128 MB |
| Technical details |
|---|
| Products per shipping (inner) case |
10 pc(s) |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Weight & dimensions |
|---|
| Width |
231.9 mm |
| Depth |
231.9 mm |
| Height |
57.1 mm |
| Weight |
435 g |
| Packaging data |
|---|
| Package width |
310 mm |
| Package depth |
238 mm |
| Package height |
73 mm |
| Package weight |
843 g |

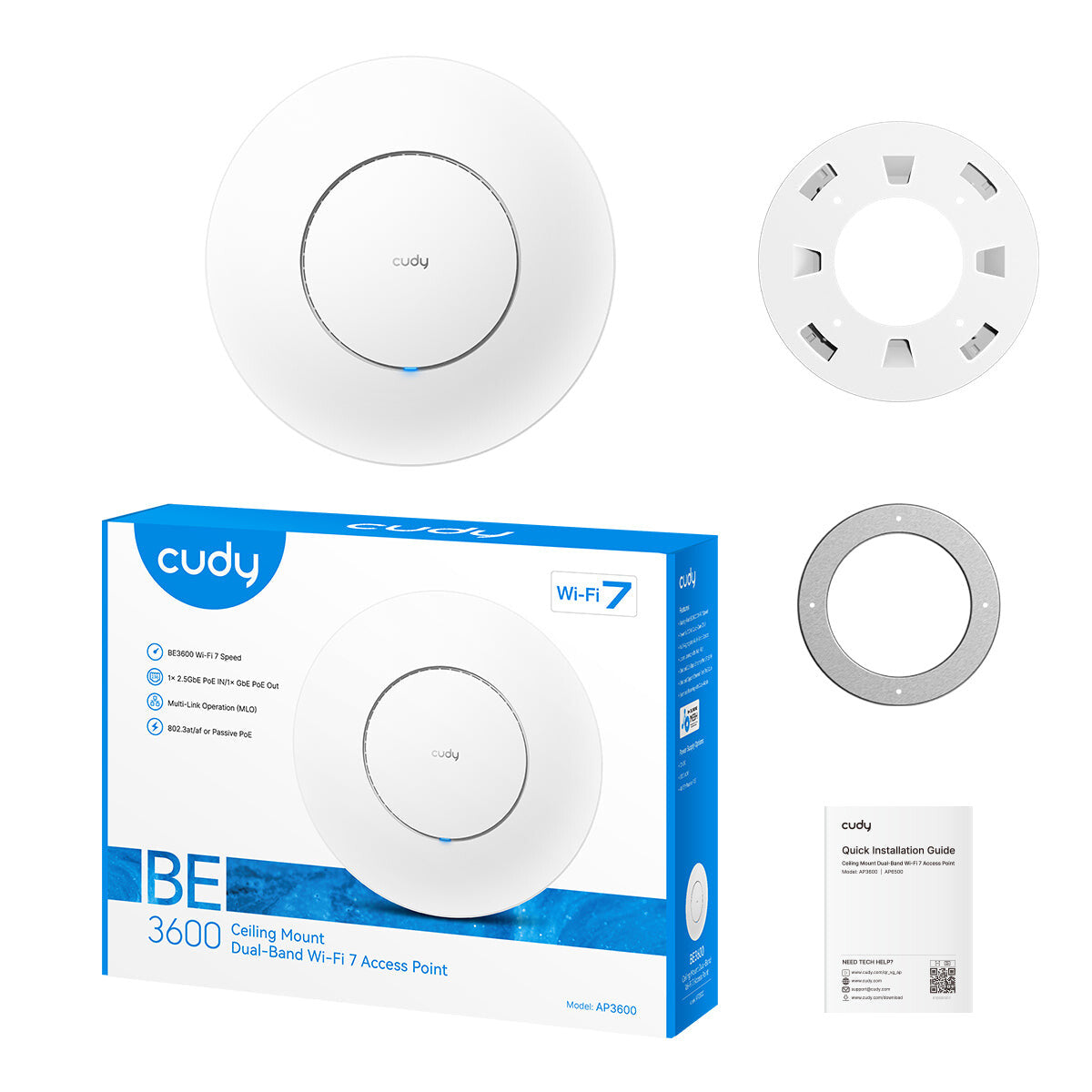

| Packaging content |
|---|
| AC adapter included |
No |
| PoE adapter included |
No |
| Cables included |
LAN (RJ-45) |

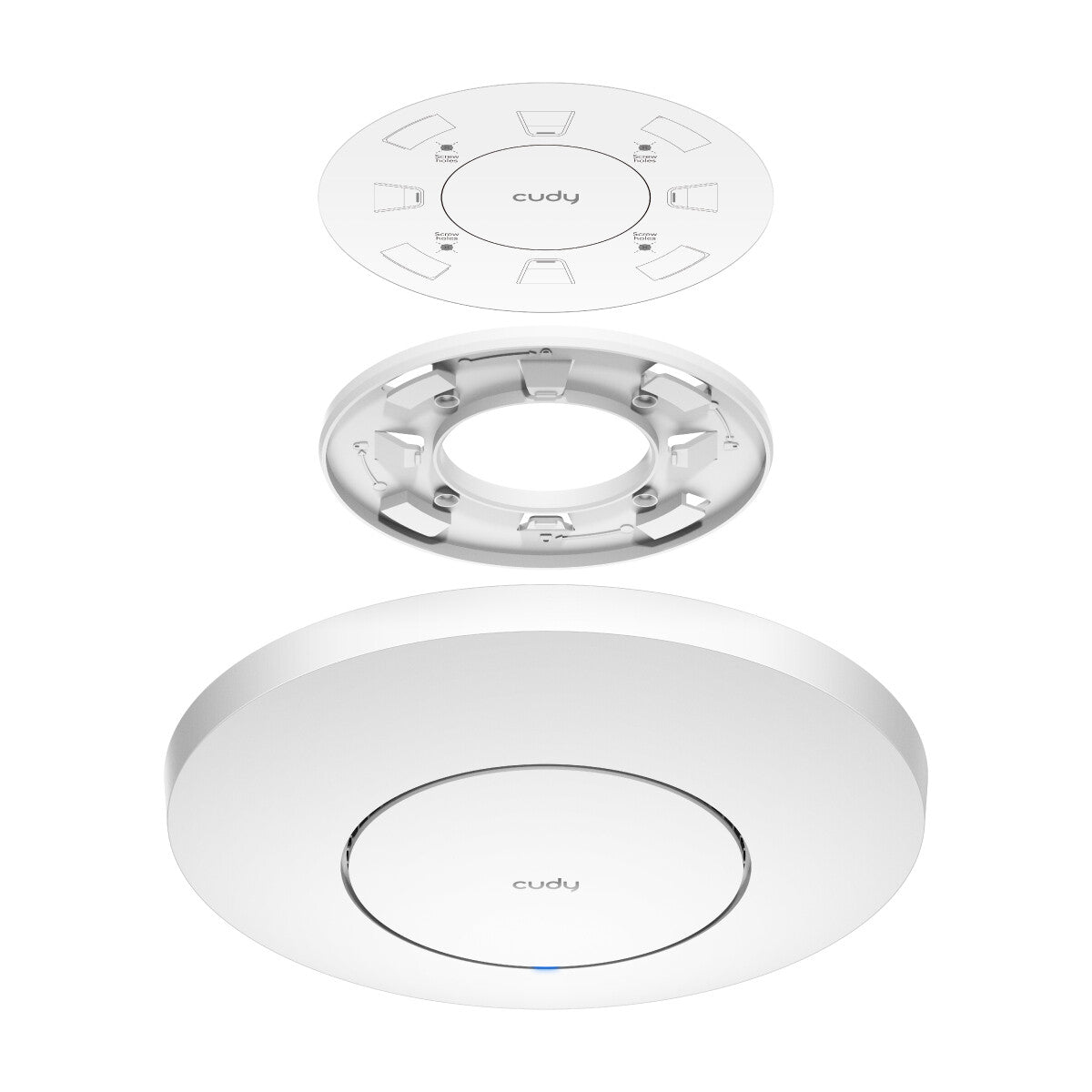

| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Bundled software |
Cudy Software |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Country of origin |
China |
