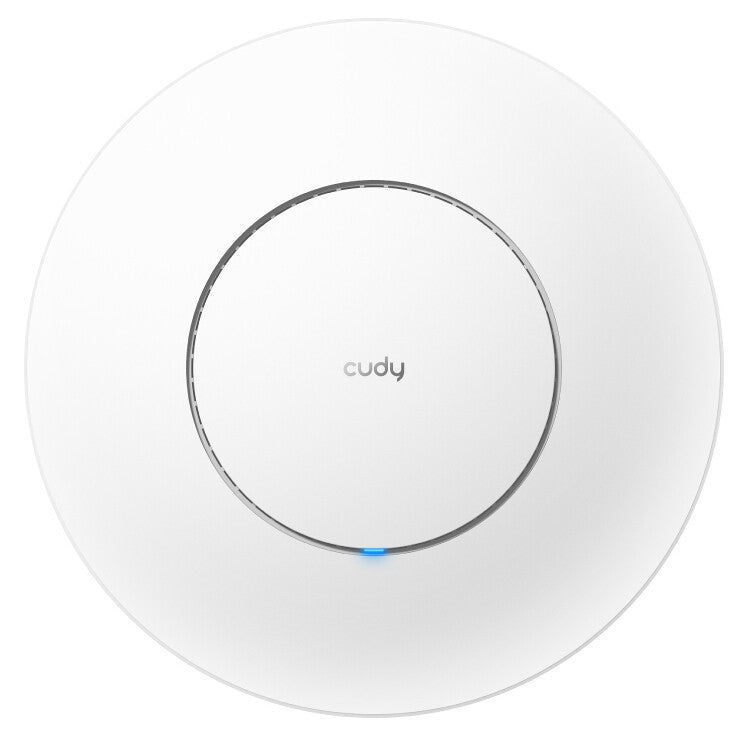

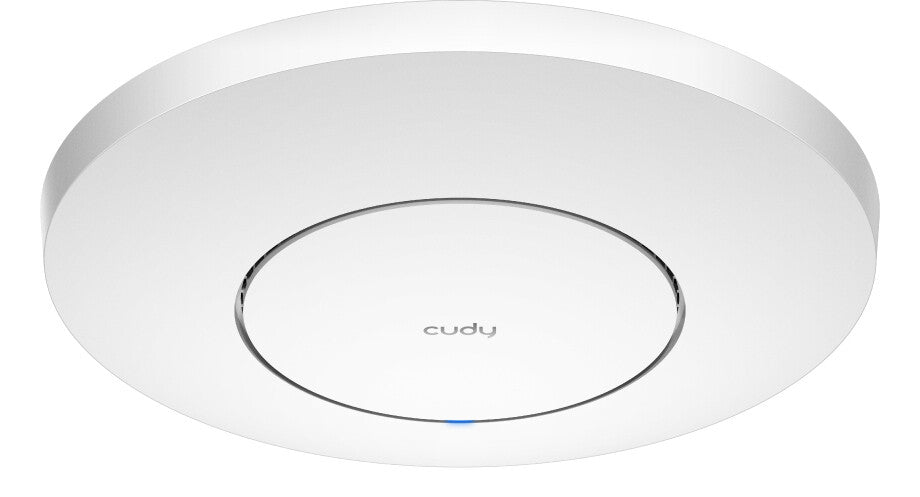

AX3000 2.5G Wi-Fi 6 Access Point
Premium Wi-Fi 6 with 2.5G Port
Impress your customers with fast and responsive Wi-Fi with multi-gig bandwidth, enabled by the highest 160 MHz channel width in Wi-Fi 6. A shielded 2.5G Ethernet port allows more devices to stream simultaneously without buffering, even in a complex electromagnetic environment.
Connects 150 Devices with 512 MB RAM
1.3 GHz dual-core CPU, large RAM, and the upgraded UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.
5 Antennas and 3+2 Strucutre Boost Coverage
Five antennas plus 3+2 structure create more paths to bypass obstacles. Beamforming tracks connected devices' directions and boosts signal towards them.
Seamless Coverage with Fast Roaming
Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.
Advanced Business Features
Captive Portal
Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).
Band Steering
Assign devices to less congested bands.
Auto Channel Selection
Avoid signal interruptions with nearby access points.
Auto Mesh Optimization
Form mesh backhaul via less congested routes automatically.
Multi-Mode for Multiple Scenarios
Access Point
Simply create a Wi-Fi spot behind a router.
Wi-Fi Router
Please use the Router mode when PPPoE authorization or creating a separate subnet is needed.
Range Extender
The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.
WISP
WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.
Flexible Wired-and-Wireless Hybrid Backhaul
Simple Wireless Mesh Backhaul
Hybrid Backhaul for Higher Performance
Versatile Powering and Installation
Flexible PoE/DC Power Options
Supports 802.3at/af PoE, 48-57V Passive PoE, 12-48V DC Power input. Please note: DC adapter is not included in the package.

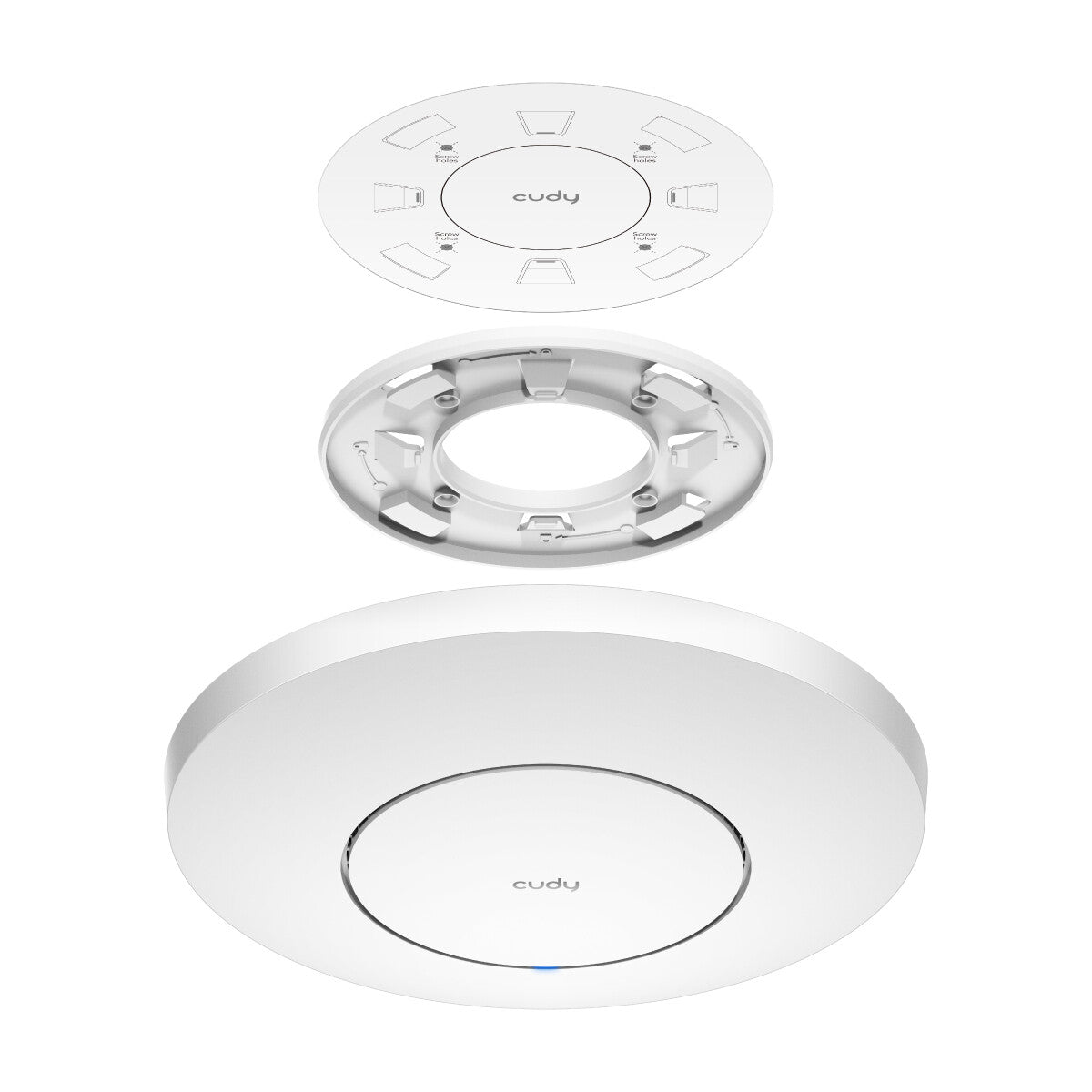

Versatile Mounting
Ceiling Mounting
Wall Mounting
Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.
| Features |
|---|
| 2.4 GHz |
Yes |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2402 Mbit/s |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Channel bandwidth |
160 MHz |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Spread spectrum method |
OFDMA |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Fast roaming |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
Tagged VLAN |
| Operating modes |
Wireless Access Point, Wireless Router, Wireless Extender, WISP |
| Quality of Service (QoS) support |
Yes |
| BeamForming |
Yes |
| Maximum outdoor range |
200 m |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Number of SSID supported |
8 |
| Guest access |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Syslog |
Yes |

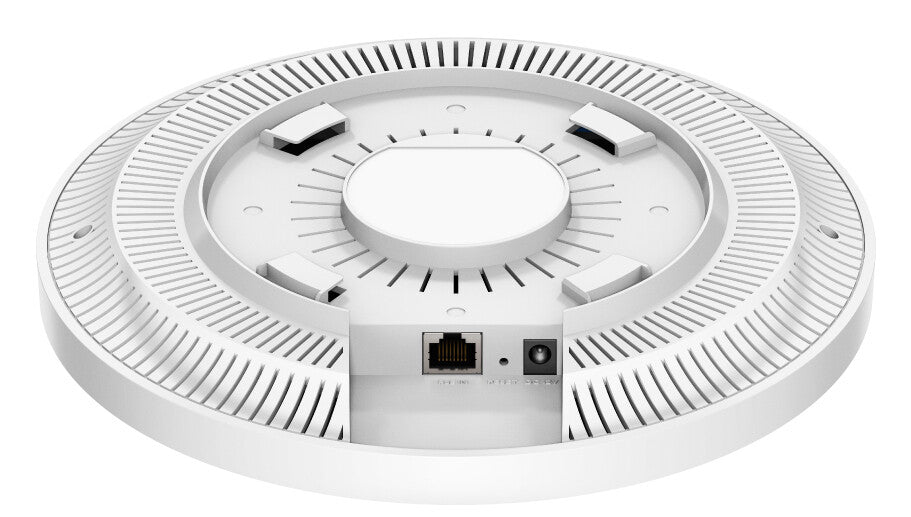

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| WAN connection |
Ethernet (RJ-45) |
| Power |
|---|
| Power over Ethernet (PoE) type supported |
Active PoE |
| Power over Ethernet (PoE) |
Yes |
| DC voltage range |
48-57 V |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Power consumption (typical) |
6.1 W |
| Power consumption (max) |
12 W |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
System |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antennas quantity |
5 |
| Performance |
|---|
| Chipset |
MT7981BA+MT7976CN+RTL8221B |
| Built-in processor |
Yes |
| Processor frequency |
1300 MHz |
| Flash memory |
256 MB |
| Compatible operating systems |
Microso Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Technical details |
|---|
| Products per shipping (inner) case |
20 pc(s) |
| Weight & dimensions |
|---|
| Width |
232 mm |
| Depth |
232 mm |
| Height |
57.1 mm |
| Weight |
489.6 g |
| Packaging data |
|---|
| Package width |
283 mm |
| Package depth |
238 mm |
| Package height |
68 mm |
| Package weight |
850.9 g |

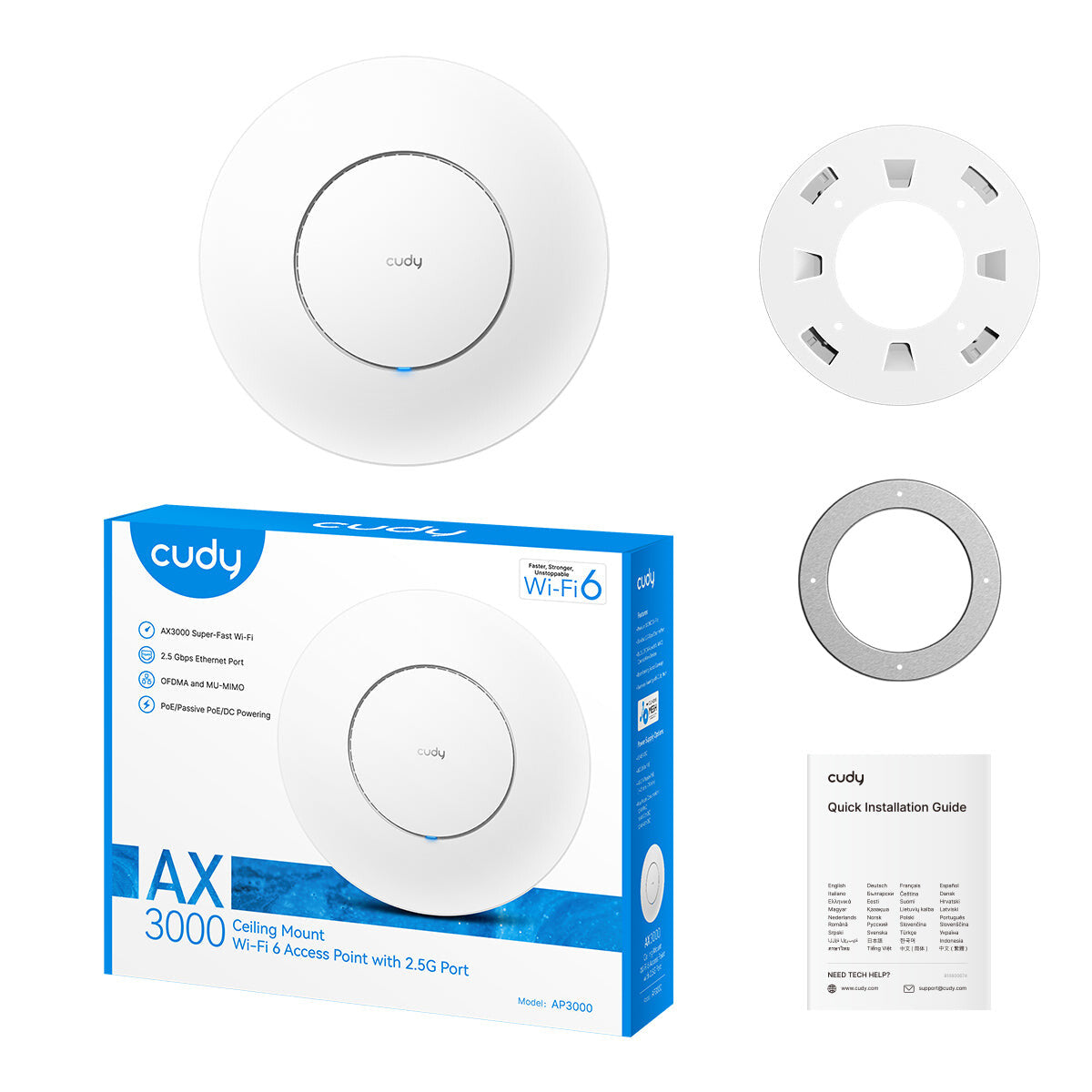

| Packaging content |
|---|
| AC adapter included |
No |
| PoE adapter included |
No |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Bundled software |
Cudy Software |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-10 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Logistics data |
|---|
| Warranty period |
1 year(s) |
| Country of origin |
China |
