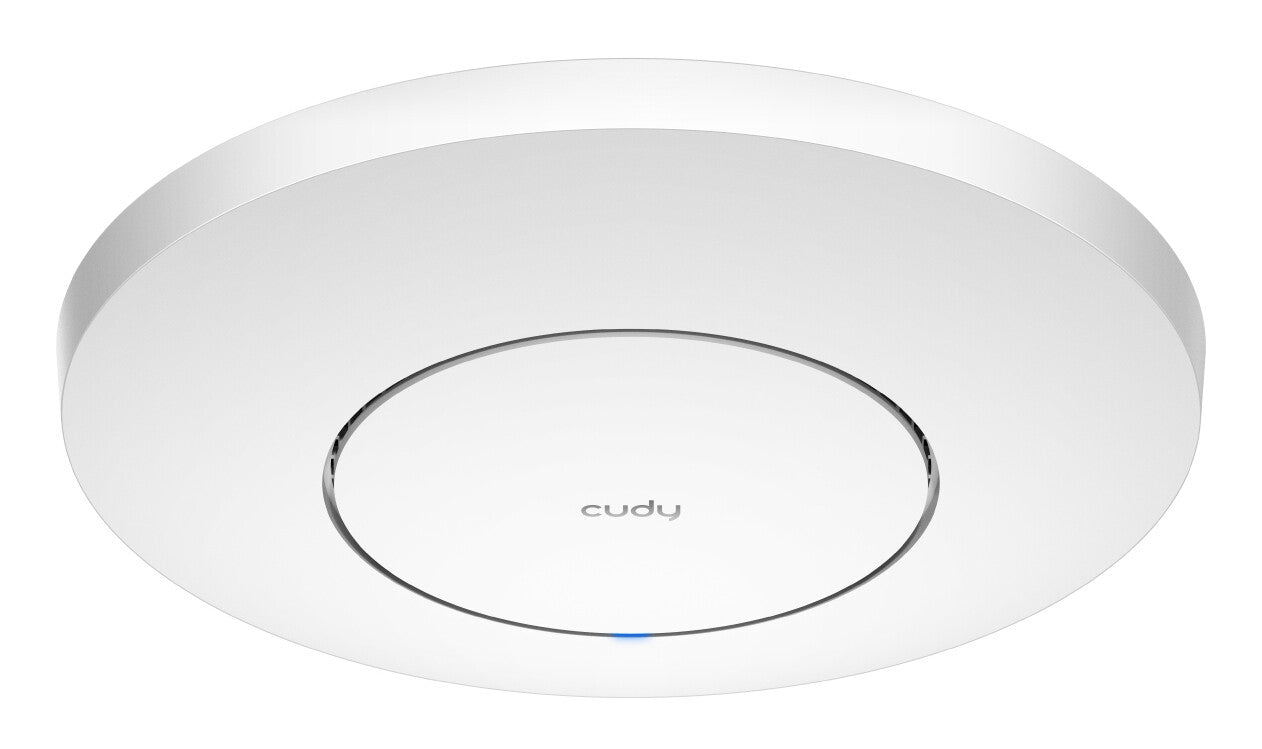

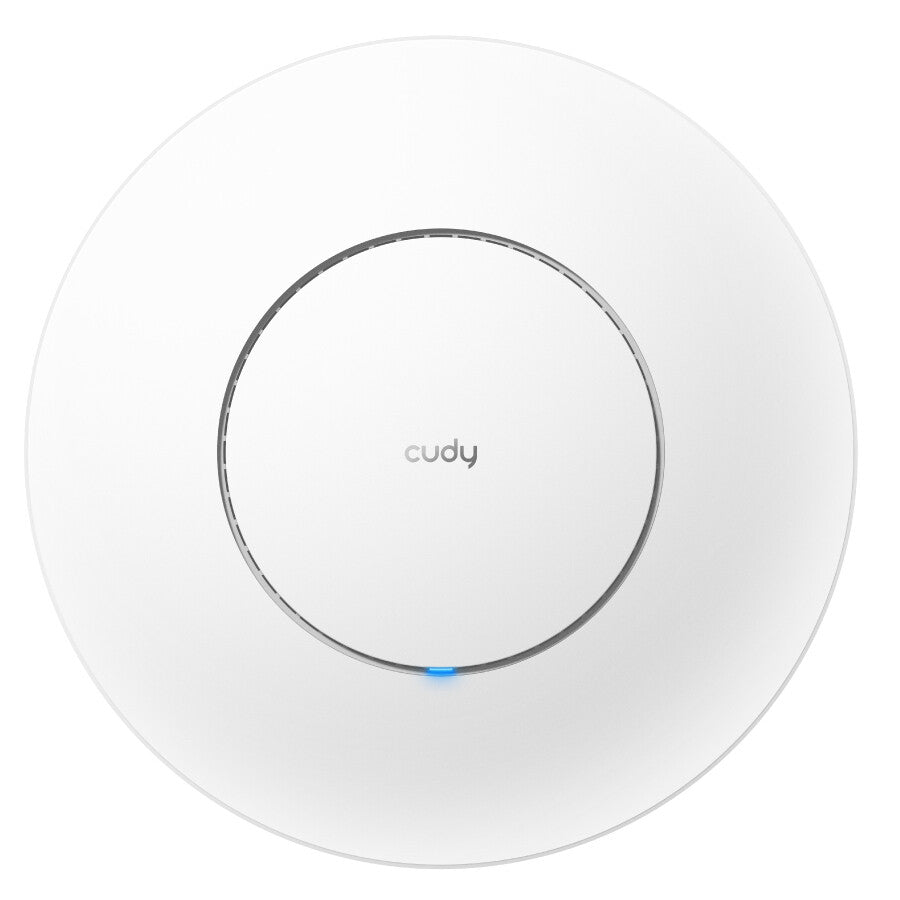

AC1200 Gigabit Wi-Fi Access Point
Connects More Devices
MU-MIMO technology allows for the simultaneous transmission of multiple data streams to multiple devices, improving efficiency and throughput under heavy use.
Boosted Coverage
Beamforming technology tracks connected devices' directions and boosts signal towards them, improving coverage performance.
Seamless Coverage with Fast Roaming
Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.
Advanced Business Features
Captive Portal
Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).
Band Steering
Assign devices to less congested bands.
Auto Channel Selection
Avoid signal interruptions with nearby access points.
Auto Mesh Optimization
Form mesh backhaul via less congested routes automatically.
Flexible Wired-and-Wireless Hybrid Backhaul
Simple Wireless Mesh Backhaul
Hybrid Backhaul for Higher Performance
Multi-Mode for Multiple Scenarios
Access Point
Simply create a Wi-Fi spot behind a router.
Wi-Fi Router
Please use the router mode when PPPoE authorization is needed or when creating a separate subnet is needed.
Range Extender
The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.
WISP
WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.
Versatile Powering and Installation
Flexible PoE & DC Power Options
Supports 802.3at/af PoE, 48V Passive PoE, and DC Power input. Please note: DC adapter is not included in the package.

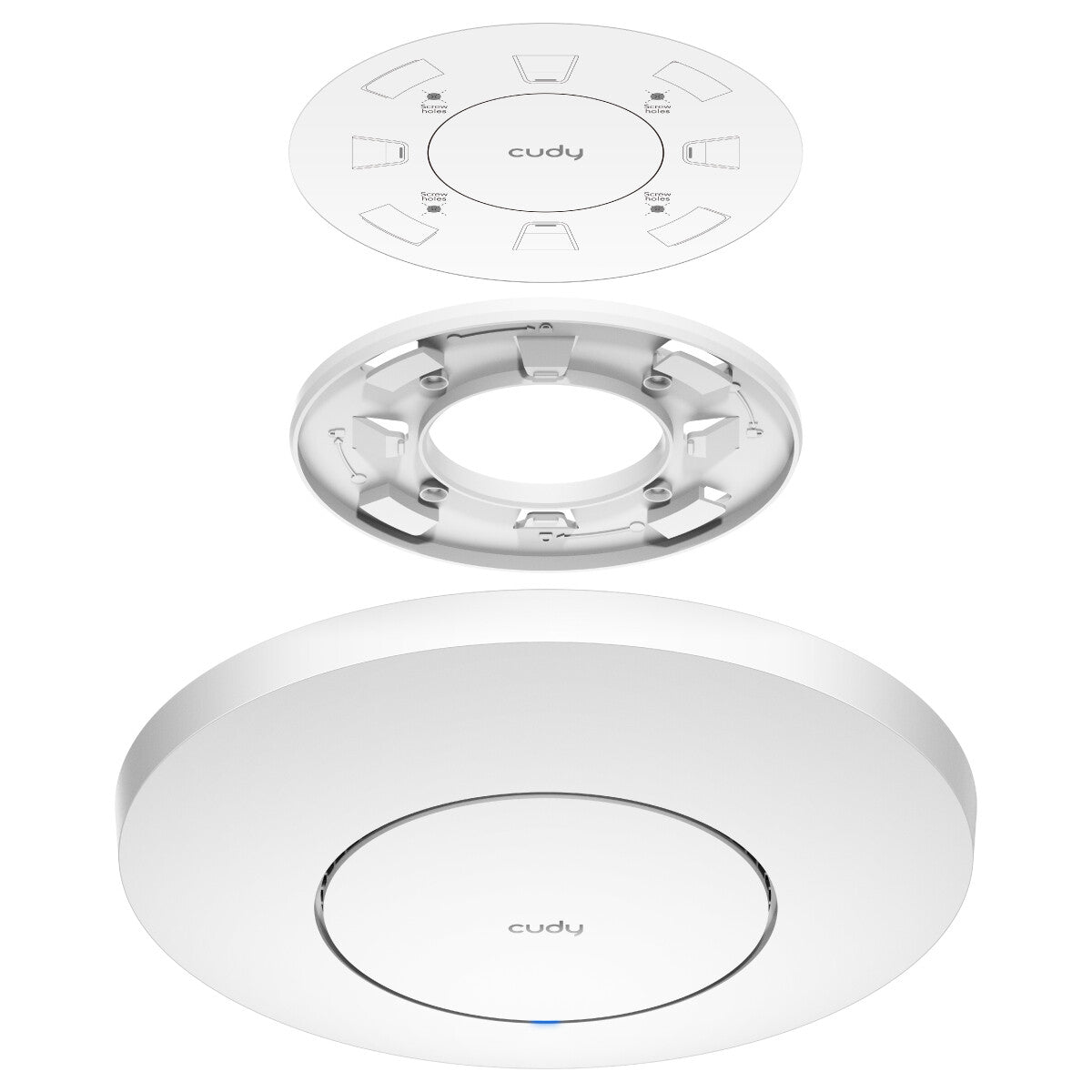

Versatile Mounting
Mounting kits are included in the box.
| Features |
|---|
| 2.4 GHz |
Yes |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Cabling technology |
10/100/1000Base-T(X) |
| Bluetooth |
No |
| Full duplex |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Fit AP mode features |
Mesh networking |
| VLAN support |
Yes |
| Virtual LAN features |
Tagged VLAN |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| Band steering |
Yes |
| Quality of Service (QoS) support |
Yes |
| Security |
|---|
| Security algorithms |
WPA3, WPA2, WPA |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Parental control |
Yes |
| IGMP snooping |
Yes |
| Protocols |
|---|
| DHCP client |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Syslog |
Yes |

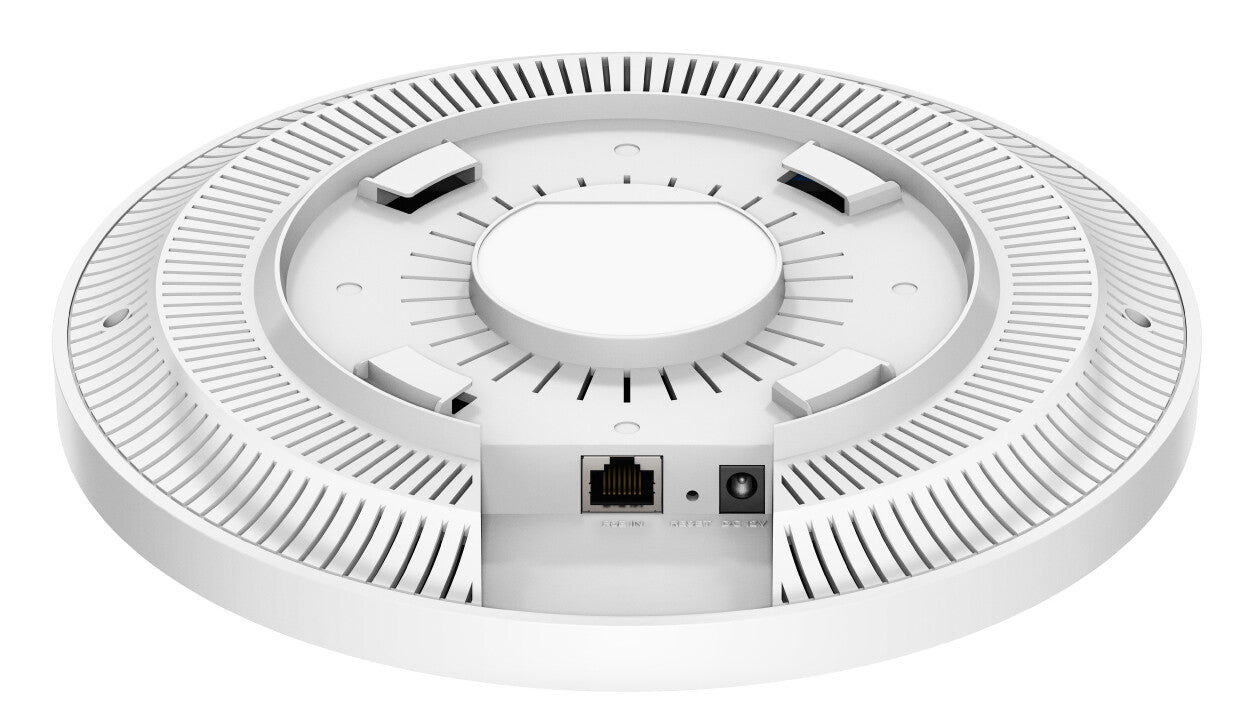

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| WAN connection |
Ethernet (RJ-45) |
| DC-in jack |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Power over Ethernet (PoE) |
Yes |
| DC voltage range |
24 - 57 V |
| AC input voltage |
100 - 240 V |
| Output voltage |
12 V |
| Output current |
1 A |
| Power consumption (max) |
11 W |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Yes |
| Internal |
No |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antennas quantity |
4 |
| Performance |
|---|
| Built-in processor |
Yes |
| Processor frequency |
880 MHz |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Compatible operating systems |
Windows, MAC OS, NetWare, UNIX, Linux |
| Technical details |
|---|
| Products per shipping (inner) case |
20 pc(s) |
| Certificates |
|---|
| Compliance certificates |
CE |
| Weight & dimensions |
|---|
| Width |
232 mm |
| Depth |
57.1 mm |
| Height |
232 mm |
| Weight |
395.6 g |
| Packaging data |
|---|
| Package width |
283 mm |
| Package depth |
238 mm |
| Package height |
68 mm |
| Package weight |
1.51 kg |

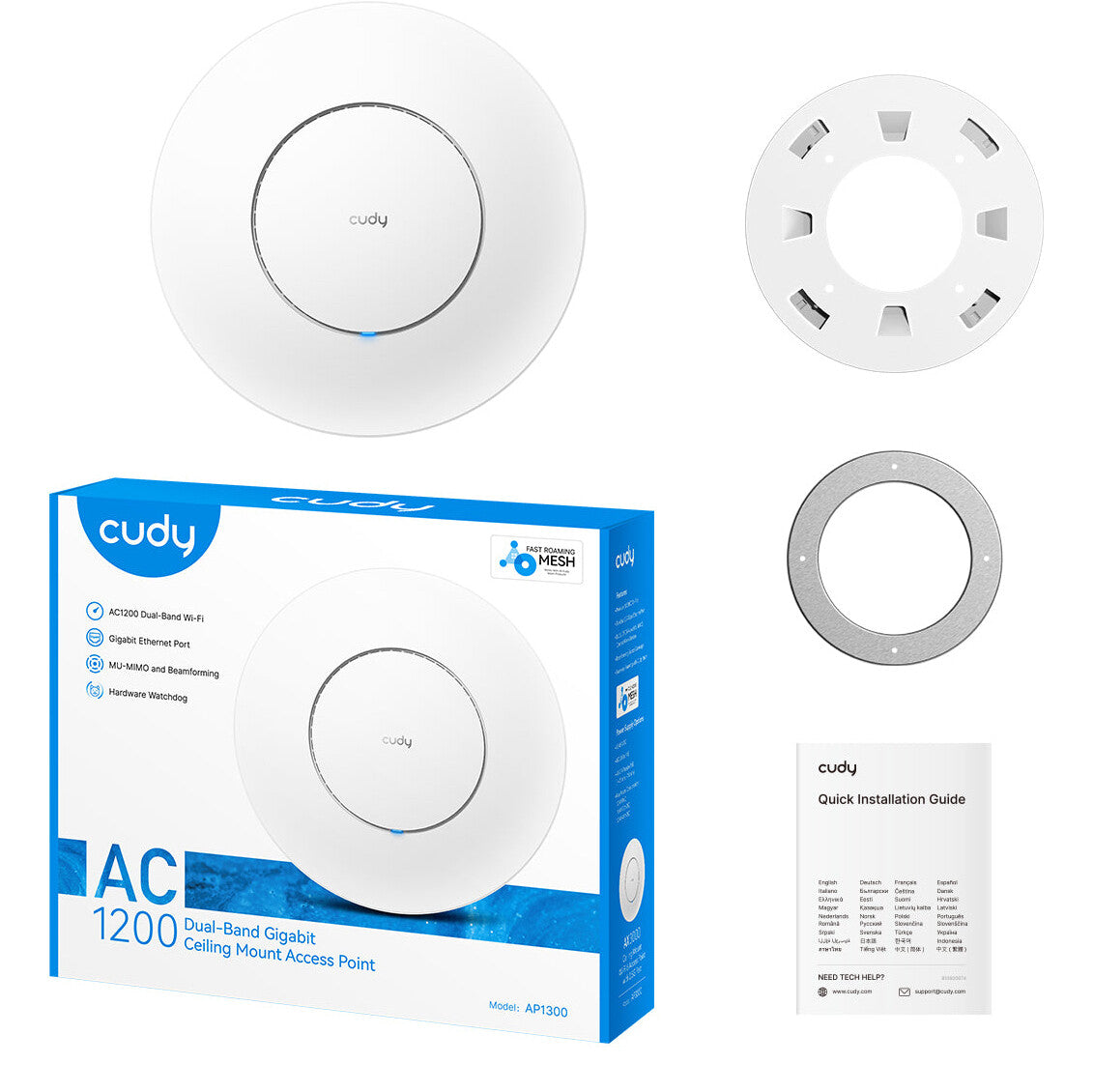

| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| AC adapter included |
Yes |
| PoE adapter included |
No |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Manual languages |
Multi |
| Bundled software |
Cudy Software |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-10 - 65 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Logistics data |
|---|
| Warranty period |
1 year(s) |
| Country of origin |
China |
