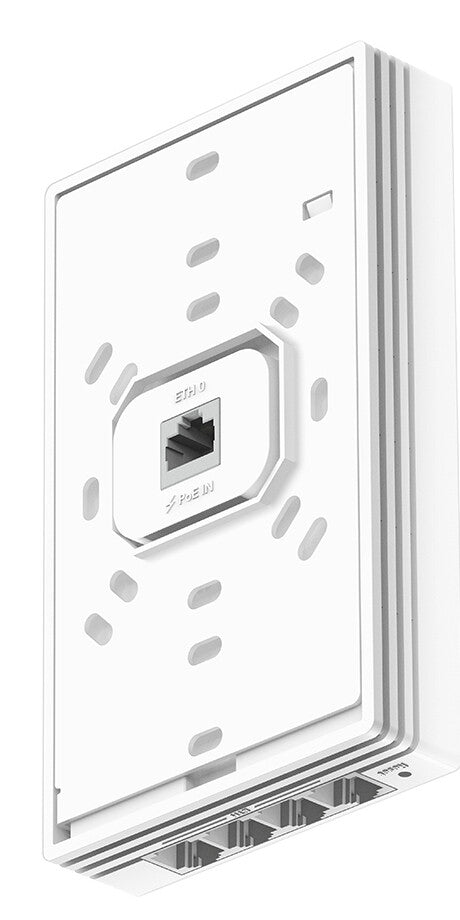

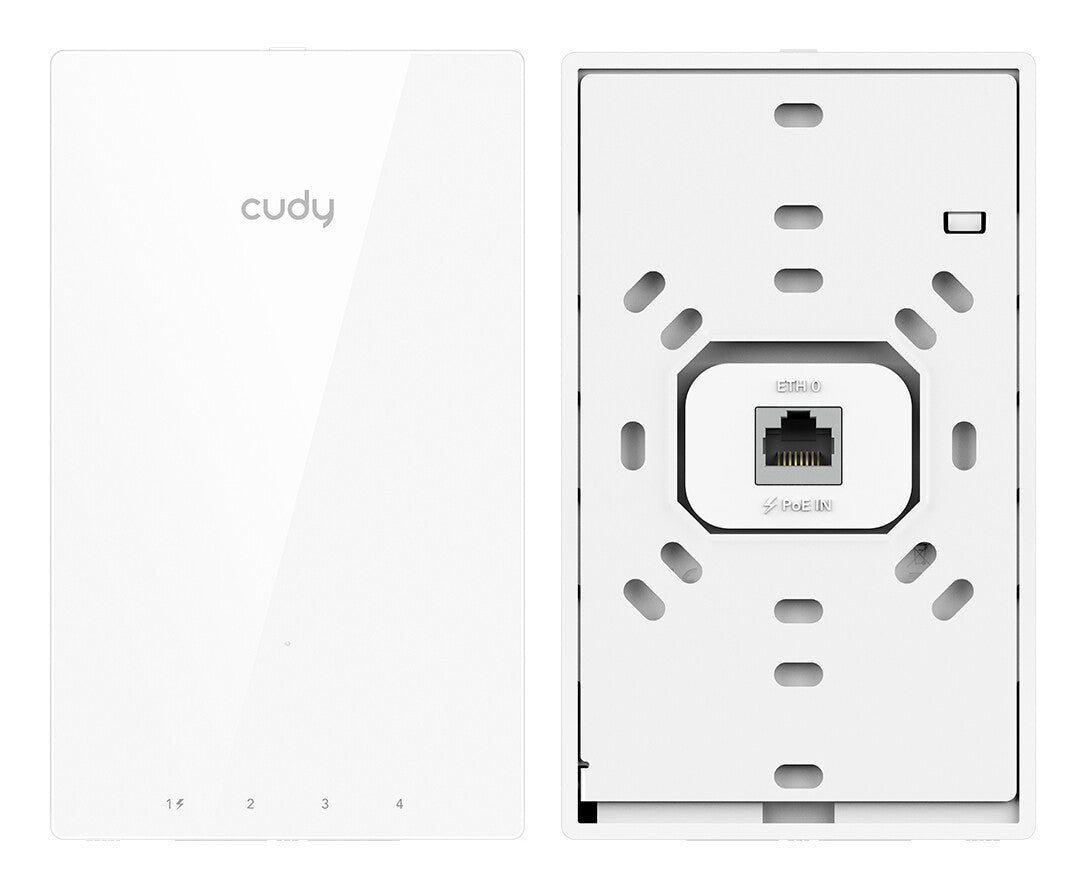

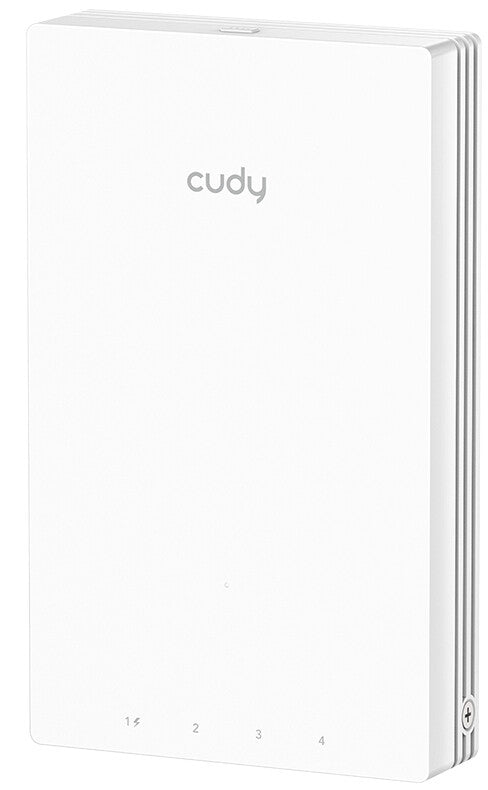

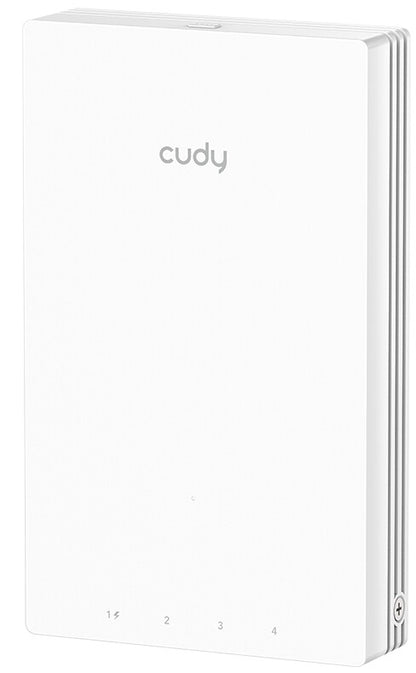

AC1200 Wall-Plate Access Point, AP1300 Wall
Delivers Broader, Faster Wi-Fi for Business
When the 2.4 GHz band is far-reaching in coverage, it is also easily congested by massive legacy devices. The Dual-band feature allows the devices to utilise the less crowded 5 GHz band, enabling speeds more than twice as fast and more responsive.
Seamless Experiences in Multiple Scenarios
Apartment
Enjoy dedicated, high-speed Wi-Fi in every unit with zero signal overlap. Its sleek, low-profile design blends seamlessly into modern interiors.
Dormitory
Provide secure, high-speed access for each user without cross-room interference or weak zones. Designed to handle multiple users across closely packed rooms.
Hotel
Covers up to 60 m² (650 ft²), delivering fast, secure Wi-Fi in every guest room. Sleek design and easy integration with VoIP, IPTV, and other devices.
Office
Ensure reliable connectivity for each workspace or meeting room. Perfect for flexible, room-based deployments in modern offices.
Soft LED, Smart Control — Built for Modern Hotels
Soft-glow LED Design
The subtle LED indicator provides clear AP status while maintaining a sleek, minimalist design. It ensures visibility without disrupting the room's atmosphere or guest comfort.
Configurable Wi-Fi Control
By enabling Wi-Fi Control via the Cudy management platform, you can easily manage both Wi-Fi and LED simultaneously. (Note: By default, the LED button controls only the LED indicator.)
Simplified IT Management
PoE Power Supply, Flexible Deployment
Simplify installation with Power over Ethernet (PoE)—run both data and power over a single cable. Powered via 802.3at/af PoE, and features PoE passthrough support for downstream IP phones or other devices. (Note: To ensure stable operation, use a power source compliant with 802.3at or higher. Insufficient power may cause system reboots.)
Manage Your Network with Cudy APP
With the Cudy Network Management Web/App, you can set up your network in just minutes, then monitor the status and manage it anytime from your phone. Set up the main Cudy Mesh router, then the connected AP will be automatically adapted into its Mesh network, no configuration needed.
Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.
| Features |
|---|
| 2.4 GHz |
Yes |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Ethernet LAN data rates |
1000,10,100 Mbit/s |
| Networking standards |
IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3at, IEEE 802.11k, IEEE 802.11v |
| Bluetooth |
No |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA2, WPA3 |
| Parental control |
Yes |
| IGMP snooping |
Yes |
| Protocols |
|---|
| DHCP server |
Yes |
| Management features |
|---|
| Cloud-managed |
Yes |
| Syslog |
Yes |

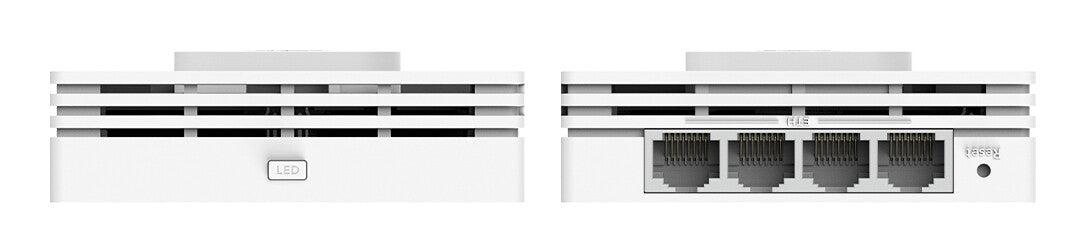

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
5 |
| WAN connection |
Ethernet (RJ-45), Wi-Fi |
| Power |
|---|
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Power over Ethernet (PoE) |
Yes |
| Power consumption (typical) |
4 W |
| Power consumption (max) |
12 W |
| Design |
|---|
| Placement |
Wall |
| Product colour |
White |
| LED indicators |
System |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antennas quantity |
2 |
| Performance |
|---|
| Flash memory |
16 MB |
| Technical details |
|---|
| Products per shipping (inner) case |
50 pc(s) |
| Weight & dimensions |
|---|
| Width |
143 mm |
| Depth |
86 mm |
| Height |
27.6 mm |
| Weight |
261.2 g |
| Packaging data |
|---|
| Package width |
152 mm |
| Package depth |
39.5 mm |
| Package height |
90 mm |
| Package weight |
362.9 g |

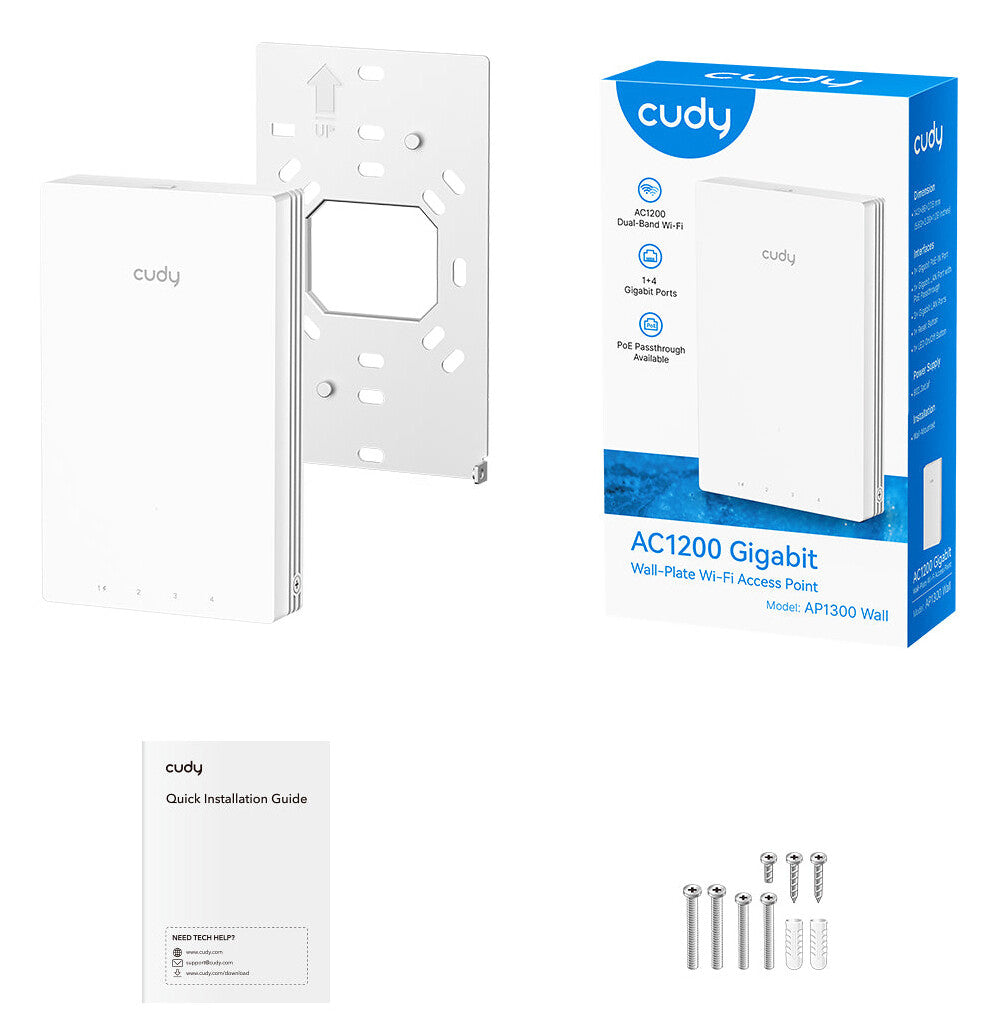

| Packaging content |
|---|
| AC adapter included |
No |
| PoE adapter included |
No |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Bundled software |
Cudy Software |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Country of origin |
China |
