Corsair

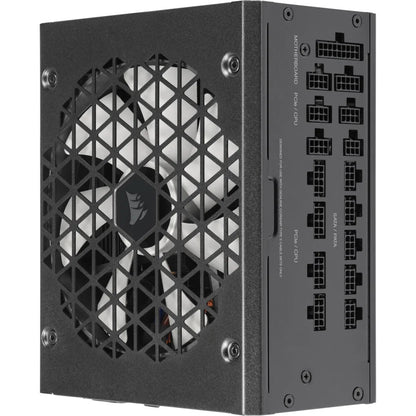

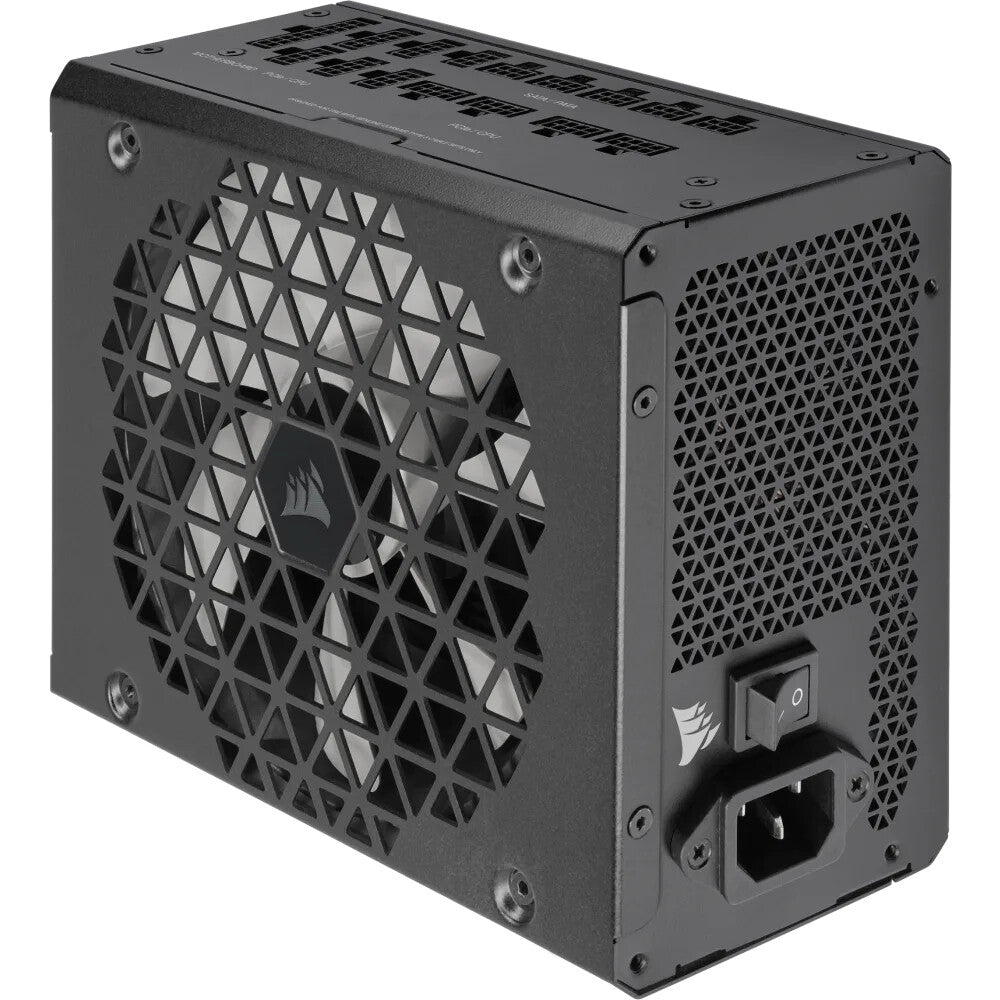

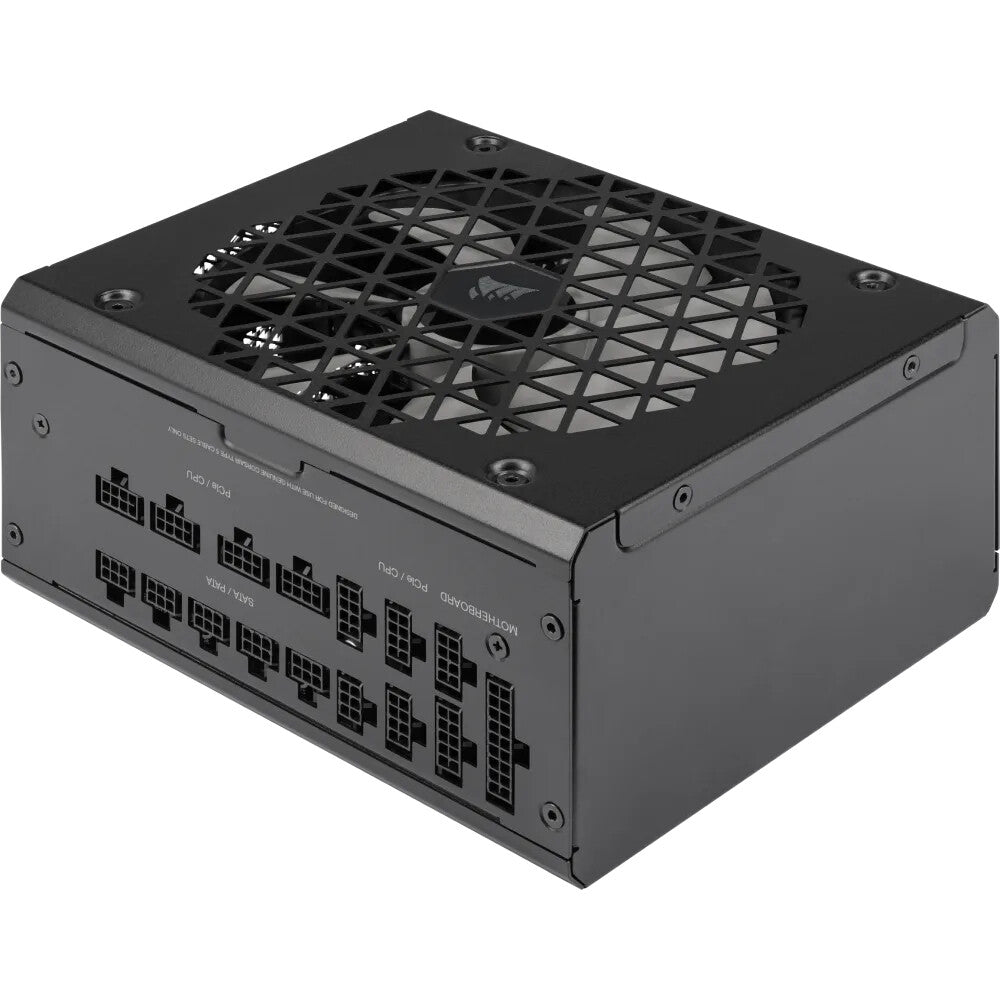

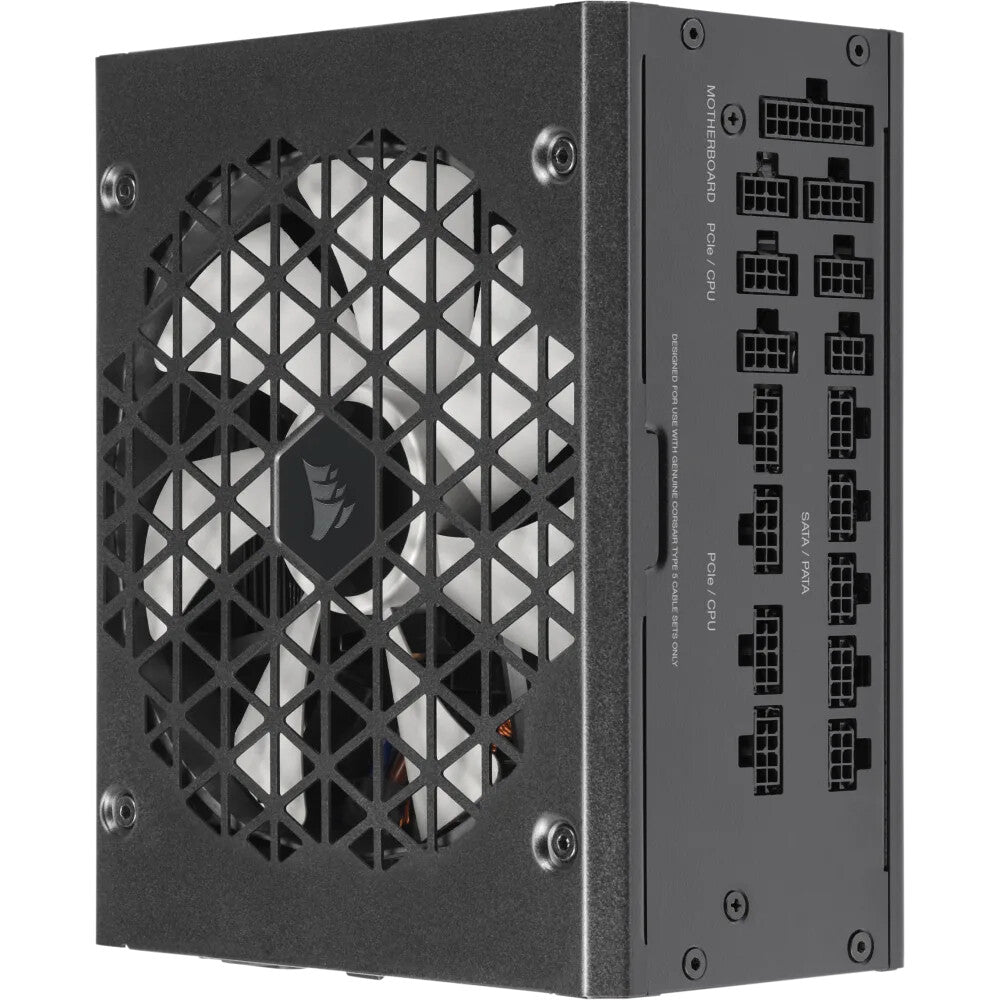

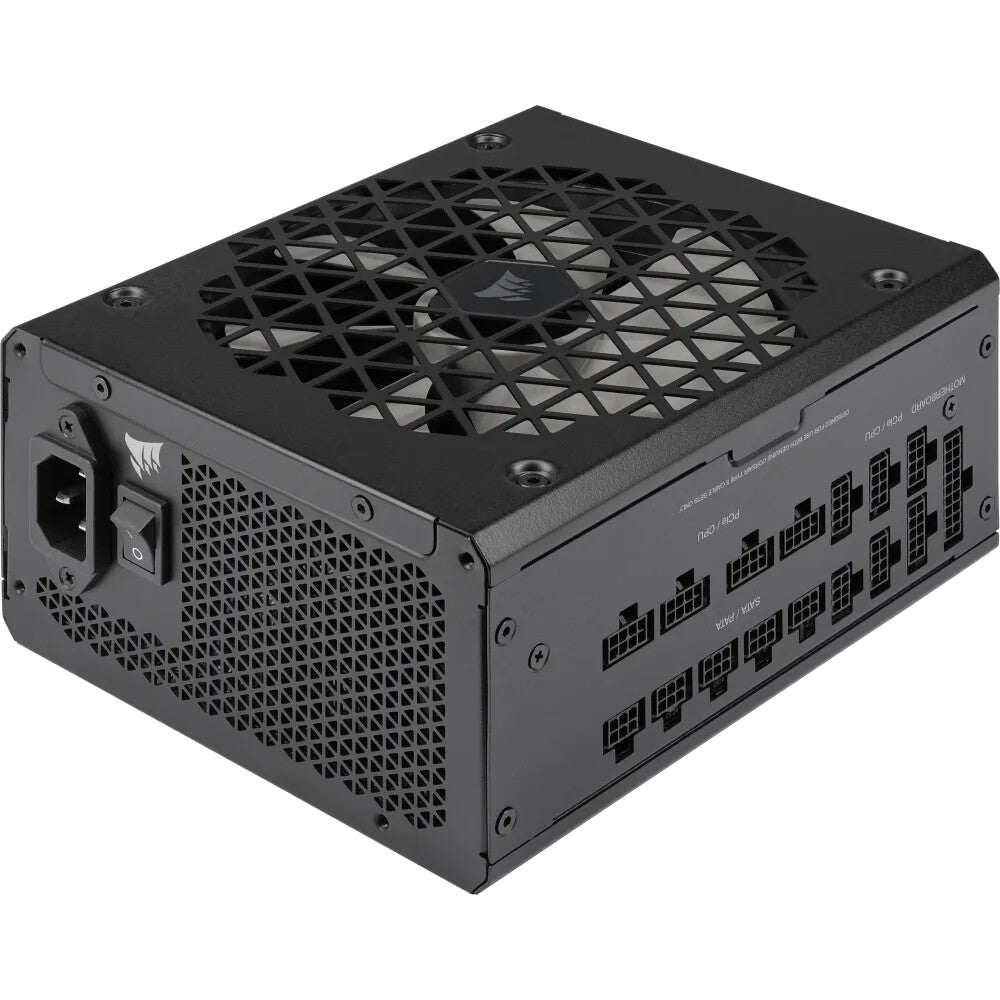

Corsair RM1200x SHIFT power supply unit 1200 W 24-pin ATX ATX Black

R 5,368.20
R 5,368.20
R 5,368.20
Shipping calculated at checkout.

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock
1200W, 140mm, FDB, 80 PLUS Gold, 150 x 180 x 86mm, 2 kg

RM1200x POWER SUPPLY

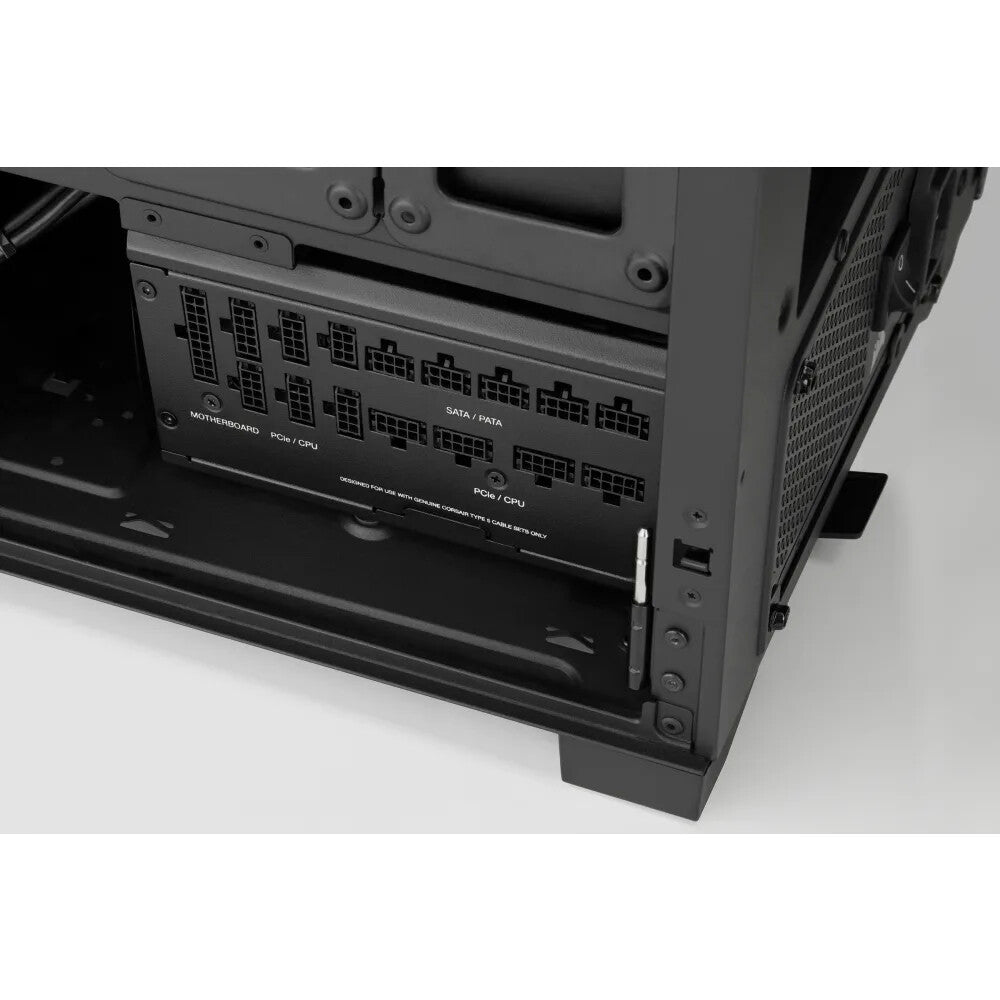

SIDE CONNECTOR INTERFACE FOR EASIER BUILDING

NO MORE FUMBLING AROUND
SIDE MOUNTED CONNECTIONS
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.


RMx SHIFT SERIES™
RM1200x POWER SUPPLY
SIDE CONNECTOR INTERFACE FOR EASIER BUILDING

A PSU THAT'S ON YOUR SIDE
WATCH VIDEO
NO MORE FUMBLING AROUND

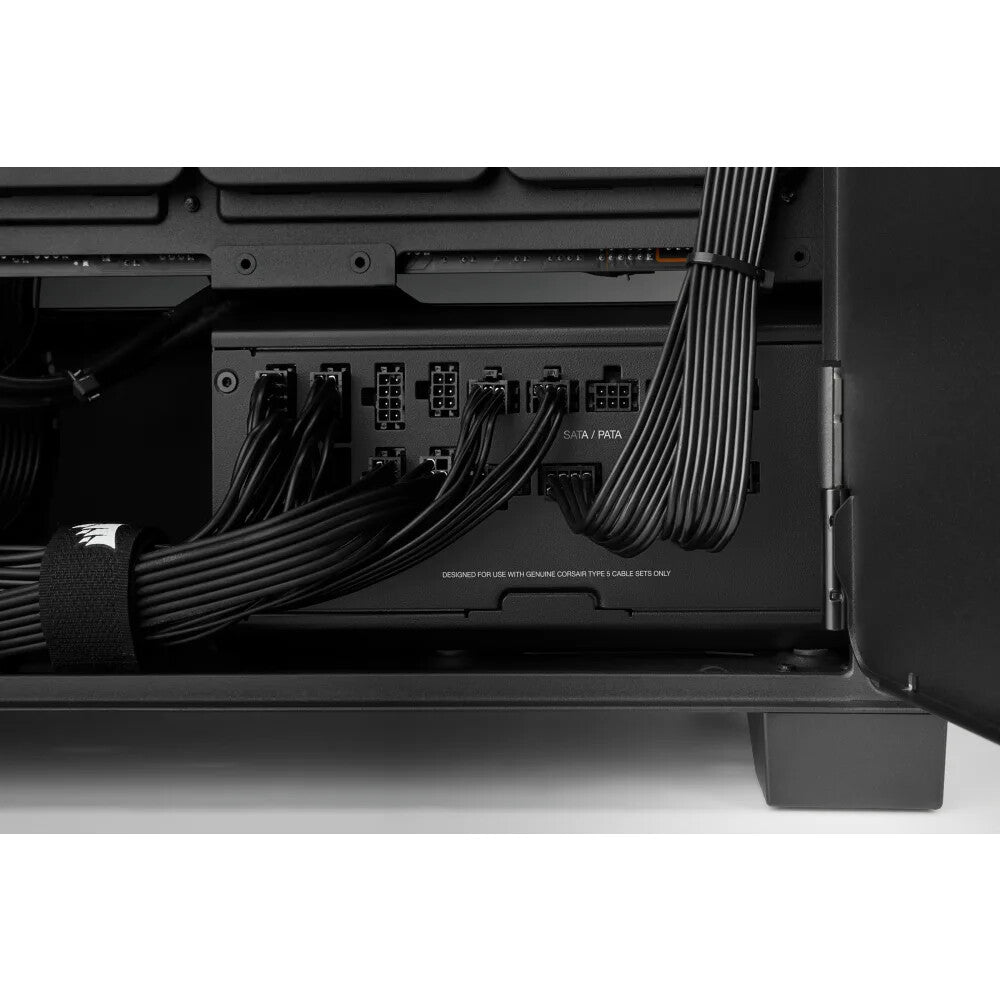

SIDE MOUNTED CONNECTIONS
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.

ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.

PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.

80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.

WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.

Power
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit
Efficiency 90%
Max output current (+5Vsb) 3 A
Max output current (+5V) 20 A
Max output current (+12V) 100 A
Max output current (+3.3V) 20 A
Combined power (+5Vsb) 15 W
Combined power (+5V) 150 W
Combined power (+12V) 1200 W
Combined power (+3.3V) 150 W
Input current 7.5 - 15 A
AC input frequency 47 - 63 Hz
AC input voltage 100 - 240 V
Total power 1200 W
Ports & interfaces
Cabling type Fully-Modular
PCI Express power cable length 75 cm
PCI Express power connectors (16-pin) 1
PCI Express power connectors (6+2 pin) 8
EPS power connector (4+4 pin) Yes
Peripheral (Molex) power cable length 450,550,650,750 mm
Peripheral (Molex) power connectors (4-pin) 8
SATA power cable length 455,570,685,800 mm
Number of SATA power connectors 16
Motherboard power cable length 61 cm
Motherboard power connector 24-pin ATX
Performance
Mean time between failures (MTBF) 100000 h
Bearing technology FDB
EPS version 2.92
ATX version 3.0
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
Purpose PC/Server
Design
On/off switch Yes
Number of fans 1 fan(s)
Fan diameter 14 cm
Cooling type Active
Product colour Black
Packaging content
Cable tie(s) included Yes
Cables included AC, DC
Weight & dimensions
Weight 2 kg
Height 86 mm
Depth 180 mm
Width 150 mm
Technical details
Compliance certificates Low Voltage Directive (LVD), RoHS, UKCA
Sustainability compliance Yes
Other features
Screws included Yes
EPS cable length 65 cm

Highlight feature
