480 GB, M2, 3D TLC NAND, PCI E Gen 3 x 4

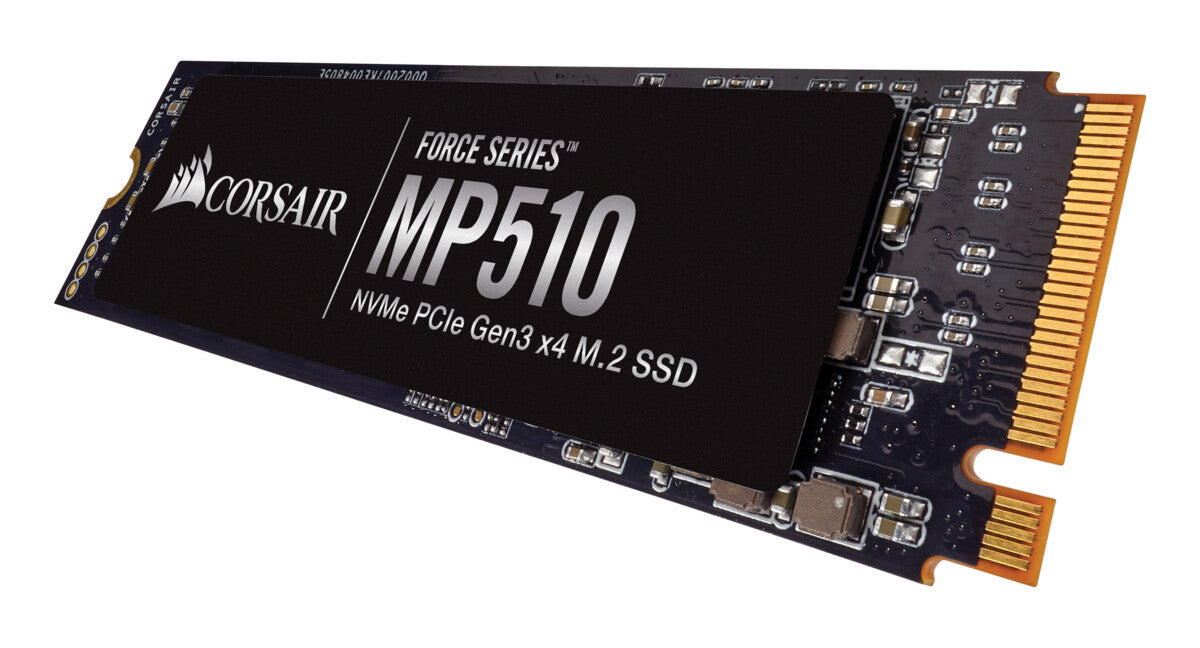

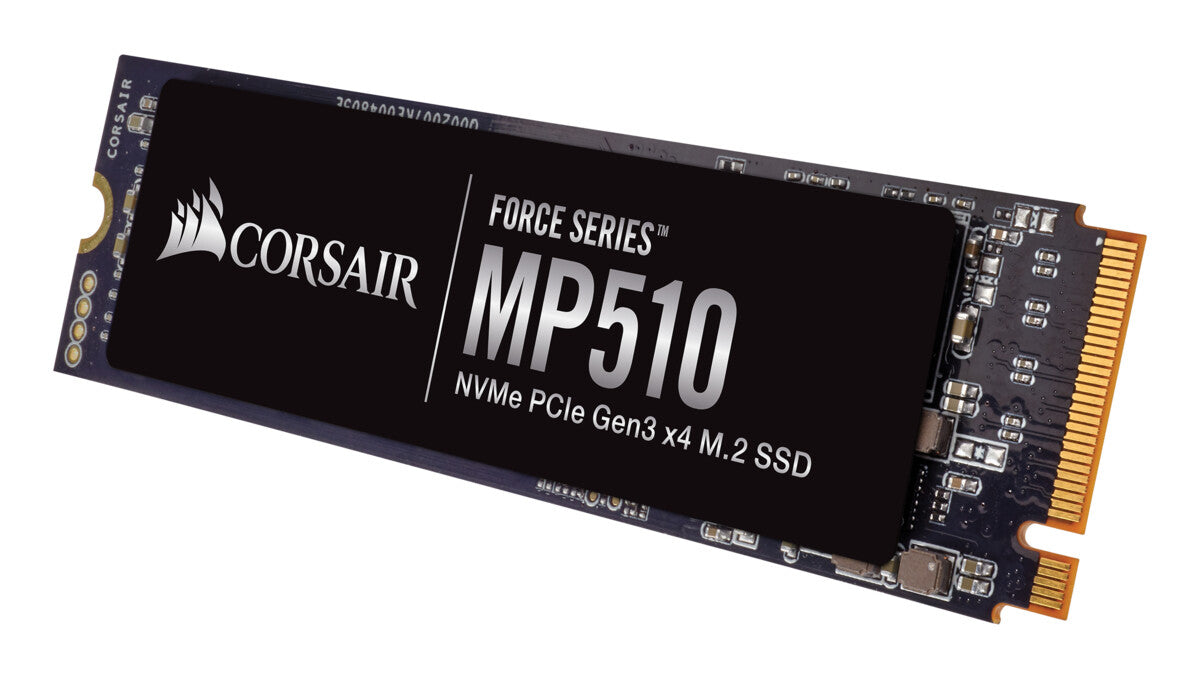

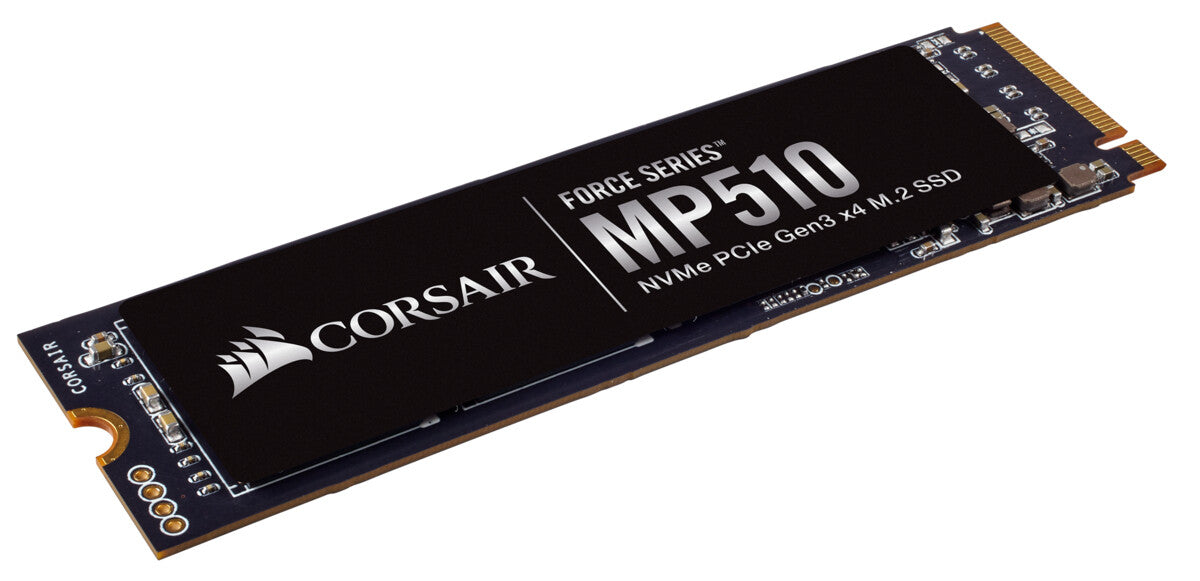

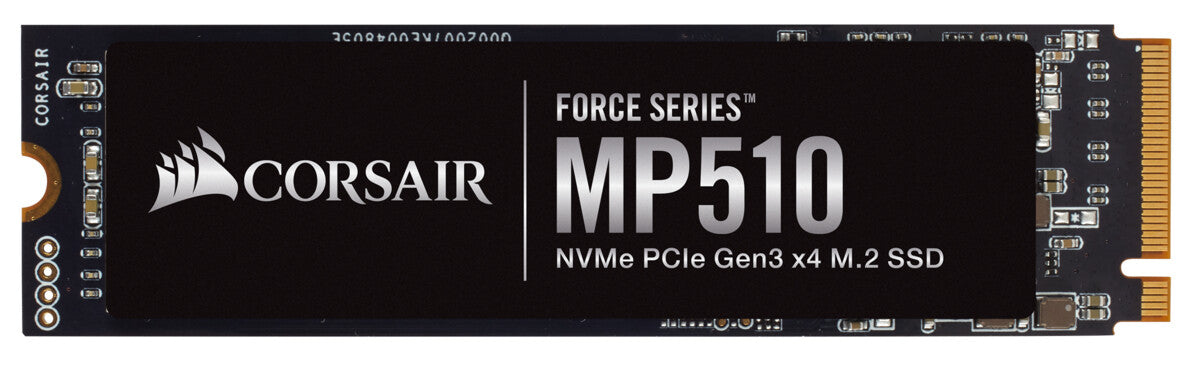

The CORSAIR Force MP510 NVMe PCIe Gen3 x4 M.2 SSD provides extreme storage performance with blazing fast read speeds of up to 2,000MB/sec.
EXTREME STORAGE PERFORMANCE
All-new extreme data performance controller delivers up to 2,000MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.
HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE
For simple connection and maximum bandwidth.
HIGH-DENSITY 3D TLC NAND
Provides the ideal mix of performance, endurance and value to keep your drive performing at its best for years.
COMPACT M.2 2280 FORM FACTOR

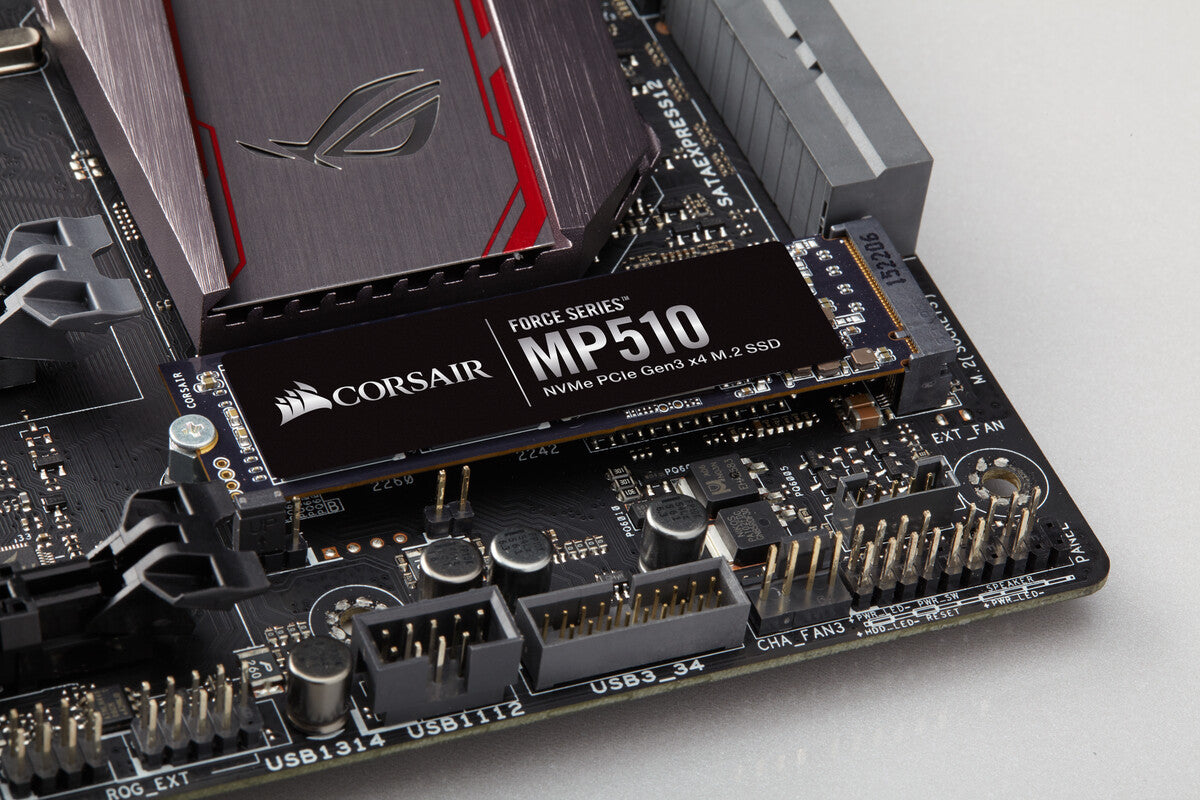

Ultra-compact M.2 2280 size fits directly into your notebook or motherboard with no additional cables or connectors.
| Features |
|---|
| Certification |
FCC, CE |
| Mean time between failures (MTBF) |
1800000 h |
| S.M.A.R.T. support |
Yes |
| TRIM support |
Yes |
| PCI Express CEM revision |
3.0 |
| PCI Express interface data lanes |
x4 |
| Sequential write speed (AS SSD) |
3000 MB/s |
| Sequential read speed (AS SSD) |
2000 MB/s |
| Sequential write speed (CDM) |
2000 MB/s |
| Sequential read speed (CDM) |
3480 MB/s |
| Random write (4KB) |
440000 IOPS |
| Random read (4KB) |
360000 IOPS |
| Security algorithms |
256-bit AES |
| Component for |
PC/Laptop |
| NVMe version |
1.3 |
| NVMe |
Yes |
| Memory type |
3D TLC NAND |
| Interface |
PCI Express 3.0 |
| SSD capacity |
480 GB |
| SSD form factor |
M.2 |
| Power |
|---|
| Power consumption (write) |
4.8 W |
| Power consumption (read) |
6.7 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 65 °C |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
30 g |
| Height |
3 mm |
| Depth |
80 mm |
| Width |
22 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84717070 |
