542x556x250, Black, Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic, Mid-Tower
SUPERSIZED
FILL IT UP WITH THE LATEST HARDWARE
The spacious interior is fully compatible with SSI-EEB/CEB motherboards for servers as well as more traditional ATX, E-ATX, and motherboards with reverse connectors.
GPU OPTIMIZED
BUILT FOR DEMANDING WORKLOADS
The interior of the FRAME 5000D WORKSTATION is made for multi-GPU builds with ample vertical clearance for up to four dual-slot GPUs for advanced rendering, CAD, and AI workloads.
PEACEFULLY POWERFUL
BUILT TO ELIMINATE NOISE
The steel side panels feature embedded sound dampening materials for quiet operation, while the massive 200mm intake fans in the ventilated front panel and rear 140mm exhaust fan provide continuous airflow with very little noise.
EXPANSION IS ENCOURAGED
PLENTIFUL STORAGE
Abundant storage options include dual HDD/SDD combo trays and two dedicated 2.5" SSD trays for a total of 2x 3.5" HDDs and up to 6x 2.5" SSDs for those who need more than just M.2 drives.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 9x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators in the roof and front.
DIMENSIONS
The FRAME 5000D WORKSTATION has a cavernous interior designed for high-powered builds and abundant cooling.
FAN CAPACITY

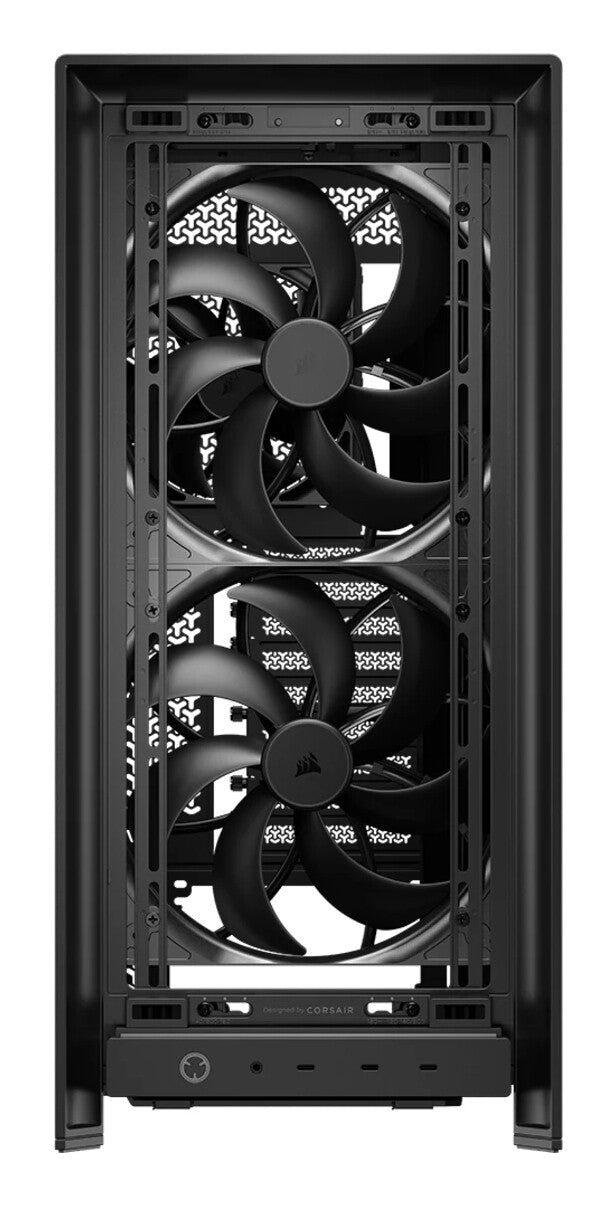

Includes 2x 200mm intake fans and 1x 140mm exhaust fan with a total of 9x 120mm or 140mm fan mounts for flexible cooling options on every surface of the interior.
RADIATOR CAPACITY
Mount a 360mm or 280mm radiator in the front and a 360mm or 480mm radiator on top for enhanced airflow
MODERN FRONT PANEL I/O
Puts your connections within easy reach, including 2x USB 3.2 Gen 1 Type-C ports, 1x USB 3.2 Gen 2x2 Type-C port, and a combination audio/microphone jack.
TAILOR MADE
MODULAR AND CUSTOMIZABLE
The FRAME 5000D WORKSTATION is a flexible and powerful platform that can be customized to fit your exact needs. CORSAIR offers UV printing options for personalized branding, as well as bespoke chassis configurations for a wide variety of build diversity thanks to the FRAME Modular Case System.
| Design |
|---|
| Form factor |
Midi Tower |
| Type |
PC |
| Material |
Plastic, Steel, Tempered glass |
| Product colour |
Black |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
6 |
| Number of expansion slots |
8 |
| Side window |
Yes |
| Suitable for |
Gaming |
| Tempered glass panel(s) |
Yes |
| Anti-dust filter |
Yes |
| Cable management |
Yes |
| On/off button |
Yes |
| Maximum CPU cooler height |
17.5 cm |
| Maximum graphics card length |
45 cm |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Display |
|---|
| Built-in display |
No |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB Type-C ports quantity |
3 |
| Combo headphone/mic port |
Yes |
| Cooling |
|---|
| Front fans installed |
2x 200 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120,140,200 mm |
| Number of side fans supported (max) |
3 |
| Side fans diameters supported |
120,140 mm |
| Rear fans installed |
1x 140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Number of bottom fans supported (max) |
4 |
| Bottom fans diameters supported |
120 mm |
| Suitable location |
Computer case |
| Liquid cooling capability |
Yes |
| Front radiator sizes supported |
240,280,360 mm |
| Side radiator sizes supported |
240,280,360 mm |
| Rear radiator sizes supported |
120,140 mm |
| Top radiator sizes supported |
240,280,360,420 mm |
| Storage |
|---|
| Supported HDD sizes |
3.5" |
| HDD/SSD combo cage |
Yes |
| SSD form factor |
2.5" |
| Number of HDDs supported |
2 |
| Weight & dimensions |
|---|
| Width |
250 mm |
| Depth |
556 mm |
| Height |
542 mm |
| Weight |
15.5 kg |
