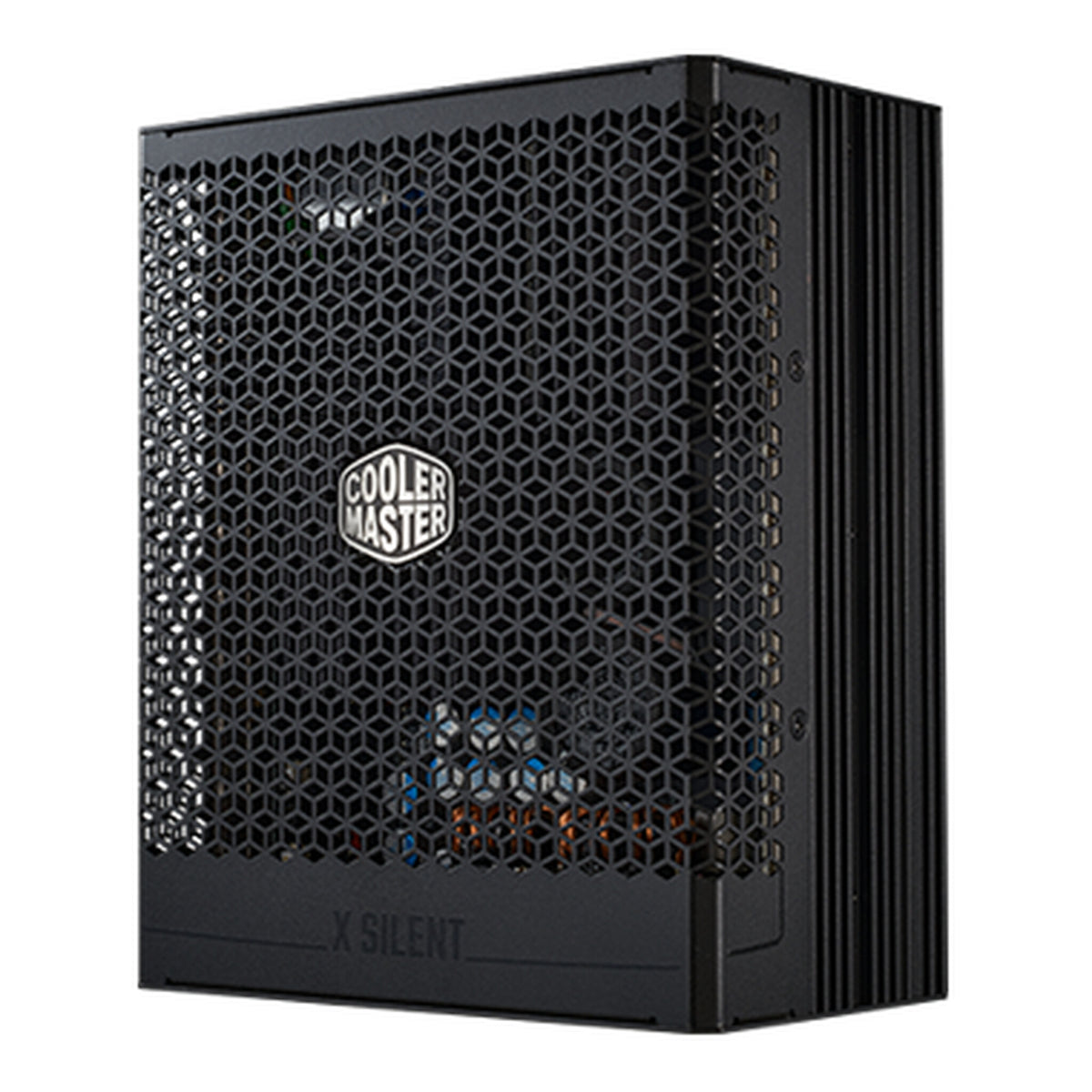

1100W, ATX 12V Ver. 3.1, 200-240V, 6.1A, 50-60Hz, 80 PLUS Platinum, 100 - 150 ms, EU
Precise Silent Power
Engineered with a fanless design and industrial IC components, X Silent Edge Platinum features out Heat Pipe.
Dissipation Patent, ensuring quietness for even the most noise-sensitive environments.
NO FAN, NO DUST
Equipped with a heat pipe and an innovative modular thermal structure, our design enhances thermal efficiency, essential for the low-temperature rise of key components and the ultra-quiet fanless operation.
FULLY MODULAR CABLING
Modular cabling minimizes clutter, while the additional ports provide extra functionality.
Cooling System
Patented Heat Decentralized Design
Our Private Aluminum Thermal Mold effectively dissipates heat, and the Innovative Heat Pipe Thermal Tech uniformly regulates unit temperature. This ensures superior thermal control, enhancing efficiency and longevity in demanding environments.
Patented Copper-Aluminum Heat Dissipation
In-house designed composite heat pipe technology enables effective passive thermal management.
Digital Power Management System & MasterCTRL
Equipped with MCUs and Integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load and efficiency in real-time, offering precise and direct oversight.
Active Bridge Rectifier Boosts Efficiency 2%
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
ATX 3.1 SUPPORT & A Dual-color 12V-2X6 Cable
Includes ATX 3.1 support and a dual-color 12V-2x6 connector (with clear purple markings) help users confirm correct installation, preventing poor contact and power issues for enhanced safety and reliability.
In-house designed composite heat pipe technology enables effective passive thermal management.
| Power |
|---|
| Total power |
1100 W |
| AC input voltage |
200 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
6.1 A |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
120 W |
| Combined power (+12V) |
1099.2 W |
| Combined power (+5V) |
120 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
20 A |
| Max output current (+12V) |
91.6 A |
| Max output current (+5V) |
20 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| Power Good signal delay range |
100 - 150 ms |
| Hold time |
16 ms |
| Efficiency |
94% |
| Power protection features |
Over power, Over voltage, Overheating, Over current, Short circuit, Under voltage |
| Ports & interfaces |
|---|
| Motherboard power connector |
24-pin ATX |
| Motherboard power cable length |
65 cm |
| Number of SATA power connectors |
3 |
| SATA power cable length |
500,650,700,850 mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Peripheral (Molex) power cable length |
500,620,740,860 mm |
| EPS power connector (8-pin) |
Yes |
| EPS power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
4 |
| PCI Express power connectors (12+4 pin) cable length |
650 mm |
| PCI Express power connectors (12+4 pin) |
1 |
| PCI Express power cable length |
55 cm |
| PMBus connector (5-pin) |
1 |
| PMBus connector (5-pin) cable length |
65 cm |
| External fan connector (4-pin) |
Yes |
| External fan connector (4-pin) cable length |
40 cm |
| USB motherboard connector cable length |
80 cm |
| USB motherboard connector |
Yes |
| Cabling type |
Fully-Modular |
| Performance |
|---|
| Purpose |
PC |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Platinum |
| ATX version |
3.1 |
| Mean time between failures (MTBF) |
100000 h |
| Certification |
ErP 2014 Lot 3 |
| Design |
|---|
| Product colour |
Black |
| Number of fans |
0 fan(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Width |
150 mm |
| Depth |
180 mm |
| Height |
86 mm |
| Weight |
3.8 kg |
| Packaging data |
|---|
| Package width |
241 mm |
| Package depth |
420 mm |
| Package height |
124 mm |
| Package weight |
5 kg |
| Technical details |
|---|
| Compliance certificates |
CCC, CE, EAC, RCM, UKCA, BIS, KC |
| Logistics data |
|---|
| Master (outer) case width |
263 mm |
| Master (outer) case length |
432 mm |
| Master (outer) case height |
274 mm |
| Other features |
|---|
| EPS cable length |
65 cm |
