Cooler Master

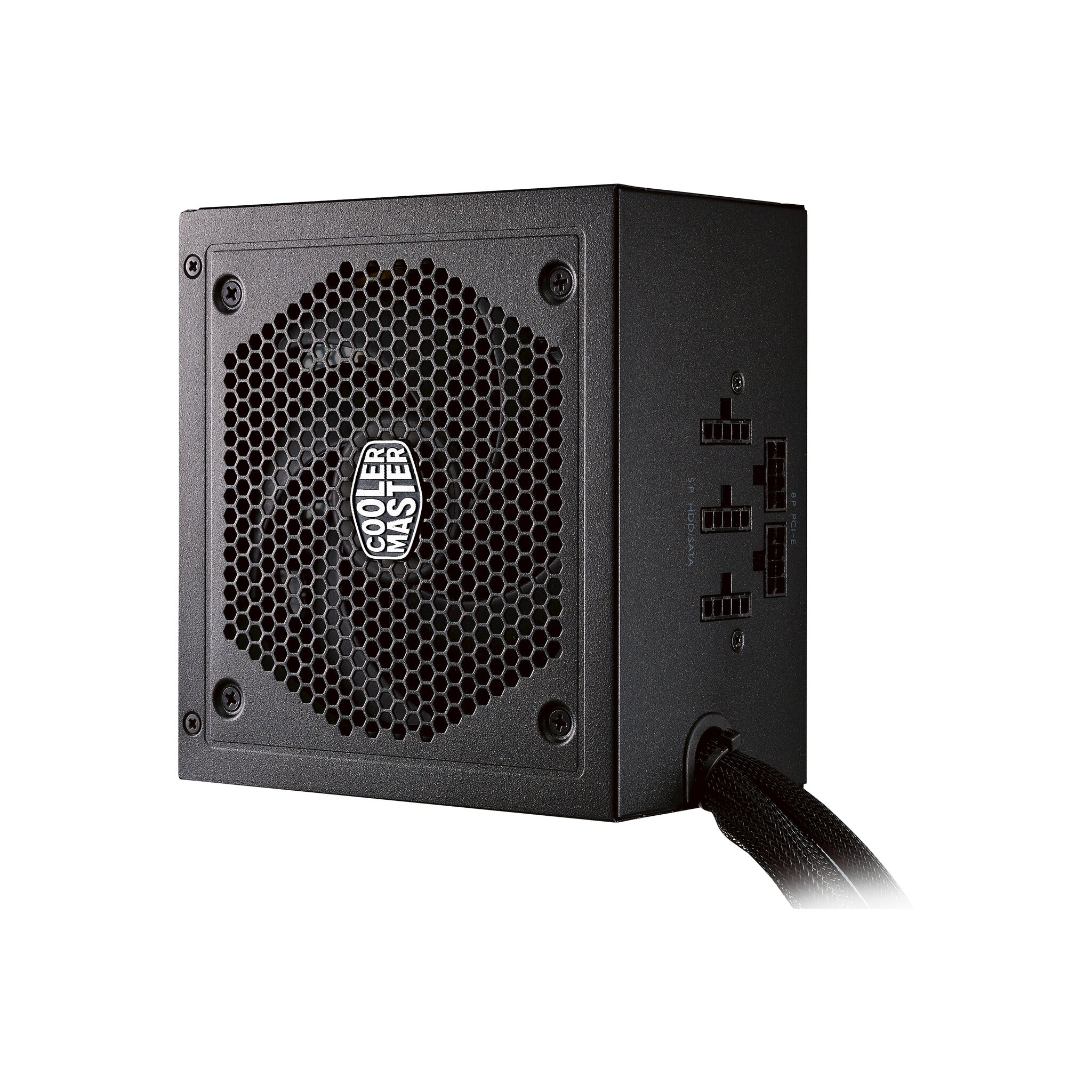

Cooler Master MasterWatt 750 power supply unit 750 W 24-pin ATX ATX Black

R 1,378.62
R 1,378.62
R 1,378.62
Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock
MasterWatt 750, ATX 12V V2.4, 100-240V AC, 100-500 ms, 85%, Black, WO

The MasterWatt is an 80 Plus Bronze power supply with an innovative semi-fanless mode. Under 15% load,the MasterWatt fan remains idle,offering zero dBA. When demand for power increases,a gradual fan curve provides measured cooling with little to no noise at any output level. Dual forward / DC-to-DC topology is employed to keep the voltage stable in all conditions. For increased performance,MasterWatt is equipped with 16 AWG power cables,which reduces resistance,thereby increasing efficiency.

80 PLUS Bronze Certified
The 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%.

Durable LDB Bearing
Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.

A. Sealant on the The groove outside of the bearing helps to circulate the oil
B. Sealant on the bobbin and featuring the highest dustproof level IP6X
C. Recycle slot adds extra storage space for the oil
D. The shaft makes the oil flow by pumping it while spinning

Semi-Fanless up to 15% load
MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing.

Dual Forward and DC-to-DC Circuit Design
The Dual Forward and DC-to-DC circuit design offers reliability and stability.This is especially significant in +3.3V and +5V outputs.

More Conductive PCI-e Cables
The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better efficiency,providing you a safer user environment.

Power
Power protection features Over current, Over power, Over voltage, Short circuit, Under voltage
Power Good signal delay range 100 - 500 ms
Hold time 16 ms
Efficiency 85%
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.3 A
Max output current (+5V) 22 A
Max output current (+12V) 62.5 A
Max output current (+3.3V) 22 A
Combined power (+5Vsb) 15 W
Combined power (-12V) 3.6 W
Combined power (+5V) 120 W
Combined power (+12V) 750 W
Combined power (+3.3V) 120 W
Power Factor Correction (PFC) type Active
Input current 5 - 10 A
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Total power 750 W
Ports & interfaces
Cabling type Semi-Modular
Floppy drive power connector 1
Floppy disk drive connector Yes
CPU power cable length 60 cm
CPU power connector (4+4 pin) Yes
PCI Express power cable length 67 cm
PCI Express power connectors (6+2 pin) 3
Peripheral (Molex) power cable length 500,620 mm
Peripheral (Molex) power connectors (4-pin) 3
SATA power cable length 500,620,860 mm
Number of SATA power connectors 9
Motherboard power cable length 55 cm
Motherboard power connector 24-pin ATX
Performance
Certification CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC,CB
Mean time between failures (MTBF) 100000 h
Bearing technology LDB
ATX version 2.4
80 PLUS certification 80 PLUS Bronze
Power supply unit (PSU) form factor ATX
Purpose PC
Design
Number of fans 1 fan(s)
Fan diameter 12 cm
Cooling type Active
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 2.03 kg
Height 86 mm
Depth 140 mm
Width 150 mm
Packaging data
Package weight 2.4 kg
Package height 112 mm
Package depth 276 mm
Package width 194 mm
Logistics data
Products per master (outer) case 5 pc(s)
Master (outer) case height 218 mm
Master (outer) case length 582 mm
Master (outer) case width 289 mm
Products per pallet 24 pc(s)
