Cooler Master

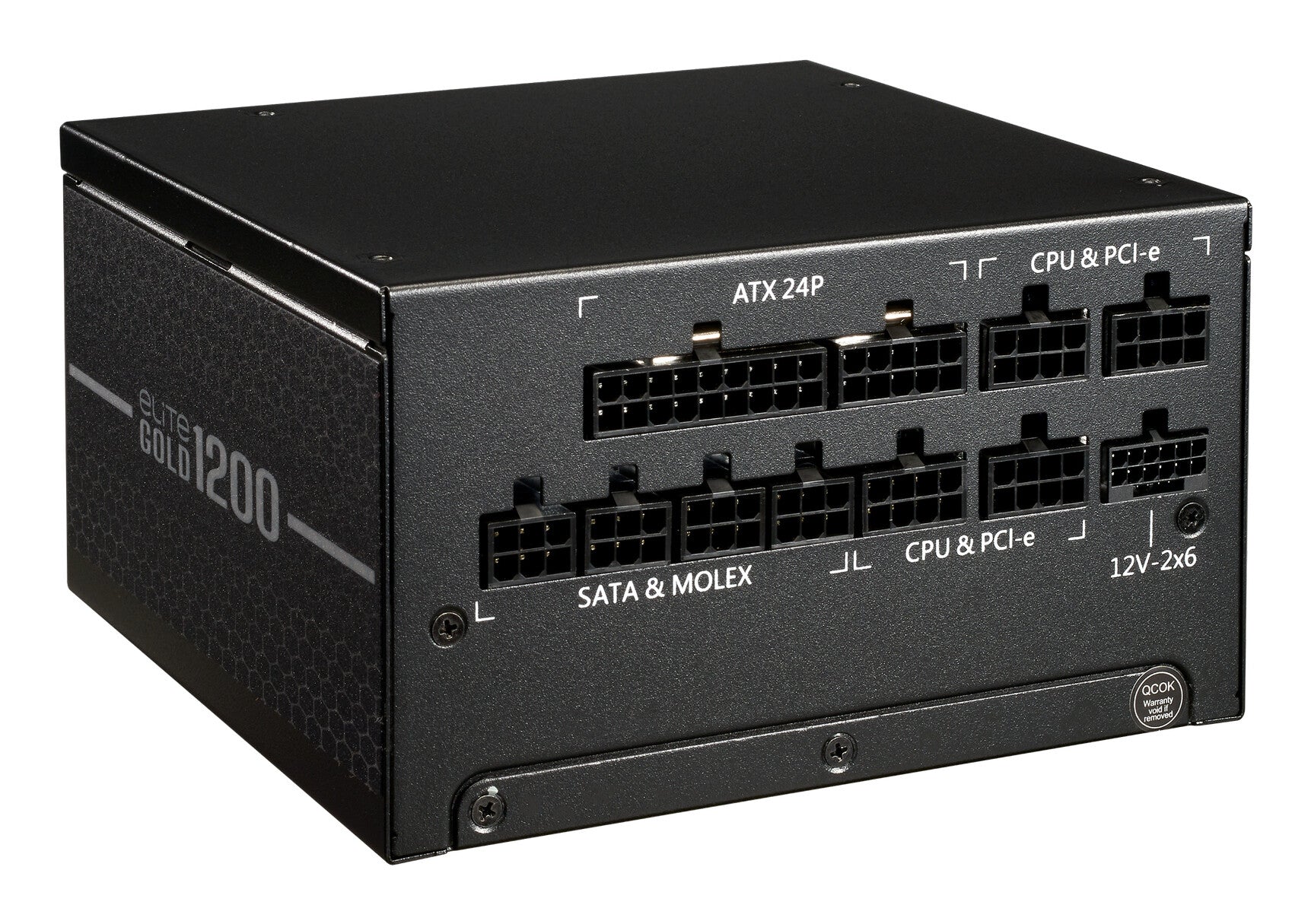

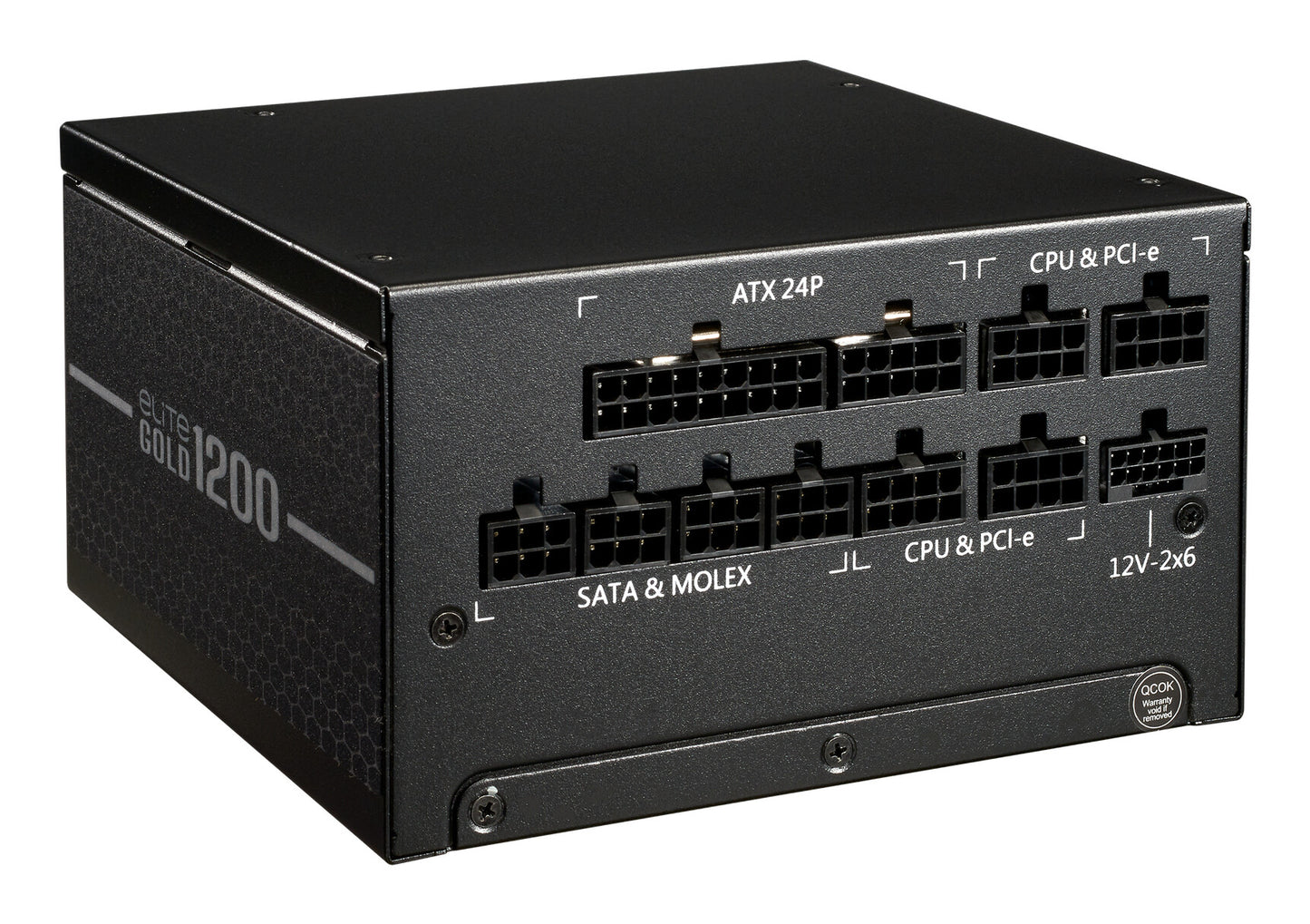

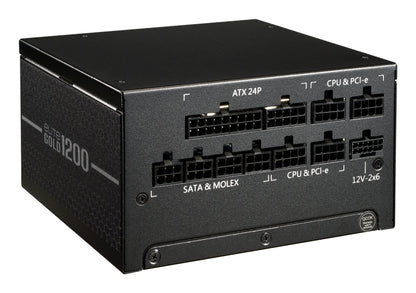

Cooler Master Elite Gold 1200 power supply unit 1200 W 24-pin ATX ATX Black

R 2,758.62
R 2,758.62
R 2,758.62
Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock
1200 W, 135 mm, FDB, ATX 12V Ver. 3.1, 1x ATX 24 Pin, 2x EPS 4+4 Pin, 9x SATA, 3x Peripheral, 6x PCl-e 6+2 Pin, 12+4pin, 100-240 V, 50/60 Hz, 150 x 150 x 86 mm

HIGH-POWER GOLD PERFORMANCE FOR GAMING AND WORKSTATIONS

Cooler Master Elite Gold 1200 powers high-end gaming rigs and professional systems with ATX 3.1 support - ideal for RTX 50 GPUs. It offers 80 Plus Gold efficiency, reliable operation up to 40°C, quiet FDB cooling, embossed modular cables, dual EPS connectors, and a 5-year warranty for dependable, high-load performance.

Compatible with ATX 3.1 and PCIe Gen 5.1 standards

ATX 3.1 provides tighter voltage and current regulation, supporting up to 200% peak power. The Elite Gold 1200 meets full ATX 3.1 specs and supports PCIe Gen 5.1 for stable next-gen performance with RTX 50 GPUs and future high-power cards.

*All performance stats confirmed in 25°C ambient temperature testing.

High Temperature Resilience

Operates reliably at up to 40°C, making it ideal for extended gaming sessions, professional rendering, and sustained high-load workloads—all without sacrificing stability or efficiency.

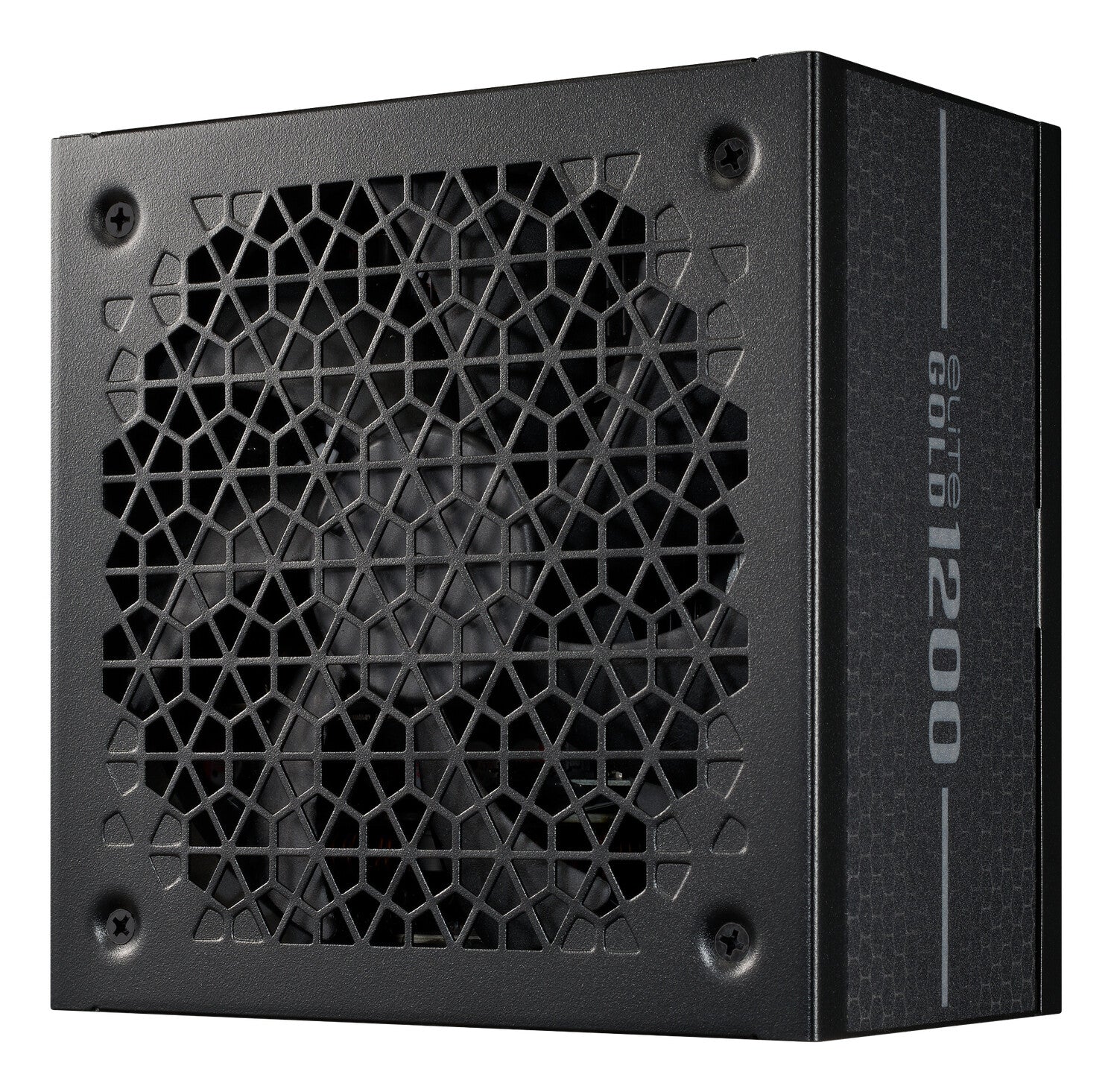

QUIET FDB FAN

Fluid Dynamic Bearing fan ensures long-lasting, stable, and quiet cooling. Fan speed adjusts automatically based on power and stops when the system is idle or under low load (below 30%).

*All performance stats confirmed in 25°C ambient temperature testing.

80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 1200 achieves over 90% efficiency at typical loads, reducing energy waste and heat output.

*All performance stats confirmed in 25°C ambient temperature testing.

Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering improved grip and a premium look for easier management and a cleaner overall setup.

*All performance stats confirmed in 25°C ambient temperature testing.

Power
Total power 1200 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 7.5 - 15 A
Power Factor Correction (PFC) type Active
Number of +12V rail(s) 1
Combined power (+3.3V) 120 W
Combined power (+12V) 1200 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 22 A
Max output current (+12V) 100 A
Max output current (+5V) 22 A
Max output current (-12V) 3.6 A
Max output current (+5Vsb) 3 A
Power Good signal delay range 100 - 150 ms
Hold time 16 ms
Efficiency 90%
Power protection features Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector 24-pin ATX
Motherboard power cable length 60 cm
Number of SATA power connectors 9
SATA power cable length 500,600,700 mm
Number of SATA power cables 3
Peripheral (Molex) power connectors (4-pin) 3
Peripheral (Molex) power cable length 500,600,700 mm
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 6
PCI Express power connectors (12+4 pin) cable length 600 mm
PCI Express power connectors (12+4 pin) 1
ATX Power connector (24-pin) Yes
Number of EPS connectors 2
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
ATX version 3.1
Bearing technology FDB
Mean time between failures (MTBF) 100000 h
Certification cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0, REACH
Design
Product colour Black
Cooling type Active
Fan diameter 13.5 cm
Number of fans 1 fan(s)
Fan location Top
On/off switch Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 150 mm
Depth 150 mm
Height 86 mm
