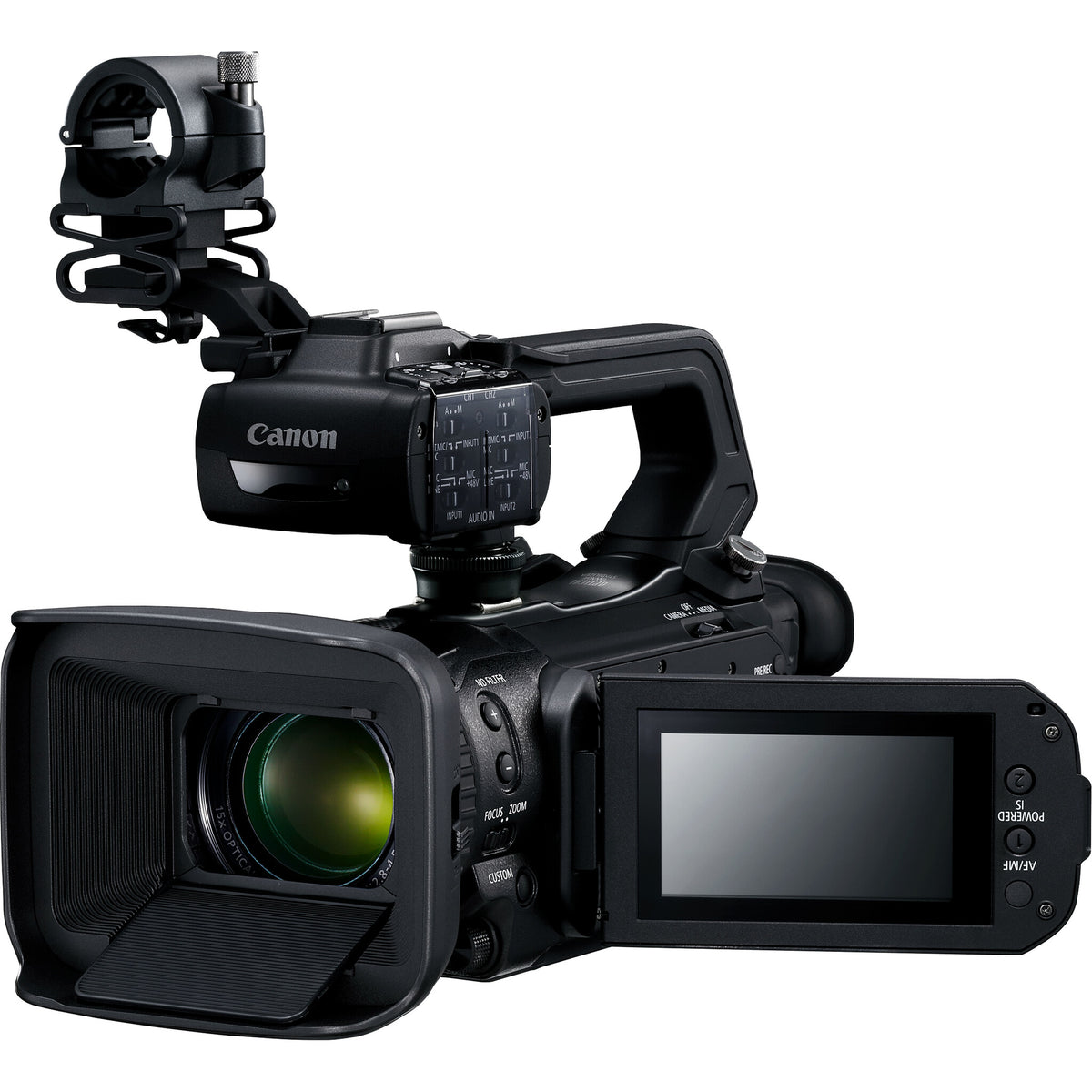

1.0 CMOS, 13.4 MP, 3840 x2160, 15x, 9 blades, DIGIC DV 6, SD/SDHC/SDXC, LCD
Fast and precise Dual Pixel CMOS AF
The XA55 / XA50 incorporates Dual Pixel CMOS AF for fast and accurate autofocusing in approximately 80% (vertically and horizontally) of the sensor. Face detection AF and Touch tracking operation enable seamless focus control for intuitive operation. A Dual Pixel Focus Guide provides a graphical interface to aid manual focusing.
XF-AVC and MP4 recording to SD cards
The XA55 / XA50 supports multi-format recording capabilities including XF-AVC and MP4. It records XF-AVC 4K UHD 160Mbps up to 25P, plus Full HD 45Mbps at 50P/50i/25P. It is also possible to record MP4 4K 150Mbps at 25P and Full HD 35Mbps at 50P/25P. Slow and Fast motion recording are also possible in 4K/Full HD up to 1200x.
Compact and lightweight with professional functions
Powerful functionality includes an Infrared mode – allowing users to capture video in conditions with little to no ambient light – and simultaneous backup and relay recording with dual SD card slots. Other features include 3G-SDI (XA55 only), professional audio support with two XLR terminals and 4-channel linear PCM, and low power consumption for an extended battery life.
| Image sensor |
|---|
| Total megapixels |
13.4 MP |
| Sensor type |
CMOS |
| Effective megapixels (movie) |
8.29 MP |
| Lens system |
|---|
| Optical zoom |
15x |
| Image stabilizer |
Yes |
| Digital zoom |
300x |
| Focal length (35mm film equivalent) |
25.5 - 382.5 mm |
| Filter size |
58 mm |
| Image stabilizer type |
Hybrid Image Stabilization (HIS) |
| Minimum aperture number |
2.8 |
| Maximum aperture number |
11 |
| Storage |
|---|
| Camcorder media type |
Memory card |
| Compatible memory cards |
SD |
| Disc types supported |
No |
| Memory slots |
2 |
| Exposure |
|---|
| Scene modes |
Beach, Fireworks, Night, Portrait, Snow, Sports, Spotlight, Sunrise |
| White balance |
|---|
| White balance |
Auto, Daylight, Tungsten |
| Display |
|---|
| Display diagonal |
7.62 cm (3") |
| Built-in display |
Yes |
| Display |
LCD |
| Touchscreen |
Yes |
| Viewfinder |
|---|
| Viewfinder screen size |
0.24" |
| Camera |
|---|
| Camcorder type |
Handheld camcorder |
| Minimum illumination |
0.1 lx |
| Image processor |
DIGIC DV 6 |
| Shooting modes |
Auto, Manual |
| 3D |
No |
| Remotely operated |
Yes |
| Design |
|---|
| Product colour |
Black |
| Video |
|---|
| HD type |
4K Ultra HD |
| Maximum video resolution |
3840 x 2160 pixels |
| Video resolutions |
1920 x 1080,3840 x 2160 pixels |
| Analog signal format system |
PAL |
| Still image |
|---|
| Maximum image resolution |
3840 x 2160 pixels |
| Image formats supported |
JPEG |
| Audio |
|---|
| Built-in microphone |
Yes |
| Audio formats supported |
LPCM, MP4 |
| Ports & interfaces |
|---|
| HDMI |
Yes |
| USB 2.0 ports quantity |
1 |
| DC-in jack |
Yes |
| Headphone outputs |
1 |
| Network |
|---|
| Bluetooth |
No |
| Wi-Fi |
No |
| Near Field Communication (NFC) |
No |
| Battery |
|---|
| Battery technology |
Lithium |
| Video recording time |
145 h |
| Battery life (max) |
145 h |
| General |
|---|
| Product family |
XA |
| Technical details |
|---|
| Number of diaphragm blades |
9 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-5 - 45 °C |
| Weight & dimensions |
|---|
| Width |
109 mm |
| Depth |
91 mm |
| Height |
214 mm |
| Weight |
970 g |
