600x600DPI, LED, 216x356mm, USB 2.0, 600g, black

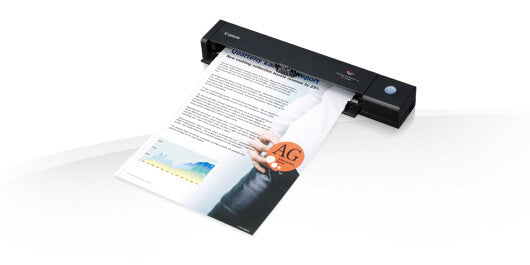

Outstandingly portable and ADF-equipped
The P-208ll now comes equipped with ADF that can hold up to 10 documents. With its compact design, this lightweight scanner — weighing just 600g and measuring 312.5 x 55.5 x 40mm — is small enough to fit neatly into a bag for quick and easy use wherever you go.
Plug & Scan
There is no need to install any driver software or scanning application on your PC as the pre-installed scanning utility, CaptureOnTouch Lite, provides plug-and-scan capabilities. Simply opening the feed tray turns the scanner on and makes it ready to scan.
USB Powering
For enhanced portability, it now comes loaded with a USB bus power drive that makes scanning possible without an AC/DC adaptor. You can scan wherever and whenever the need arises using a single USB cable that packs away neatly when the job is done.
Full auto mode
This mode allows you to scan documents that contain pages of varying type under conditions that best suit each type. The mode also includes the Skip Blank Page function for efficient scanning of only the necessary pages.
Picture mode
Use the picture scanning mode to reproduce gradation in colour more accurately in scanned image.
| Scanning |
|---|
| Maximum scan size |
216 x 356 mm |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Input colour depth |
24 bit |
| Film scanning |
No |
| Greyscale levels |
256 |
| ADF scan speed (b/w, A4) |
8 ppm |
| ADF scan speed (colour, A4) |
6 ppm |
| Duplex ADF scan speed (colour, A4) |
12 ipm |
| Duplex ADF scan speed (b/w, A4) |
16 ipm |
| Black/white scanning colour modes |
Grayscale |
| Design |
|---|
| Scanner type |
Sheet-fed scanner |
| Built-in display |
No |
| Product colour |
Black |
| Performance |
|---|
| Sensor type |
CMOS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
250 pages |
| Scan drivers |
ISIS, TWAIN |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
10 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A4 |
| Scanning media types supported |
Business Card, Card stock, Plain paper, Post Card(JPN) |
| ISO A-series sizes (A0...A9) |
A4 |
| Letter |
Yes |
| Media thickness (min) |
0.06 mm |
| Card thickness (max) |
0.22 mm |
| Auto Document Feeder (ADF) media weight |
52 - 380 g/m² |
| Minimum scan area (ADF) |
50.8 x 70 mm |
| Maximum scan area (ADF) |
216 x 356 mm |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB version |
2.0 |
| Standard interfaces |
USB 2.0 |
| Power |
|---|
| Power consumption (typical) |
2.5 W |
| Power supply type |
USB |
| Power consumption (standby) |
1.5 W |
| Power consumption (off) |
0.1 W |
| Current |
0.5 A |
| General |
|---|
| Product family |
imageFORMULA |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 32.5 °C |
| Operating relative humidity (H-H) |
25 - 80% |
| Weight & dimensions |
|---|
| Width |
312.5 mm |
| Depth |
89.5 mm |
| Height |
40 mm |
| Weight |
600 g |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Sustainability certificates |
ENERGY STAR |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
