DR-S150, 600dpi, RGB LED, CMOS CIS 1 Line Sensor, USB, Wi-Fi, LAN, 45ppm / 90ipm, AC 100-240V, 291x247x242 mm
Intuitive, high-quality scanning with versatile connectivity
Discover fast, reliable and high-performance scanning, with easy operation via the large colour touch screen. LAN, WiFi or USB interface options allow flexible connectivity, for convenient use across all types of scanning applications and environments.
Flexible connectivity
USB, LAN and Wi-Fi connection options for smooth integration.
High performance
Consistently accurate colour image processing of up to 45ppm/90ipm.
Maximised productivity

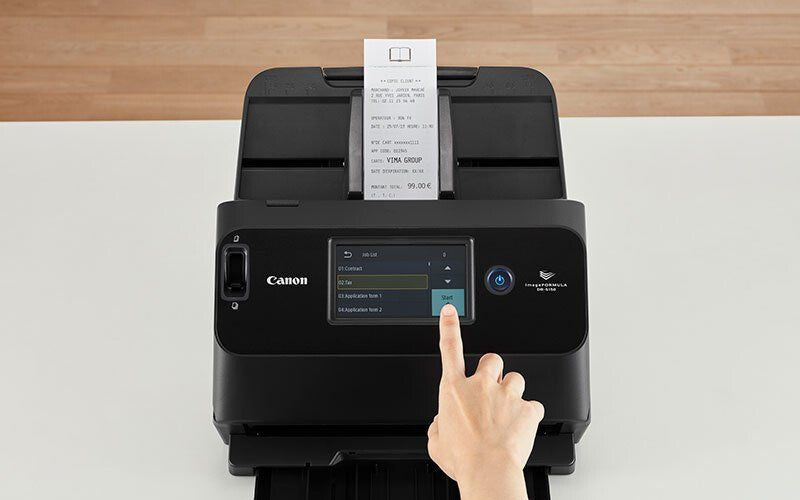

Simple operation with a large 4.3” LCD colour touch screen and one-touch configurations.
| Scanning |
|---|
| Maximum scan size |
216 x 356 mm |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| ADF scan speed (b/w, A4) |
45 ppm |
| ADF scan speed (colour, A4) |
45 ppm |
| Duplex ADF scan speed (colour, A4) |
90 ipm |
| Duplex ADF scan speed (b/w, A4) |
90 ipm |
| Design |
|---|
| Scanner type |
ADF + Manual feed scanner |
| Built-in display |
Yes |
| Product colour |
Black |
| Display |
LCD |
| Touchscreen |
Yes |
| Colour display |
Yes |
| Performance |
|---|
| Sensor type |
CMOS CIS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
4000 pages |
| Barcode reader |
Yes |
| Scan drivers |
ISIS, TWAIN |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
60 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A4 |
| Scanning media types supported |
Business Card, Plastic Card |
| Maximum scan width |
21.6 cm |
| Maximum scan length |
35.6 cm |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| Standard interfaces |
Ethernet, USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN |
| Power |
|---|
| Power consumption (typical) |
22.5 W |
| Power supply type |
AC |
| Power consumption (off) |
0.1 W |
| AC input frequency |
50 - 60 Hz |
| Sleep mode |
Yes |
| Input voltage |
100 - 240 V |
| Power consumption (sleep) |
3.4 W |
| General |
|---|
| Product family |
imageFORMULA |
| Network |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN |
Yes |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1 |
| Certificates |
|---|
| Certification |
EPEAT Gold |
| Weight & dimensions |
|---|
| Width |
291 mm |
| Depth |
247 mm |
| Height |
242 mm |
| Weight |
3.3 kg |
| Packaging content |
|---|
| Bundled software |
CaptureOnTouch Pro
CaptureOnTouch JobTool
Wireless Connection Setup Tool |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
