600 dpi, 30 ppm/60 ipm, CMOS CIS 1 Line Sensor, RGB LED, USB 3.2 Gen1, IEEE802.11b/g/n
imageFORMULA DR-S130
Easy reliable scanner with flexible network connectivity.
Intuitive, high-quality scanning with versatile connectivity
Discover fast, reliable and high-performance scanning, with easy operation via the large colour touch screen. WiFi or USB interface options allow flexible connectivity, for convenient use across all types of scanning applications and environments.
Flexible connectivity
USB, and Wi-Fi connection options for smooth integration.
High performance
Consistently accurate colour image processing of up to 30ppm/60ipm.
Maximised productivity

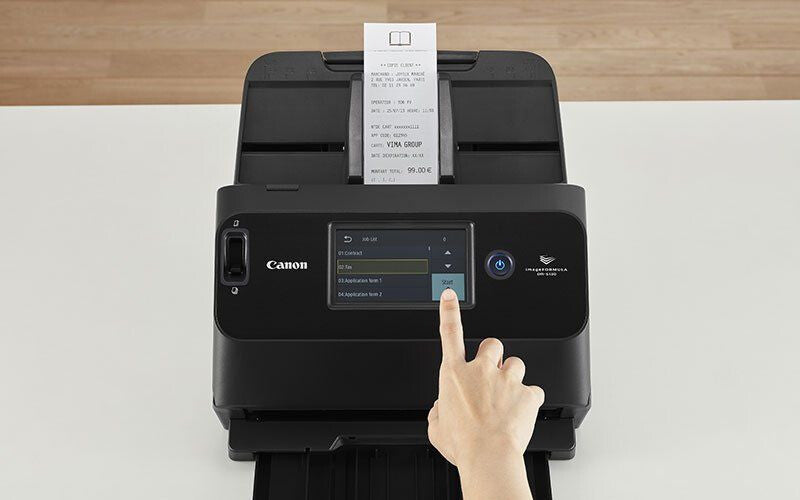

Simple operation with a large 4.3” LCD colour touch screen and one-touch configurations.
Productivity
30ppm/60ipm high speed colour scanning with 60 sheet ADF.
Connection options
WiFi and USB connectivity.
Easy operation
Large colour touch screen and direct Network PUSH scan function.
Robust design
Workloads up to 3,500 scans per day.
Automatic processing
Advanced intelligent processing with OCR, and Barcode /2D Code recognition.
Paper handling
Heavy duty rollers for reliable feeding of wide range documents, including passports and ID cards.
Software
Includes CaptureOnTouch Pro with easy capture and workflow processing tools.
| Scanning |
|---|
| Maximum scan size |
216 x 356 mm |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Output colour depth |
24 bit |
| Output greyscale depth |
8 bit |
| ADF scan speed (b/w, A4) |
30 ppm |
| ADF scan speed (colour, A4) |
30 ppm |
| Black/white scanning colour modes |
Grayscale, Monochrome |
| Design |
|---|
| Scanner type |
Sheet-fed scanner |
| Built-in display |
Yes |
| Product colour |
Black |
| Display |
LCD |
| Display diagonal |
10.9 cm (4.3") |
| Touchscreen |
Yes |
| Colour display |
Yes |
| Performance |
|---|
| Sensor type |
CMOS CIS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
3500 pages |
| Built-in OCR |
Yes |
| Barcode reader |
Yes |
| Ultrasonic double sheet detection |
Yes |
| Scan drivers |
ISIS, TWAIN |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
60 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A4 |
| Scanning media types supported |
Business Card, Plain paper, Plastic Card |
| Long-paper mode |
Yes |
| ID-card slot |
Yes |
| Legal |
Yes |
| Media thickness (min) |
0.04 mm |
| Card thickness (max) |
1.4 mm |
| Auto Document Feeder (ADF) media weight |
20 - 209 g/m² |
| Maximum scan width |
21.6 cm |
| Maximum scan length |
3 m |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| Power |
|---|
| Power consumption (typical) |
22.5 W |
| Power supply type |
AC |
| Power consumption (off) |
0.1 W |
| AC input frequency |
50 - 60 Hz |
| Sleep mode |
Yes |
| Input voltage |
100 - 240 V |
| Power consumption (sleep) |
3.4 W |
| General |
|---|
| Product family |
imageFORMULA |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Network |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| System requirements |
|---|
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 32.5 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
|---|
| Width |
291 mm |
| Depth |
600 mm |
| Height |
378 mm |
| Weight |
3.3 kg |
| Packaging content |
|---|
| Bundled software |
ISIS /TWAIN Driver (Windows 7 SP1/ 8.1/ 10. Windows Server 2008 R2 SP1 / Server 2012 R2 / Server 2016, Server 2019)
CaptureOnTouch Pro
CaptureOnTouch JobTool
Wireless Connection Setup Tool
Mac TWAIN Driver (Mac OS 10.13, 10.14 and 10.15 or later)
CaptureOnTouch |
| Technical details |
|---|
| Sustainability certificates |
EPEAT Silver |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
