EOS 77D - 24.2MP 22.3x14.9mm CMOS, 6000x4000 pix, DIGIC 7, EF/EF-S, 30-1/4000s, 7.7cm (3.0") 3:2 TFT, USB2.0/HDMI mini, SD/SDHC/SDXC, Wi-Fi (IEEE802.11b/g/n), NFC, Bluetooth
Explore new subjects and new ways of shooting. State-of-the-art AF puts critical sharpness exactly where you want it to be, whether you’re using the camera’s optical viewfinder or its high-resolution touchscreen. Continuous shooting at up to 6 fps lets you capture the most fleeting expressions.
A next-generation APS-C sensor produces photos packed with amazing detail, even in bright highlights and dark shadows. The world’s quickest Live View autofocus system* delivers pin-sharp results, even when shooting fast-moving subjects.
Shoot superb Full HD movies, with dynamic reproduction of motion at 60 fps and cinematic shallow focus effects. Dual Pixel CMOS AF keeps your subjects sharp as you change position, and built-in 5-axis digital stabilisation ensures footage remains steady.

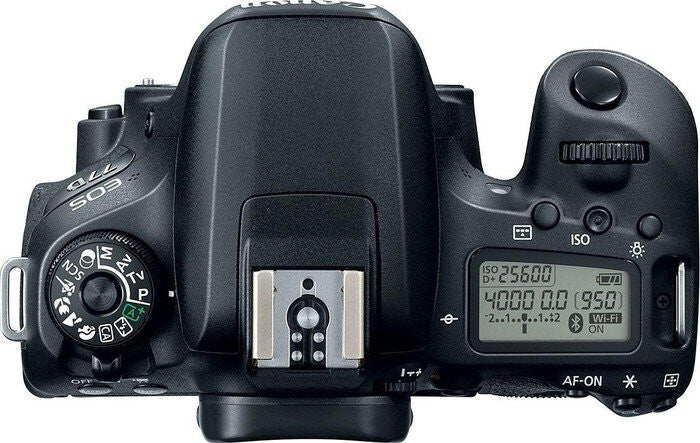

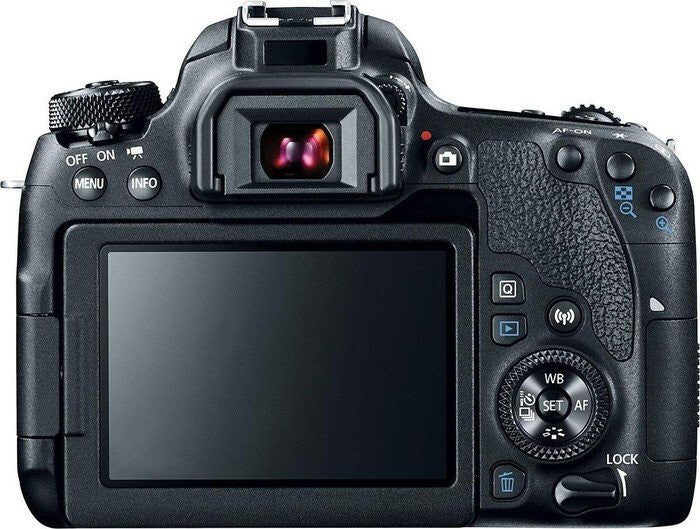

When you pick up the EOS 77D, features like its rear control wheel and Vari-angle touchscreen give you more control and creative freedom. A top plate LCD screen shows camera settings at a glance.
A combination of Wi-Fi, Bluetooth® and NFC wireless technologies make connecting with compatible iOS and Android smart devices easier than ever. Control the camera remotely, including remote live view on your smartphone or tablet, and share images with friends via the cloud.
| Picture quality |
|---|
| Camera type |
SLR Camera Body |
| Megapixel (approx.) |
24.2 MP |
| Sensor type |
CMOS |
| Maximum image resolution |
6000 x 4000 pixels |
| Still image resolution(s) |
6000 x 4000, 3984 x 2656, 2976 x 1984, 1920 x 1280, 5328 x 4000, 3552 x 2664, 2656 x 1992, 1696 x 1280, 6000 x 3368, 3984 x 2240, 2976 x 1680, 1920 x 1080, 4000 x 4000, 2656 x 2656, 1984 x 1984, 1280 x 1280 |
| Supported aspect ratios |
1:1, 3:2, 4:3, 16:9 |
| Total megapixels |
25.8 MP |
| Image sensor size (W x H) |
22.3 x 14.9 mm |
| Image formats supported |
JPG, Raw |
| Lens system |
|---|
| Lens mount interface |
Canon EF, Canon EF-S |
| Focusing |
|---|
| Focus |
TTL-CT-SIR |
| Focus adjustment |
Auto |
| Auto focusing (AF) modes |
AI Focus, Centre weighted Auto Focus, One Shot Focus, Servo Auto Focus |
| Auto Focus (AF) points selection |
Auto |
| Auto Focus (AF) points |
49 |
| Auto Focus (AF) assist beam |
Yes |
| Auto Focus (AF) lock |
Yes |
| Exposure |
|---|
| ISO sensitivity (min) |
100 |
| ISO sensitivity (max) |
25600 |
| ISO sensitivity |
100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600, Auto |
| Light exposure modes |
Auto, Manual |
| Light exposure control |
Program AE |
| Light exposure correction |
± 5EV (1/2EV; 1/3EV step) |
| Light metering |
Centre-weighted, Evaluative (Multi-pattern), Partial, Spot |
| Auto Exposure (AE) lock |
Yes |
| Shutter |
|---|
| Fastest camera shutter speed |
1/4000 s |
| Slowest camera shutter speed |
30 s |
| Camera shutter type |
Electronic |
| Flash |
|---|
| Flash modes |
Auto, Manual, Red-eye reduction |
| Shoe mounting point type |
Hot shoe |
| Shoe mounting point |
Yes |
| Flash exposure correction |
±2EV (1/2, 1/3 EV step) |
| Flash exposure compensation |
Yes |
| Flash sync-speed |
1/200 s |
| External flash connector |
Yes |
| Flash recharging time |
3 s |
| Flash guide number |
12 m |
| Video |
|---|
| Video recording |
Yes |
| Maximum video resolution |
1920 x 1080 pixels |
| HD type |
Full HD |
| Video resolutions |
640 x 480,1280 x 720,1920 x 1080 |
| Resolution at capture speed |
640x480@25fps, 1280x720@25fps, 1280x720@50fps, 1920x1080@25fps |
| Motion JPEG frame rate |
50 fps |
| Video formats supported |
MP4 |
| Analog signal format system |
NTSC, PAL |
| Audio |
|---|
| Built-in microphone |
Yes |
| Audio formats supported |
AAC, LPCM |
| Memory |
|---|
| Compatible memory cards |
SD, SDHC, SDXC |
| Memory slots |
1 |
| Display |
|---|
| Display |
TFT |
| Touchscreen |
Yes |
| Display diagonal (metric) |
7.7 cm |
| Display diagonal |
7.62 cm (3") |
| Display resolution (numeric) |
1040000 pixels |
| Flip-out screen |
Yes |
| Display aspect ratio |
3:2 |
| Second display |
No |
| Field of view |
100% |
| Vari-angle LCD display |
Yes |
| Viewfinder |
|---|
| Viewfinder type |
Optical |
| Magnification |
0.82x |
| Ports & interfaces |
|---|
| PictBridge |
Yes |
| USB version |
2.0 |
| HDMI |
Yes |
| HDMI connector type |
Mini |
| USB port |
Yes |
| Microphone in |
Yes |
| Network |
|---|
| Bluetooth |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
4.1 |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Near Field Communication (NFC) |
Yes |
| Camera |
|---|
| White balance |
Auto, Cloudy, Custom modes, Daylight, Shade, Tungsten |
| Scene modes |
Candlelight, Children, Close-up (macro), Food, Night portrait, Portrait, Landscape |
| Shooting modes |
Aperture priority, Auto, Manual, Scene, Shutter priority |
| Photo effects |
Black&White |
| Self-timer delay |
2,10 s |
| Camera playback |
Movie, Single image |
| Diopter adjustment (D-D) |
-3 - 1 |
| Dioptre correction |
Yes |
| Eye relief |
1.9 cm |
| Camera file system |
DPOF 1.1, Exif 2.3 |
| Orientation sensor |
Yes |
| Live view |
Yes |
| Languages support |
Multi |
| Playback zoom (max) |
10x |
| Built-in processor |
Yes |
| Image processor |
DIGIC 7 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.9 Mavericks |
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1 |
| Design |
|---|
| Product colour |
Black |
| Battery |
|---|
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery type |
LP-E17 |
| Number of batteries supported |
1 |
| Battery level indicator |
Yes |
| General |
|---|
| Product family |
EOS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Weight & dimensions |
|---|
| Width |
131 mm |
| Depth |
76.2 mm |
| Height |
99.9 mm |
| Weight |
540 g |
| Packaging content |
|---|
| Hand strap |
Yes |
| Batteries included |
Yes |
| Battery charger included |
Yes |
| Quick start guide |
Yes |
| Bundled software |
Digital Photo Professional 4
EOS Utility
EOS Lens Registration Too
EOS Web Service Registration Tool
EOS Sample Music
Picture Style Editor |
| Technical details |
|---|
| Self-timer |
Yes |
| Other features |
|---|
| Power source type |
Battery |
