Direct thermal, 203 dpi, 178 mm/s, 64 MB RAM, 128 MB FlashROM, 8 dots/mm, display, EPL, ZPLII, USB, USB Host, RS232, Ethernet, Wi-Fi, black
The XD5 series printers are available in Direct Thermal or Thermal Transfer model, fully compatible with a market-leading programming language such as SLCS™, BPL-Z™ and BPL-E™, while supporting Smart Switch Programming Language. The XD5 series supports UHF RFID encode and print capability, easy installation and maintenance with exceptional print quality at 300 dpi. The XD5 series can connect to a wired or wireless network - 10/100 Ethernet or WLAN 802.11a/b/g/n. The long-lasting print head, auto cutter and platen rollers with tool-less removable design minimize operation and maintenance costs. Simple out-of-box setup is ensured thanks to the easy media loading of its compact clamshell design with adjustable sensors and real-time calibration across a range of receipt, labels, tag or wristband media. The XD5 series offers easy integration with the availability of Windows, OPOS, Linux and MAC drivers, plus the development of your own applications via a suite of SDKs, and is backed by class-leading reliability.

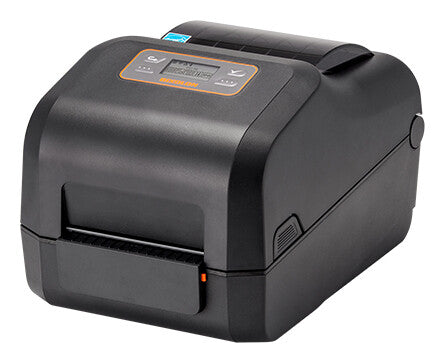

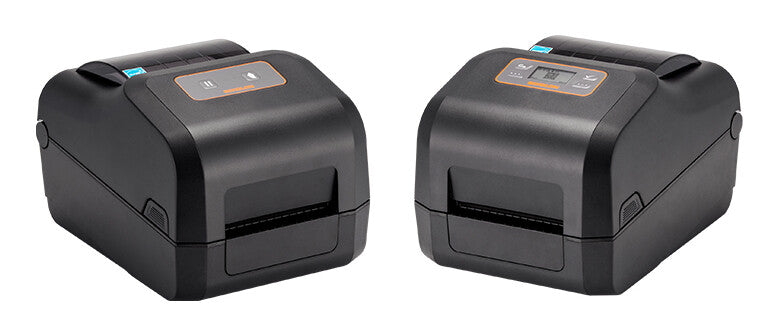

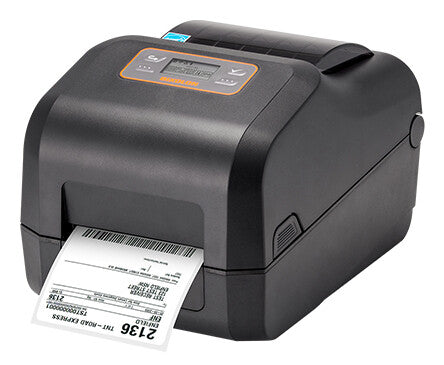

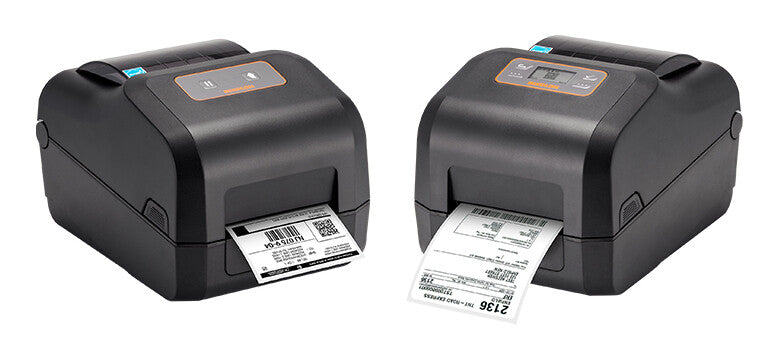

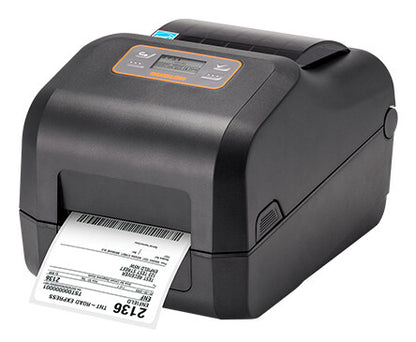

4-inch Thermal Transfer Desktop Label Printer
The mid-tier 4-inch (118 mm) thermal transfer desktop label printer features a tool-less design for simple maintenance, multiple wired and wireless interface, optional mono LCD and supporting half-inch and full-inch core ribbon (74 m and 300 m). XD5-40t is suitable for asset marking, price management and manufacturing labelling that requires robust and exceptional print quality.
| Printing |
|---|
| Maximum print length |
1 m |
| Maximum printing width |
10.8 cm |
| Print speed |
152 mm/sec |
| Number of printable dots |
8 dot |
| Maximum resolution |
203 x 203 DPI |
| Print technology |
Direct thermal / Thermal transfer |
| Paper handling |
|---|
| Maximum label width |
11.8 cm |
| Maximum roll diameter |
12.7 cm |
| Media thickness |
0.06 - 0.2 mm |
| Ribbon length |
300 m |
| Ribbon width |
11 cm |
| Autocutter |
Yes |
| Ports & interfaces |
|---|
| RS-232 ports |
1 |
| USB port |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired & Wireless |
| Performance |
|---|
| Built-in barcodes |
1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 |
| Flash memory |
128 MB |
| Internal memory |
64 MB |
| Design |
|---|
| Control type |
Buttons |
| Colour display |
No |
| Display resolution |
200 x 100 pixels |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Black |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| System requirements |
|---|
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mobile operating systems supported |
Android, iOS |
| Mac operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 80% |
| Weight & dimensions |
|---|
| Weight |
2.48 kg |
| Height |
188 mm |
| Depth |
284 mm |
| Width |
210 mm |
| Packaging content |
|---|
| Cables included |
USB |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Other features |
|---|
| Character sets |
5 BPL-E, 16 BPL-Z, SLCS, Unicode |
