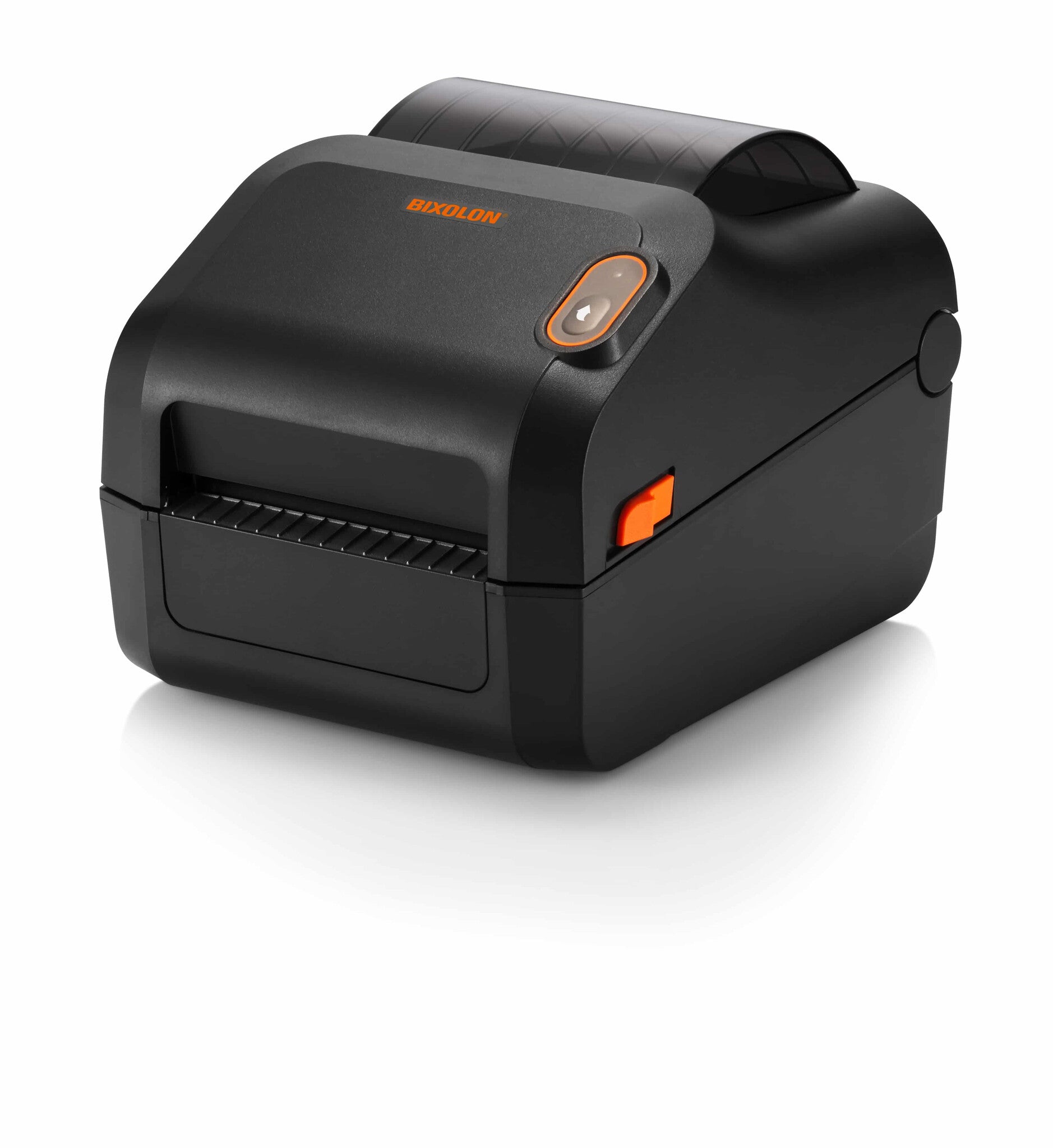

XD3-40d is a 4-inch (118mm), 203 dpi, no peeler, USB 2, serial, Ethernet, black
The XD3-40d is a 4-inch (118mm) Direct Thermal Desktop Barcode and Label Printer featuring a compact design, key industry features and competitive pricing, ideal for labelling applications within Manufacturing, Retail, Warehousing and Logistics markets. The XD3-40d standard model offers quick data processing and print speeds up to 5 ips (127mm/sec) at 203 dpi to produce high quality text, graphics and barcodes to labelling media.
Supporting a stand-alone configuration with a visual LED and a media roll diameter up to 127mm. The XD3-40d offering easy paper loading with adjustable paper guide and plus holder, alongside an optional peeler, plus an external paper supply. For added simplicity, the label printer also offers simple toolless maintenance of the roller and print head.
Available with USB interface as standard and optional USB V2.0 + Serial + Ethernet. The XD3-40d is compatible with market-leading programming languages including SLCS, BPL-Z™ and BPL-E™, while supporting Smart Switch Programming Languages to allow for seamless integration into legacy and current installations. The XD3 series is also accompanied with comprehensive SDKs for Windows and Linux, alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®. While backed by a 2 year warranty as standard.
| Printing |
|---|
| Print technology |
Direct thermal |
| Print speed |
127 mm/sec |
| Maximum printing width |
10.4 cm |
| Minimum print length |
100 cm |
| Paper handling |
|---|
| Ribbon width |
11 cm |
| Ribbon length |
300 m |
| Maximum label width |
11.8 cm |
| Media thickness |
0.06 - 0.2 mm |
| Maximum roll diameter |
12.7 cm |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| USB port |
Yes |
| Performance |
|---|
| Page description languages |
BPL |
| Internal memory |
64 MB |
| Flash memory |
128 MB |
| Built-in barcodes |
1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 39, EAN13, EAN8, GS1-128, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, QR Code, TLC39, UPC-A, UPC-E |
| Design |
|---|
| Product colour |
Black |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| System requirements |
|---|
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Width |
181 mm |
| Depth |
222 mm |
| Height |
168 mm |
| Weight |
1.7 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
84433210 |
