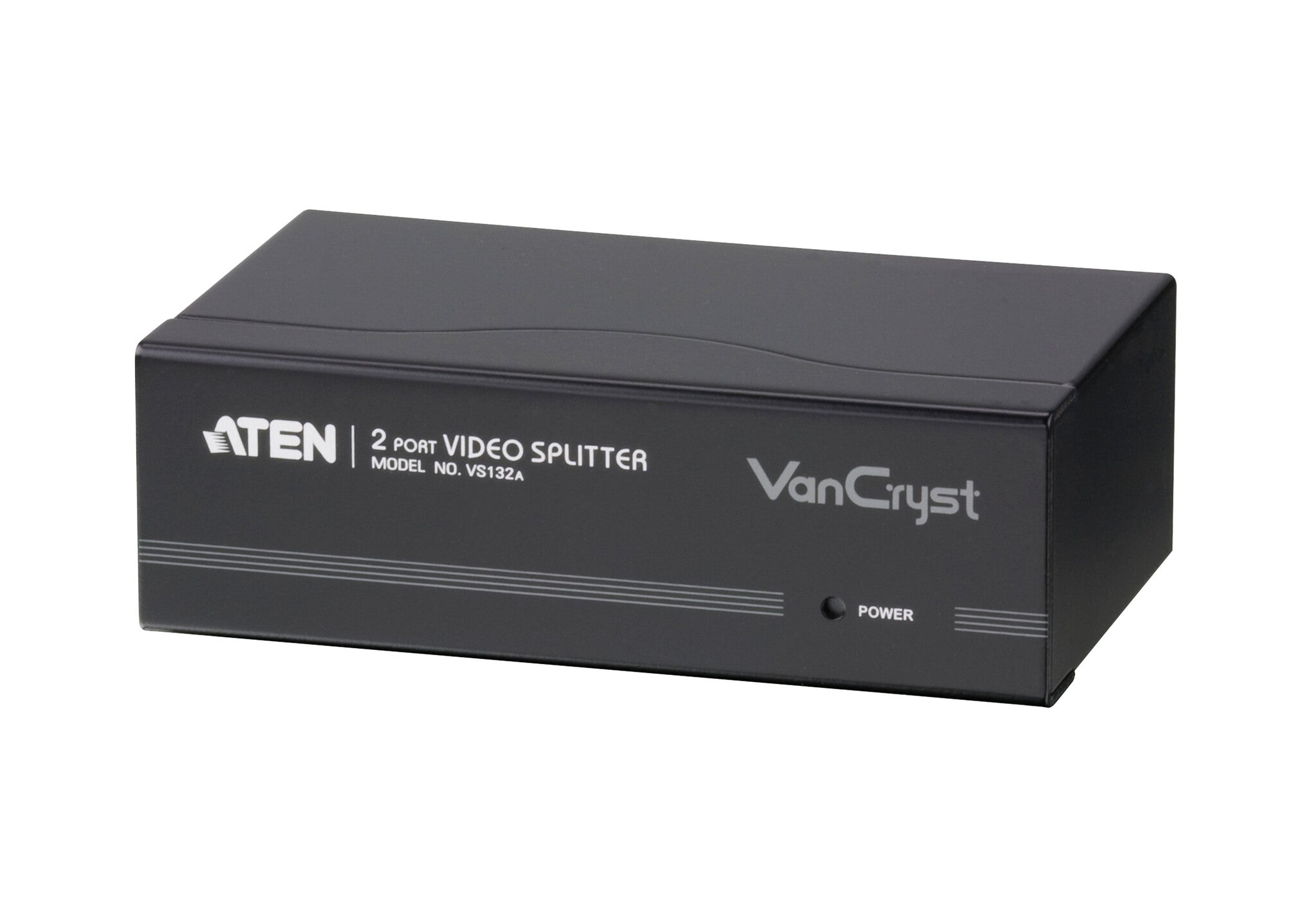

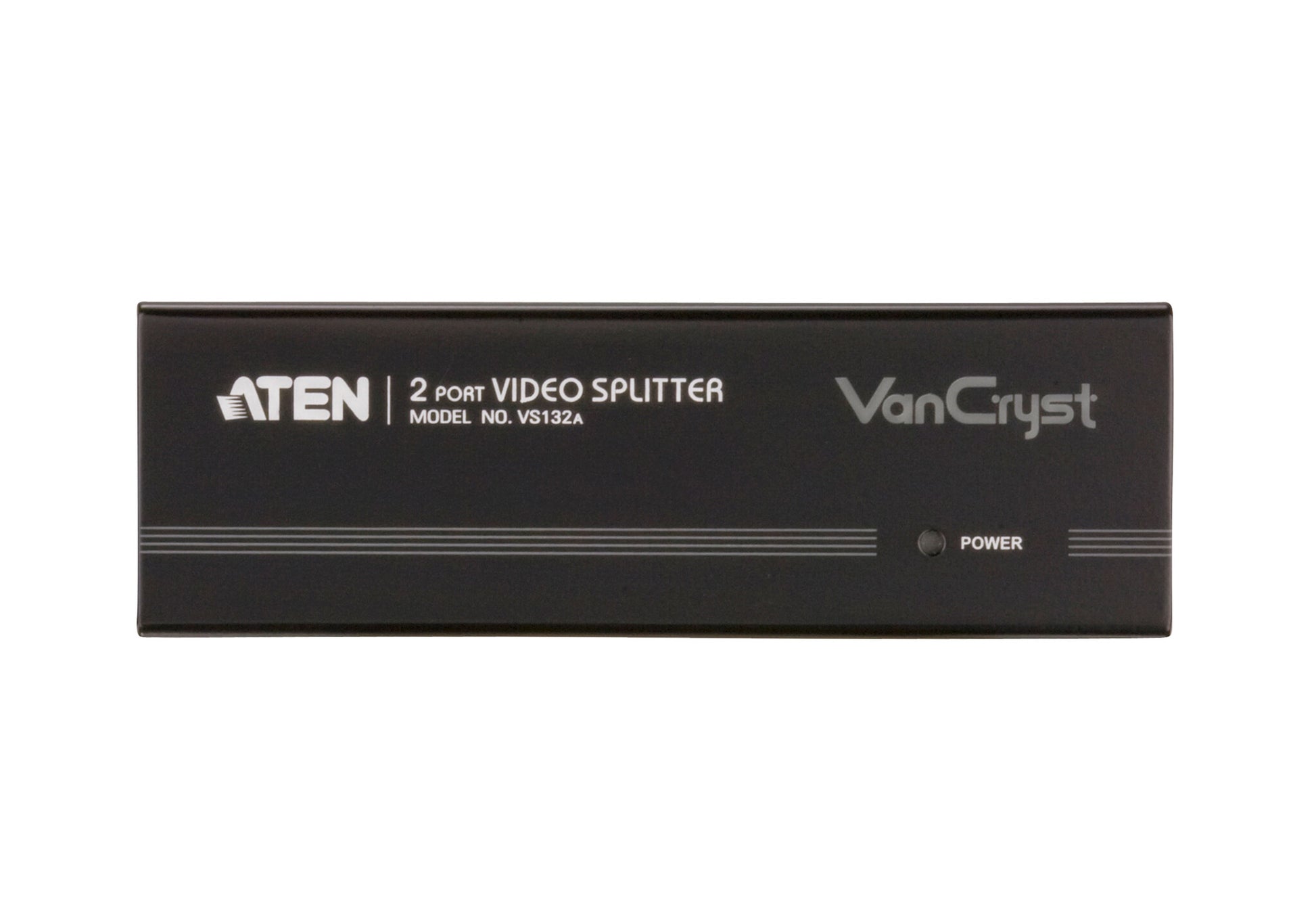

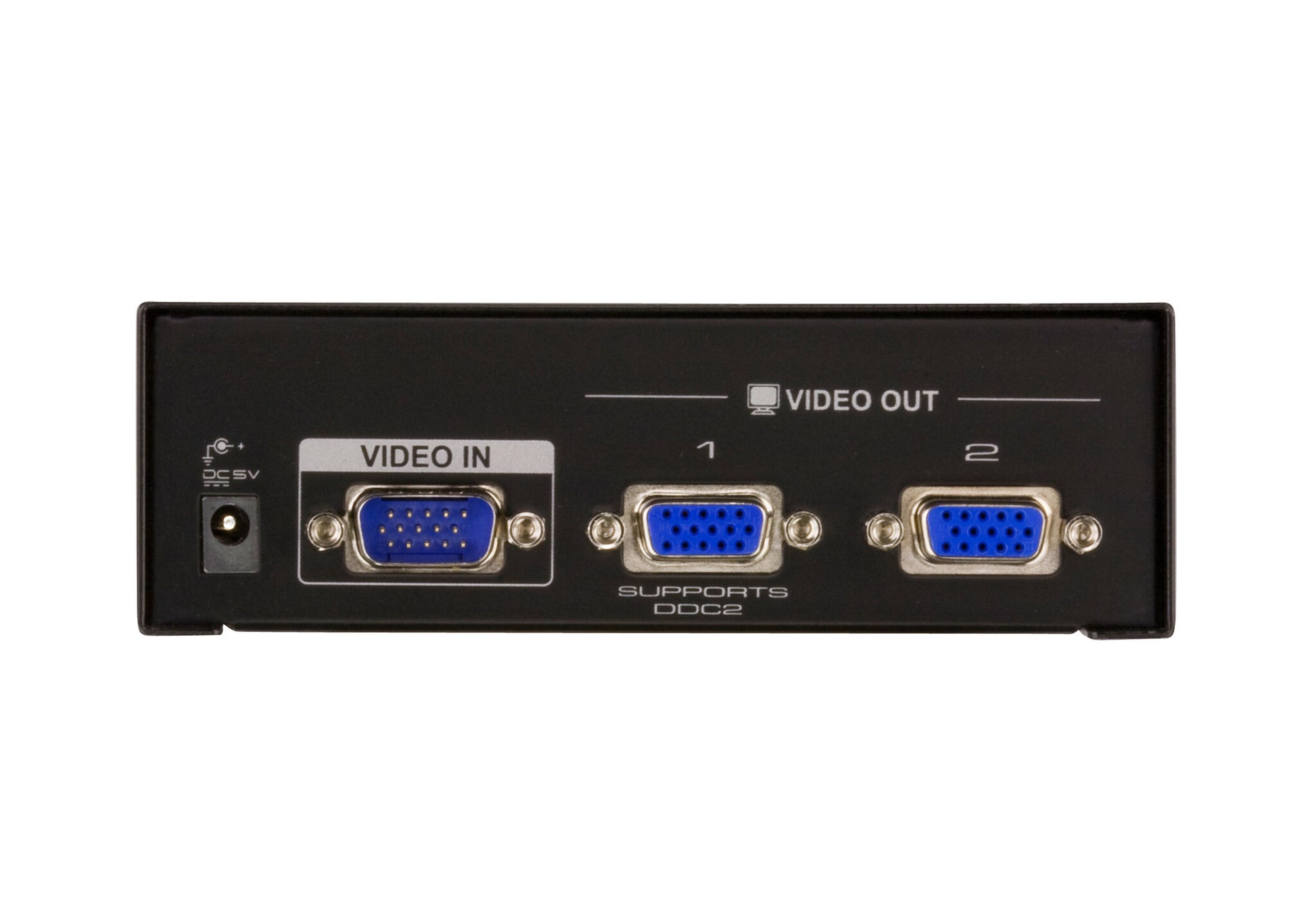

2-Port VGA Splitter (450MHz)
The VS132A Video Splitter is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS132A is your best choice.
Applications include:
• Financial - the remote display of stock market information
• Education - the remote display of lectures and lessons to halls and classrooms
• Business - the remote display of addresses to overflow rooms; video conferencing; and demos
| Ports & interfaces |
|---|
| Video out |
2x VGA |
| Video in |
1 x HDB-15 Male (Blue) |
| Video port type |
VGA |
| Video ports quantity |
3 |
| Features |
|---|
| Supported graphics resolutions |
2048 x 1536 (QXGA) |
| Bandwidth |
450 MHz |
| Maximum operating distance |
30 m |
| Maximum resolution |
2048 x 1536 pixels |
| Product colour |
Black |
| Power |
|---|
| Power consumption (typical) |
0.78 W |
| AC input voltage |
5 V |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
130 x 75.1 x 44 mm |
| Weight |
420 g |
| Packaging content |
|---|
| Packaging content |
1x VS132A Video Splitter 1x Power Adapter 1x User Guide |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
