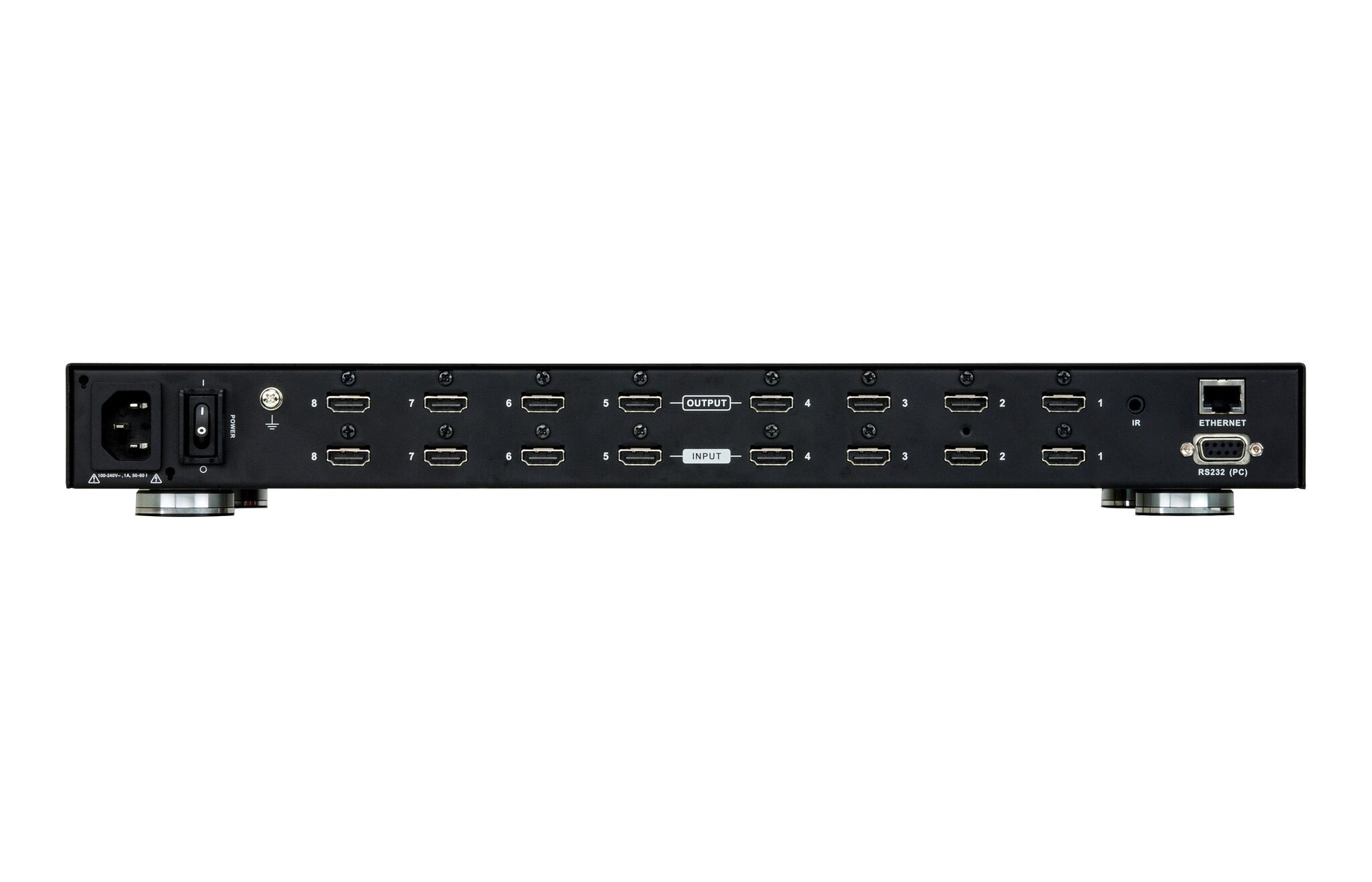

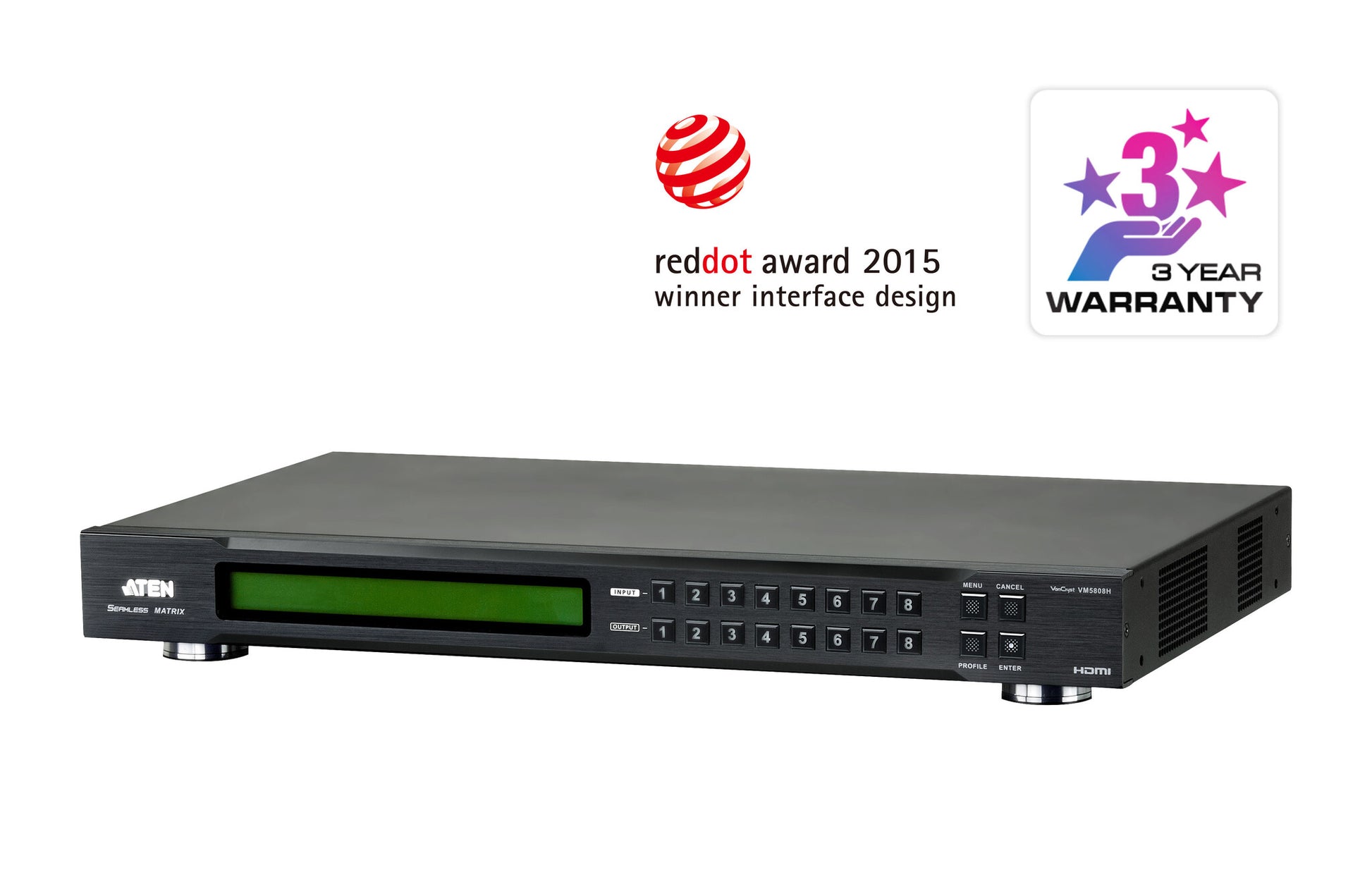

8 x 8 HDMI Matrix Switch with Scaler

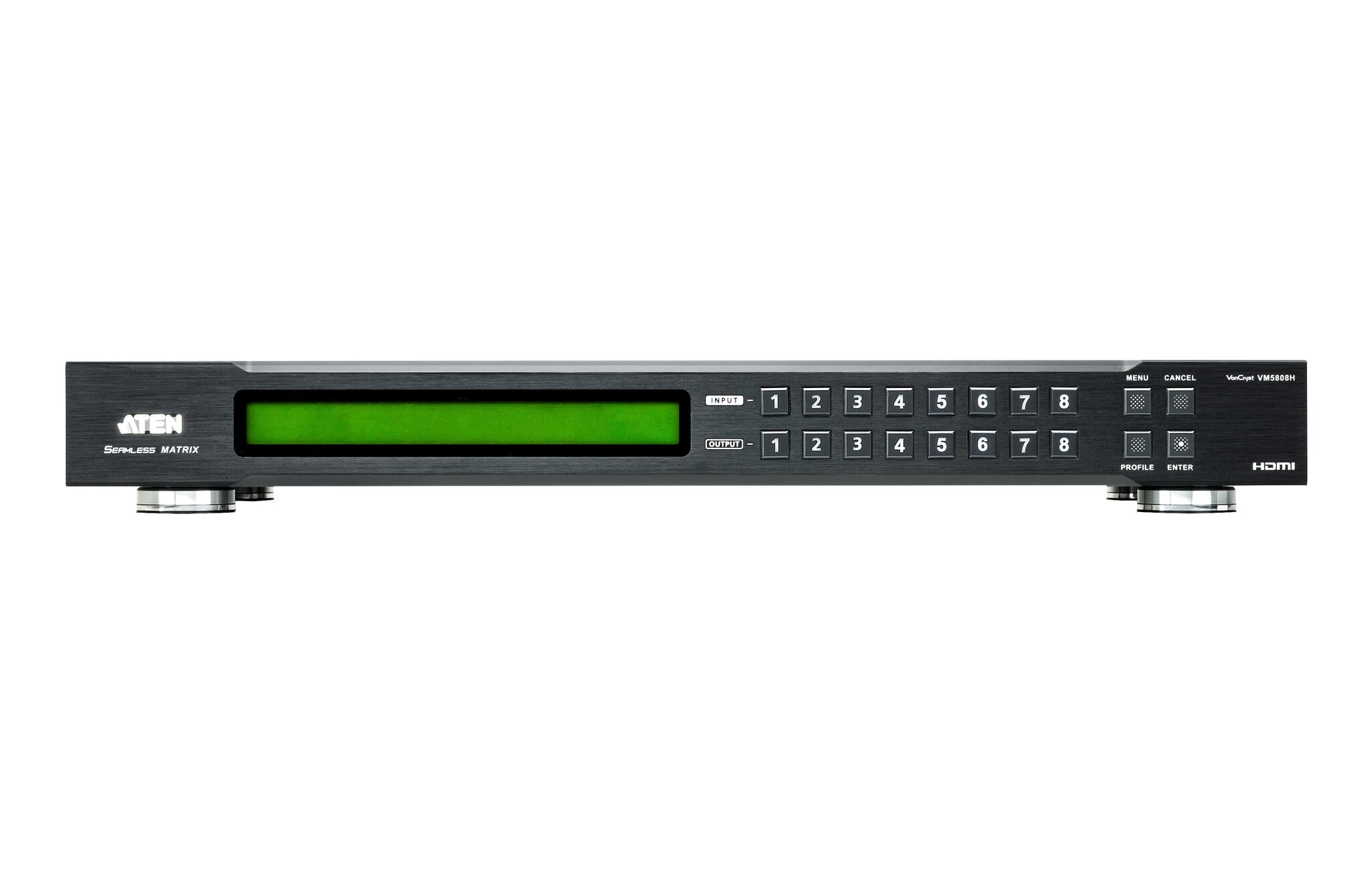

The VM5808H 8 x 8 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays, with a quick view of all port connections via the front panel LCD.
The VM5808H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5808H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 16 connection profiles that can be customized into different video wall layouts.
The VM5808H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 8 |
| HDMI in | 8 |
| HDMI ports quantity | 16 |
| Video port type | HDMI |
| Features | |
|---|---|
| LED indicators | Yes |
| HD type | Full HD |
| Rack capacity | 1U |
| Display type | LCD |
| HDCP | Yes |
| Maximum operating distance | 15 m |
| Rack mounting | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| 3D | Yes |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| Material | Metal |
| Product colour | Black |
| Power | |
|---|---|
| Power consumption (typical) | 62 W |
| AC adapter input current | 1 A |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Weight | 4.03 kg |
| Height | 44 mm |
| Depth | 262.3 mm |
| Width | 432.4 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
