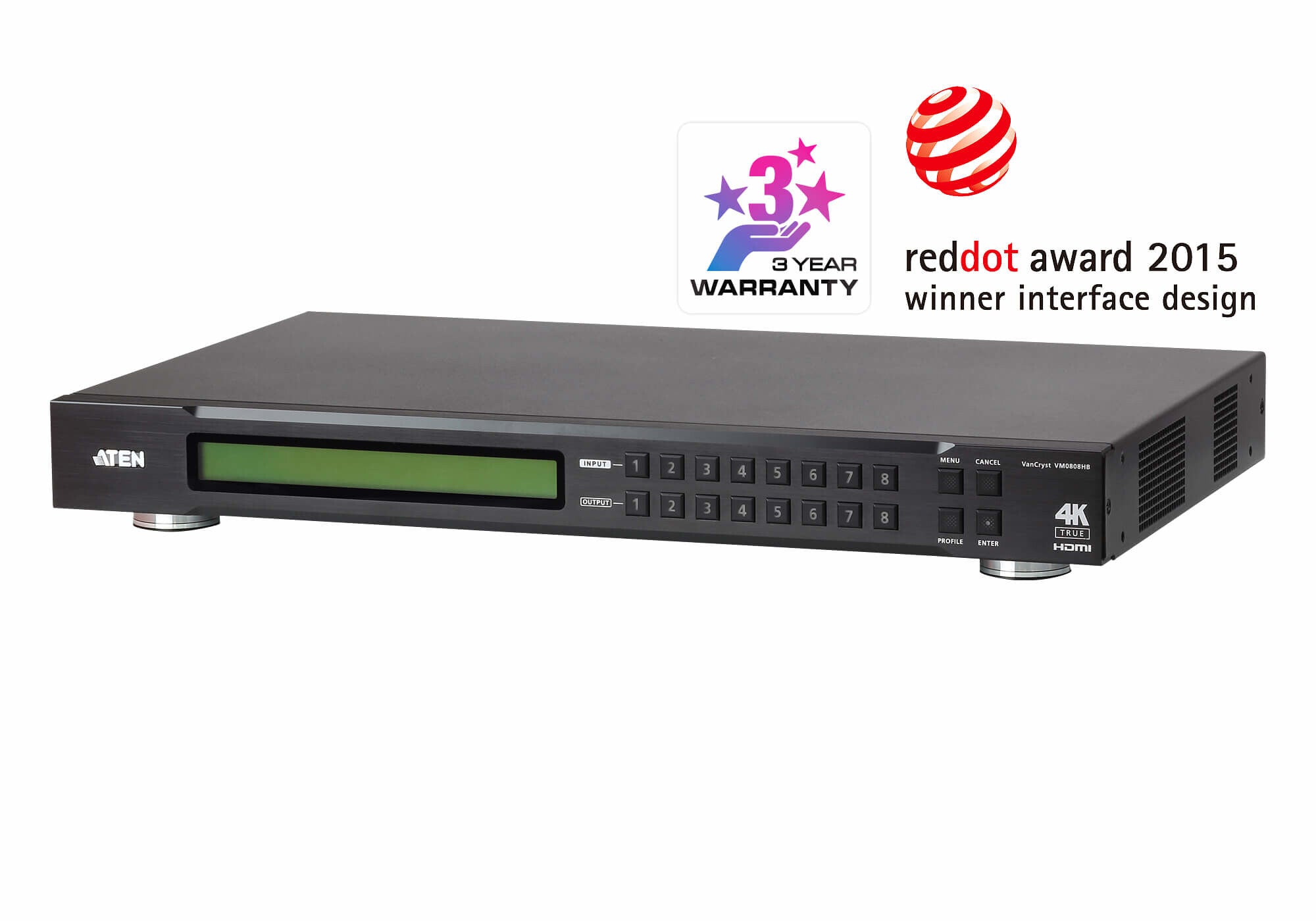

8 x 8 True 4K HDMI Matrix Switch
ATEN’s VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.
The intuitive GUI design of the VM0808HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0808HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 8 |
| HDMI in | 8 |
| Video port type | HDMI |
| Features | |
|---|---|
| HD type | 4K Ultra HD |
| Rack capacity | 1U |
| HDCP | Yes |
| Maximum operating distance | 15 m |
| Bandwidth | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| Material | Metal |
| Product colour | Black |
| Power | |
|---|---|
| AC adapter input current | 1 A |
| AC adapter frequency | 50-60 Hz |
| AC adapter input voltage | 100-240 V |
| Weight & dimensions | |
|---|---|
| Weight | 3.99 kg |
| Height | 44 mm |
| Depth | 262.3 mm |
| Width | 432.4 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | AC |
| Remote control included | Yes |
| Mounting brackets included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
