Aten

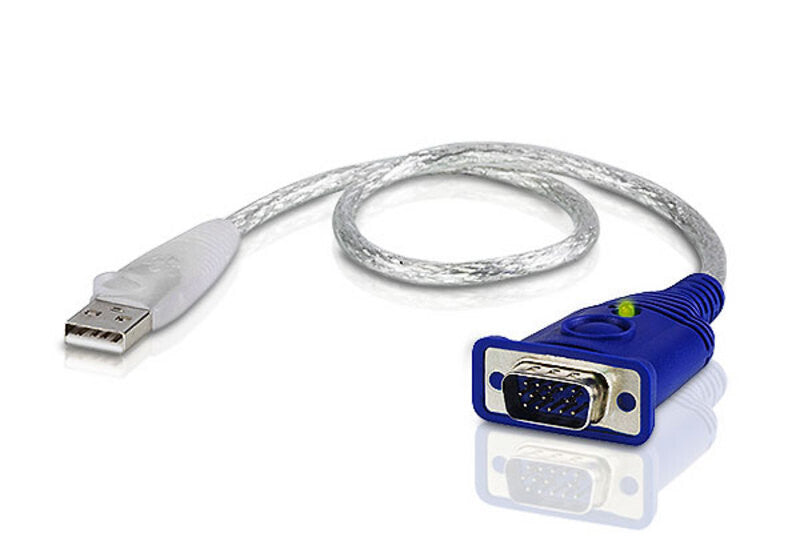

ATEN VGA EDID Emulator

R 169.22

2A-130G

Out of stock
R 169.22
R 169.22
Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

    VGA EDID Emulator

    The 2A-130G VGA EDID Emulator is designed for ATEN KVM extender or video extender installations that do not utilize a local monitor at the site where the computer/video source is located. The 2A-130G emulates and stores a default ATEN EDID (Extended Display Identification Information) setting in a non-volatile memory. This means the computer/video source can still "see" the display, even though it is not directly connected.

    The 2A-130G is suitable for any ATEN KVM or video extender installation where a monitor is not required at the local site, providing a simple, cost-saving, and convenient solution for display-related boot-up problems.

    Features
    Cable length 0.35 m
    Connector 1 USB Type-A
    Connector 2 VGA (D-Sub)
    Connector 1 gender Male
    Connector 2 gender Male
    Connector 1 form factor Straight
    Connector 2 form factor Straight
    Maximum resolution 1920 x 1200 pixels
    Supported graphics resolutions 1366 x 768, 1920 x 1200 (WUXGA)
    Maximum refresh rate 60 Hz
    Product colour Blue, Silver
    Operational conditions
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 60 °C
    Operating relative humidity (H-H) 0 - 80%
    Weight & dimensions
    Weight 40 g
    Width 34 mm
    Depth 65.9 mm
    Height 16 mm
    Packaging data
    Package width 205 mm
    Package depth 245 mm
    Package height 20 mm
    Package weight 52 g
    Logistics data
    Harmonized System (HS) code 84733080
    Master (outer) case net weight 1.6 kg
    Master (outer) case width 212 mm
    Master (outer) case length 235 mm
    Master (outer) case height 350 mm
    Master (outer) case gross weight 2.61 kg
    Products per master (outer) case 40 pc(s)
