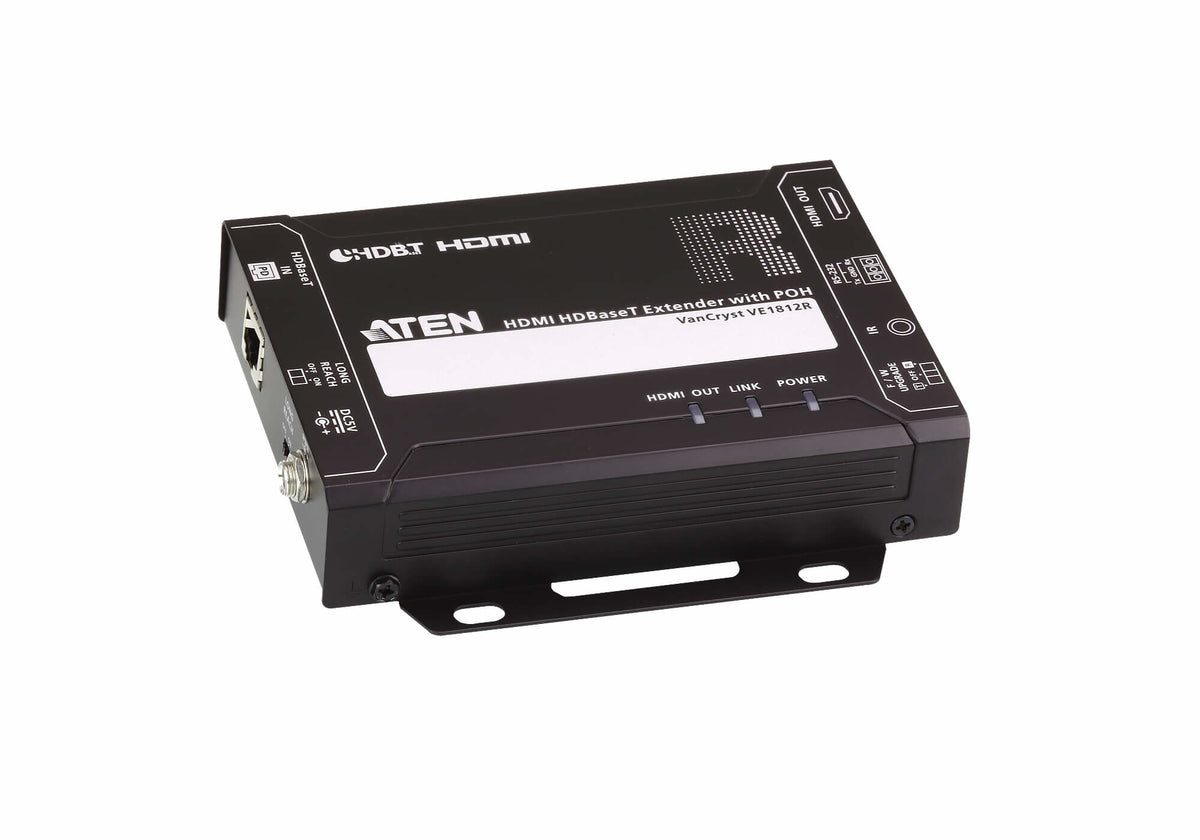

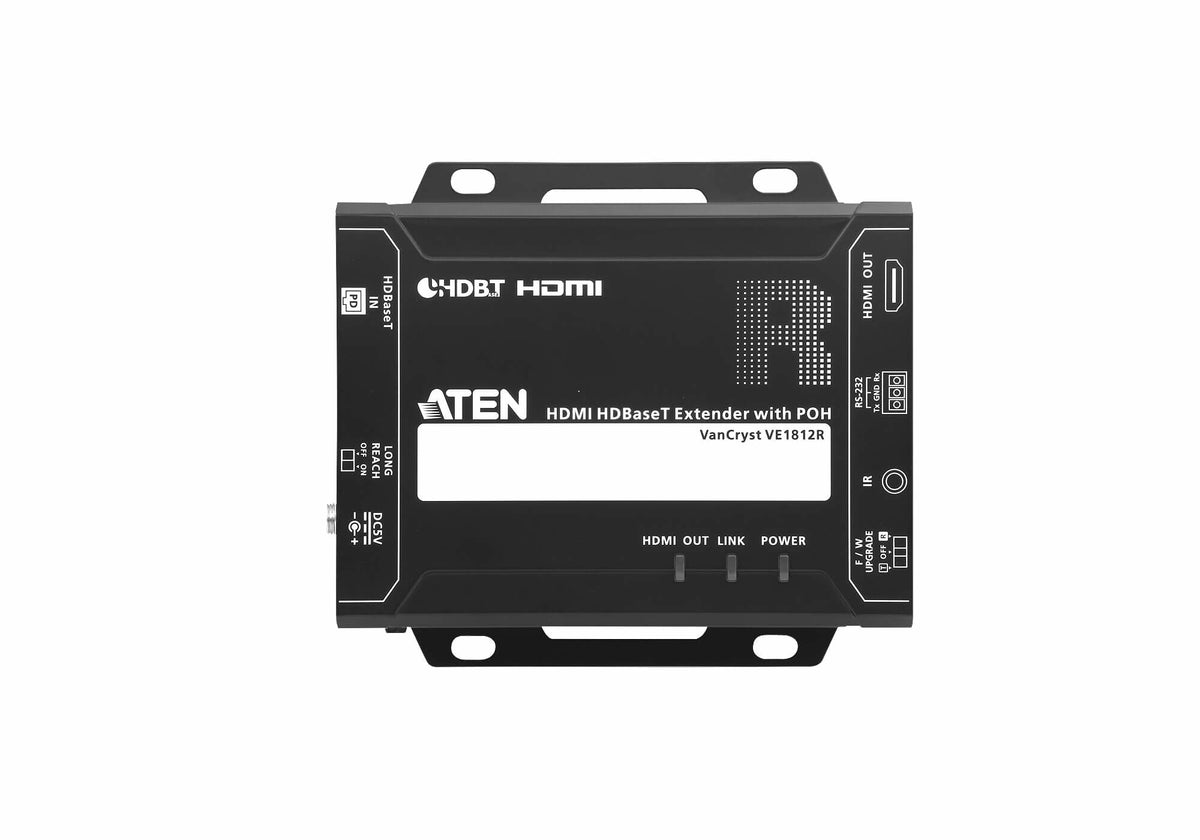

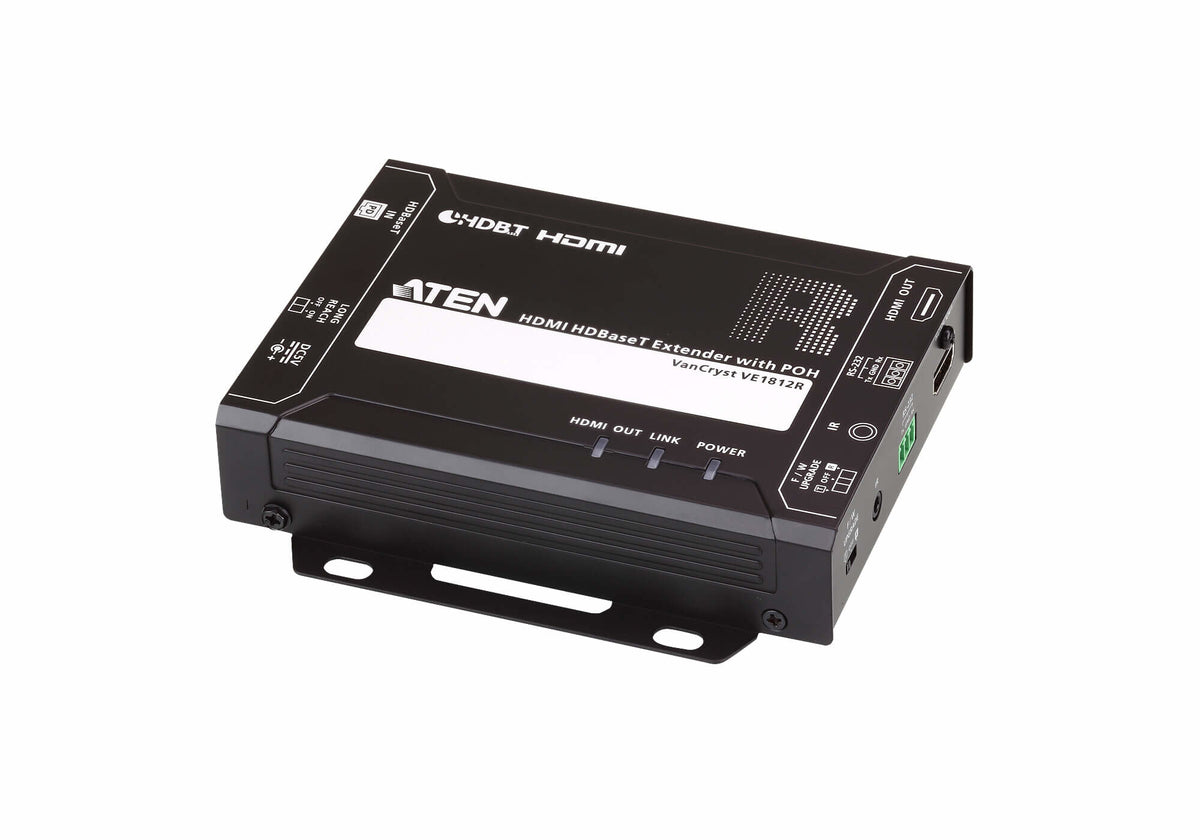

HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A) (PoH PD)

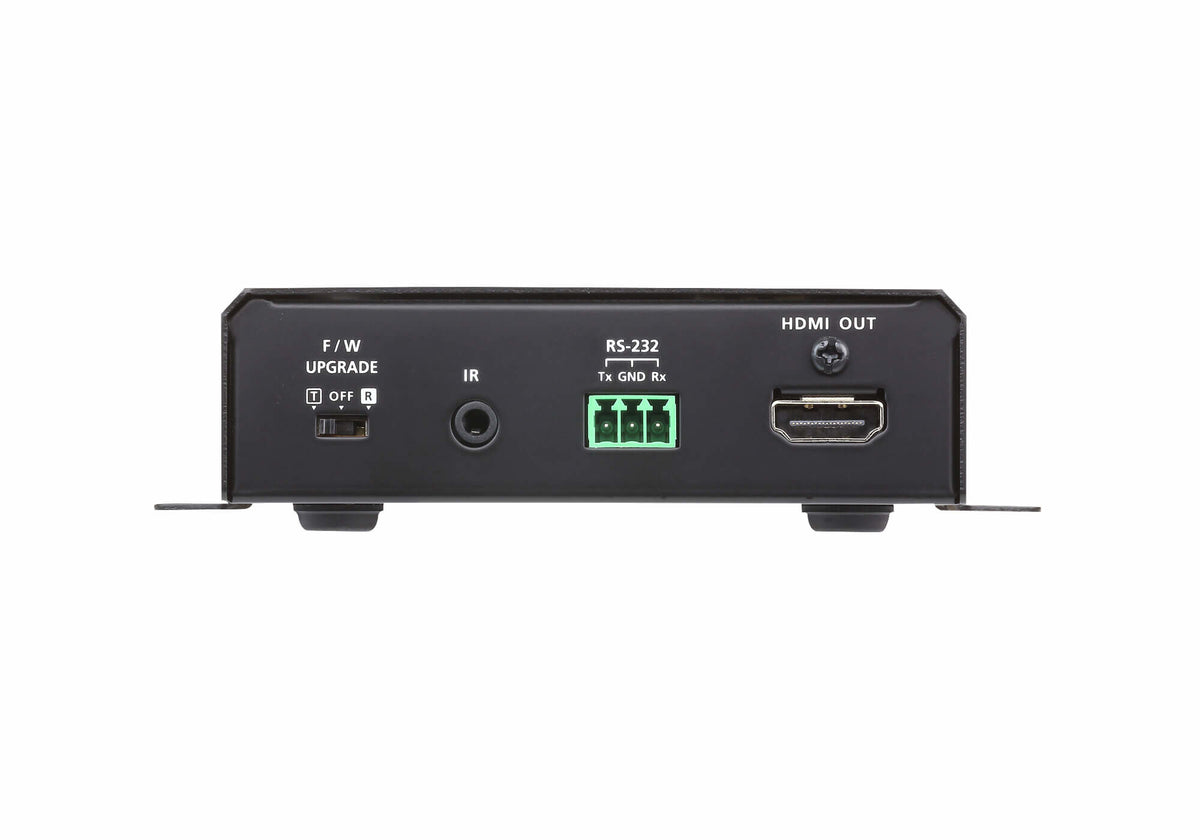

The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

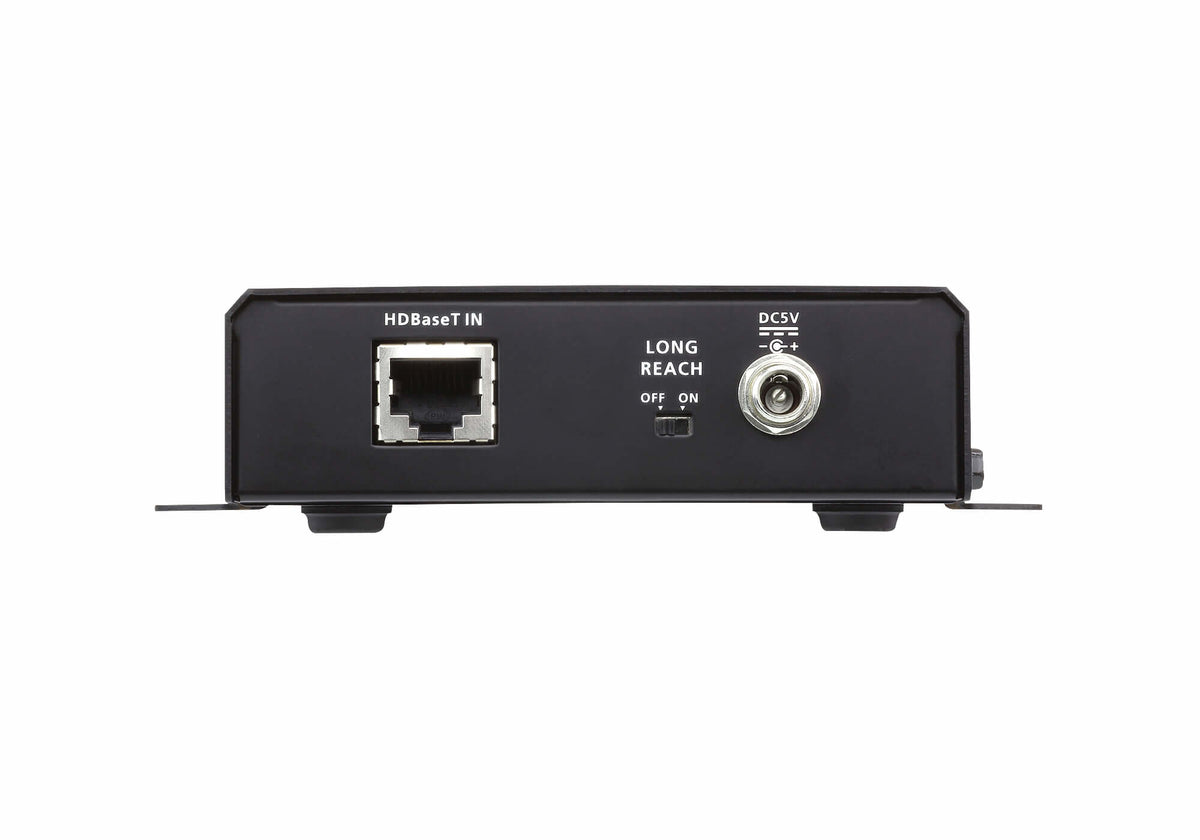

The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
| Features |
|---|
| Type |
AV receiver |
| Maximum resolution |
4096 x 2160 pixels |
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Maximum transfer distance |
150 m |
| Consumer Electronics Control (CEC) support |
Yes |
| 3D |
Yes |
| Bandwidth |
340 MHz |
| Impedance |
100 Ω |
| Material |
Metal |
| HDCP |
Yes |
| Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
| Supported video modes |
1080p |
| LED indicators |
Yes |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| RJ-45 input ports |
1 |
| HDBaseT port |
Yes |
| Number of HDMI outputs |
1 |
| RS-232 output ports |
1 |
| Video out |
1 |
| 3.5 mm (1/8-inch) out |
Yes |
| Remote (IR) output |
1 |
| DC-in jack |
Yes |
| Power |
|---|
| Operating voltage (receiver) |
5 V |
| Power consumption (receiver) (max) |
6.4 W |
| External power adapter |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Receiver dimensions (WxDxH) |
123 x 140.4 x 30 mm |
| Receiver weight |
450 g |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
