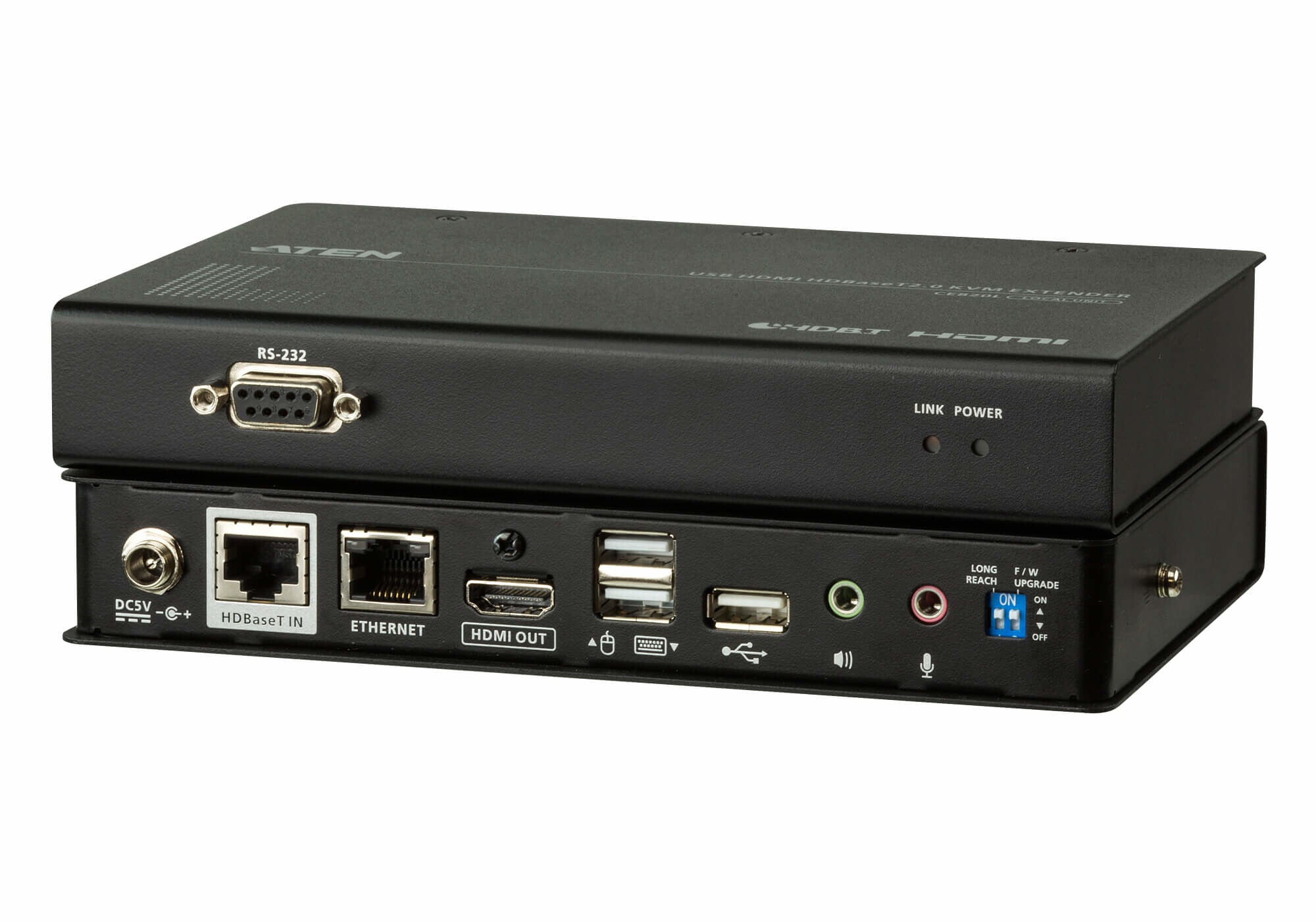

USB HDMI HDBaseT2.0 KVM Extender
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

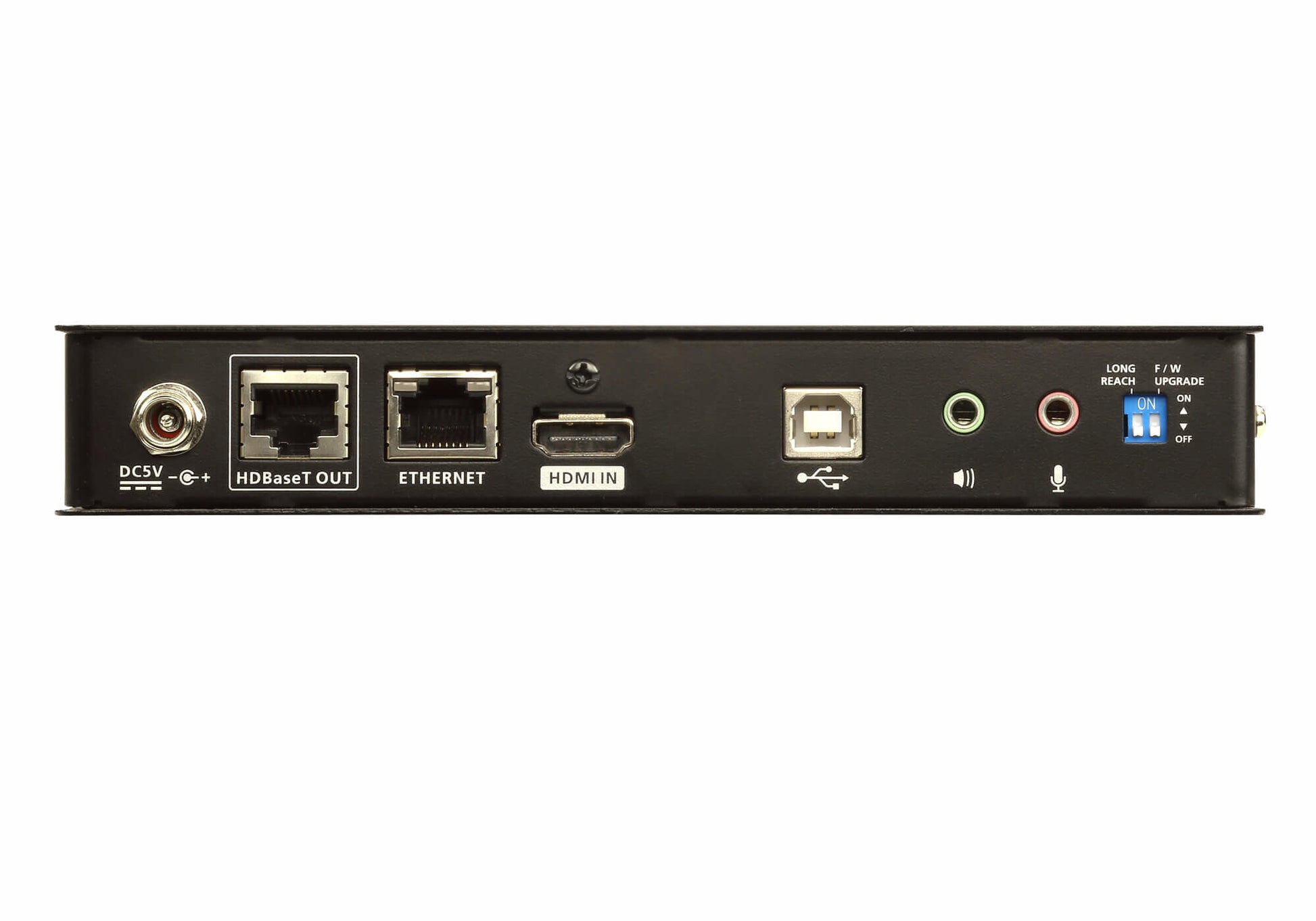

1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)

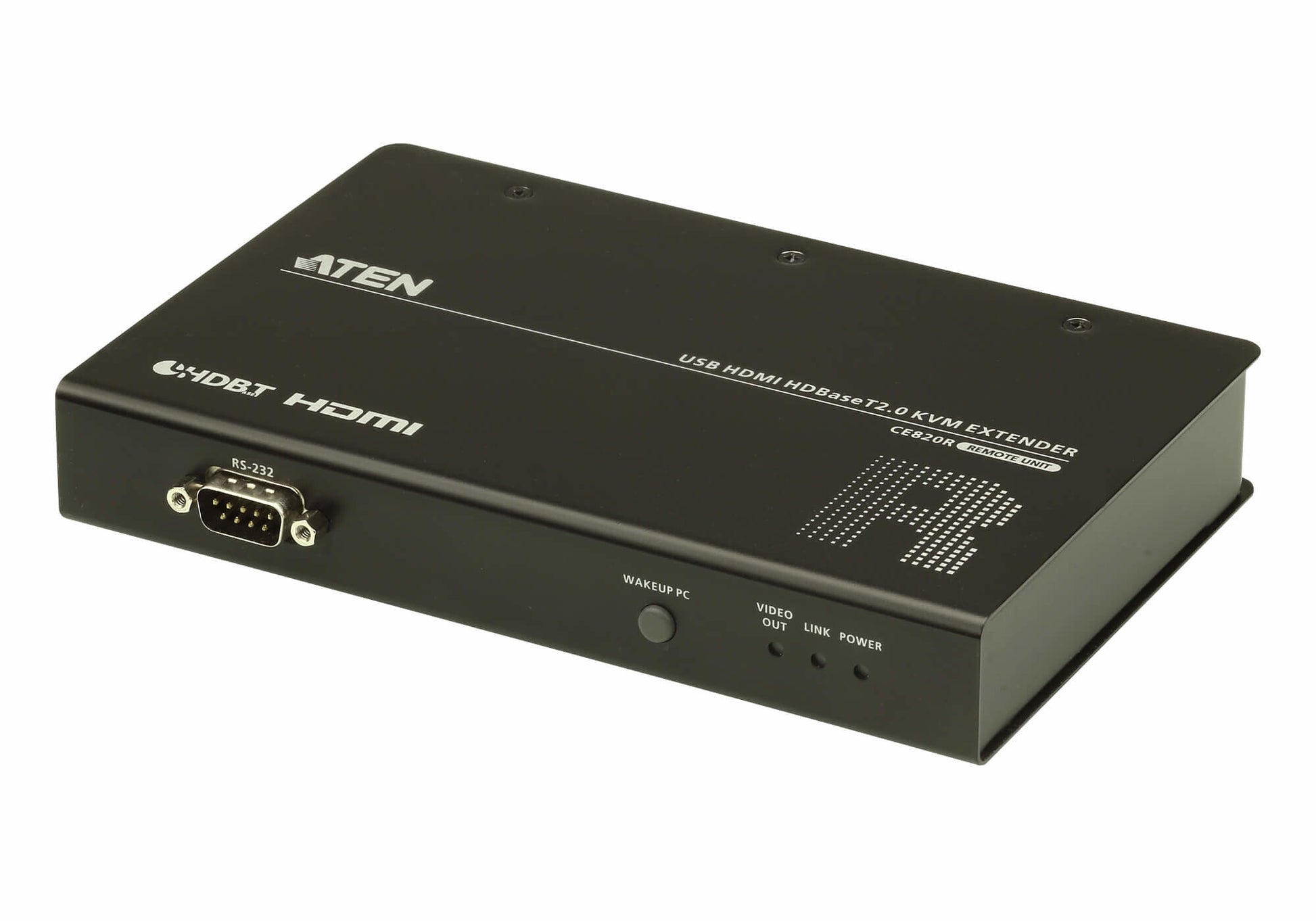

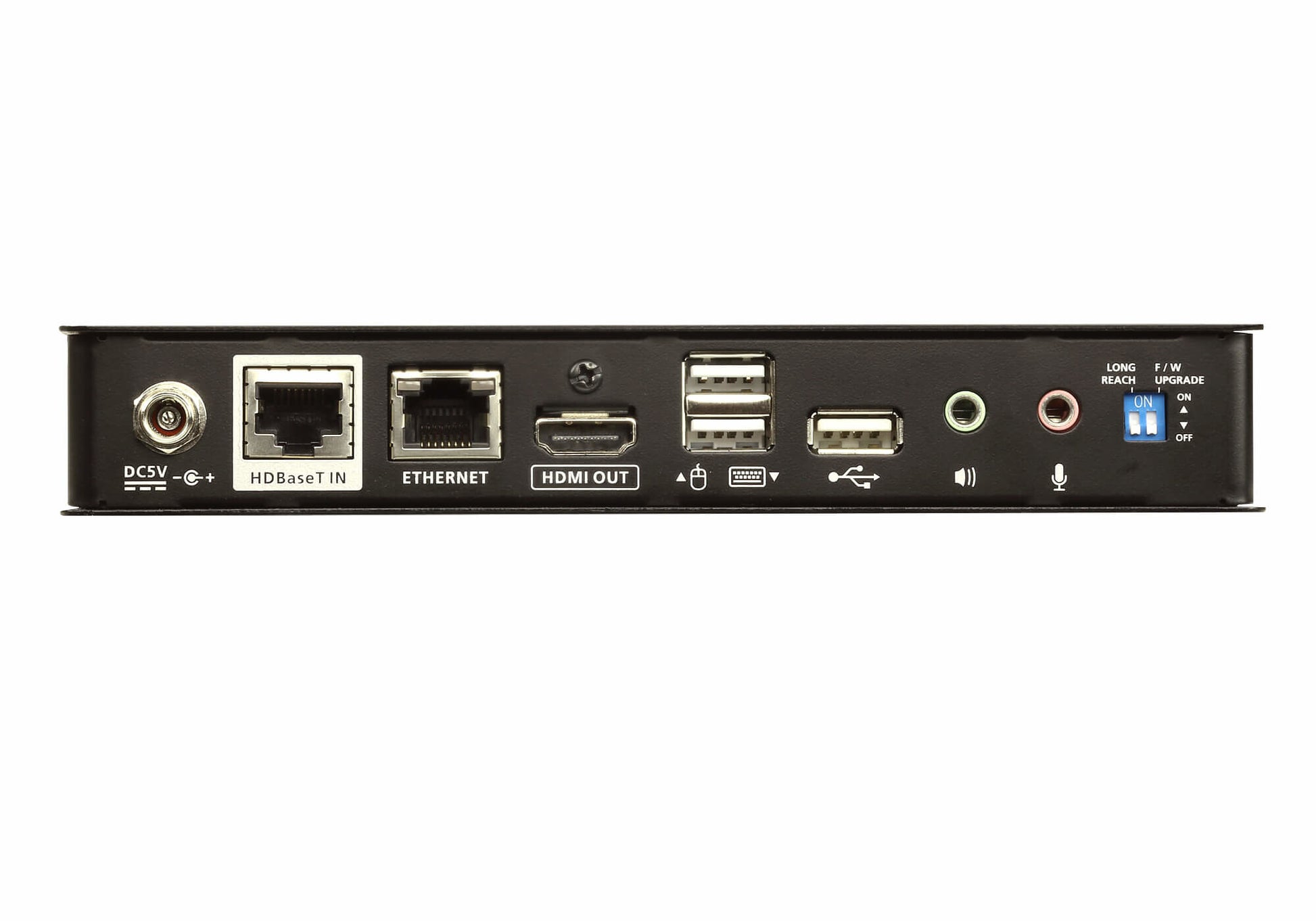

1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions
| Features | |
|---|---|
| LED indicators | Link, Power, Video |
| USB 2.0 ports quantity | 4 |
| Material | Metal |
| Product colour | Black |
| Maximum digital resolution | 4096 x 2160 pixels |
| Rack mounting | Yes |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Connectivity technology | Wired |
| Type | Transmitter & receiver |
| Transmitter | |
|---|---|
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Transmitter local video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter video port type | HDMI |
| Receiver | |
|---|---|
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
|---|---|
| Power consumption (receiver) (max) | 5.37 W |
| Power consumption (transmitter) (max) | 2.87 W |
| AC adapter output voltage | 5 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Receiver weight | 650 g |
| Receiver height | 2.87 cm |
| Receiver depth | 12.2 cm |
| Receiver width | 18.2 cm |
| Transmitter weight | 630 g |
| Transmitter height | 2.87 cm |
| Transmitter depth | 12.2 cm |
| Transmitter width | 18.2 cm |
| Packaging data | |
|---|---|
| Package weight | 2.16 kg |
| Package height | 210 mm |
| Package depth | 325 mm |
| Package width | 98 mm |
| Ports & interfaces | |
|---|---|
| PC Audio out | Yes |
| PC Audio in | Yes |
| Technical details | |
|---|---|
| Weight | 1.96 kg |
| Logistics data | |
|---|---|
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 11.7 kg |
| Master (outer) case height | 232 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case width | 342 mm |
| Master (outer) case net weight | 9.8 kg |
| Harmonized System (HS) code | 84733080 |
