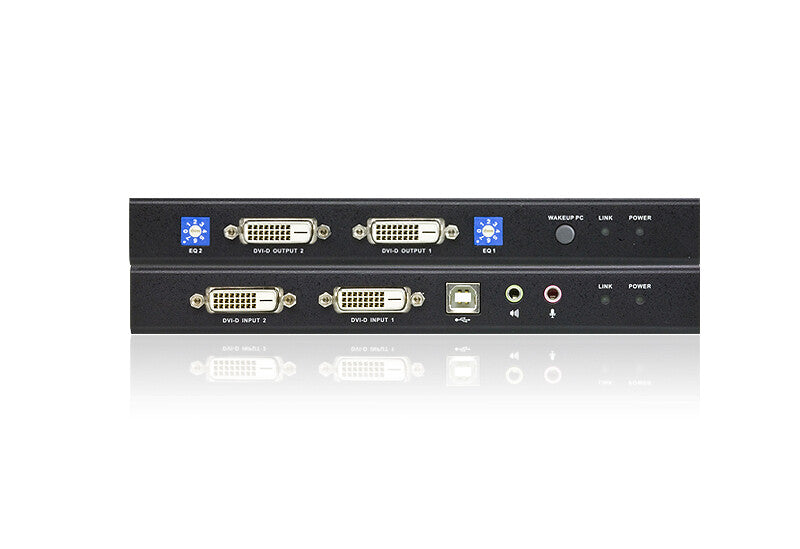

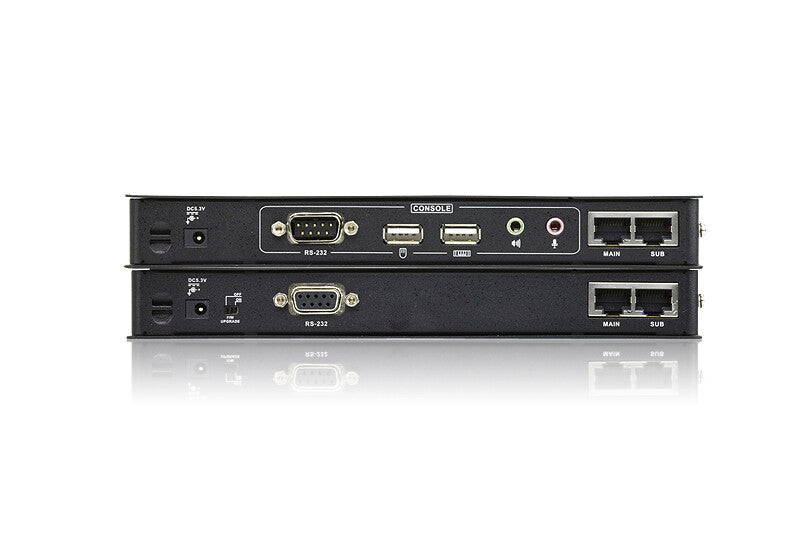

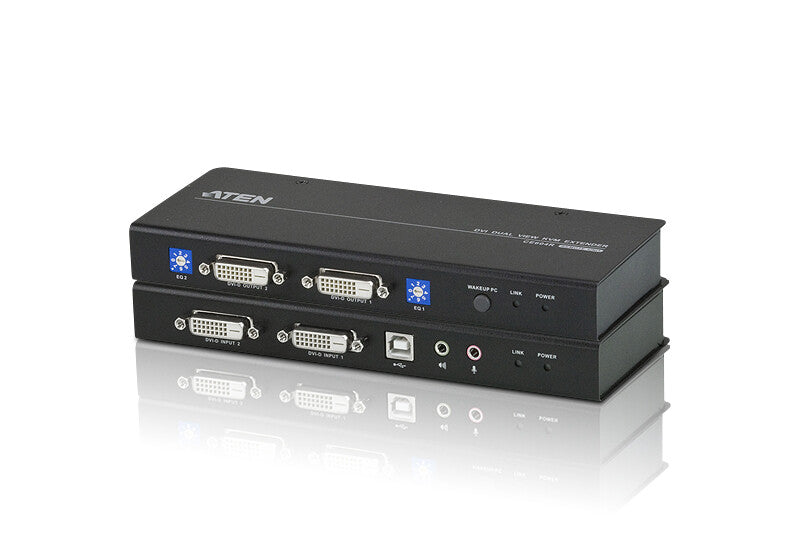

USB Dual View DVI KVM Extender with Audio and RS-232 (60m)
The CE604 is a DVI Dual View USB based KVM Extender that features Dual View functionality, which enables the video output to seamlessly display on two monitors. With RS-232 serial functionality, it allows access to a computer system from a remote console up to 60 m away. The CE604 is built for control and security purposes, and is targeted towards financial and industrial markets.
1x CE604L (Local Unit)
1x CE604R (Remote Unit)
1x 2L-7D02U USB DVI KVM Cable Set (1.8m)
1x LIN5-26W-W11G DVI Cable (1.8m)
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
| Features |
|---|
| LED indicators |
Link, Power |
| Material |
Metal |
| Product colour |
Black |
| Supported resolutions |
1920 x 1200, 1024 x 768 |
| Maximum digital resolution |
1920 x 1200 pixels |
| Rack mounting |
Yes |
| Cable types supported |
Cat5, Cat5e |
| Maximum transfer distance |
60 m |
| Connectivity technology |
Wired |
| Type |
Transmitter & receiver |
| Transmitter |
|---|
| RJ-45 ports quantity (transmitter) |
2 |
| Transmitter local keyboard/mouse port type |
USB |
| Transmitter video port type |
DVI-D |
| Receiver |
|---|
| Receiver local video port type |
DVI-D |
| Receiver local keyboard/mouse port type |
USB |
| RJ-45 ports quantity (receiver) |
2 |
| Power |
|---|
| AC adapter output voltage |
5.3 V |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Receiver weight |
490 g |
| Receiver height |
2.5 cm |
| Receiver depth |
8.67 cm |
| Receiver width |
20.2 cm |
| Transmitter weight |
490 g |
| Transmitter height |
2.5 cm |
| Transmitter depth |
8.53 cm |
| Transmitter width |
20.2 cm |
| Packaging data |
|---|
| Package weight |
2.06 kg |
| Package height |
210 mm |
| Package depth |
325 mm |
| Package width |
98 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Weight |
1.99 kg |
| Logistics data |
|---|
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case gross weight |
11 kg |
| Master (outer) case height |
232 mm |
| Master (outer) case length |
512 mm |
| Master (outer) case width |
342 mm |
| Master (outer) case net weight |
9.95 kg |
| Harmonized System (HS) code |
84733080 |
