Aten

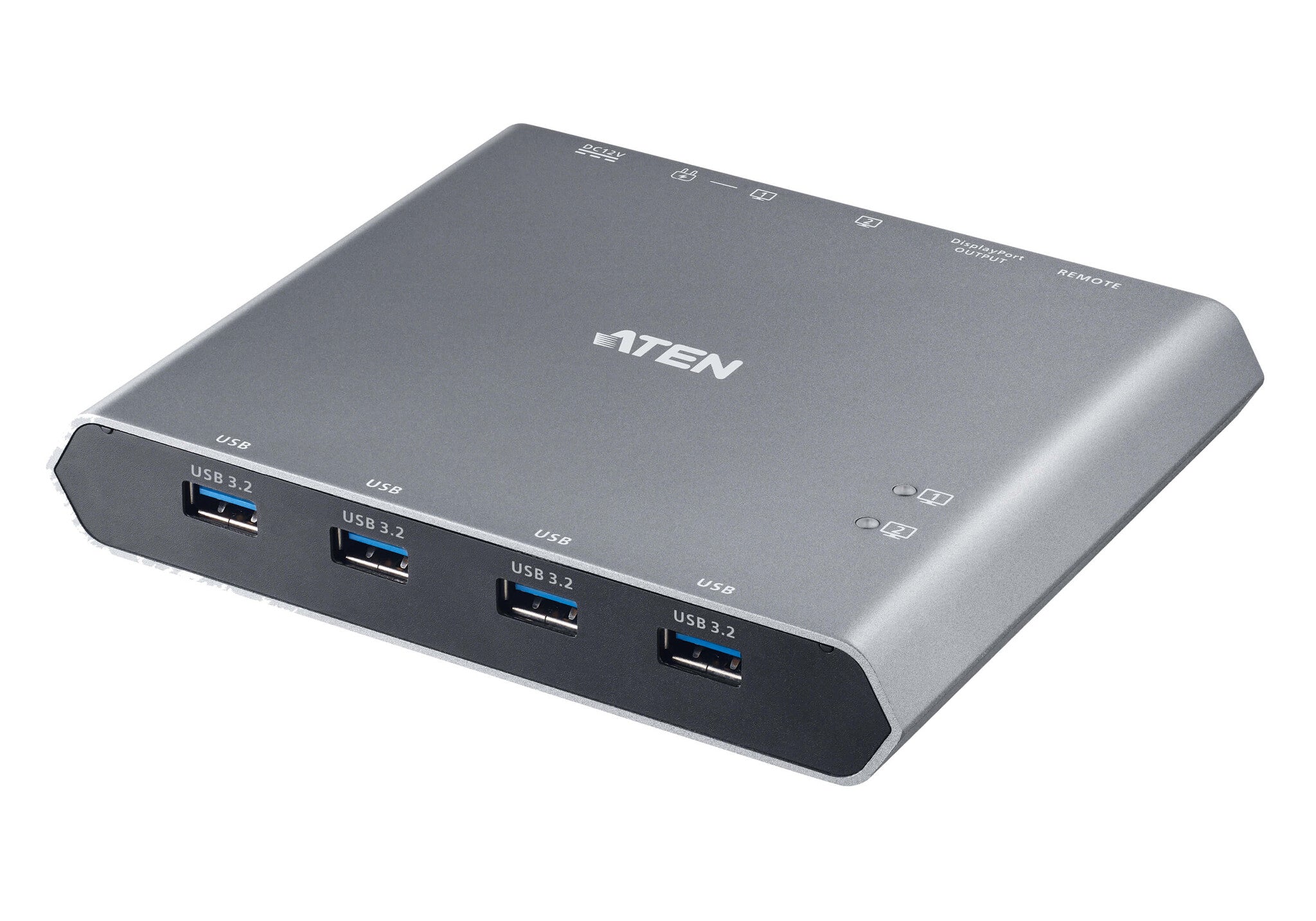

ATEN US3311 KVM switch Aluminium

R 4,525.02

Skip to product information
1 of 5

Regular price R 4,525.02
Sale price R 4,525.02 Regular price
Shipping calculated at checkout.

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock
2-Port 4K DisplayPort USB-C KVM Dock Switch with Power Pass-through New

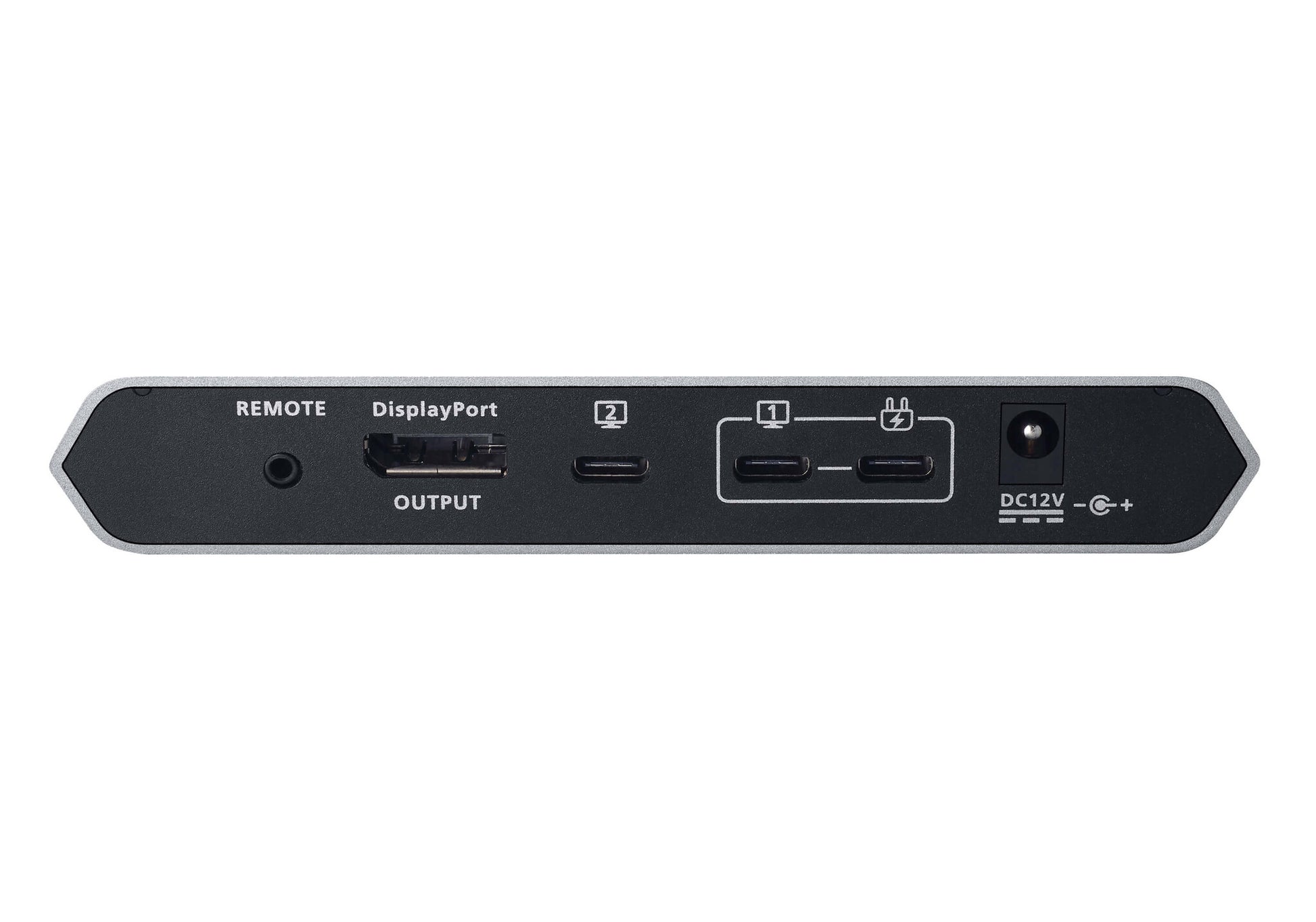

Built to deliver easy control and seamless switching between dual USB-C hosts, the US3311 is a 2-in-1 solution combining a KVM switch and a multiport dock with 4 x USB Type-A ports, 1 x DisplayPort, 1 x USB-C PD input, and 1 x DC jack input. Quick switching from one laptop to the other is made easy through one press of the dedicated port switch button, enabling use of the same USB peripherals and a single DisplayPort monitor for two host devices. Work efficiency is boosted without the need to switch workstations or unplug peripherals.

Other highlights include video resolution support for up to 4K (3840 x 2160) @ 60 Hz, ensuring that every video detail is displayed in crisp UHD quality. The US3311 is a 4-port USB 3.2 Gen 1 Type-A hub with up to 5 Gbps data transfer rates while supporting high-speed downstream devices. Furthermore, the Power Delivery 3.0 technology enables charging of the host device with up to 100 W, allowing your laptop to obtain the maximum power via your USB-C power adapter. The US3311 helps save valuable desk space and expands the functionality and connectivity of your Mac laptops, creating an ultra-powerful USB-C workstation.

Ports & interfaces
DC-in jack Yes
USB connector type USB Type-A, USB Type-C

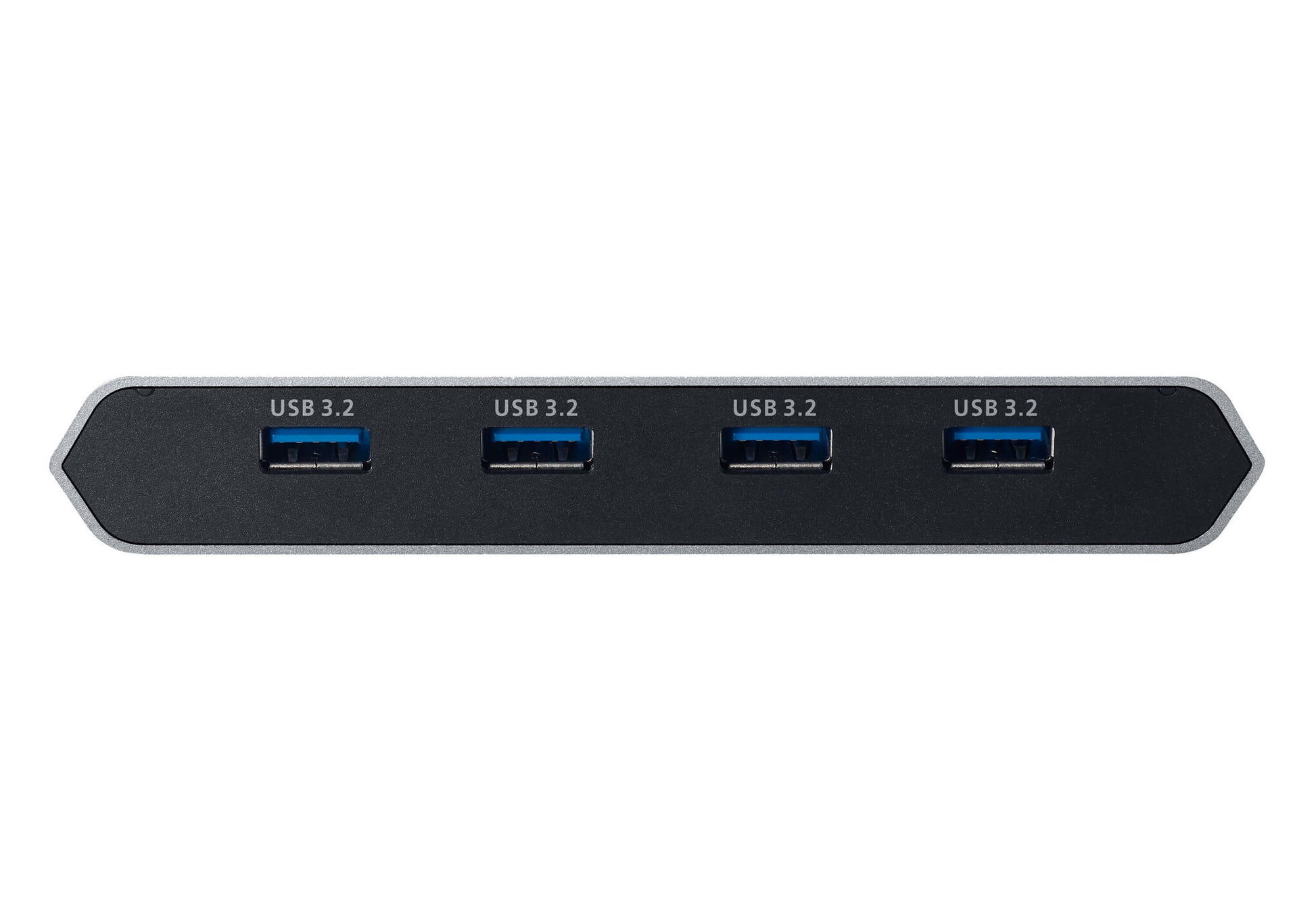

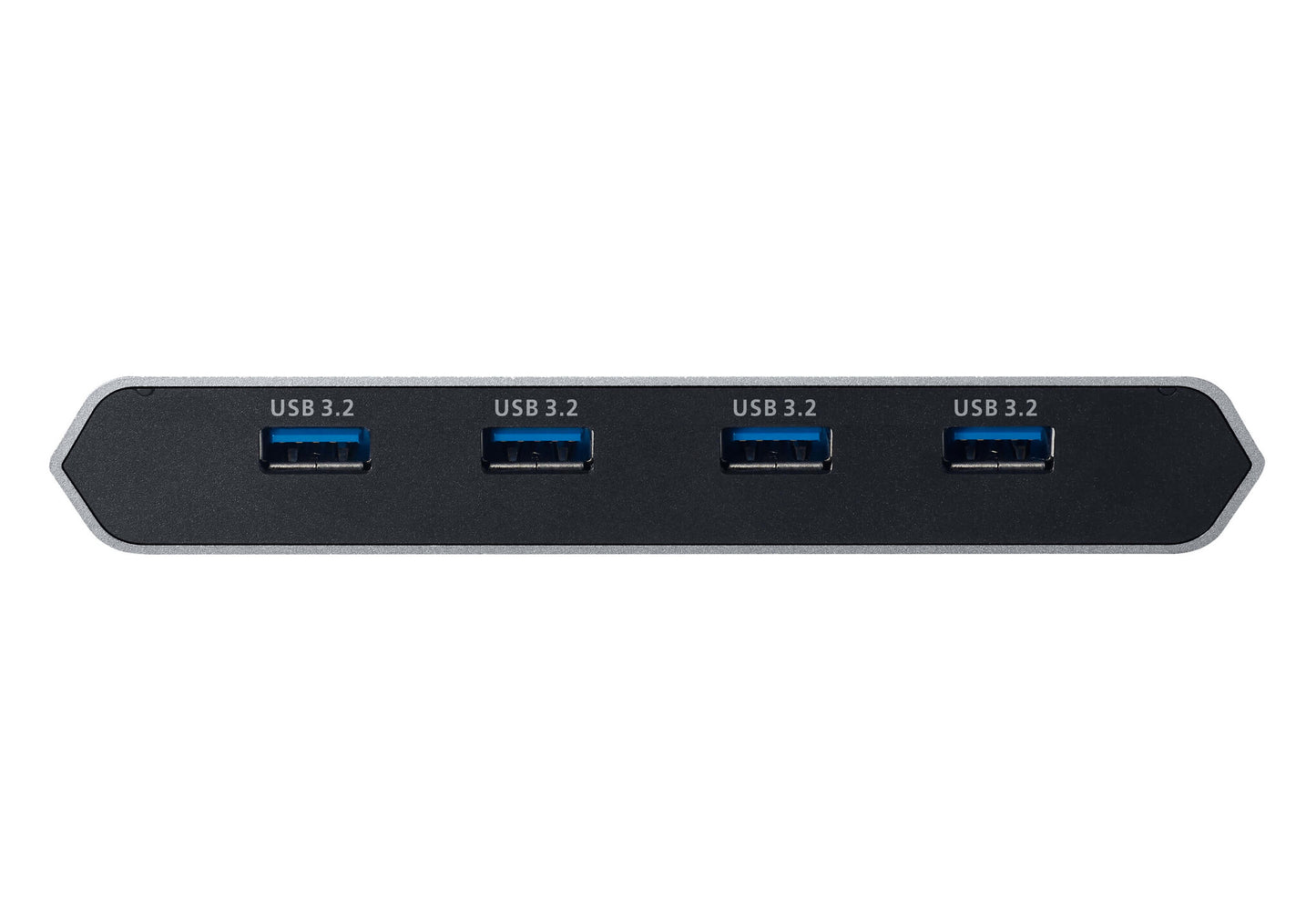

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 4
USB hub Yes
Console DisplayPorts ports quantity 1
Console ports USB C
Console USB ports quantity 3
DisplayPorts quantity 1
Video port type DisplayPort
Mouse port type USB
Keyboard port type USB
Number of computers controlled 2
Performance
Number of displays supported 1
Plug and Play Yes
Data transfer rate (max) 5 Gbit/s
Video bandwidth 60 Hz
Maximum resolution 3840 x 2160 pixels
HD type 4K Ultra HD
Design
LED indicators Yes
Wired remote switch Yes
Housing material Aluminium
Product colour Aluminium
Rack mounting No
Display
Built-in display No
Power
USB Power Delivery Yes
USB Power Delivery revision 3.0
USB Power Delivery up to 100 W
Input current 3.3 A
Input voltage 12 V
Power source DC
System requirements
Other operating systems supported iPadOS, Android
Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.3 Panther, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Windows operating systems supported Windows 10, Windows 11
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 350 g
Height 23.8 mm
Depth 143 mm
Width 119 mm
Packaging content
Quick installation guide Yes
Cables included USB Type-C
Logistics data
Quantity per pack 1 pc(s)
