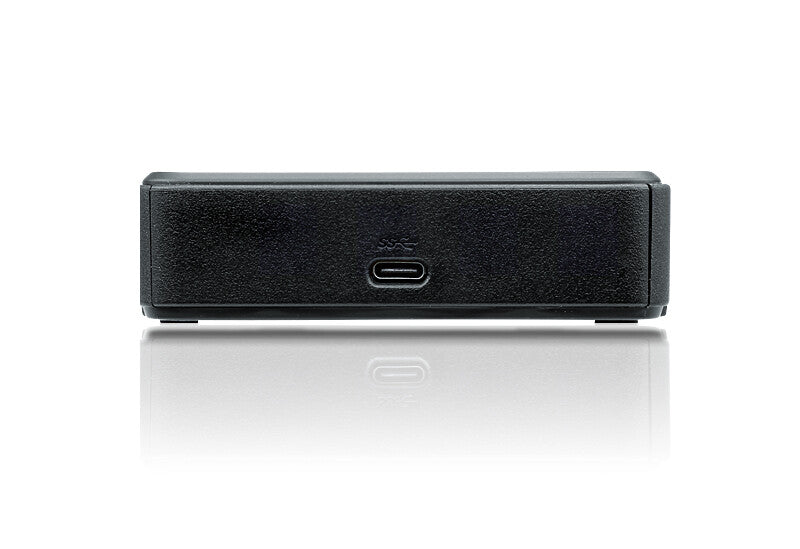

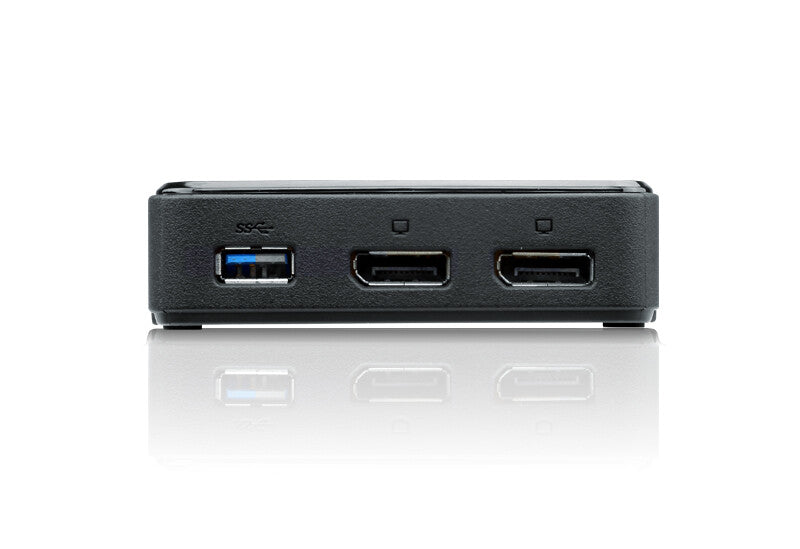

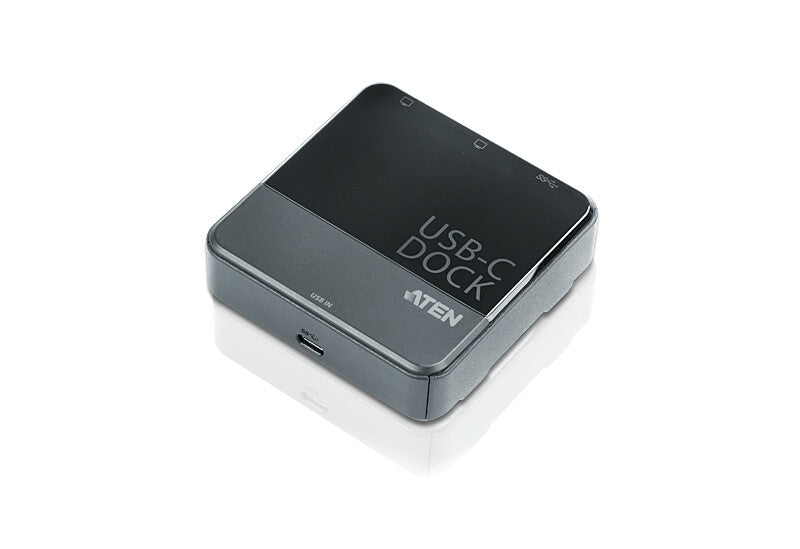

USB-C Dual-DisplayPort Mini Dock
The ATEN UH3231 is a USB-C Dual-DisplayPort Mini Dock which transforms your USB-C device to a dual monitor workstation. It’s compliant with the latest USB 3.2 Type-C specifications and supports a variety of video converters that can convert HDMI,DVI or VGA outputs for use in dual display mode. The UH3231 can route video from the source device to two DisplayPort monitors, splitting the video transmission for a dual-view display via a single cable while maintaining a high quality resolution up to 1080p.
The UH3231 USB-C Dual-DisplayPort Mini Dock uses USB-C connections to create high-speed and reliable data transfers between a laptop or computer with the ability to connect up to 128 additional peripherals, including Dual DP and USB 3.0 devices. The UH3231’s slim and light design makes it ideal to maximize your workspace and travel with for business on the go.
| Ports & interfaces | |
|---|---|
| Microphone in | No |
| DisplayPorts quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN | No |
| Performance | |
|---|---|
| Compatibility | VC986, VC925, VC965, VC985, UCE260, UE350A, UEH4002, UEH4002A, UH7230, UH3233, CS1953, CE924 |
| Plug and Play | Yes |
| LED indicators | Yes |
| Housing material | Plastic |
| Number of displays supported | 2 |
| Maximum digital resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Card reader integrated | No |
| Product colour | Black |
| Power | |
|---|---|
| Power connector | USB Type-C |
| Power source type | USB |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 100 g |
| Height | 26.8 mm |
| Depth | 93 mm |
| Width | 93.7 mm |
| Packaging data | |
|---|---|
| Package height | 185 mm |
| Package depth | 155 mm |
| Package width | 55 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Cables included | USB Type-C |
| Logistics data | |
|---|---|
| Master (outer) case width | 297 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 33 mm |
| Master (outer) case gross weight | 5.81 kg |
| Master (outer) case net weight | 2.8 kg |
| Harmonized System (HS) code | 84733020 |
