HDMI, HDCP 2.2, DC 5V, 44x24x11.8 mm

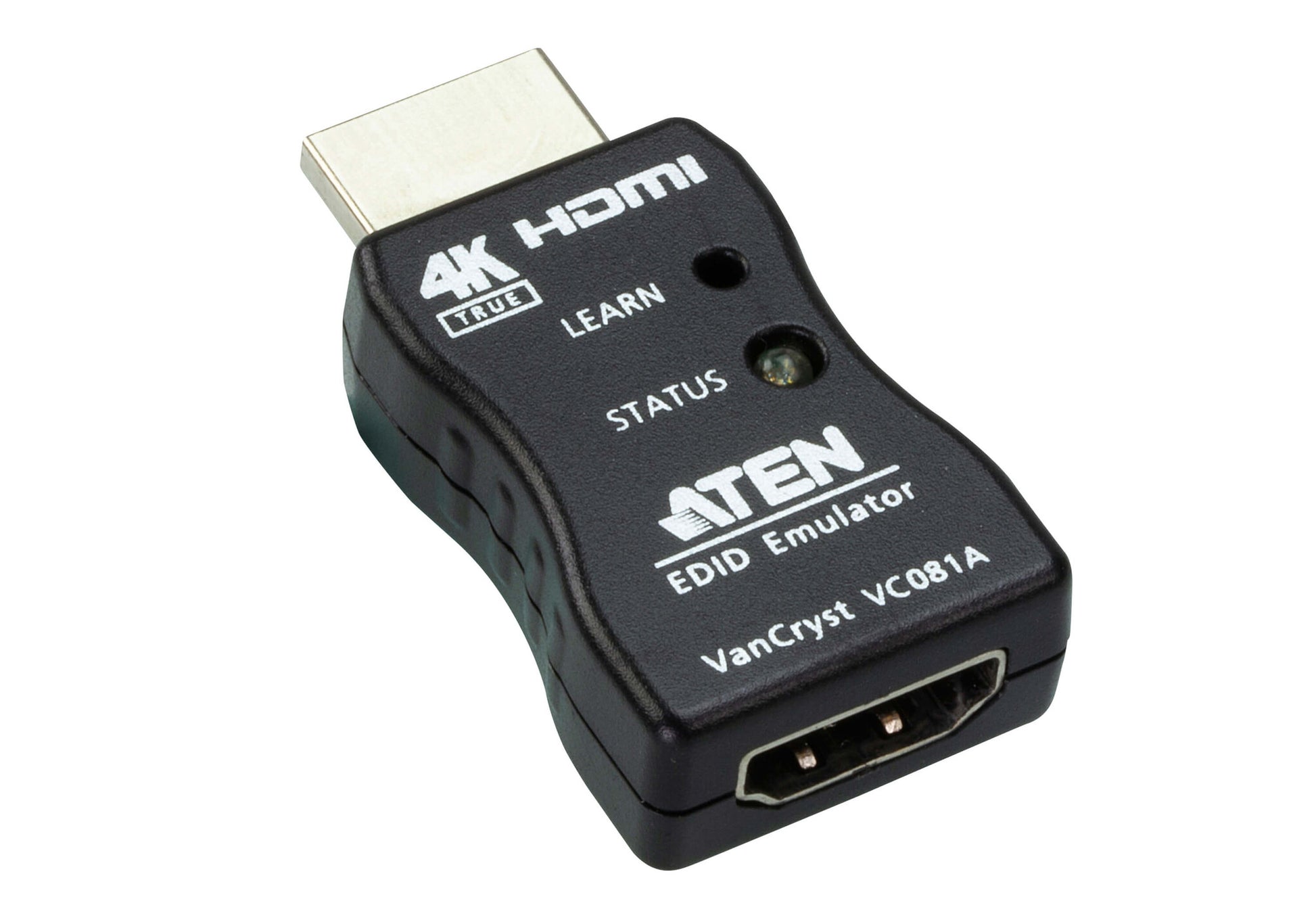

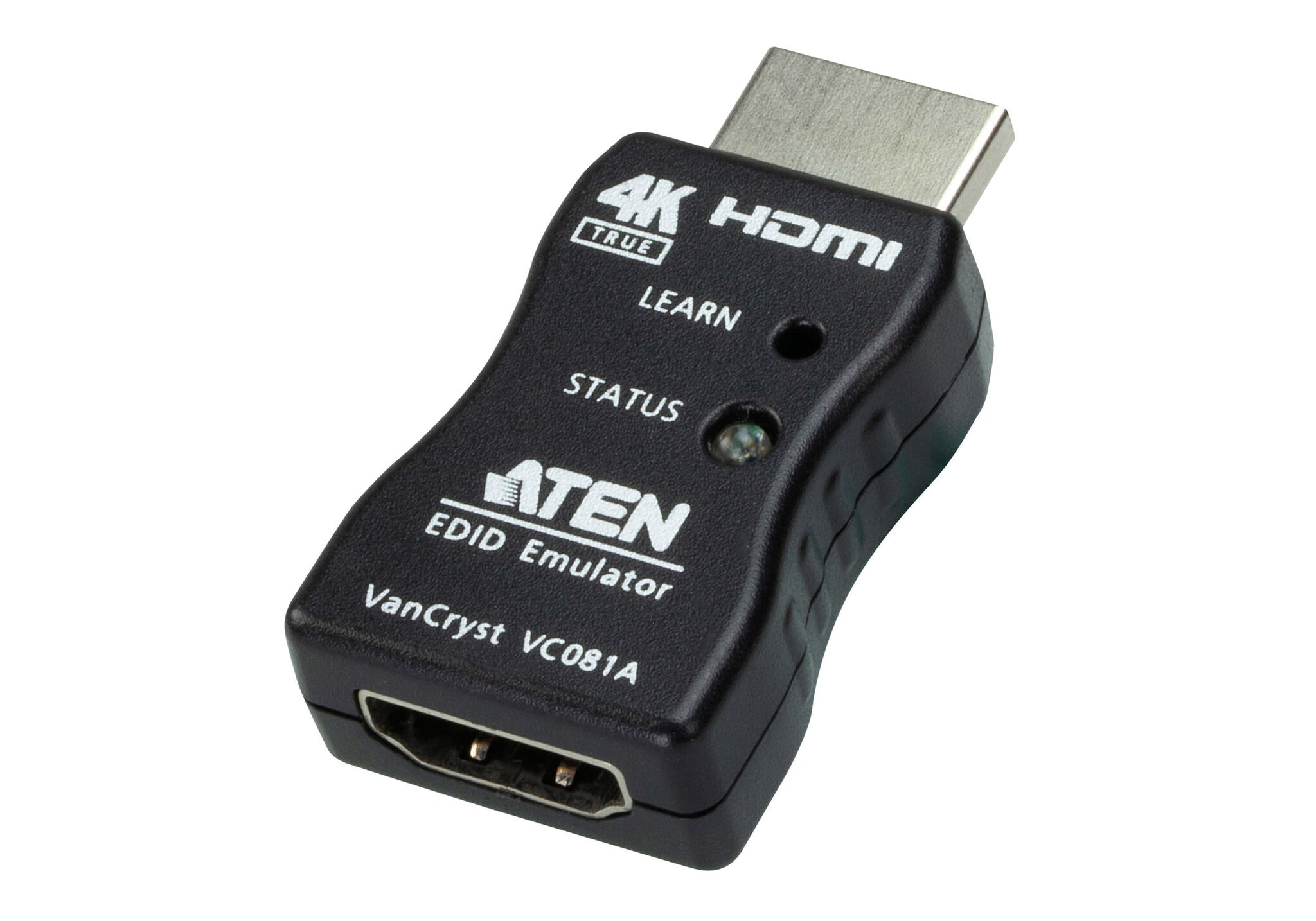

As a True 4K HDMI EDID Emulator Adapter , the VC081A is designed to emulate and store one set of the EDID from the connected display while facilitating 4K video transmission. By learning the EDID from the HDMI display and relaying it to the video source, the VC081A helps to eliminate video communication problems that occur due to the EDID data synchronization failure between the HDMI video source and the connected display.

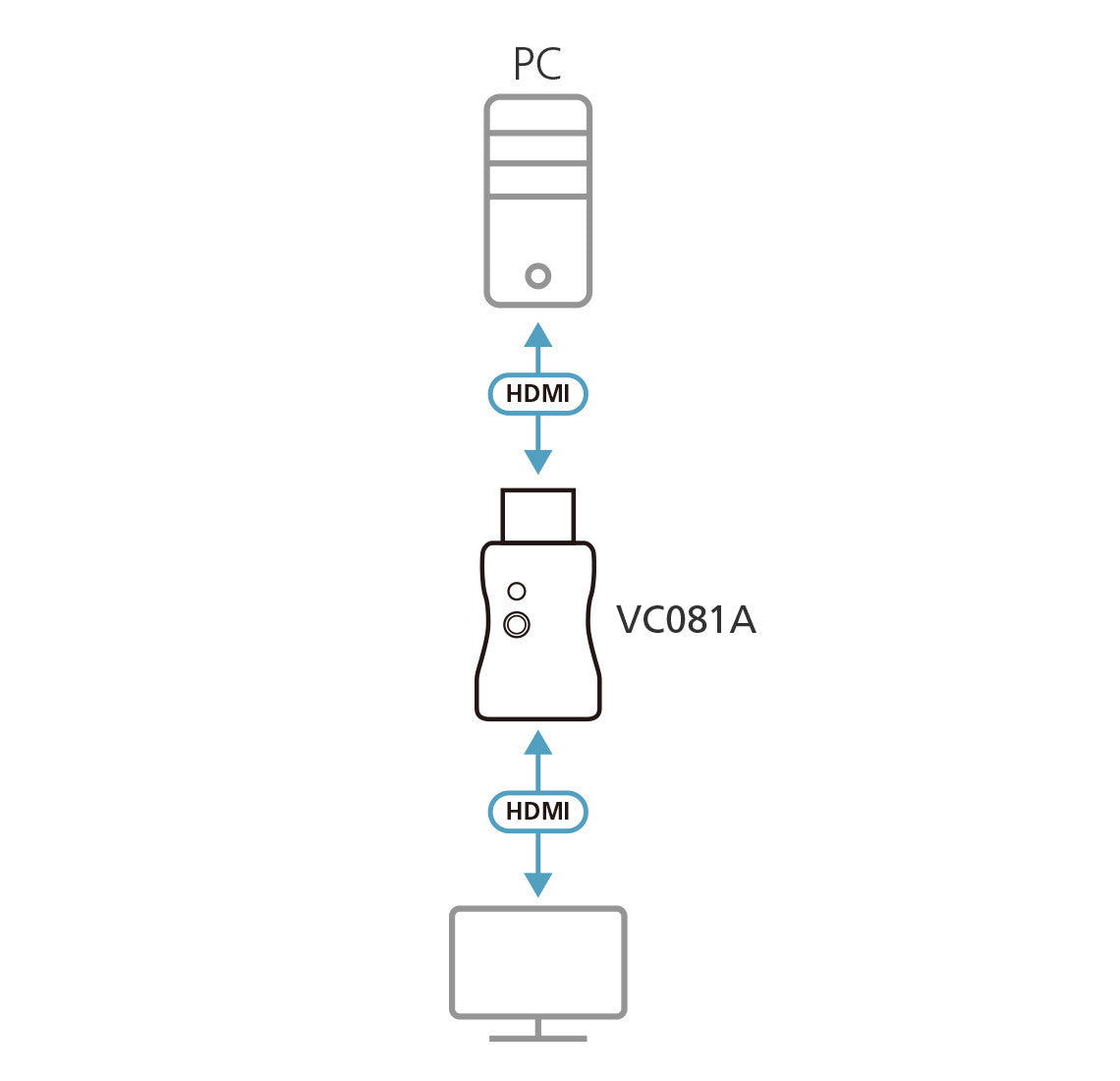

This new member contains a unique “Learn Button Switch” to allow EDID to be effectively learned and saved. Once the EDID is learned, the VC081A can be used to keep a PC or server awake from a remote location over IP instead of the monitor. The VC081A is an ideal device for avoiding blank or blink display issues led by communication errors between sources and displays when integrating a Pro AV system.
| Features |
|---|
| Consumer Electronics Control (CEC) support |
Yes |
| Maximum video resolution |
3840 x 2160 pixels |
| Design |
|---|
| LED indicators |
Yes |
| Housing material |
Plastic |
| Product colour |
Black |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| Number of video outputs |
1 |
| Number of video inputs |
1 |
| Video port type |
HDMI |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case gross weight |
1.64 kg |
| Master (outer) case length |
260 mm |
| Master (outer) case width |
245 mm |
| Master (outer) case height |
285 mm |
| Master (outer) case net weight |
160 g |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Weight & dimensions |
|---|
| Weight |
8 g |
| Height |
11.8 mm |
| Depth |
24 mm |
| Width |
44 mm |
| Packaging data |
|---|
| Package weight |
82 g |
| Package height |
129 mm |
| Package depth |
124 mm |
| Package width |
42 mm |
