ATEN EA1640 Indoor Temperature & humidity sensor

R 2,386.02

EA1640-AT

Out of stock

R 2,386.02

Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

1 x Port Terminal Block for Door Sensor, 1 x Port RJ-11 for Original Temperature Sensor, Black

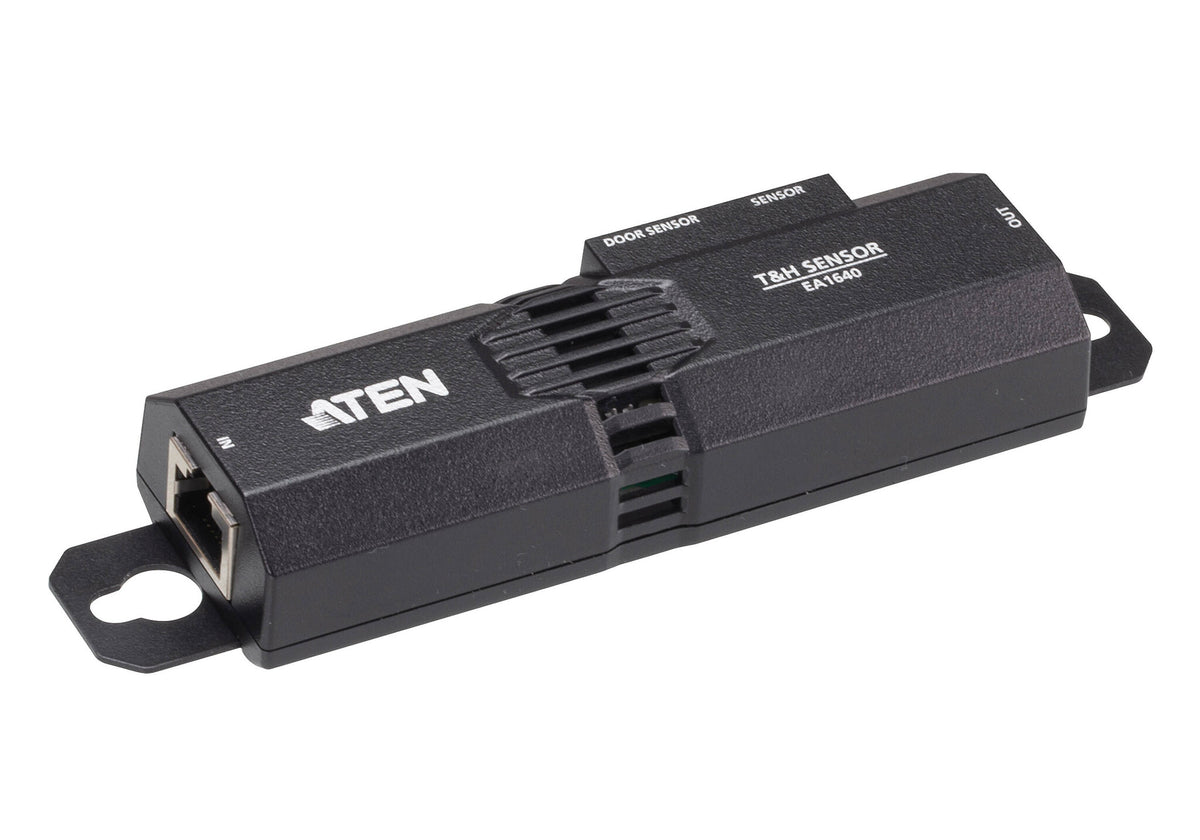

EA1640 serves as a compact, flexible humidity and temperature measuring solution for ATEN PG series PDU applications where precision is significant – from server rooms, data centers, hospitals, smart factories to green offices. The sensor contains 1 x RJ-45 input port, 1 x RJ-45 output port, and 1x RJ-11 input port for easy connection with PG PDU series and environmental sensors including EA1140, EA1240, and EA1340. One terminal block is built for combining EA1440 / EA1441 / EA1442 door sensor or EA1540 the capacitive leakage sensor. Up to 8 daisy-chained devices are supported to broaden applications.

Designed with the ultimate flexibility in mind, EA1640 can be placed at an ideal location as a result of the 1.5 m RJ-45 cable coming with it. In addition, it comes with a magnet for easy attachment to metallic surfaces. Rack mount kits are also included for quick installation inside racks.

Features
Ports quantity	2
Humidity measuring range	0 - 100%
Accuracy	15%
LED indicators	Yes
Certification	EMC/FCC, Class A

Technical details
Purpose	Indoor
Sensor type	Temperature & humidity sensor
Standard interfaces	RJ-11
Temperature measuring range	-10 - 75 °C
Accuracy	1.5 °C
Cable length	1.5 m

Weight & dimensions
Width	35.7 mm
Depth	104.4 mm
Height	21.4 mm
Weight	50 g
Package width	42 mm
Package depth	124 mm
Package height	129 mm
Package weight	170 g

Other features
Country of origin	Taiwan

Operational conditions
Operating temperature (T-T)	-10 - 75 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	0 - 80%

Logistics data
Harmonized System (HS) code	90258040
Master (outer) case length	470 mm
Master (outer) case width	270 mm
Master (outer) case height	292 mm
Master (outer) case gross weight	4.98 kg
