8-Port Cat 5e/6 KVM Switch
Features
- One KVM console control up to 8 directly connected computers
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling

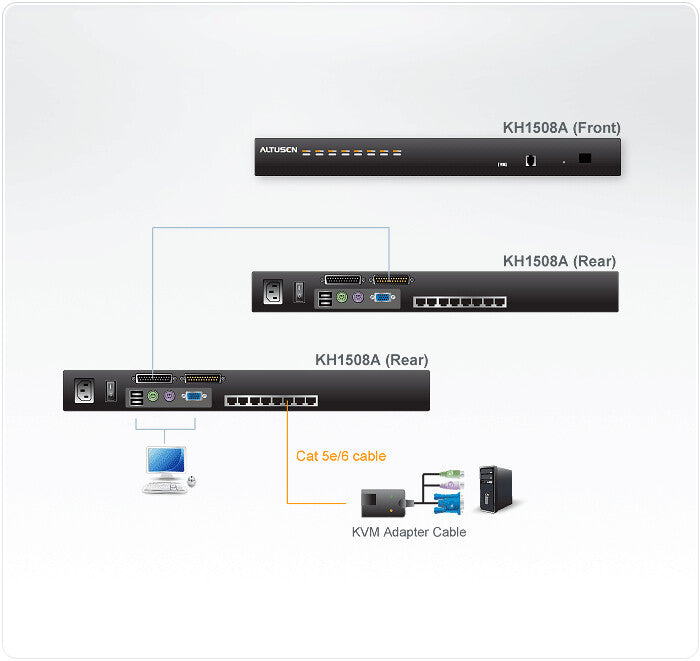

- By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
- Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters*
- Configue port access rights for users on a port - by - port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiplatform support – PC, Mac, Sun, and serial
- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
- Two-Level Password Security- Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
- Adapter ID
- Firmware Upgradeable
*With KVM Adapter Cable KA7000 series.
Package Contents
- 1x KH1508A 8-port Cat 5 High-Density KVM Switch
- 1x Firmware Upgrade Cable
- 1x 0AD8-0C05-24EG Power Cord
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| PS/2 ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Video port type |
VGA |
| Mouse port type |
USB |
| Keyboard port type |
PS/2 |
| Number of computers controlled |
8 |
| Network |
|---|
| Ethernet LAN (RJ-45) ports |
8 |
| Performance |
|---|
| Maximum resolution |
1600 x 1200 pixels |
| Design |
|---|
| Certification |
Windows 7CN ZL 98252015.8, DE 29903667.7, TW 194030, US 6160543, CN ZL 02122202.9, TW 183765, US 7386584, US 7640289, CN ZL 200410031689.0, TW I237762, DE 102004019107, US 7613854, CN ZL 200410042771.3, TW I269992, GB 2412456, FR 0500514, US 7584309, JP 4456936 |
| LED indicators |
Power, Status |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
6 W |
| External power adapter |
No |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
2.74 kg |
| Height |
44 mm |
| Depth |
433 mm |
| Width |
160 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Quick installation guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Other features |
|---|
| Ports quantity |
8 |
| Connectivity technology |
Wired |
