VE1812-AT-G
Out of stock
Regular price
R 11,770.02
Sale price
R 11,770.02
Regular price
Unit price
per
Shipping calculated at checkout.
Incl VAT
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Payment methods

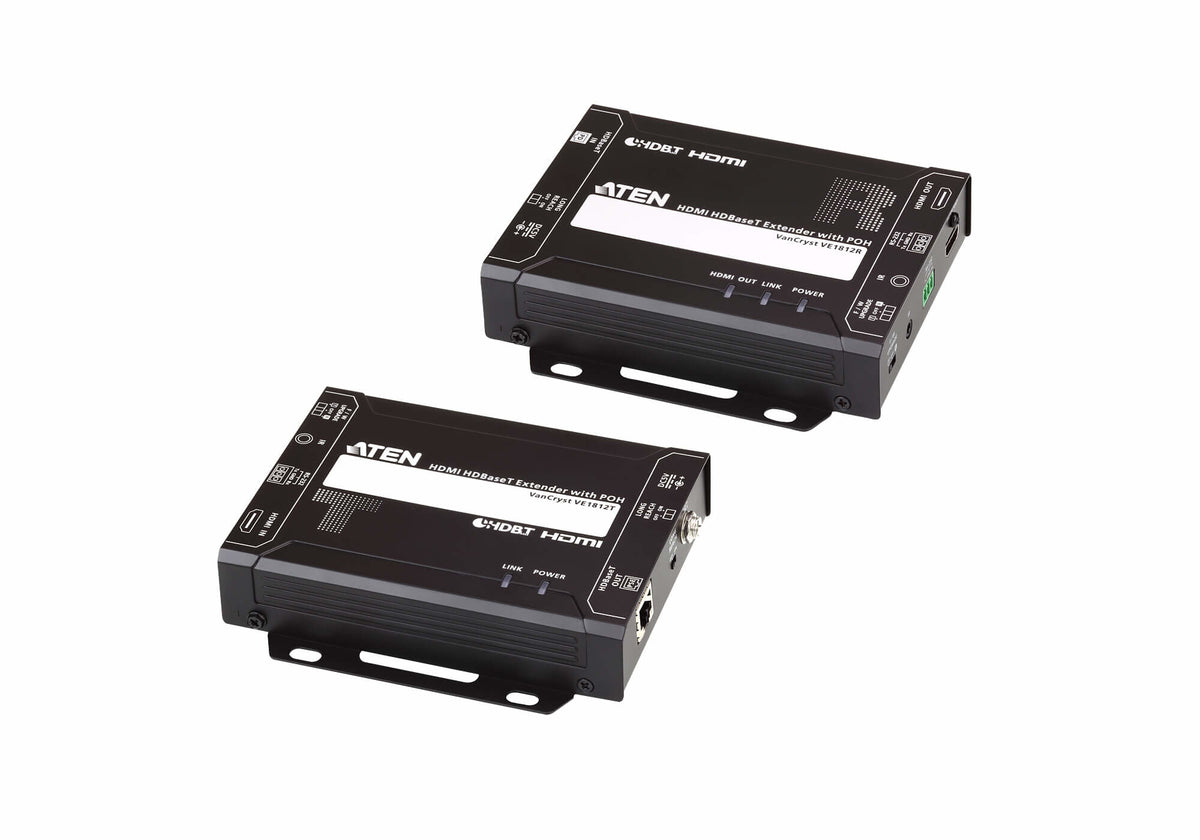

HDMI HDBaseT Extender with POH
The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.

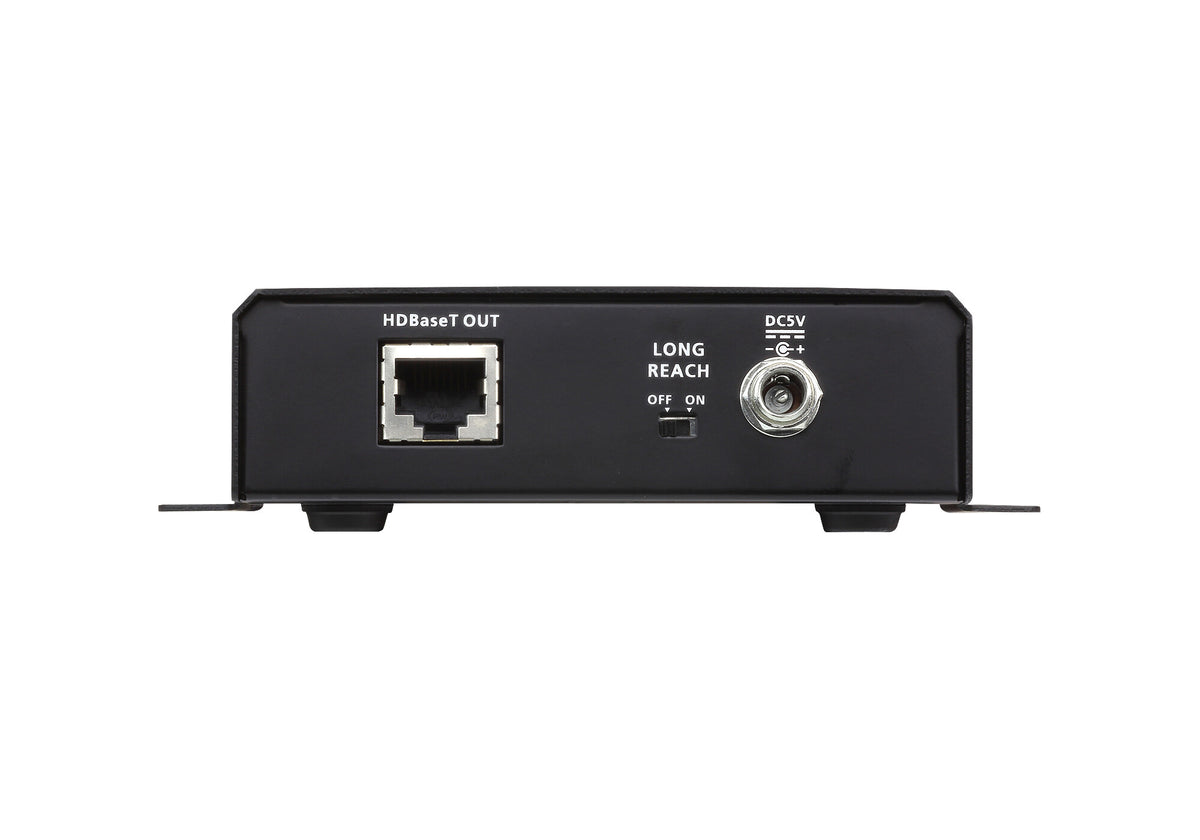

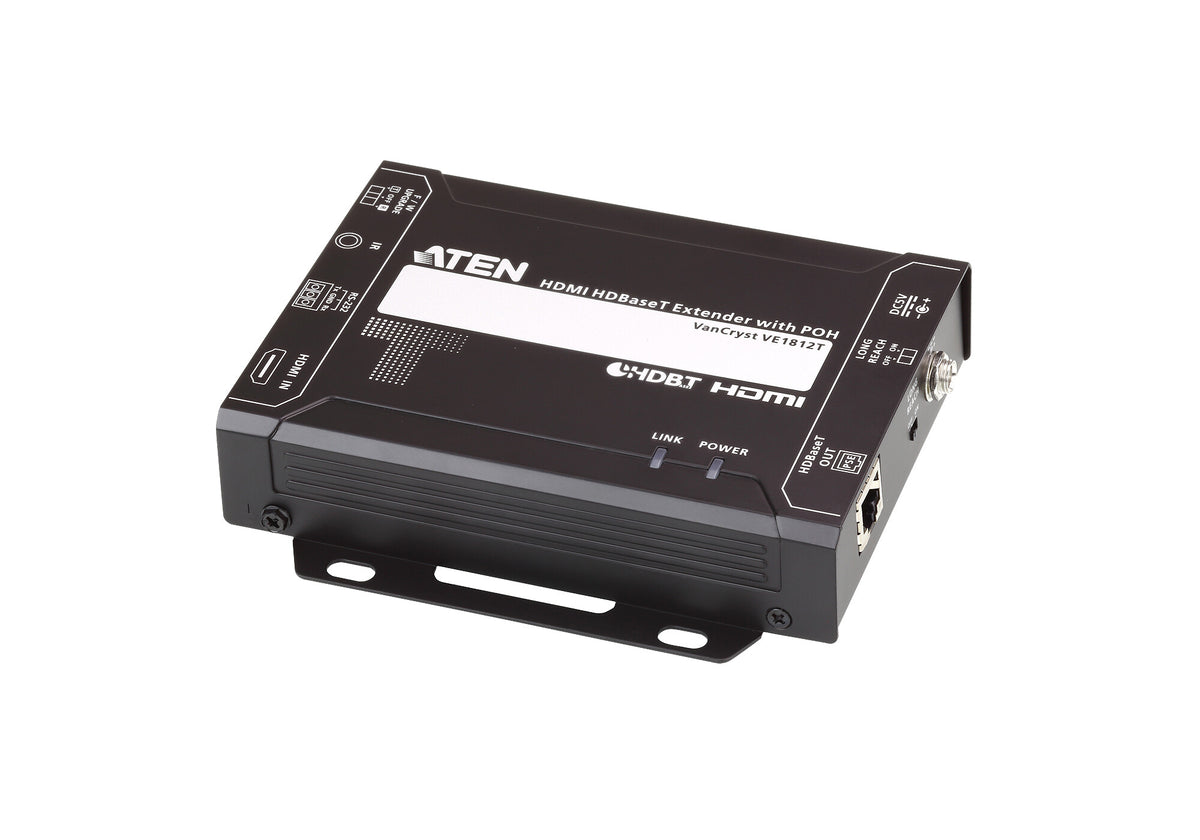

1x VE1812 HDMI HDBaseT Transmitter with POH

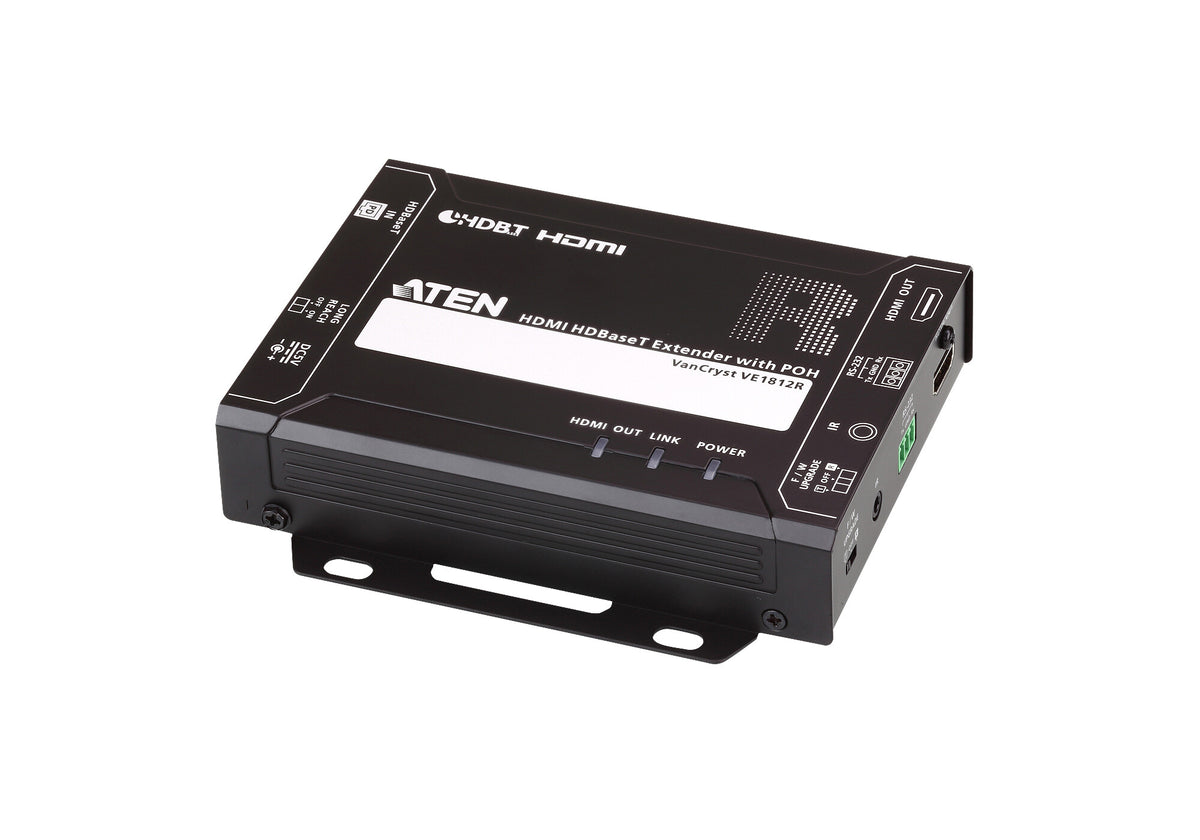

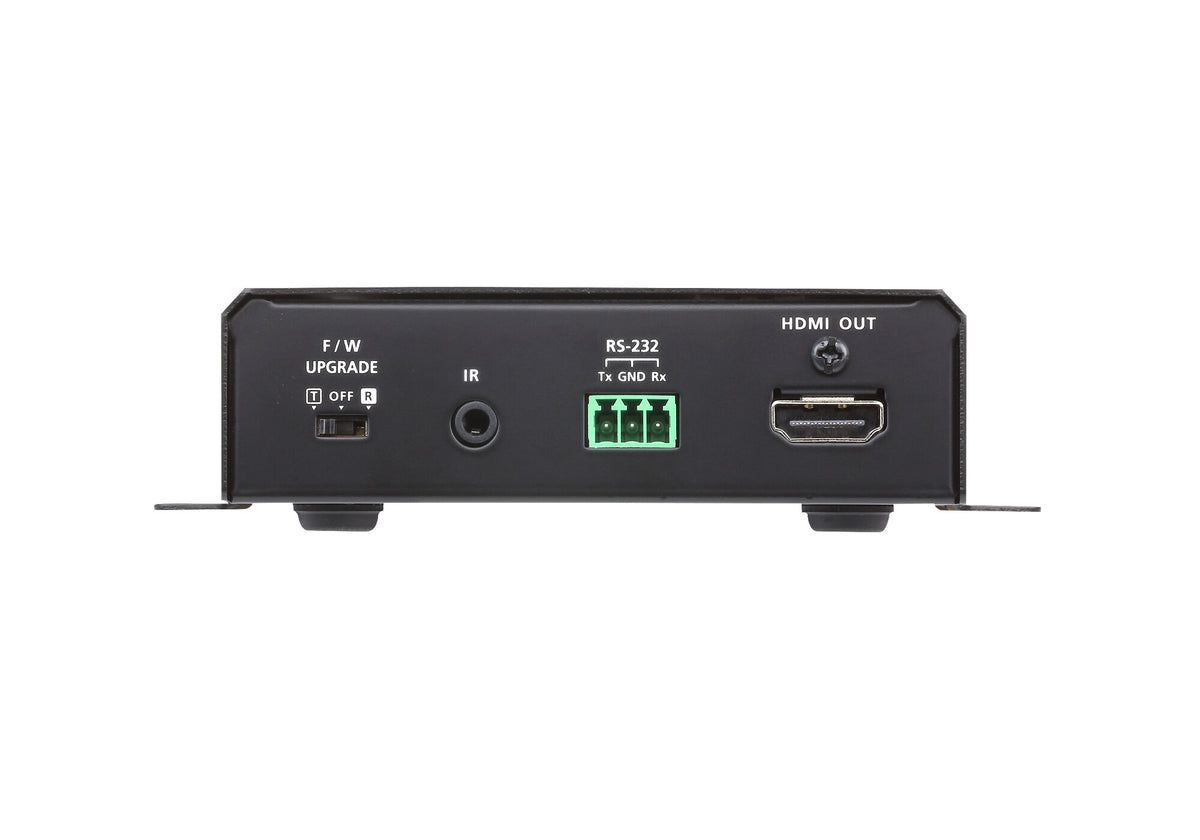

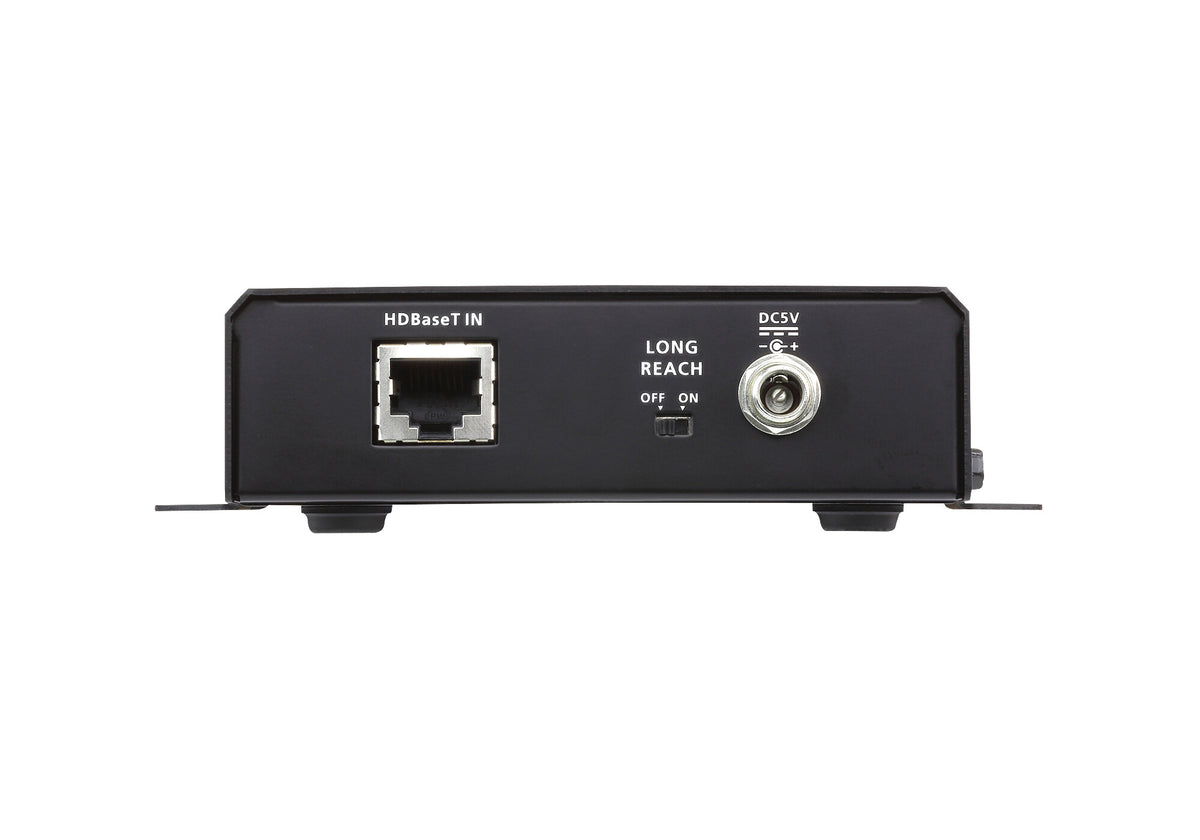

1x VE1812 HDMI HDBaseT Receiver with POH
1x 0AD8-1F05-30M1 Power Adapter
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G-1 IR Receiver
2x RS-232 Terminal Blocks
1x User Instructions
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| Bandwidth | 340 MHz |
| Impedance | 100 Ω |
| Firmware upgradeable | Yes |
| Material | Metal |
| HDCP | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 1080p |
| LED indicators | Yes |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Video in | 1 |
| Video out | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power | |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (receiver) (max) | 5.33 W |
| External power adapter | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.3 kg |
| Receiver dimensions (WxDxH) | 123 x 140.4 x 30 mm |
| Receiver weight | 450 g |
| Transmitter dimensions (WxDxH) | 123 x 140.4 x 30 mm |
| Transmitter weight | 470 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.4 kg |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 6.98 kg |
| Master (outer) case net weight | 6.5 kg |
| Products per master (outer) case | 5 pc(s) |
