HDMI EDID Emulator

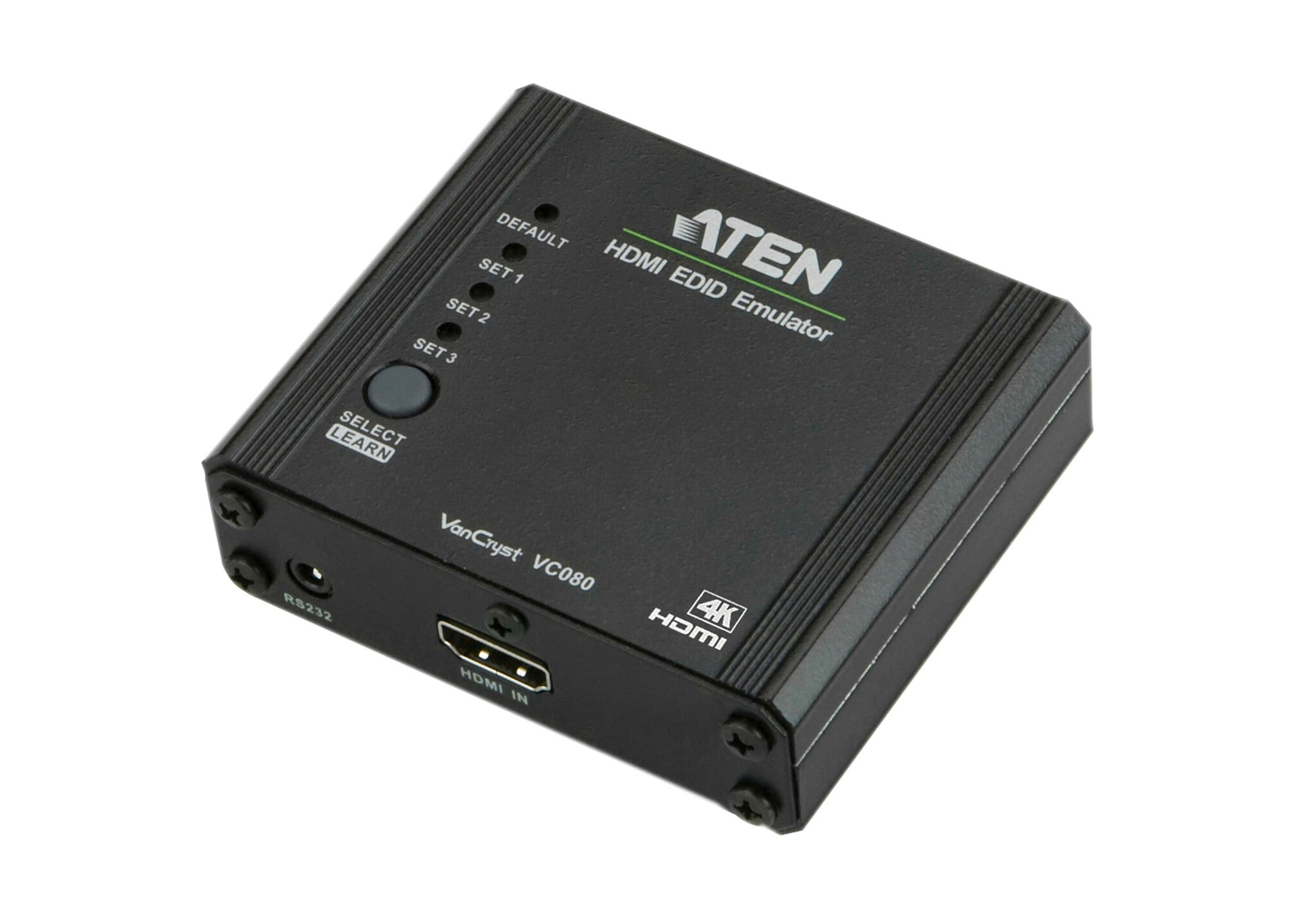

The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution.
1x VC080 4K HDMI EDID Emulator with Programmer
1x LIN5-04A2-J13G RS-232 Configuration Cable
1x LIN5-02U1-701G USB to DC Power Cord
1x User Instructions
| Features | |
|---|---|
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Consumer Electronics Control (CEC) support | Yes |
| Bandwidth | 10.2 Gbit/s |
| Video resolutions | 1920 x 1200,3840 x 2160,4096 x 2160 |
| Maximum video resolution | 4096 x 2160 pixels |
| Design | |
|---|---|
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| HDCP | Yes |
| Number of video outputs | 1 |
| Number of video inputs | 1 |
| Video port type | HDMI |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 3.64 kg |
| Master (outer) case length | 325 mm |
| Master (outer) case width | 250 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case net weight | 2.3 kg |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 230 g |
| Height | 24.5 mm |
| Depth | 77.6 mm |
| Width | 79 mm |
| Packaging data | |
|---|---|
| Package weight | 330 g |
| Package height | 160 mm |
| Package depth | 119 mm |
| Package width | 59 mm |
