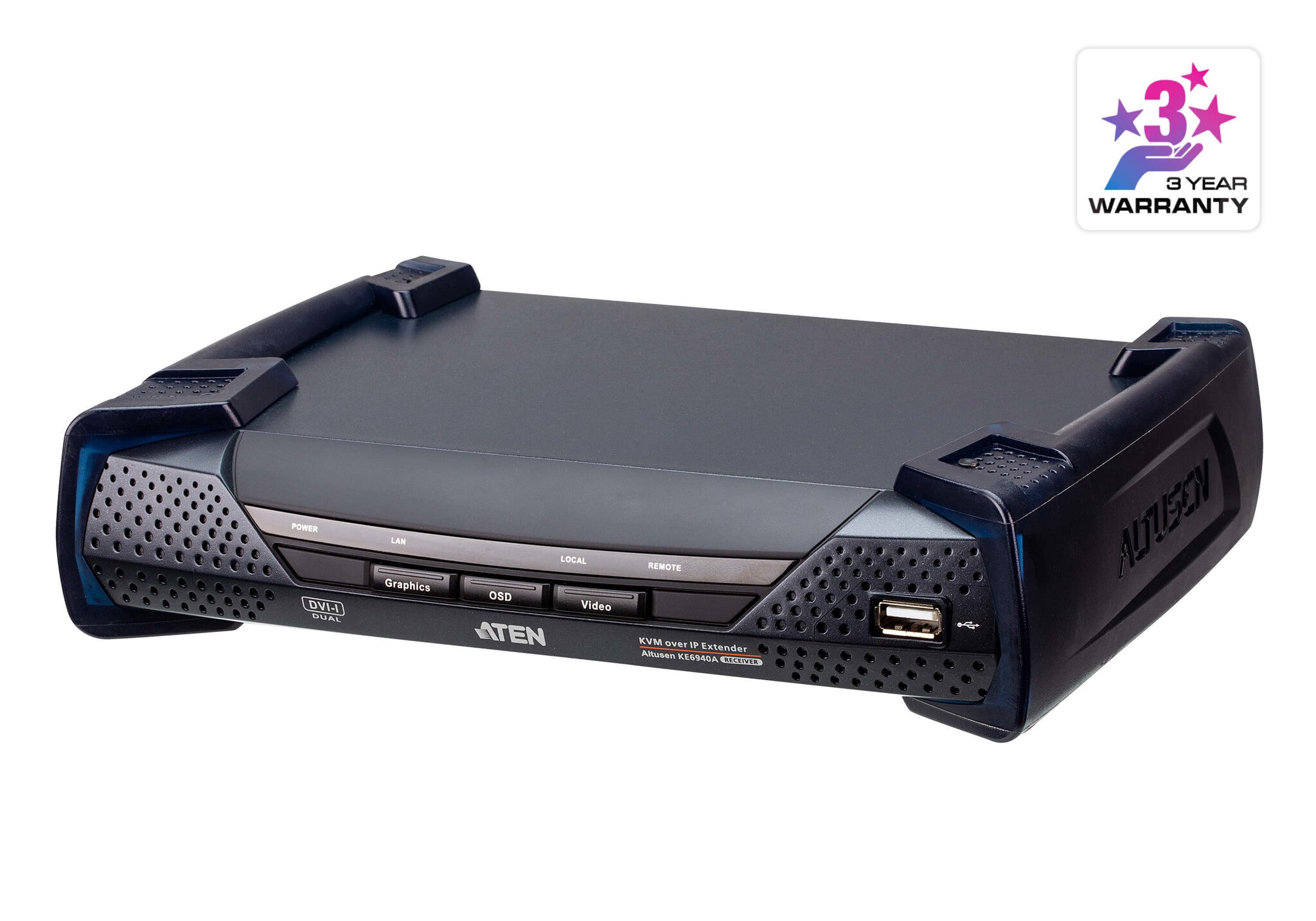

FHD Dual DVI-I KVM over IP Receiver
The KE6940A extender is consisted of a high performance IP-based transmitter (KE6940AT) that connects to the computer and a receiver (KE6940AR) that provides console access from a separate location. The KE6940A allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users' workstation.
1x KE6940AR DVI-I Dual Display KVM over IP Receiver
1x 0AD8-8005-40MA Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions
| Features |
|---|
| LED indicators |
Link, Power |
| Material |
Metal |
| Product colour |
Black |
| On Screen Display (OSD) |
Yes |
| KVM port selection |
Push-buttons |
| Maximum digital resolution |
1920 x 1080 pixels |
| Connectivity technology |
Wired |
| Type |
Receiver |
| Receiver |
|---|
| Receiver local video port type |
DVI-I |
| Receiver local keyboard/mouse port type |
PS/2 / USB |
| RJ-45 ports quantity (receiver) |
1 |
| Power |
|---|
| Power consumption (receiver) (max) |
8.51 W |
| AC adapter output voltage |
5 DC |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Receiver weight |
1.31 kg |
| Receiver height |
5.48 cm |
| Receiver depth |
22.8 cm |
| Receiver width |
17.2 cm |
| Packaging data |
|---|
| Package weight |
2.13 kg |
| Package height |
117 mm |
| Package depth |
414 mm |
| Package width |
207 mm |
| Ports & interfaces |
|---|
| RS-232 ports |
1 |
| USB port type |
USB Type-A |
| Technical details |
|---|
| Weight |
1.54 kg |
| Logistics data |
|---|
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case gross weight |
7.13 kg |
| Master (outer) case height |
232 mm |
| Master (outer) case length |
427 mm |
| Master (outer) case width |
370 mm |
| Master (outer) case net weight |
4.62 kg |
| Harmonized System (HS) code |
84733080 |
