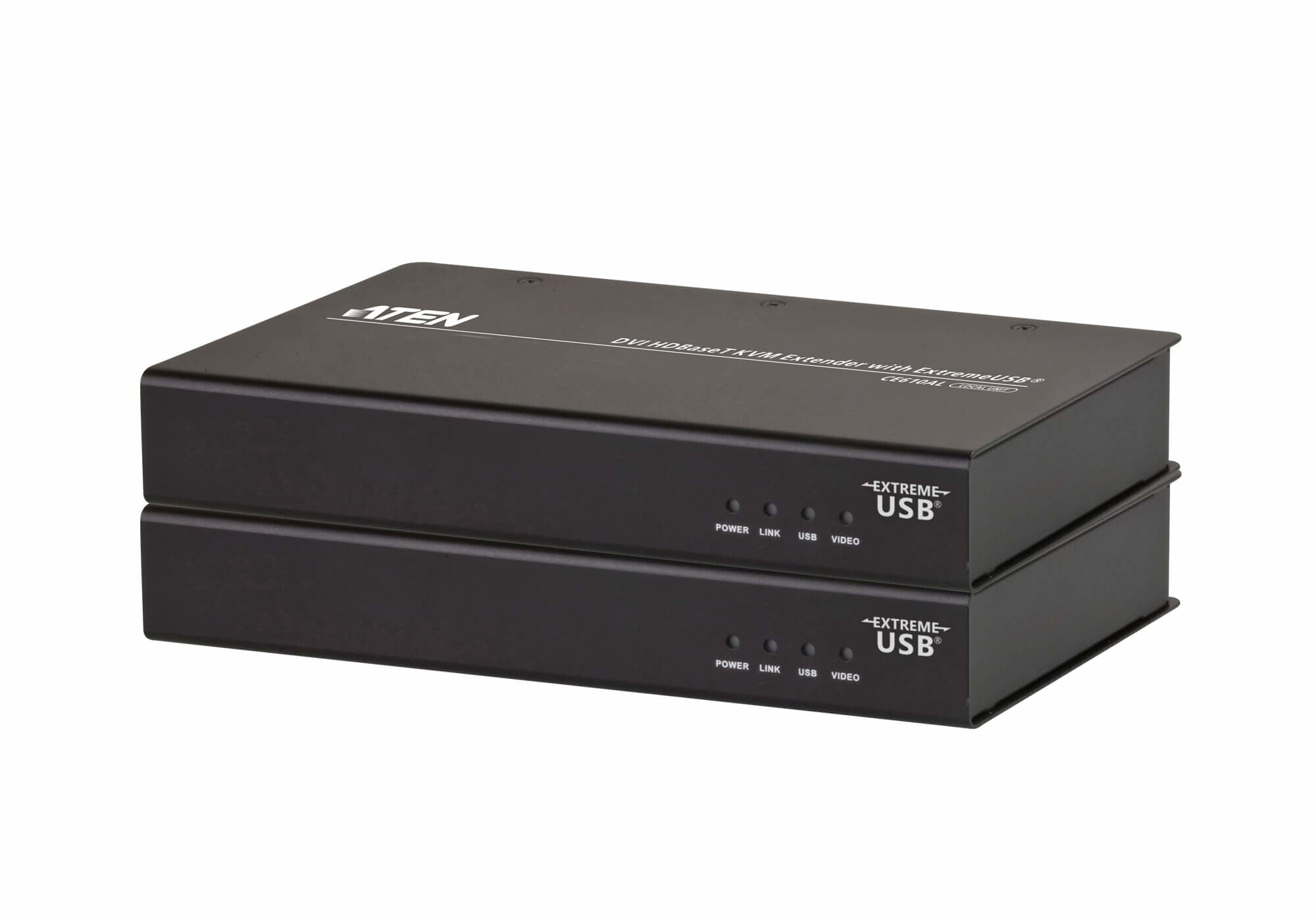

DVI HDBaseT KVM Extender with ExtremeUSB® (1920 x 1200 @ 100m)
The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB ® and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.
1x CE610AL DVI HDBaseT KVM Extender with ExtremeUSB ® (Local Unit)
1x CE610AR DVI HDBaseT KVM Extender with ExtremeUSB ® (Remote Unit)
1x LIN5-26W1-W11G Custom DVI Cable
1x LIN6-04U1-V1BG USB Cable
2x 0AD9-1B05-30EG Power Adapters
1x Mounting Kit
1x User Instructions
| Features | |
|---|---|

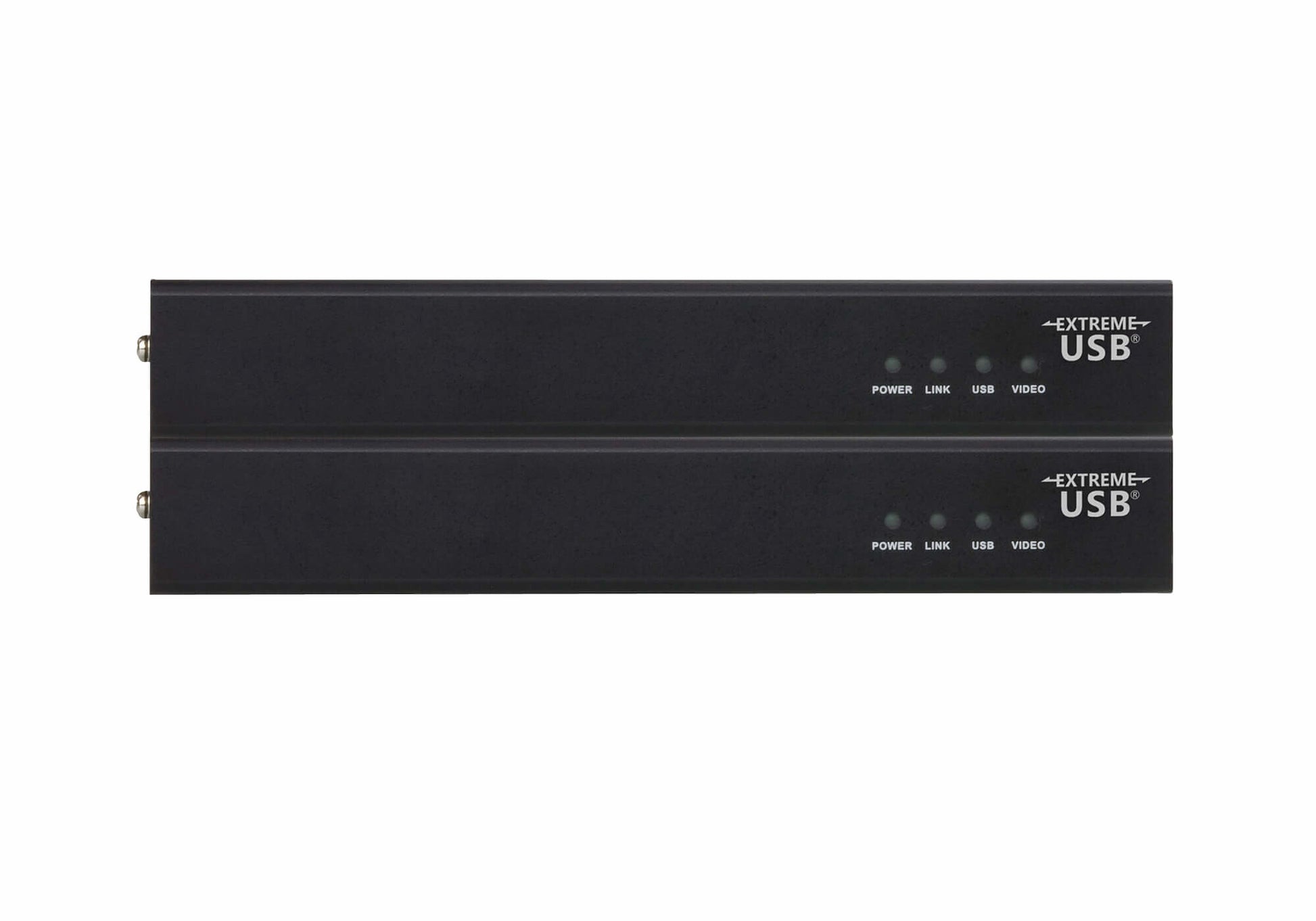

| LED indicators | Link, Power, USB, Video |
| USB 2.0 ports quantity | 3 |
| Firmware upgradeable | Yes |
| Maximum analog resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| Connectivity technology | Wired |
| Type | Transmitter & receiver |
| Transmitter | |
|---|---|

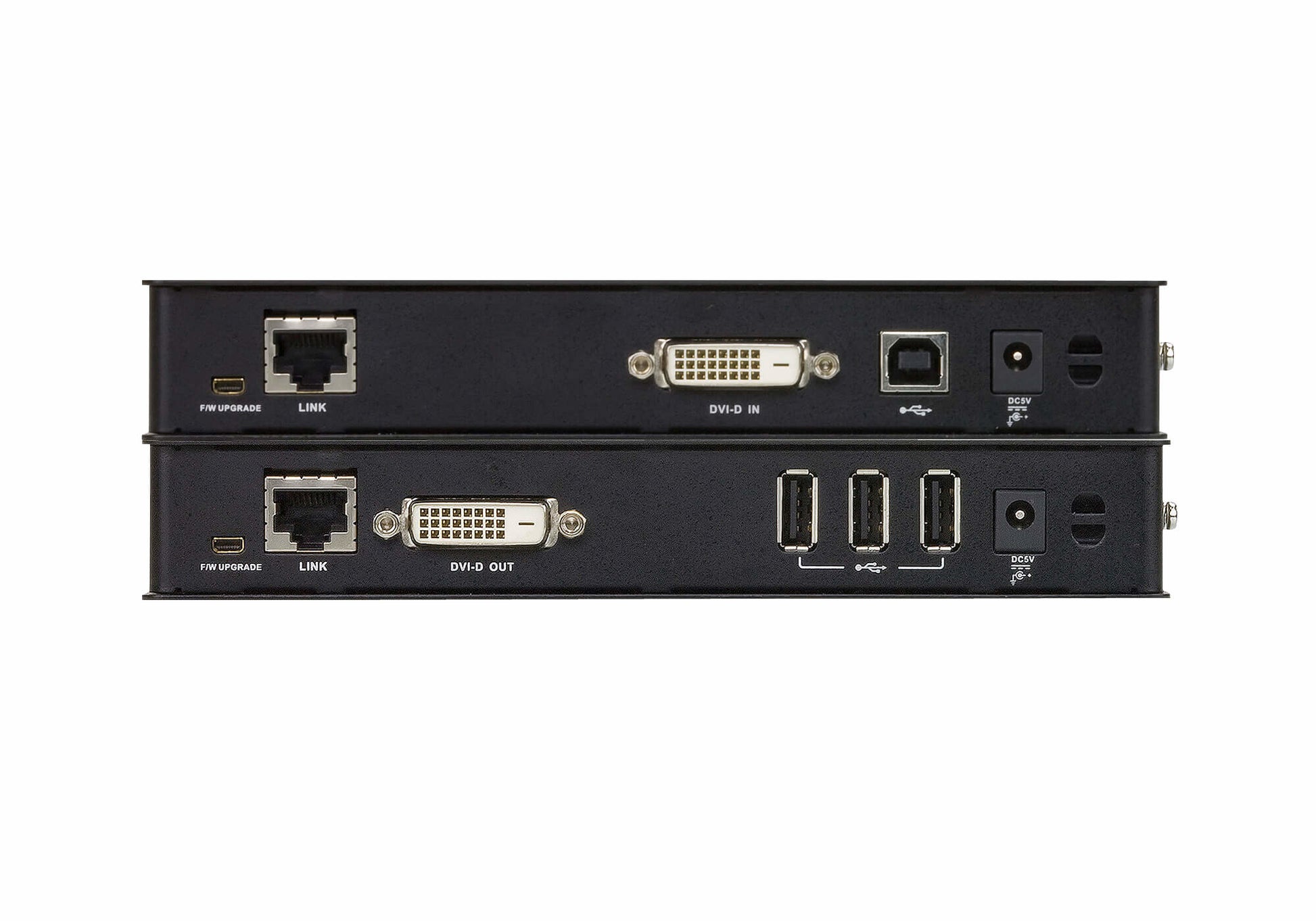

| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Transmitter video port type | DVI-D |
| Receiver | |
|---|---|
| Receiver local video port type | DVI-D |
| RJ-45 ports quantity (receiver) | 1 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Receiver weight | 620 g |
| Receiver height | 2.87 cm |
| Receiver depth | 18.2 cm |
| Receiver width | 11.8 cm |
| Transmitter weight | 620 g |
| Transmitter height | 2.87 cm |
| Transmitter depth | 18.2 cm |
| Transmitter width | 11.8 cm |
| Packaging data | |
|---|---|
| Package weight | 2.1 kg |
| Package height | 210 mm |
| Package depth | 325 mm |
| Package width | 98 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Weight | 2.05 kg |
| Maximum resolution | 1920 x 1200 pixels |
| Logistics data | |
|---|---|
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 11.9 kg |
| Master (outer) case height | 232 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case width | 342 mm |
| Master (outer) case net weight | 10.2 kg |
| Harmonized System (HS) code | 84733080 |
