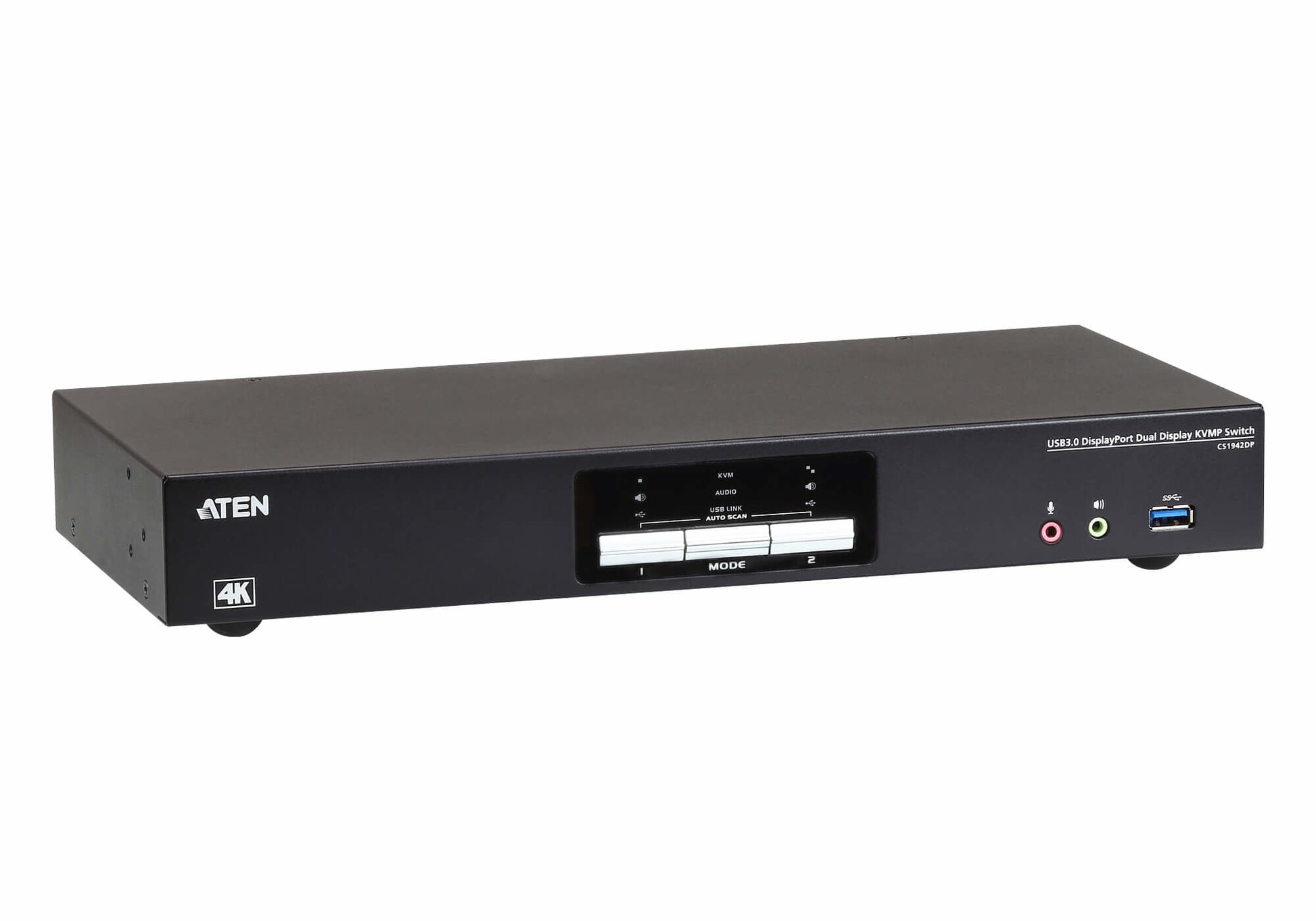

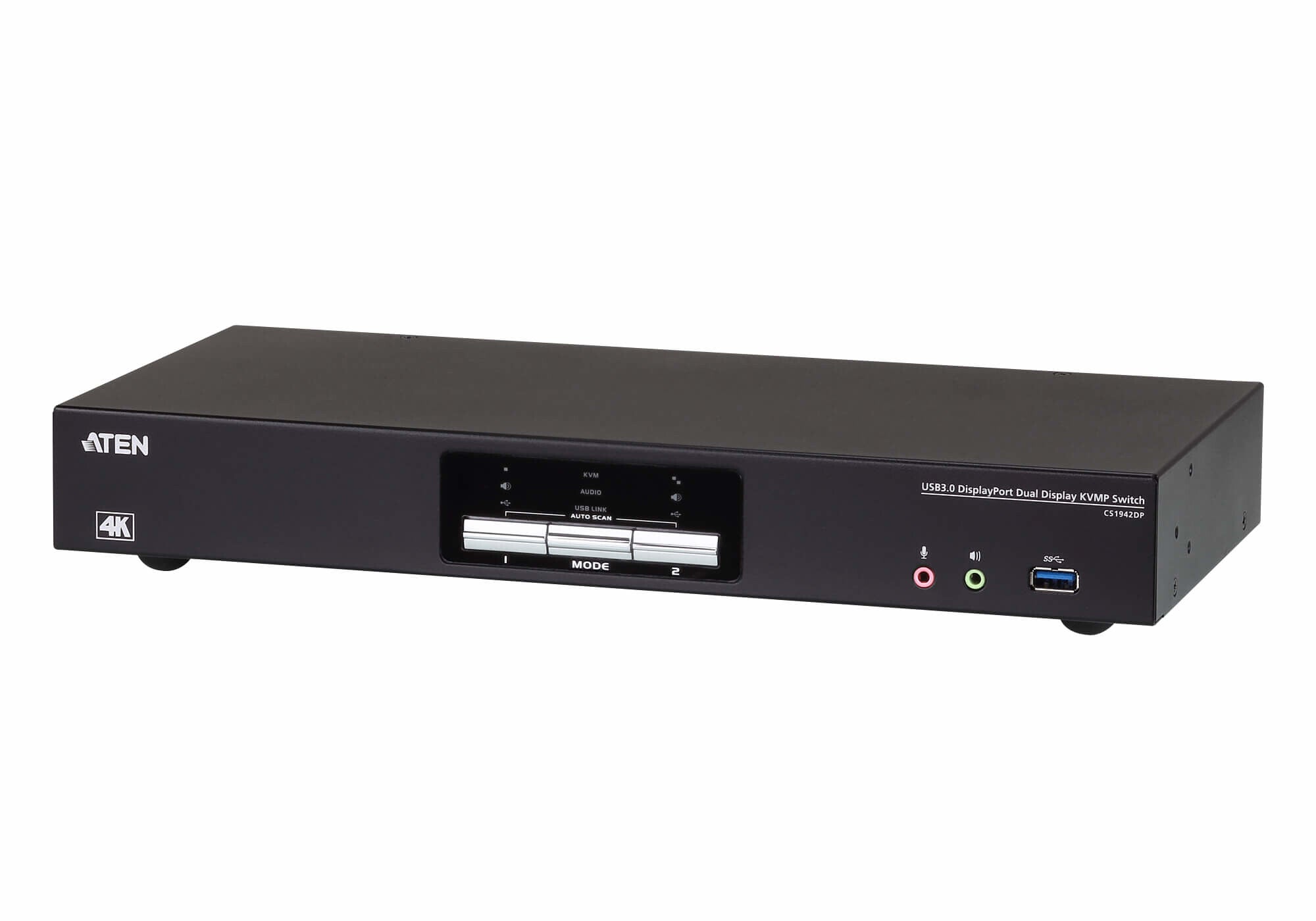

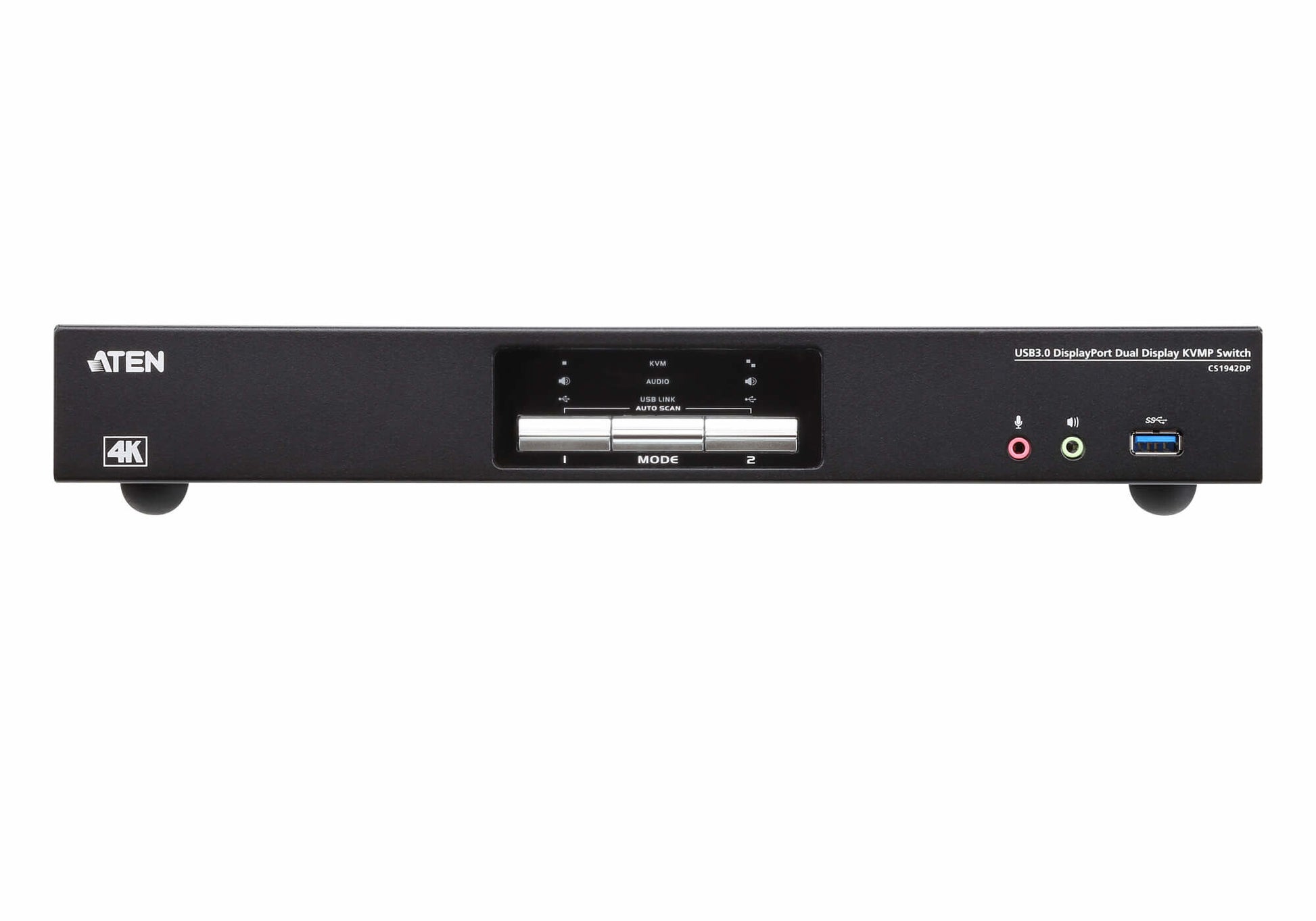

2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment.

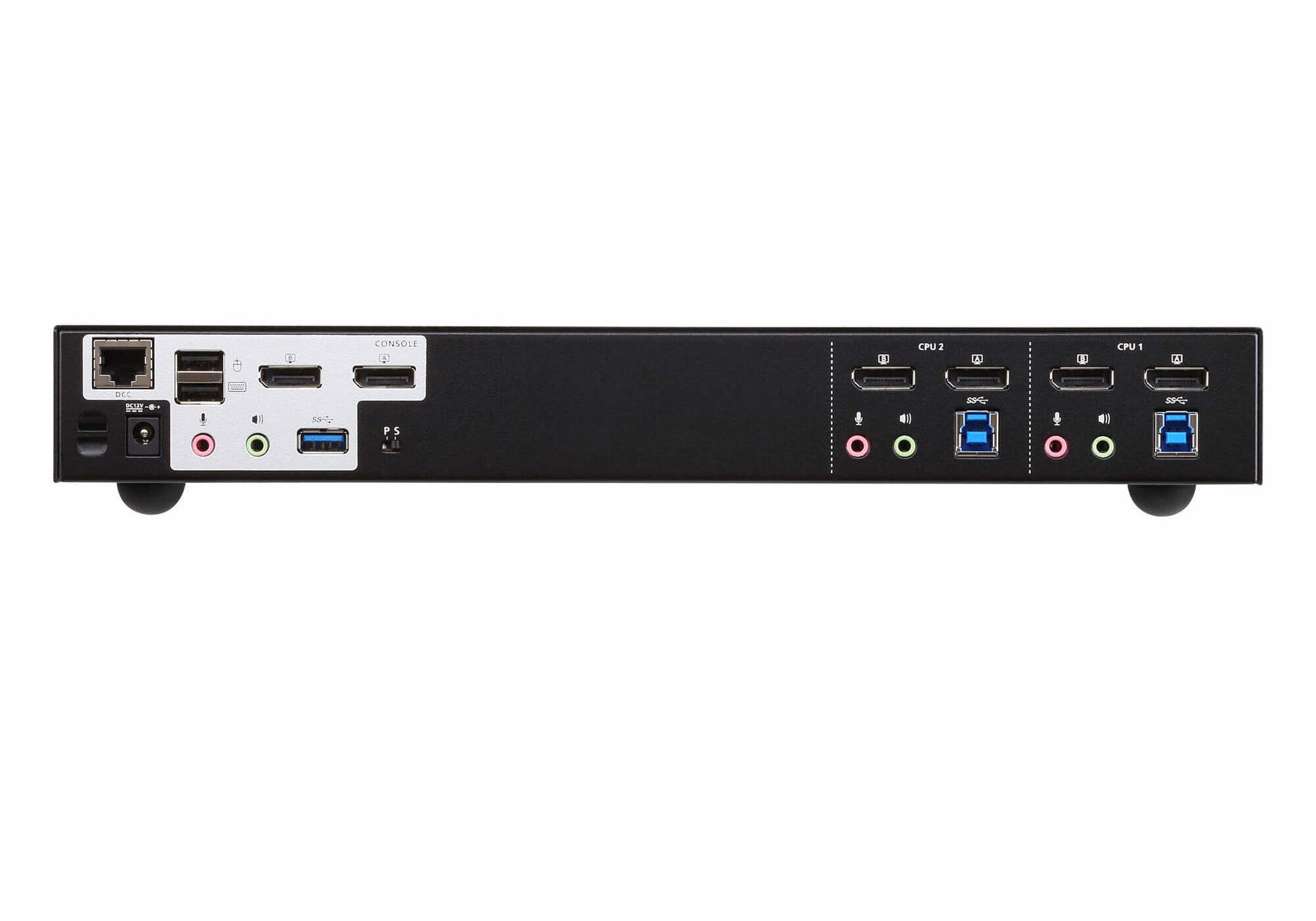

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Number of microphone inputs |
4 |
| Headphone outputs |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| USB hub |
Yes |
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
6 |
| Video port type |
DisplayPort |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Network |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Firmware upgradeable |
Yes |
| Daisy chain |
Yes |
| HDCP |
Yes |
| Auto scan delay (max) |
99 s |
| Auto scan delay (min) |
1 s |
| Scan interval |
1,5,99 s |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
|---|
| Hot keys |
Yes |
| Push button |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
No |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Input voltage |
12 V |
| Power source |
DC |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
1.54 kg |
| Height |
44 mm |
| Depth |
335 mm |
| Width |
156.6 mm |

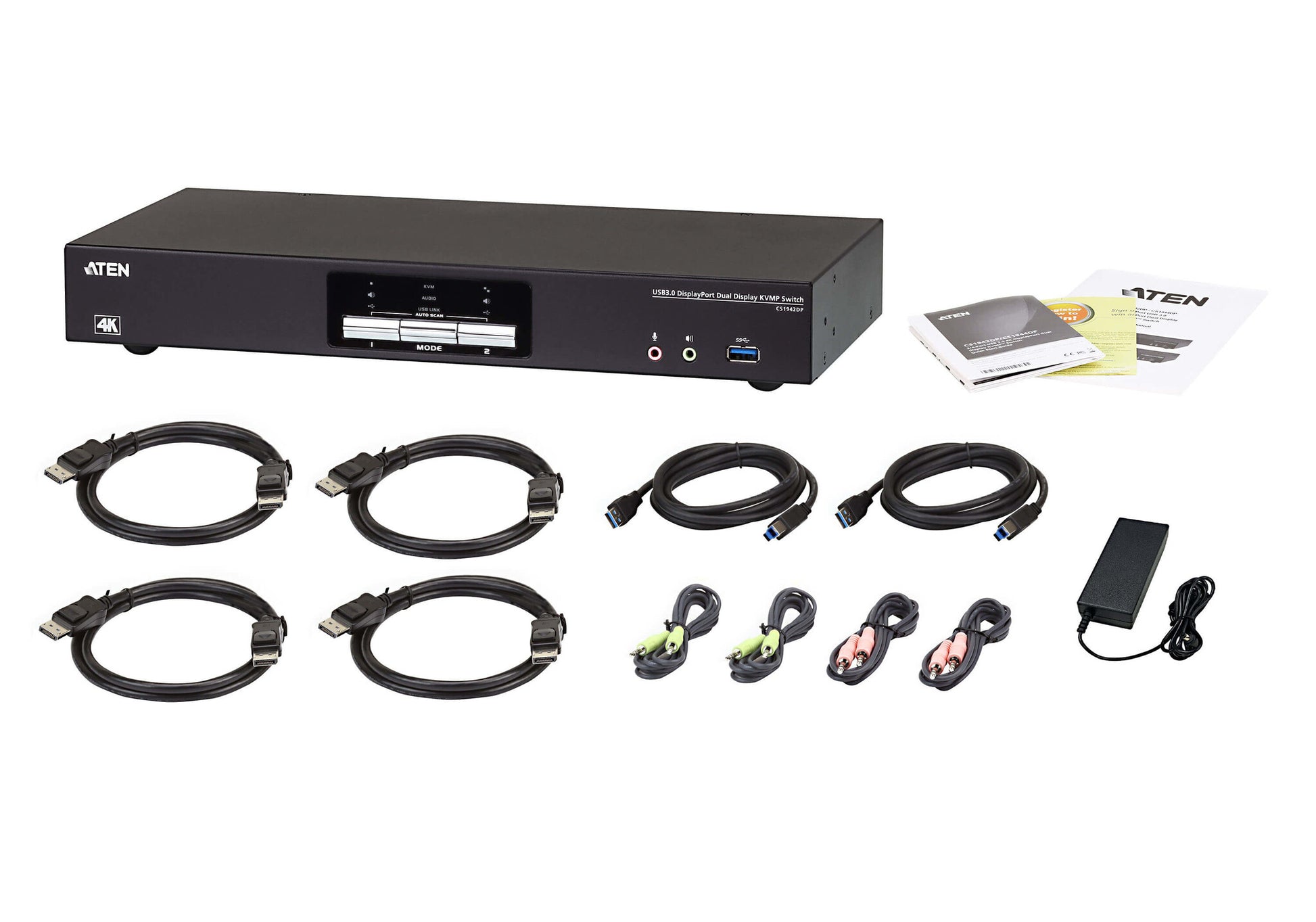

| Packaging content |
|---|
| Manual |
Yes |
| AC adapter included |
Yes |
| Cables included |
Audio (3.5mm), DisplayPort to Mini DisplayPort, USB |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
