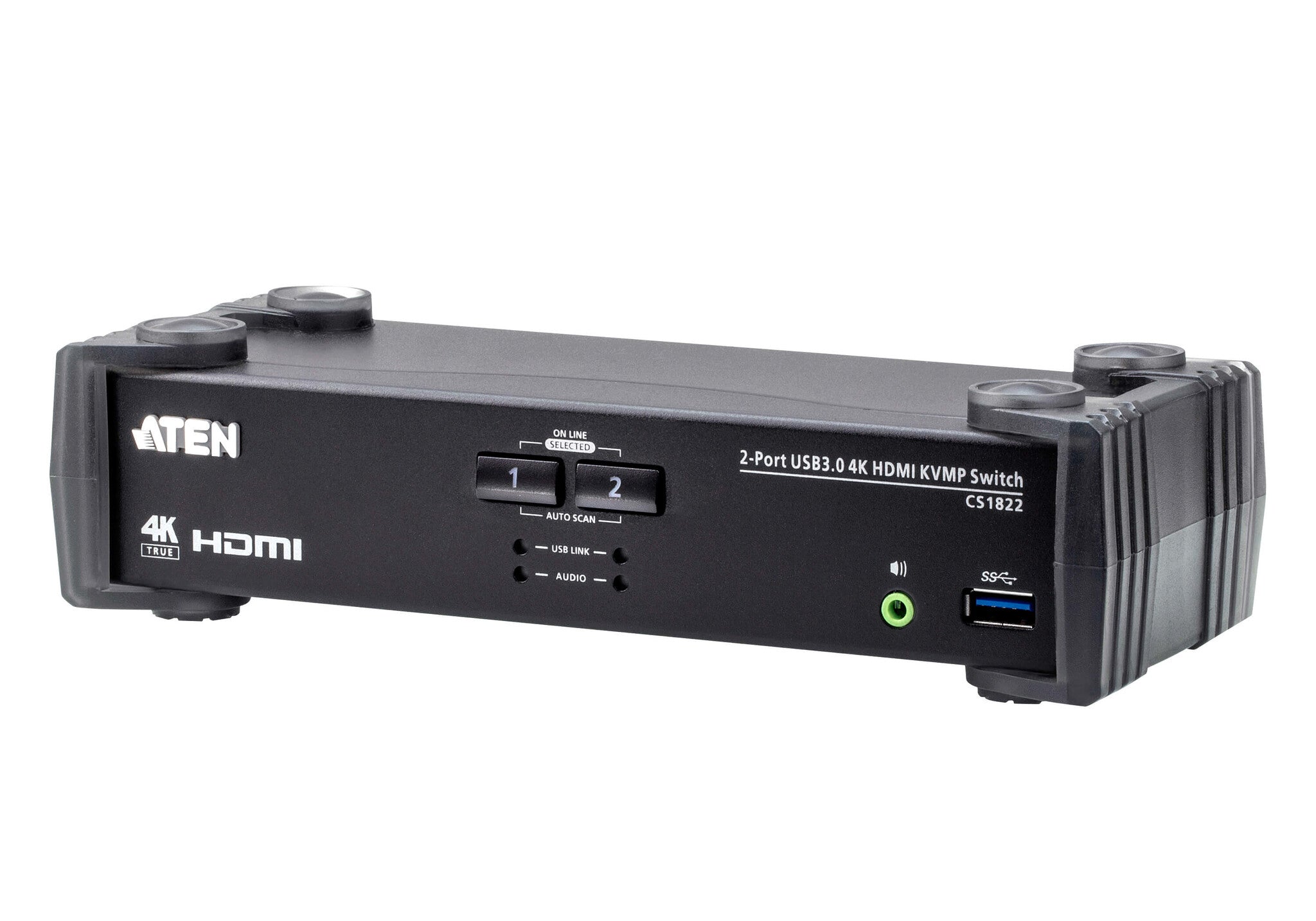

2-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode
The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.

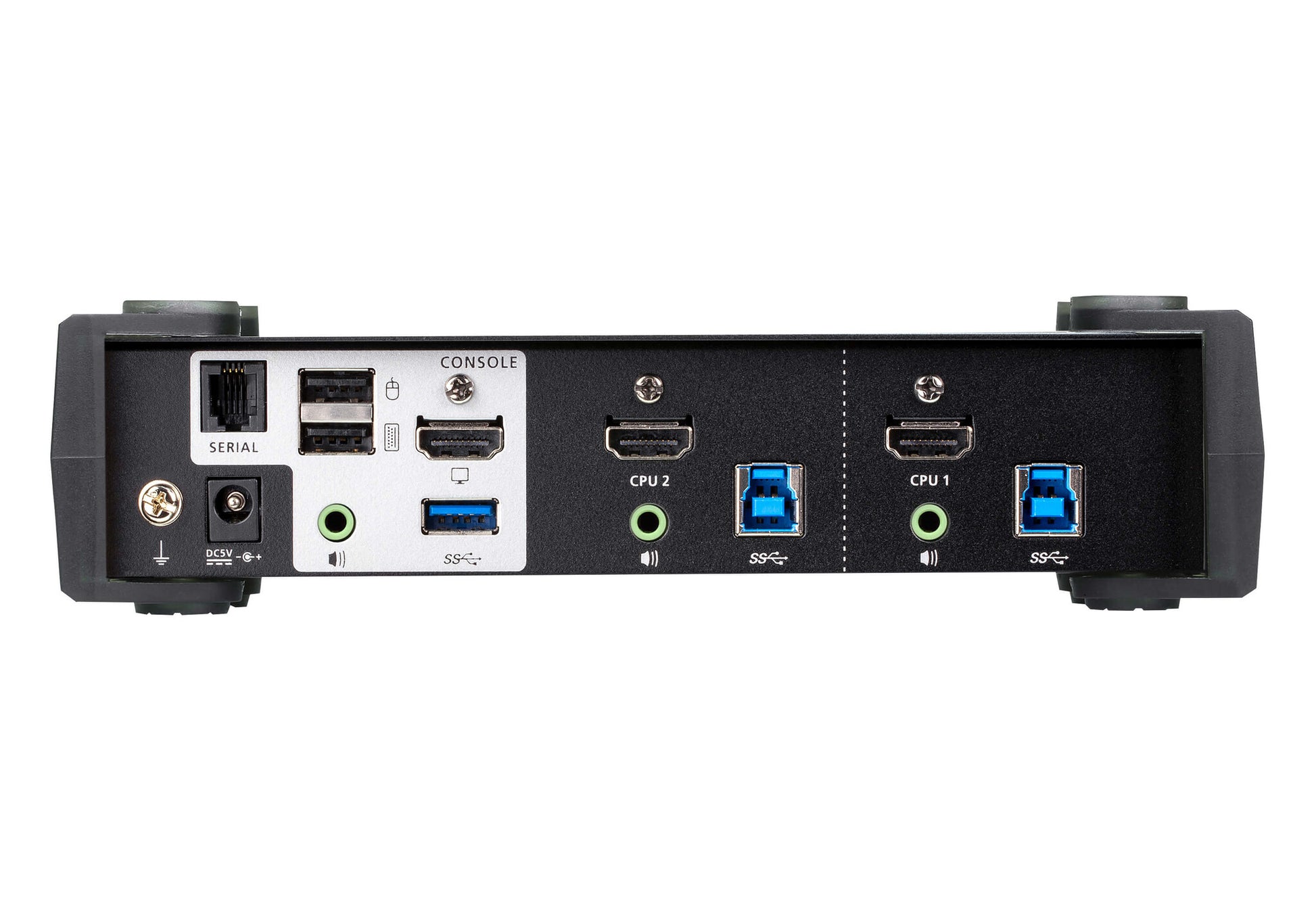

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Audio connections | Yes |
| Serial ports quantity | 1 |
| Serial port type | RS-232 |
| USB connector type | USB Type-A, USB Type-B |
| USB 2.0 Type-A hub ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |
| HDMI ports quantity | 3 |
| Video port type | HDMI |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 2 |
| Performance | |
|---|---|
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Design | |
|---|---|
| Push button | Yes |
| Housing material | Metal, Plastic |
| Product colour | Black |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power consumption (typical) | 1.78 W |
| Input voltage | 5 V |
| Power source | DC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 740 g |
| Height | 555 mm |
| Depth | 210 mm |
| Width | 880 mm |
