4-Port USB HDMI/Audio KVMP™ Switch

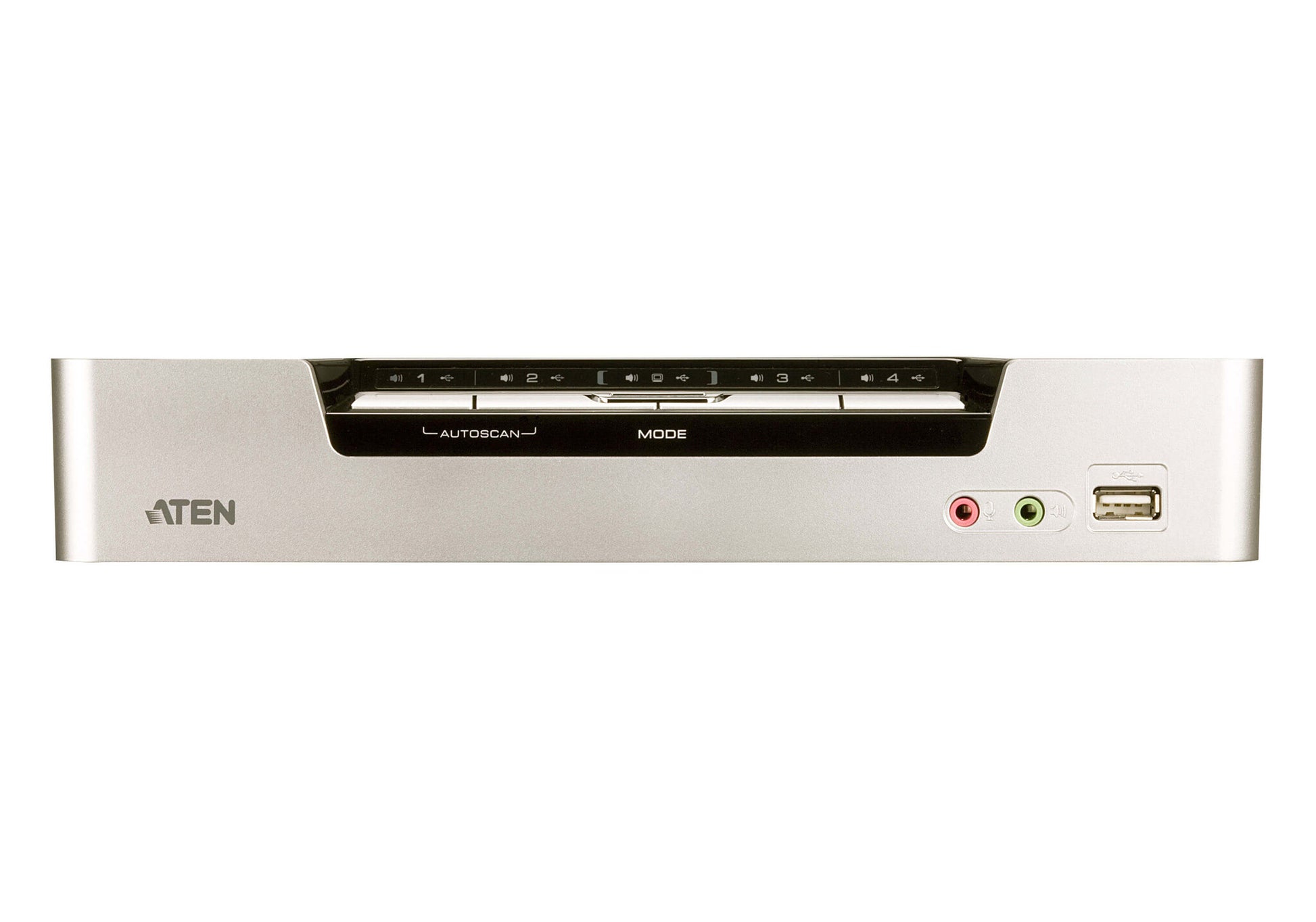

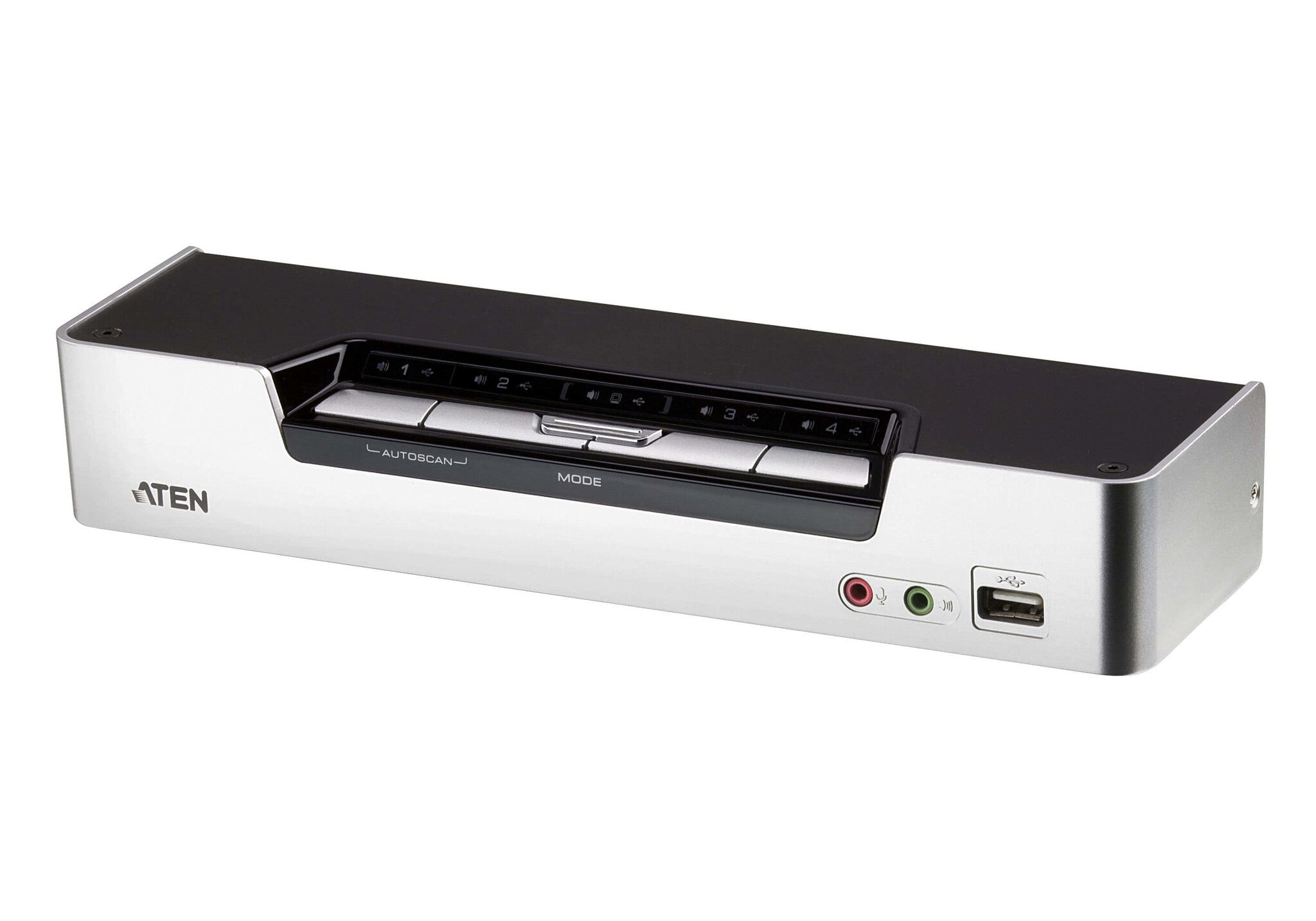

With the unique design and innovative features, the CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.

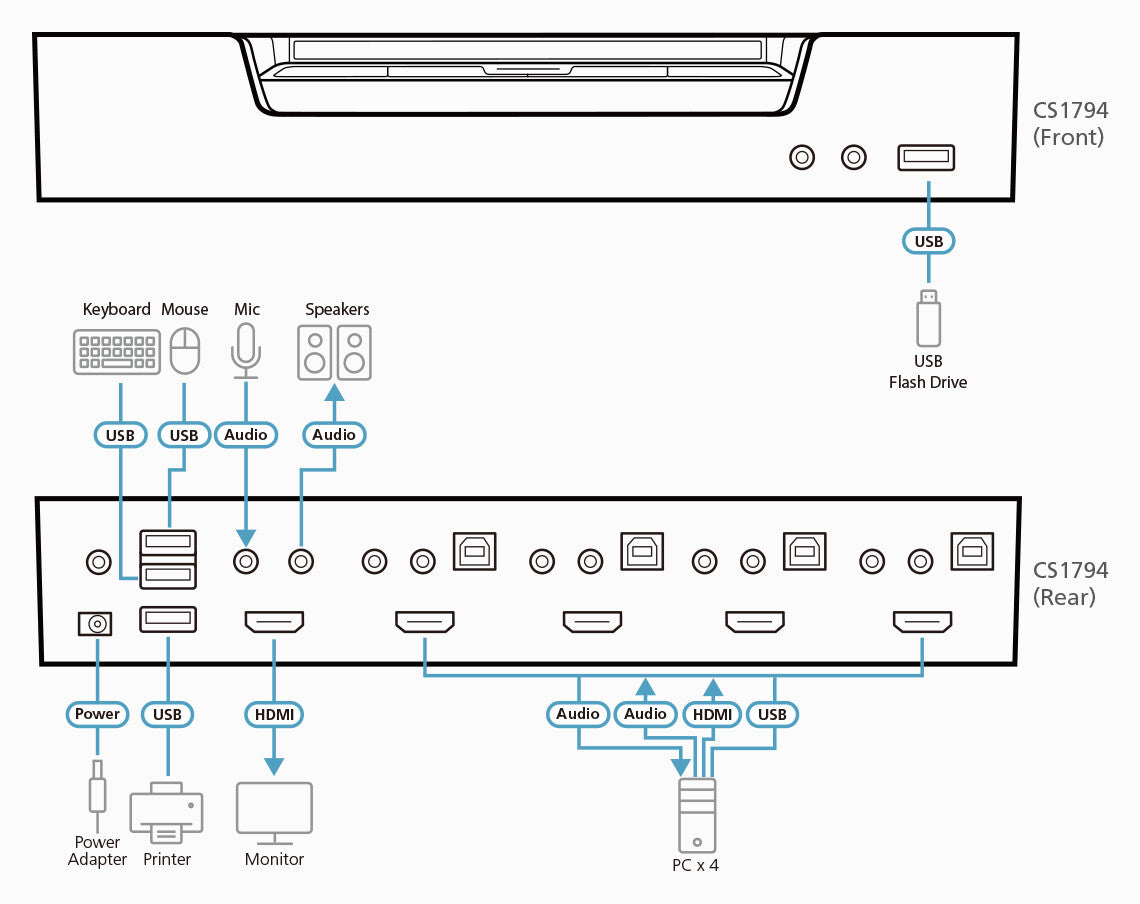

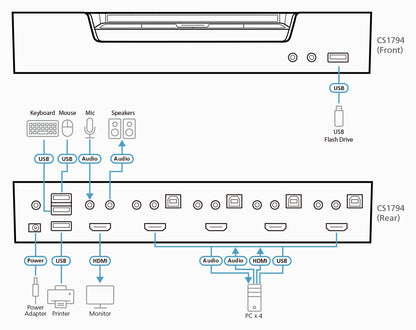

Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Number of microphone inputs |
6 |
| Headphone outputs |
6 |
| Audio connections |
Yes |
| USB connector type |
USB Type-A, USB Type-B |
| USB 2.0 ports quantity |
4 |

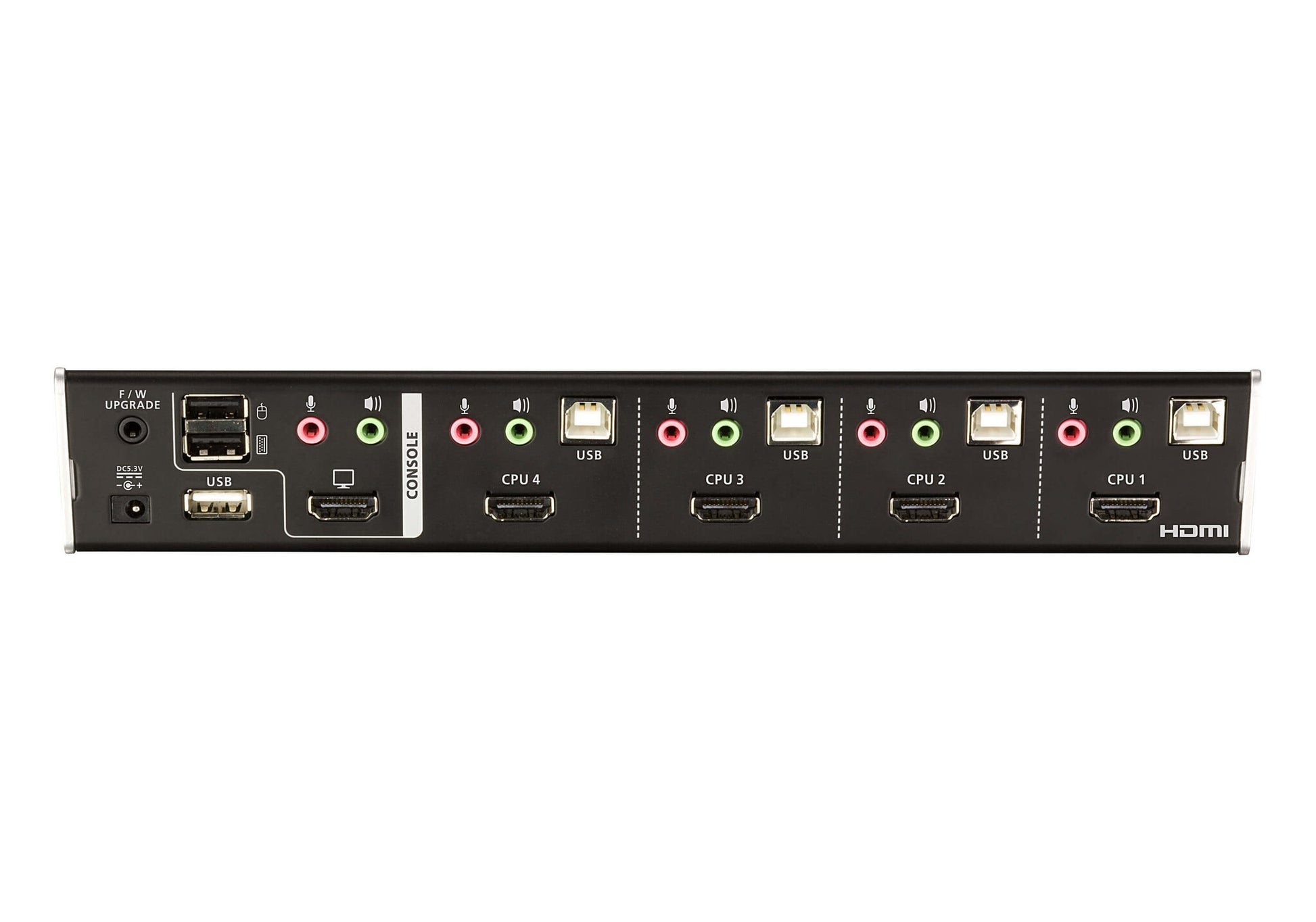

| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity |
2 |
| HDMI ports quantity |
5 |
| Video port type |
HDMI |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
4 |
| Performance |
|---|
| Firmware upgradeable |
Yes |
| Power on detection |
Yes |
| HDCP |
Yes |
| Scan interval |
1,99 s |
| Maximum resolution |
1920 x 1200 pixels |
| HD type |
WUXGA |
| Design |
|---|
| Hot keys |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal, Plastic |
| Product colour |
Black, Stainless steel |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Display |
|---|
| On Screen Display (OSD) |
No |
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
4.8 W |
| Input voltage |
5.3 V |
| Power source |
DC |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
530 g |
| Height |
44 mm |
| Depth |
76.8 mm |
| Width |
262.3 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
| Technical details |
|---|
| Compliance certificates |
RoHS |
