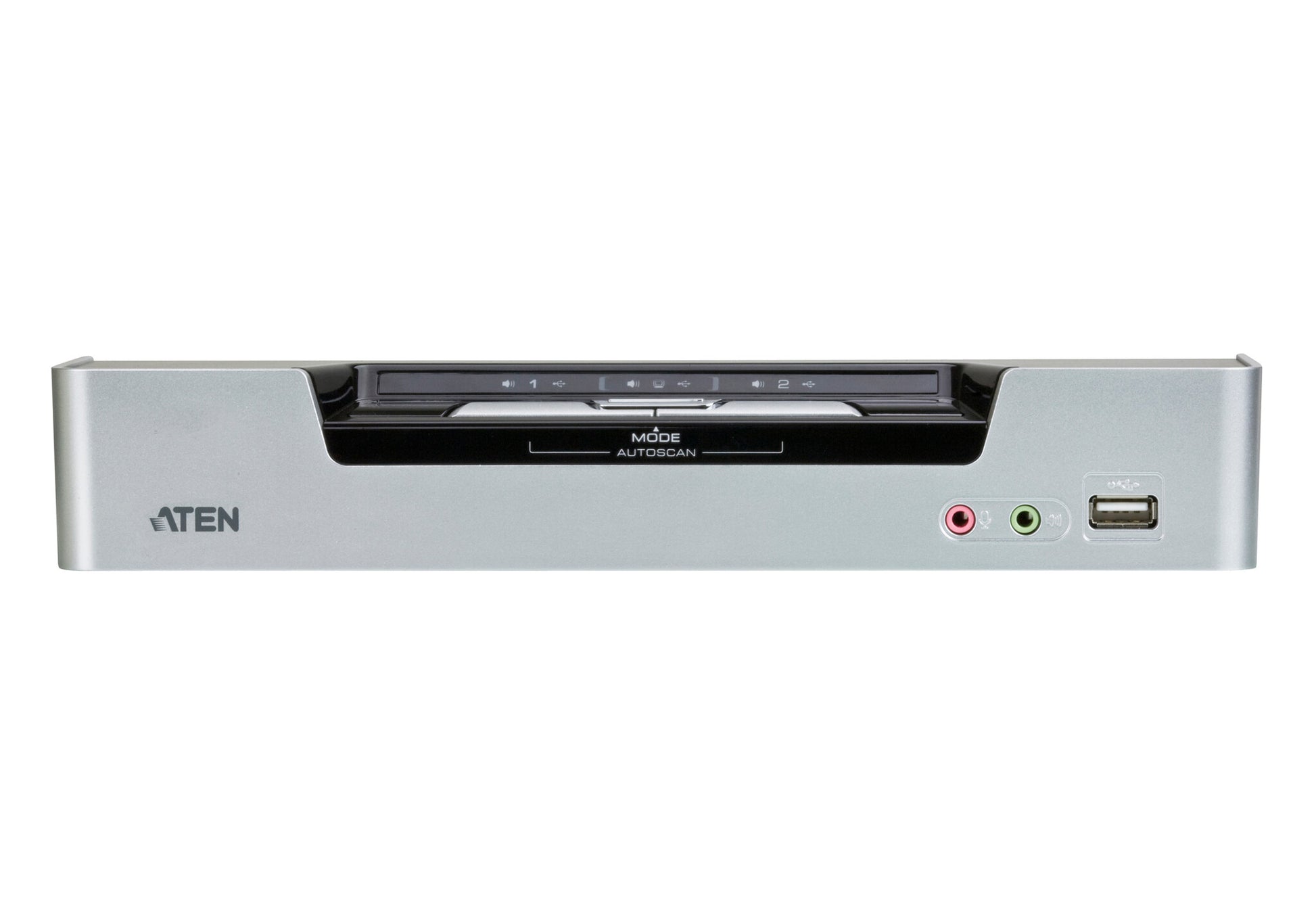

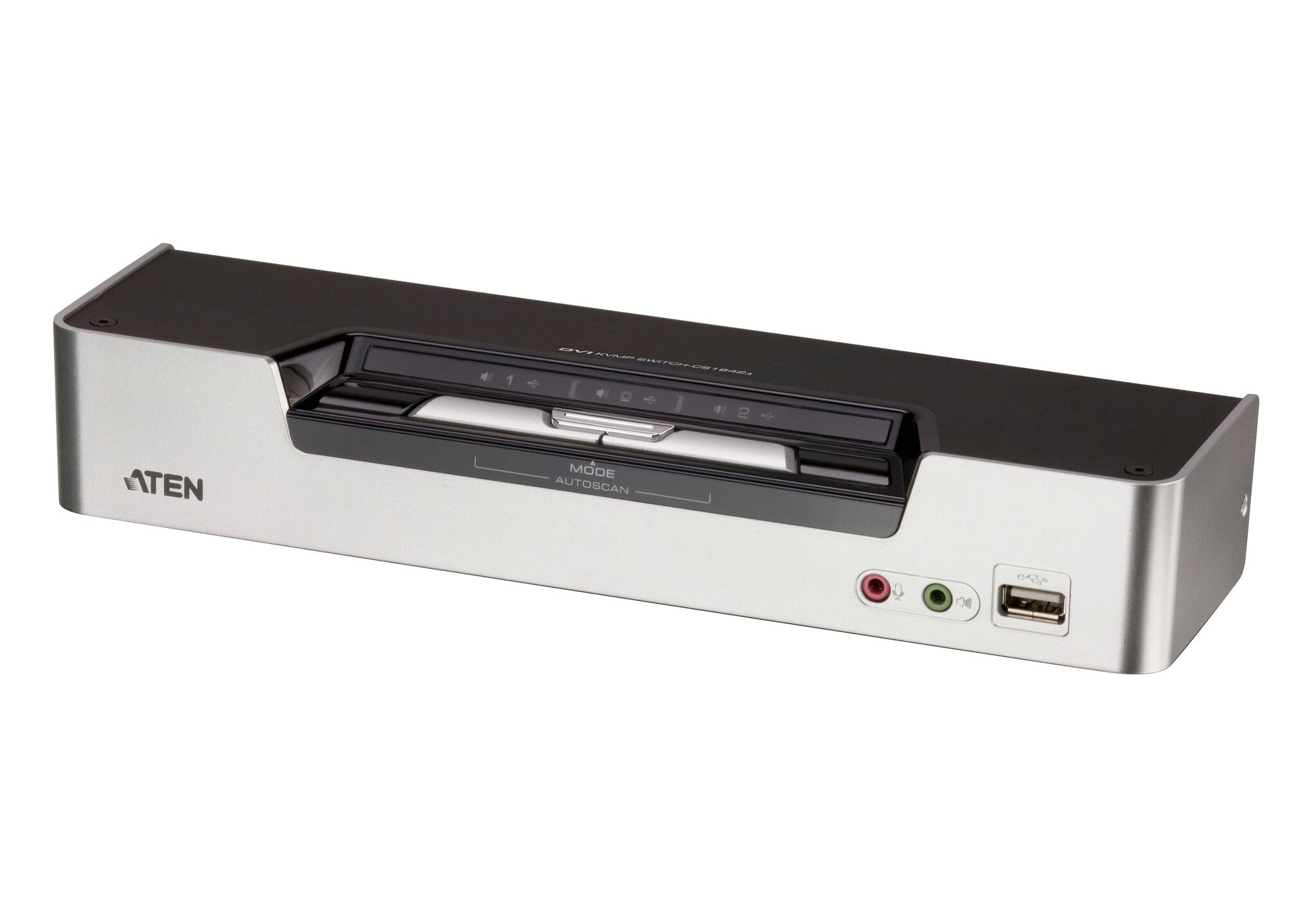

2-Port USB DVI Dual Link Dual Display/Audio KVMP™ Switch
The CS1642A 2-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 2-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
The new CS1642A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1642A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1642A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals-demanding a high quality switch that provides stunning color, clarity and functionality.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Number of microphone inputs |
1 |
| Headphone outputs |
2 |
| Audio connections |
Yes |
| USB 2.0 ports quantity |
4 |

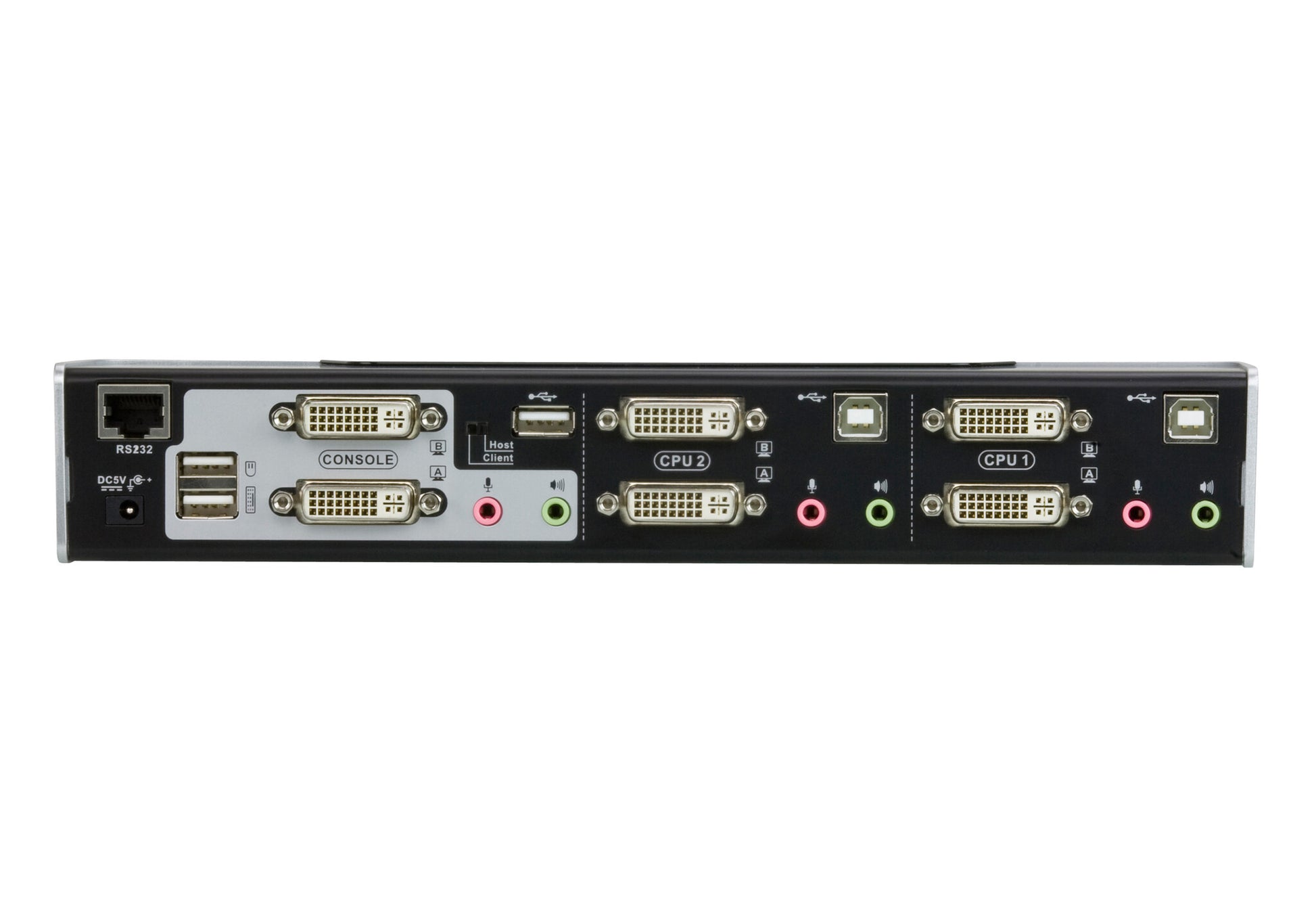

| Console ports |
3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity |
2 |
| DVI-I ports quantity |
6 |
| Video port type |
DVI-I |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| Scan interval |
1,99 s |
| Video bandwidth |
60 Hz |
| Maximum resolution |
2560 x 1600 pixels |
| Design |
|---|
| Hot keys |
Yes |
| Push button |
Yes |
| Housing material |
Metal, Plastic |
| Product colour |
Black, Silver |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
10.6 W |
| Input voltage |
5.3 V |
| Power source |
DC |
| System requirements |
|---|
| Other operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
560 g |
| Height |
44 mm |
| Depth |
76.8 mm |
| Width |
262.3 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
DVI, KVM |
| Technical details |
|---|
| Compliance certificates |
RoHS |
