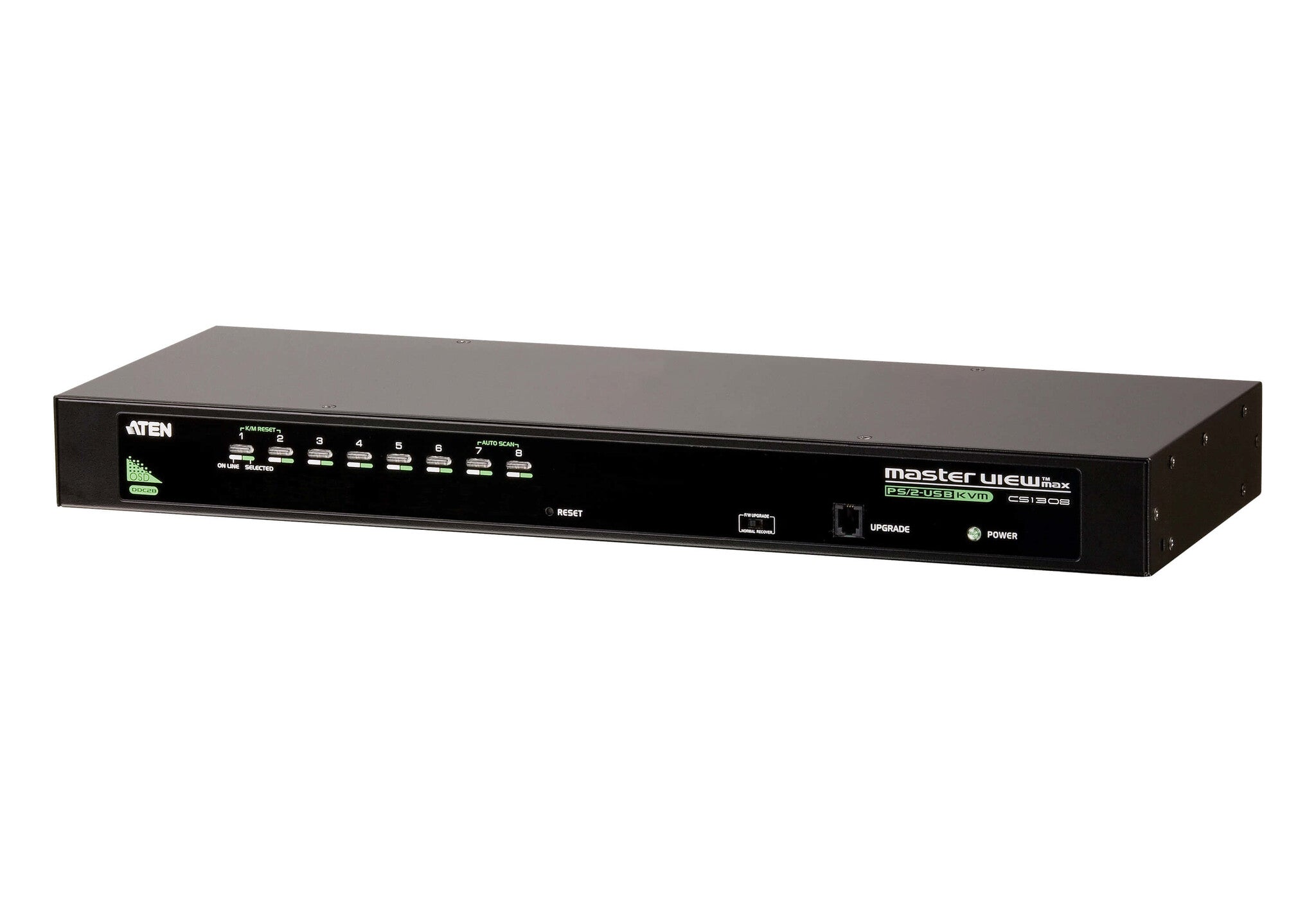

8-Port PS/2-USB VGA KVM Switch

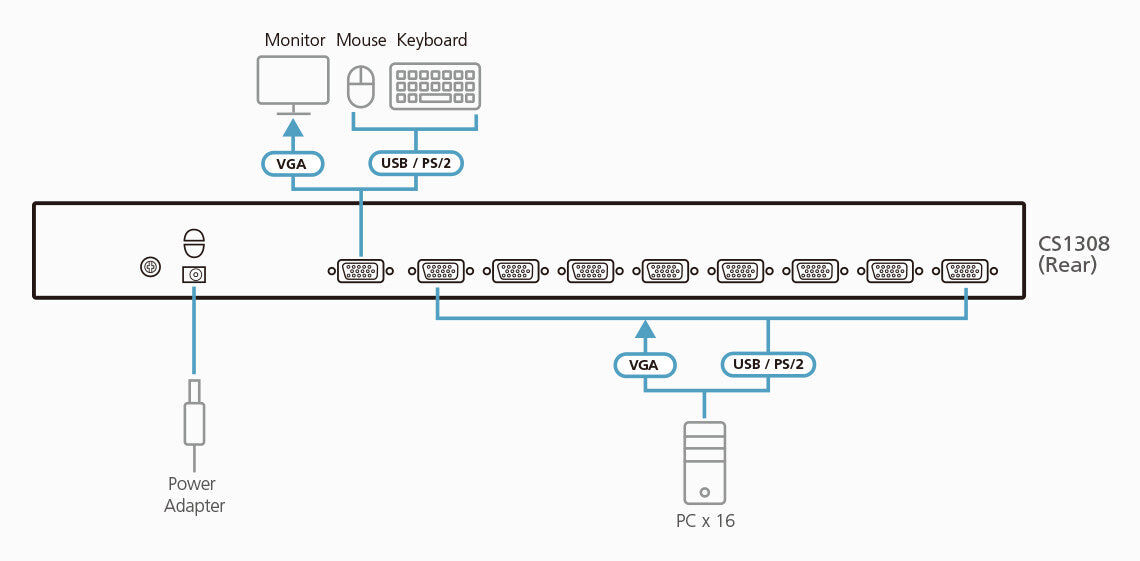

The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| VGA (D-Sub) ports quantity |
9 |
| Video port type |
VGA |
| Mouse port type |
No |
| Keyboard port type |
No |
| Number of computers controlled |
8 |
| Performance |
|---|
| Scan interval |
255 s |
| Maximum resolution |
2048 x 1536 pixels |
| Design |
|---|
| LED indicators |
Power |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
5 W |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
1.89 kg |
| Height |
44 mm |
| Depth |
160 mm |
| Width |
433 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Other features |
|---|
| I/O ports |
1 x RJ11 |
| Compatible operating systems |
Windows 2000/XP/Vista, Linux, Mac, Sun |
| Power requirements |
DC 5.3 V |
| Connectivity technology |
Wired |
