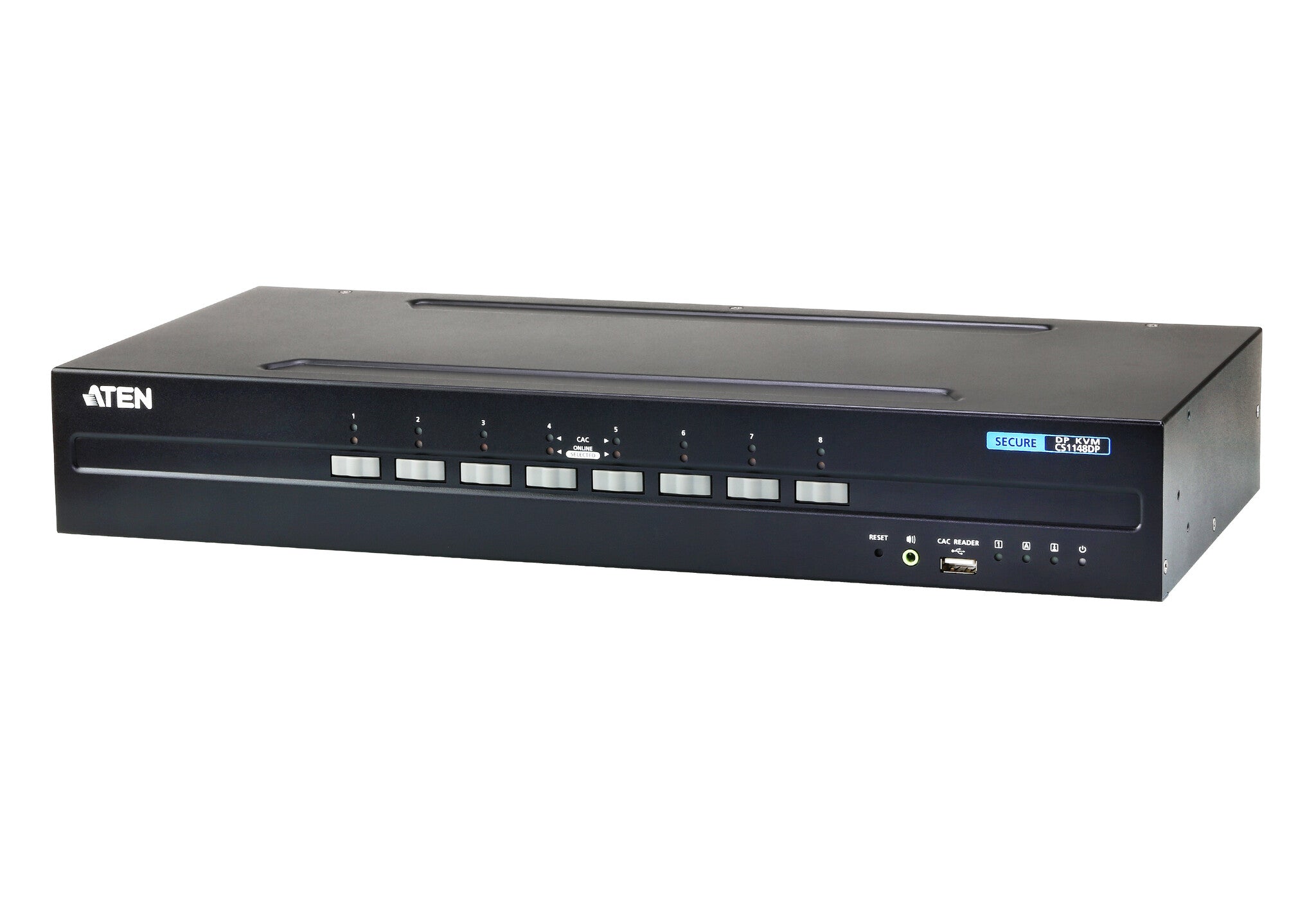

8-Port USB DisplayPort Dual Display Secure KVM Switch (PSS PP v3.0 Compliant)
ATEN PSS PP v3.0 Secure KVM Switch (CS1148DP) is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSS PP v3.0 Secure KVM Switch (CS1148DP) is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSS PP v3.0 Secure KVM Switch (CS1148DP) provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSS PP v3.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtering and management, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
With multi-layered security, ATEN PSS PP v3.0 Secure KVM Switch (CS1148DP) ensures high-level desktop security and data safekeeping for applications such as government agencies, finance, and other organizations that often handle sensitive or confidential data on separate networks.
| Ports & interfaces |
| Console ports |
3.5mm headphone, HDMI, USB A |
| Console USB ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
16 |
| DisplayPorts quantity |
16 |
| Video port type |
DisplayPort |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
8 |
| Performance |
| Maximum resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Display |
| Built-in display |
No |
| Power |
| AC input frequency |
50 - 60 Hz |
| Input voltage |
110 - 220 V |
| Power source |
AC |
| Operational conditions |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Weight |
3.22 kg |
| Height |
65.5 mm |
| Depth |
204.9 mm |
| Width |
432.4 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
AC |
