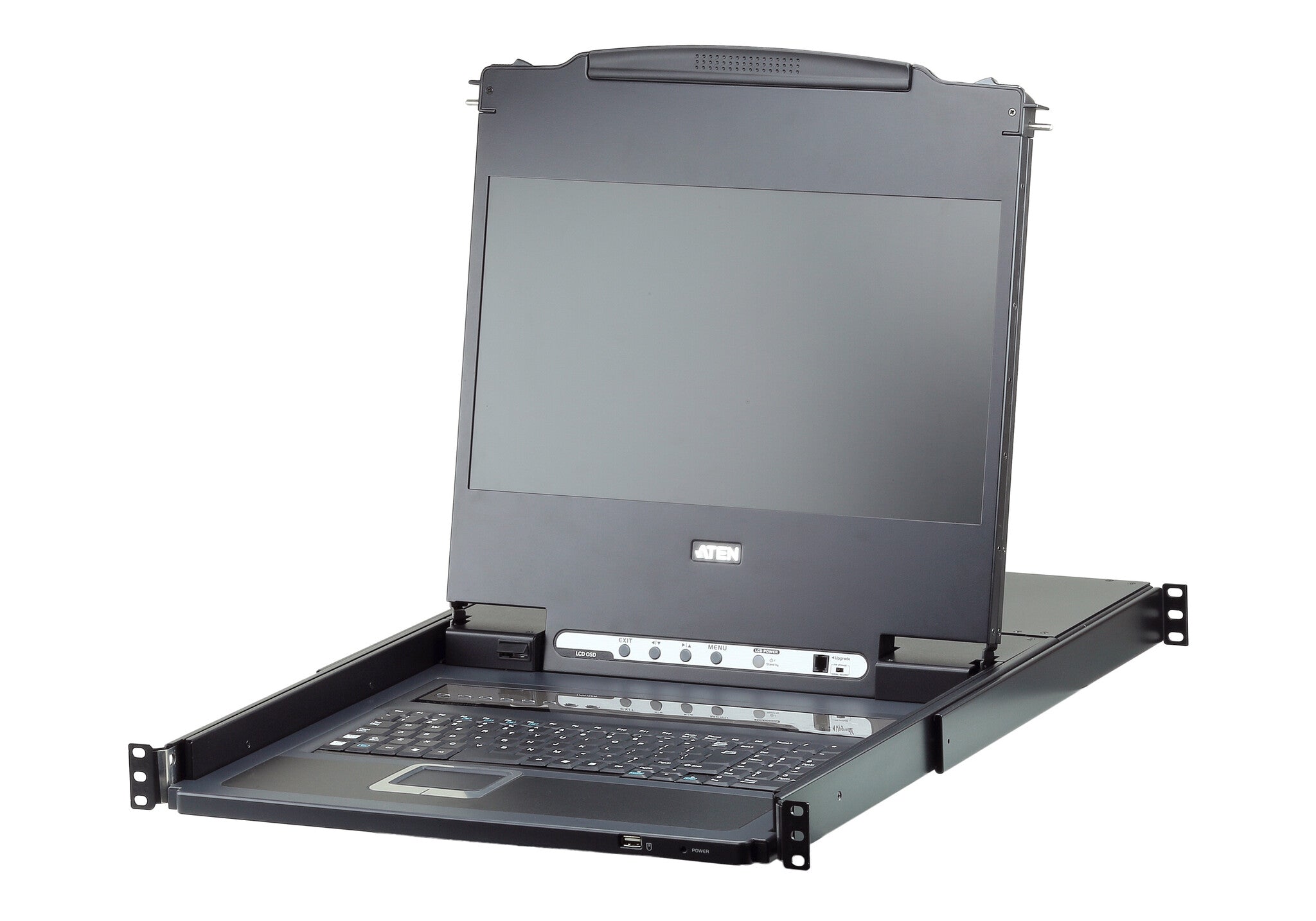

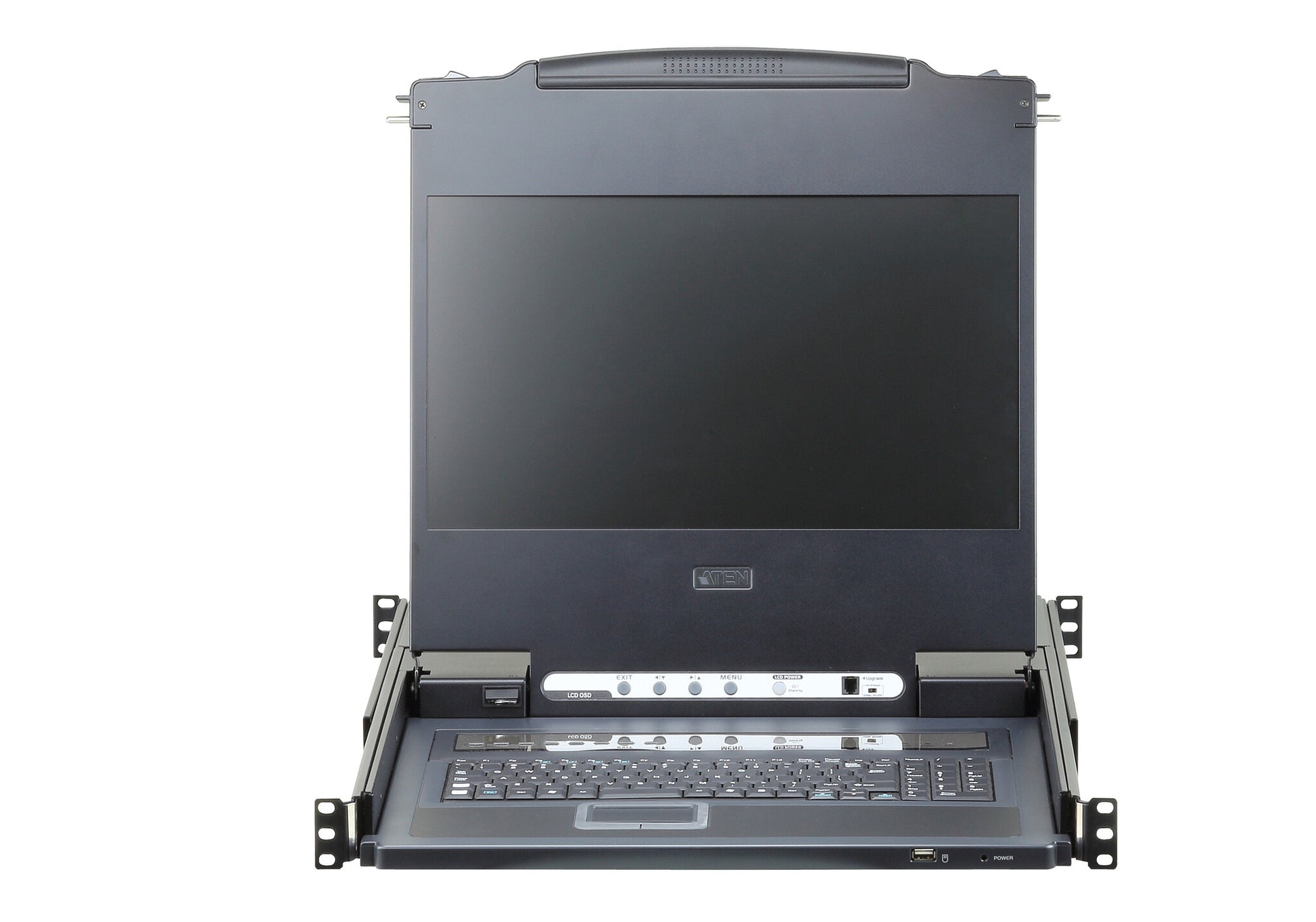

8-Port USB DVI Single Rail WideScreen LCD KVM Switch
The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
| Display | |
|---|---|
| Supported resolutions | up to 1920 x 1200 @ 60 Hz (all resolution @ 60 Hz only); 1920 x 1080 @ 60 Hz, DDC2B |
| On Screen Display (OSD) | Yes |
| Aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Pixel pitch | 0.1989 x 0.1989 mm |
| Display type | TFT |
| Response time | 16 ms |
| Display | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 43.9 cm (17.3") |
| Technical details | |
|---|---|
| Rack capacity | 1U |
| Compliance certificates | RoHS |
| Push button | Yes |
| Product colour | Black |
| Hot-Plug support | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Built-in KVM switch | Yes |
| Number of computers controlled | 64 |
| On/off switch | Yes |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Rack mounting | Yes |
| Material | Metal, Plastic |
| Ports & interfaces | |
|---|---|
| I/O ports | 1x RJ-11 |
| USB 2.0 Type-A ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| DVI input ports | 1 |
| DVI output ports | 8 |
| DVI connector type | DVI-I |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Keyboard | |
|---|---|
| Keyboard language | US English |
| Keyboard layout | QWERTY |
| Built-in touchpad | Yes |
| Hot keys | Yes |
| System requirements | |
|---|---|
| Other operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Power | |
|---|---|
| AC (power) in | Yes |
| Input current | 1 A |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Power consumption (typical) | 29.26 W |
| Weight & dimensions | |
|---|---|
| Weight | 12.7 kg |
| Depth | 480 mm |
| Height | 44 mm |
| Width | 689.2 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
| Cables included | AC, KVM |
