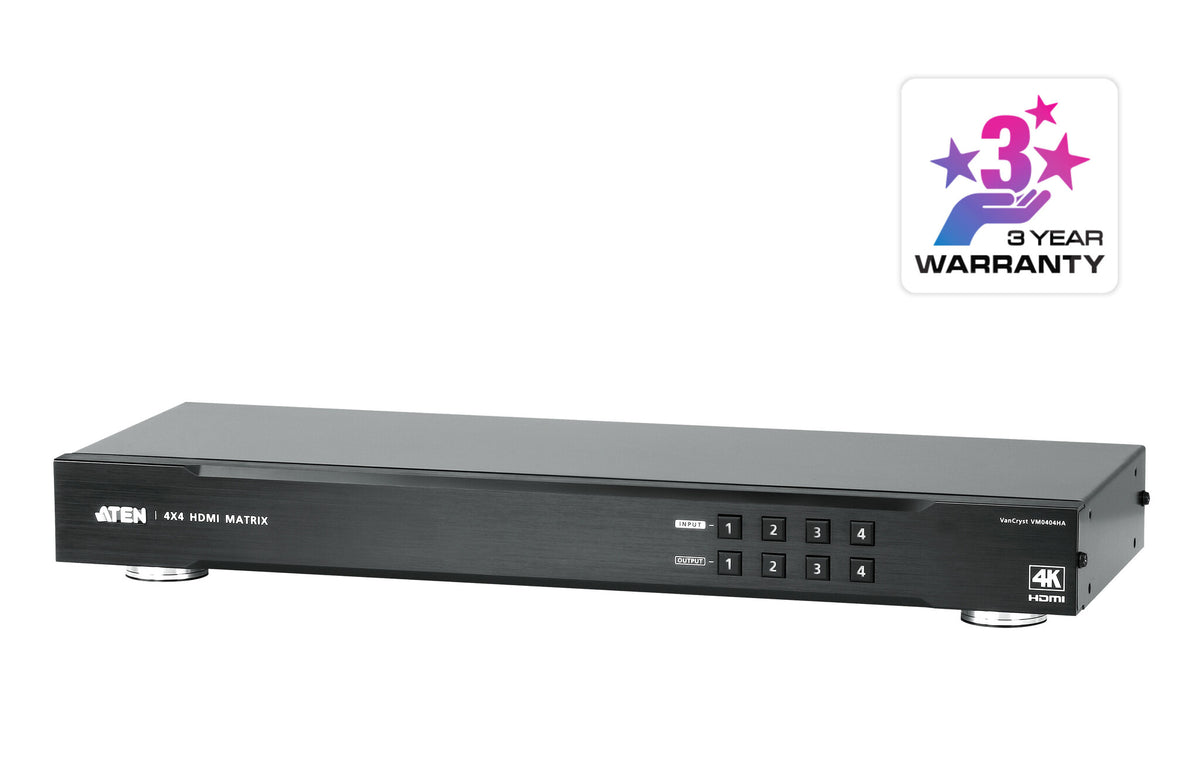

4x4 4K HDMI Matrix Switch
The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.

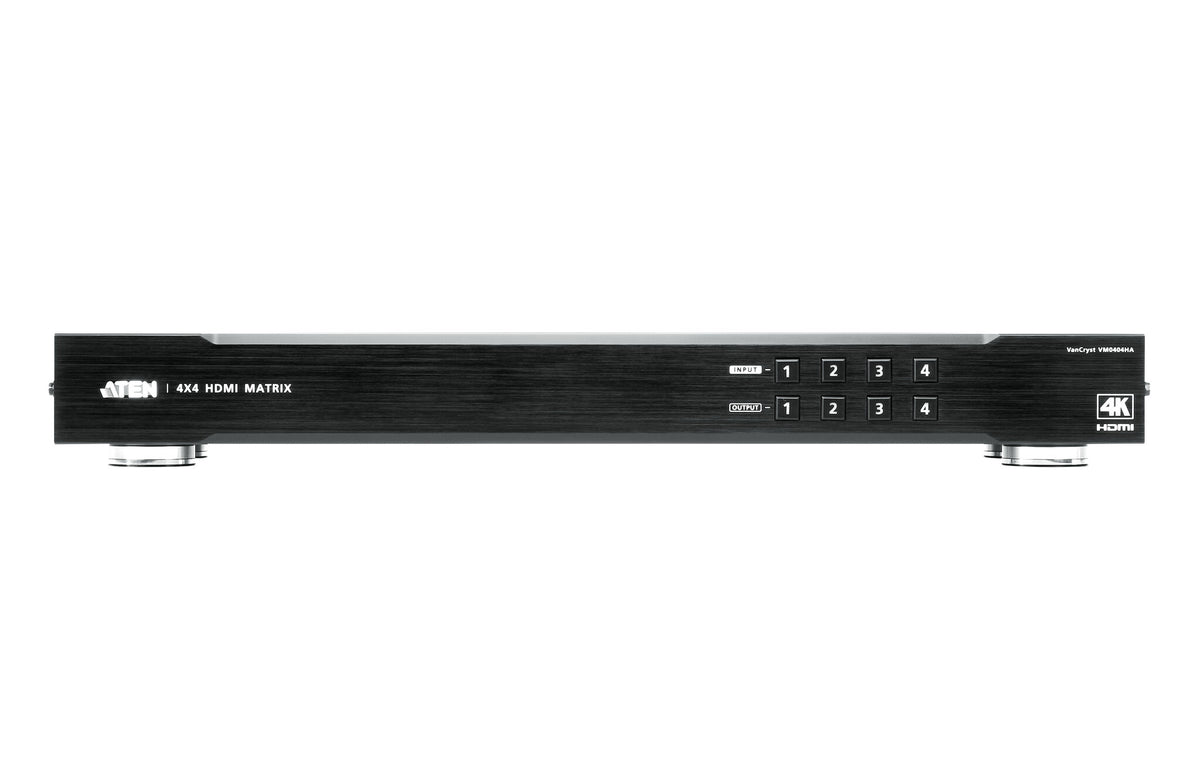

The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.

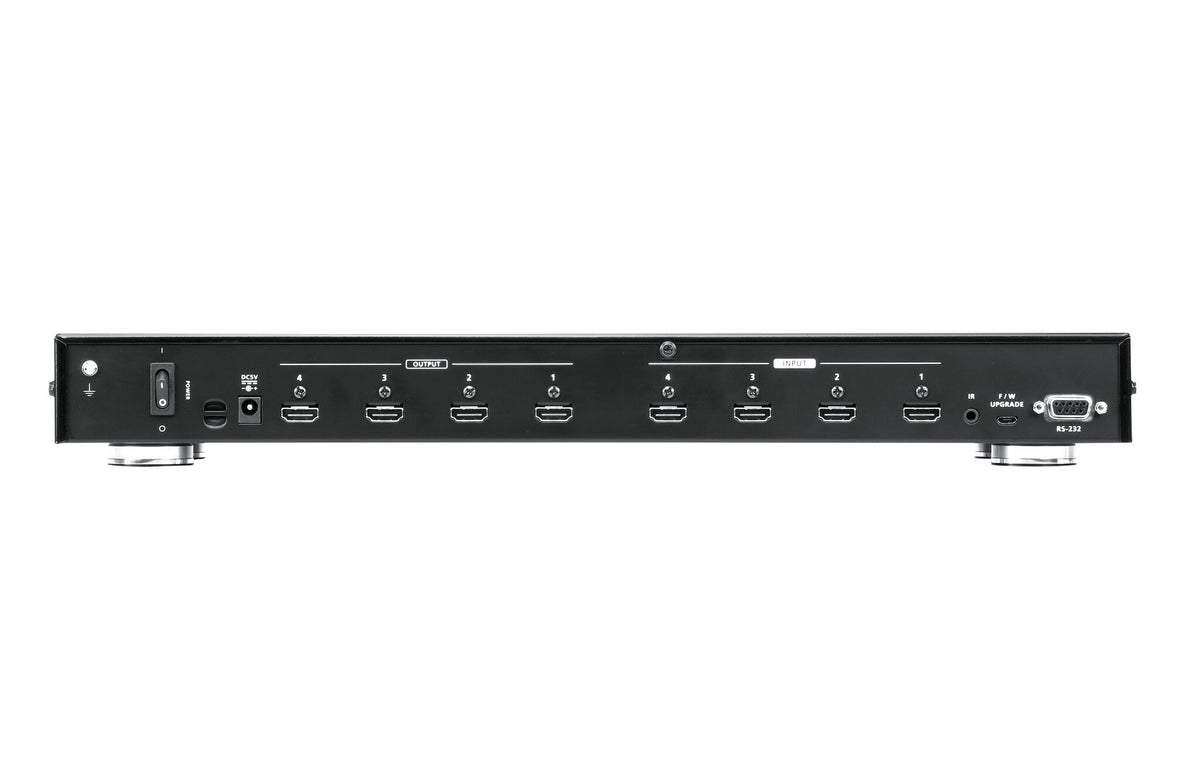

| Ports & interfaces |
|---|
| Video port type |
HDMI |
| HDMI ports quantity |
8 |
| HDMI in |
4 |
| Number of HDMI outputs |
4 |
| RS-232 ports |
1 |
| Video out |
4 x HDMI Type A Female (Black) |
| Video in |
4 x HDMI Type A Female (Black) |
| DC-in jack |
Yes |
| Features |
|---|
| Product colour |
Black |
| Material |
Metal |
| Output impedance |
100 Ω |
| Input impedance |
100 Ω |
| 3D |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Bandwidth |
340 MHz |
| Supported video modes |
2160i, 2160p |
| Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
| Rack mounting |
Yes |
| Maximum operating distance |
15 m |
| Maximum refresh rate |
60 Hz |
| HDCP |
Yes |
| Power |
|---|
| Power consumption (typical) |
10.58 W |
| Weight & dimensions |
|---|
| Width |
437.2 mm |
| Depth |
162.9 mm |
| Height |
44 mm |
| Weight |
2.02 kg |
| Packaging content |
|---|
| Plug adapter type |
EU |
| Mounting brackets included |
Yes |
| AC adapter included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
