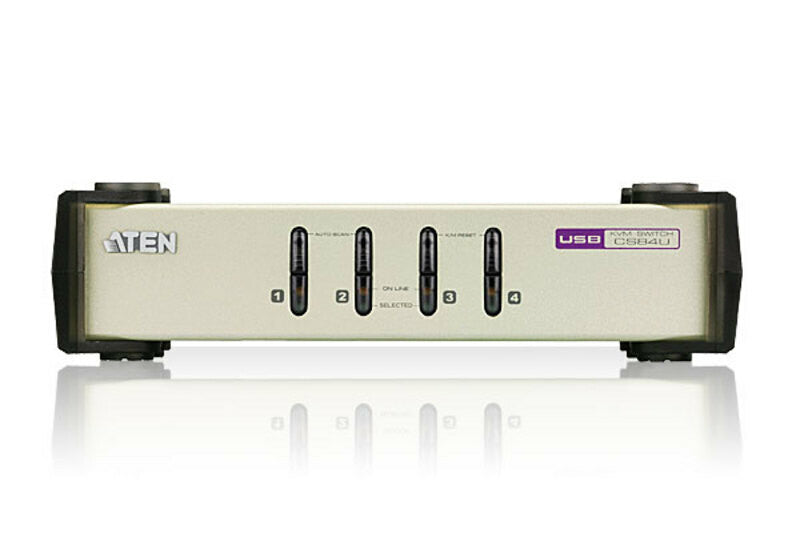

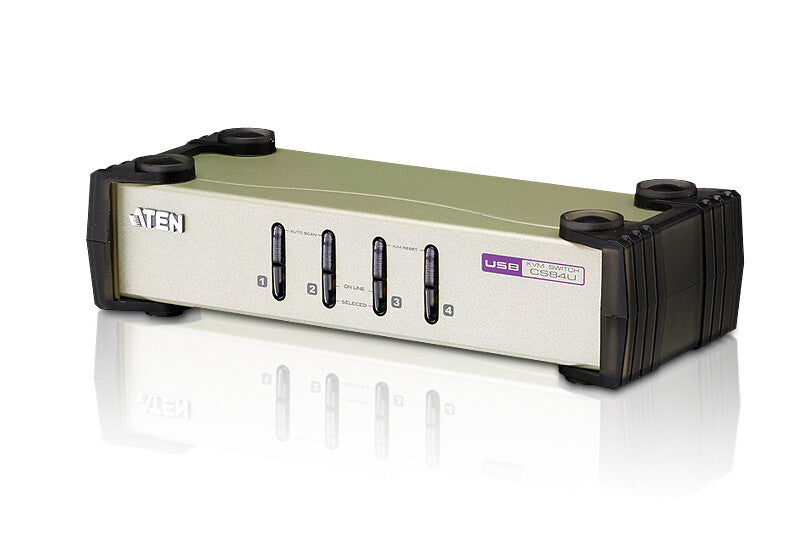

ATEN 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included)

R 2,551.62

CS84U-AT

Out of stock
R 2,551.62
R 2,551.62
Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

    4-Port USB - PS/2 VGA KVM Switch (KVM Cables included)

    The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
    1x CS84U PS/2-USB KVM Switch
    2x 2L-5301UP PS/2-USB KVM Cables
    2x 2L-5302UP PS/2-USB KVM Cables
    1x User Instructions

    Ports & interfaces
    Number of computers controlled 4
    Keyboard port type USB
    Mouse port type USB
    Video port type VGA
    VGA (D-Sub) ports quantity 4

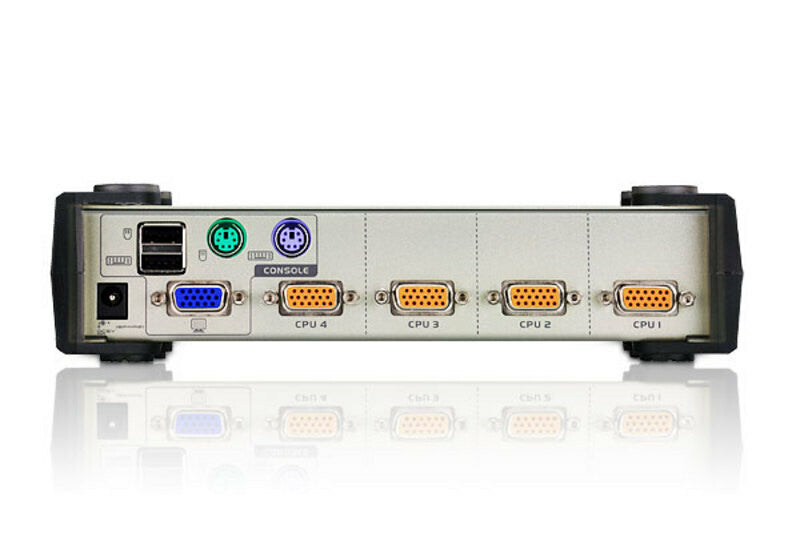

    Console ports USB A, VGA (D-Sub)
    USB 2.0 Type-A hub ports quantity 2
    USB connector type USB Type-A
    DC-in jack Yes
    Performance
    HD type QXGA
    Maximum resolution 2048 x 1536 pixels
    Video bandwidth 60 Hz
    Scan interval 3,5,10,20 s
    DDC2B support Yes
    Design
    Rack mounting No
    Product colour Black, Grey
    Housing material Metal
    LED indicators Yes
    Push button Yes
    Hot keys Yes
    Display
    Built-in display No
    Power
    Power source DC
    Input voltage 5 V
    Power consumption (typical) 0.45 W
    Operational conditions
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 60 °C
    Operating relative humidity (H-H) 0 - 80%
    Storage relative humidity (H-H) 0 - 80%
    Weight & dimensions
    Width 210 mm
    Depth 88 mm
    Height 55.5 mm
    Weight 1.51 kg
    Packaging data
    Package width 100 mm
    Package depth 283 mm
    Package height 173 mm
    Package weight 1.69 kg
    Packaging content
    Quick installation guide Yes
    Manual Yes
    Logistics data
    Master (outer) case net weight 7.57 kg
    Harmonized System (HS) code 85176200
    Master (outer) case width 292 mm
    Master (outer) case length 517 mm
    Master (outer) case height 194 mm
    Master (outer) case gross weight 8.98 kg
    Products per master (outer) case 5 pc(s)
