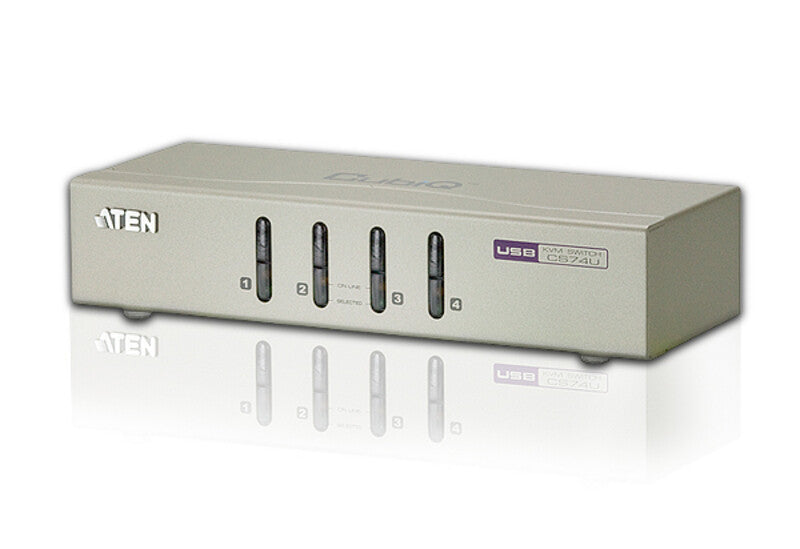

4-Port USB VGA KVM with Audio (KVM Cables included)
The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (keyboard and mouse, audio and VGA monitor).

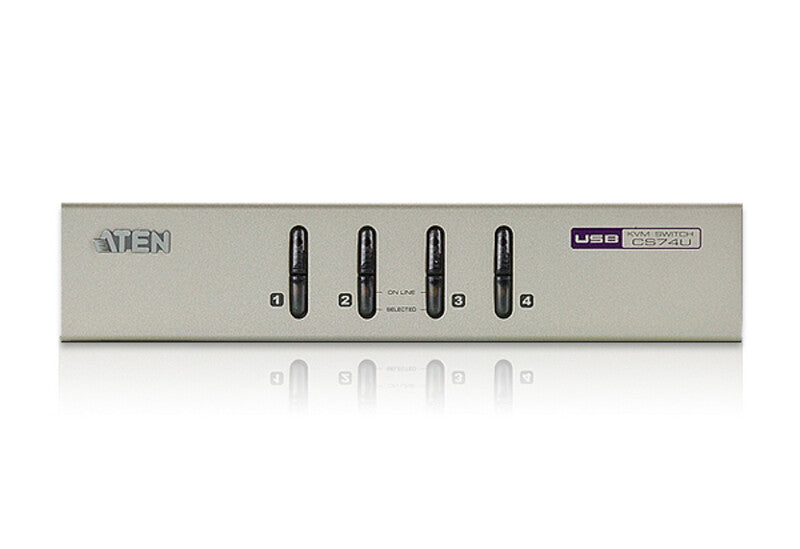

With the CS74U, you can access computers conveniently using port selection pushbuttons located on the unit's front panel.
1x CS74U 4-Port USB KVM Switch
2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
2x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
1x User Instructions
Note: The provided custom KVM cable set is custom-made to work with CS72U / CS74U, which transmits video, audio, and USB signals from the unit to the connected PC. There are two custom KVM cable sets available for purchase (1.2 m custom KVM cable set: LIN5-23X5-X31G; 1.8 m custom KVM cable set: LIN5-23X5-X32G). To purchase additional custom-made KVM cables, please contact your ATEN dealer for more information.
| Ports & interfaces |
|---|
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| VGA (D-Sub) ports quantity |
4 |
| Console USB ports quantity |
2 |

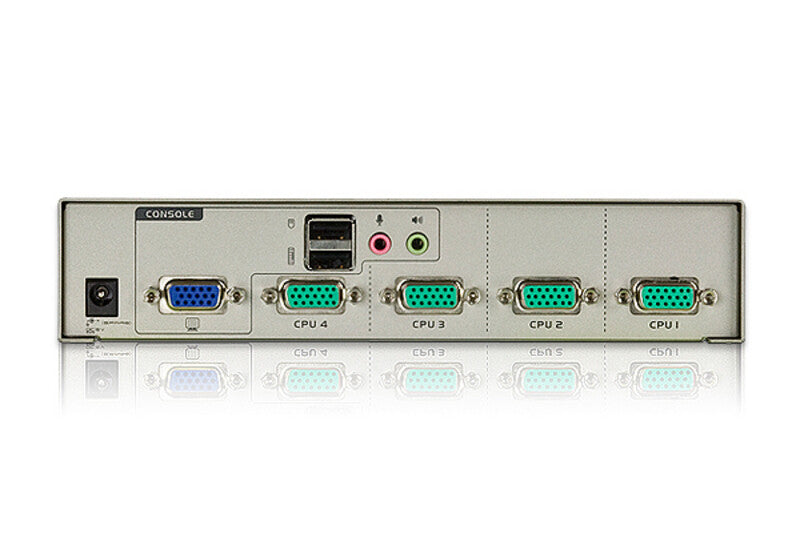

| Console ports |
3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| Audio connections |
Yes |
| Headphone outputs |
1 |
| Number of microphone inputs |
1 |
| DC-in jack |
Yes |
| Performance |
|---|
| HD type |
QXGA |
| DDC2B support |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Grey |
| Housing material |
Metal |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
0.177 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
200 mm |
| Depth |
76.5 mm |
| Height |
44 mm |
| Weight |
1.47 kg |
| Packaging data |
|---|
| Package width |
100 mm |
| Package depth |
283 mm |
| Package height |
173 mm |
| Package weight |
1.67 kg |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Master (outer) case net weight |
7.33 kg |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
292 mm |
| Master (outer) case length |
517 mm |
| Master (outer) case height |
194 mm |
| Master (outer) case gross weight |
8.67 kg |
| Products per master (outer) case |
5 pc(s) |
