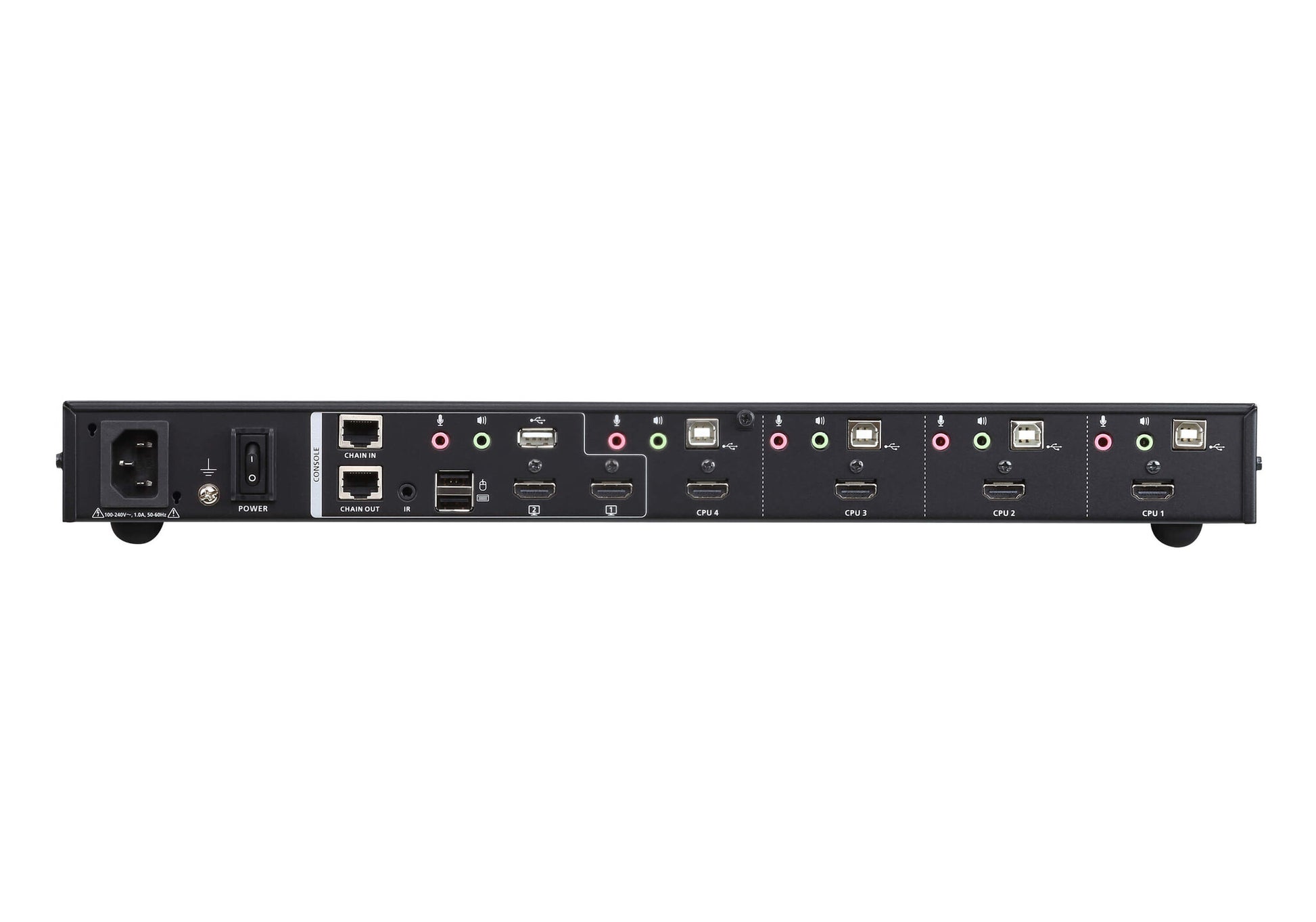

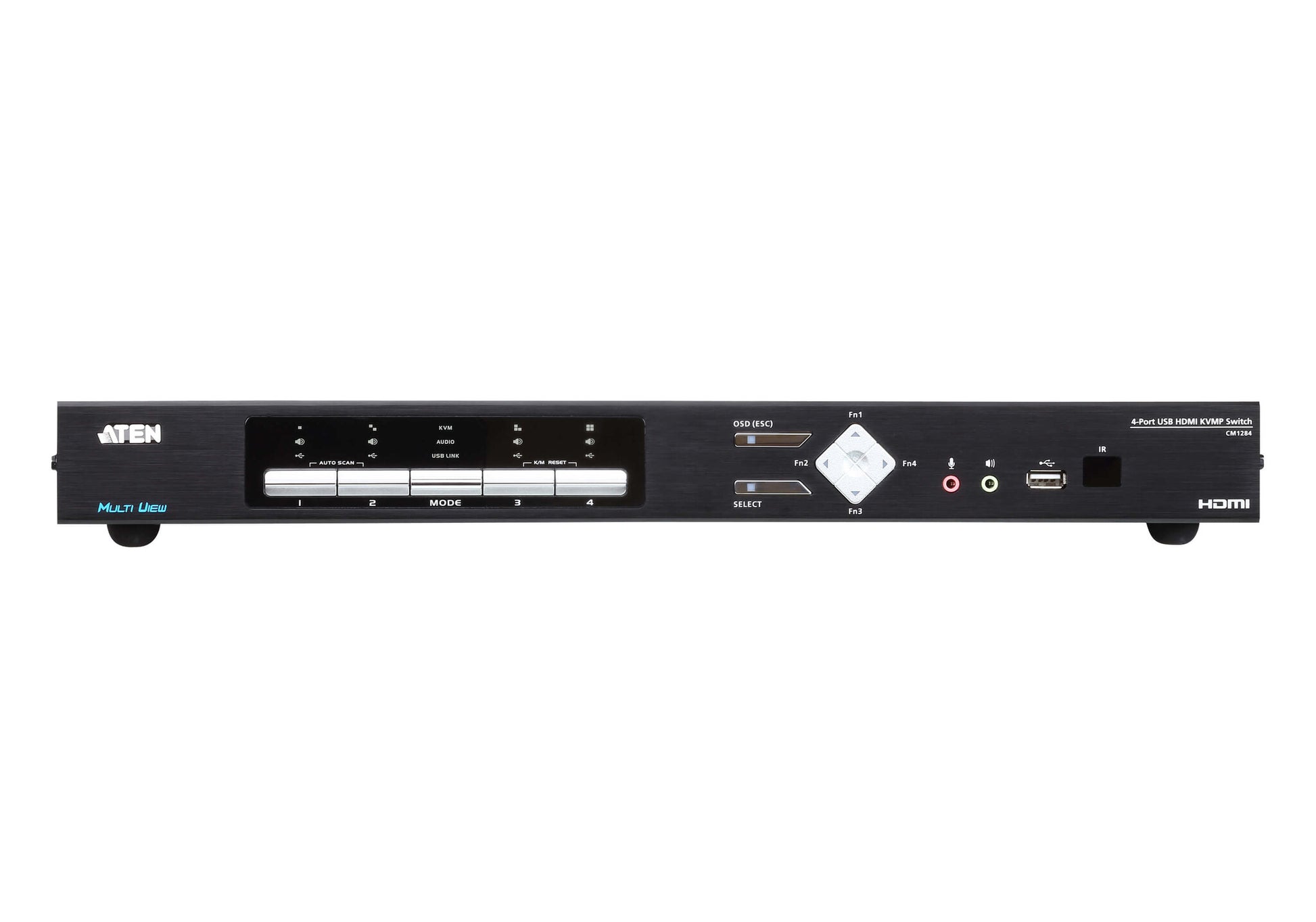

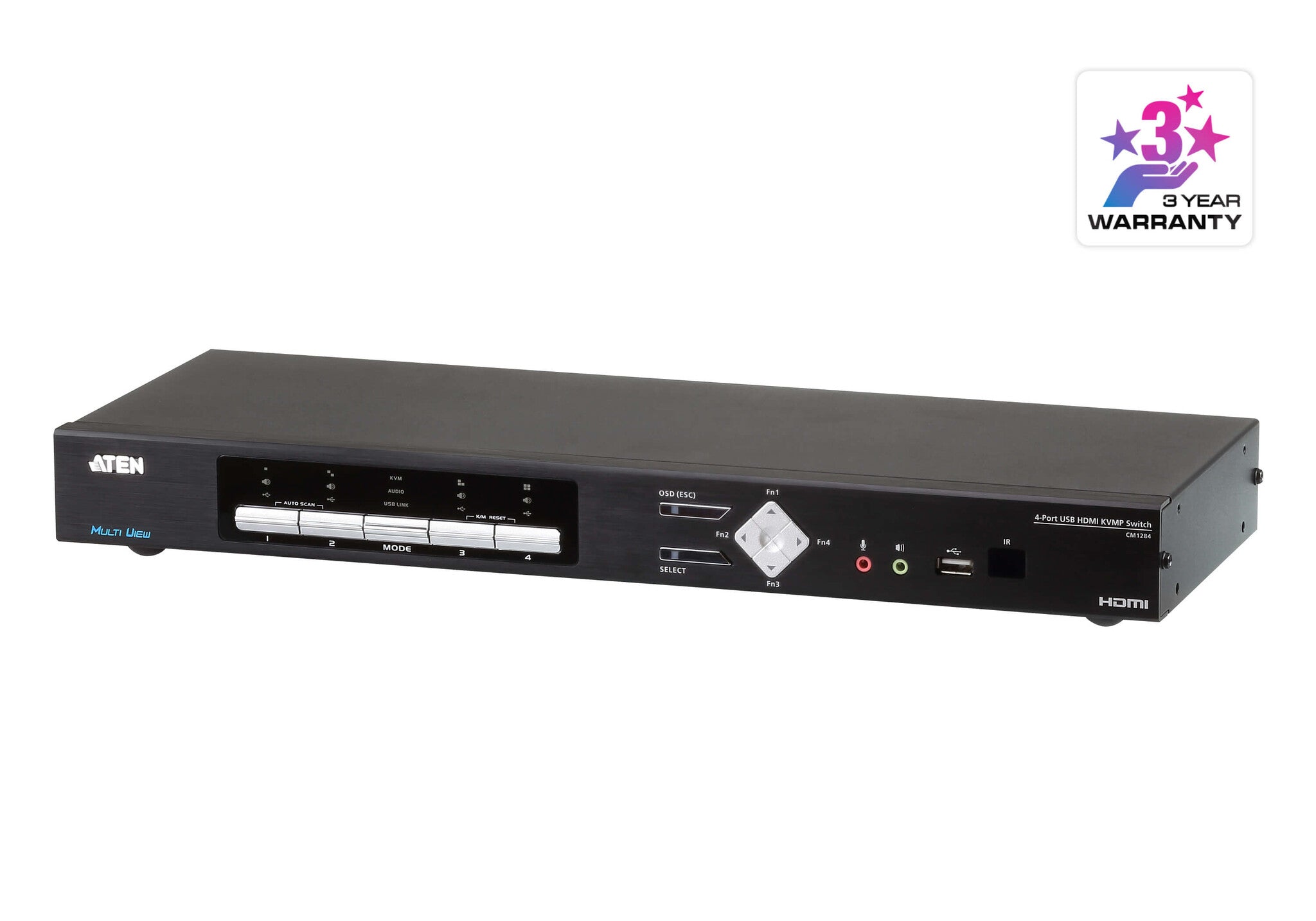

4-Port USB HDMI Multi-View KVMP Switch
ATEN CM1284 4-Port USB HDMI Multi-View KVMP™ Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected, switched, and displayed at the same time with independent keyboard and mouse control.
1x CM1284 4-Port USB HDMI Multi-View KVMP™ Switch
4x LIN5-28V1-V11G USB HDMI Cables
1x LIN2-418K-E12G Power Cord
1x 2XRT-0013G IR Remote Control
1x Rack Mount Kit
1x User Instructions
| Ports & interfaces |
|---|
| Number of microphone inputs |
6 |
| Headphone outputs |
6 |
| Audio connections |
Yes |
| USB connector type |
USB Type-A, USB Type-B |
| USB 2.0 Type-A hub ports quantity |
2 |
| USB hub |
Yes |
| Console ports |
3.5mm headphone, HDMI, RJ–45, USB A |
| Console USB ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
4 |
| HDMI ports quantity |
6 |
| Video port type |
HDMI |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
4 |
| Network |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Firmware upgradeable |
Yes |
| Daisy chain |
Yes |
| Hot-Plug support |
Yes |
| HDCP |
Yes |
| Scan interval |
5,10,15,30,60,90 s |
| Video bandwidth |
30 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
|---|
| Hot keys |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| Cascadable |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Display |
|---|
| On Screen Display (OSD) |
Yes |
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
16 W |
| Input current |
1 A |
| AC input frequency |
50 - 60 Hz |
| Input voltage |
110 - 220 V |
| Power source |
AC |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
3.86 kg |
| Height |
44 mm |
| Depth |
164 mm |
| Width |
437.2 mm |
| Packaging data |
|---|
| Package weight |
4.26 kg |
| Package height |
233 mm |
| Package depth |
540 mm |
| Package width |
131 mm |
| Packaging content |
|---|
| Manual |
Yes |
| AC adapter included |
Yes |
| Rack mount kit |
Yes |
| Cables included |
HDMI, USB |
| Logistics data |
|---|
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case gross weight |
13.8 kg |
| Master (outer) case height |
258 mm |
| Master (outer) case length |
555 mm |
| Master (outer) case width |
420 mm |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case net weight |
11.6 kg |
| Technical details |
|---|
| Compliance certificates |
RoHS |
