4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch

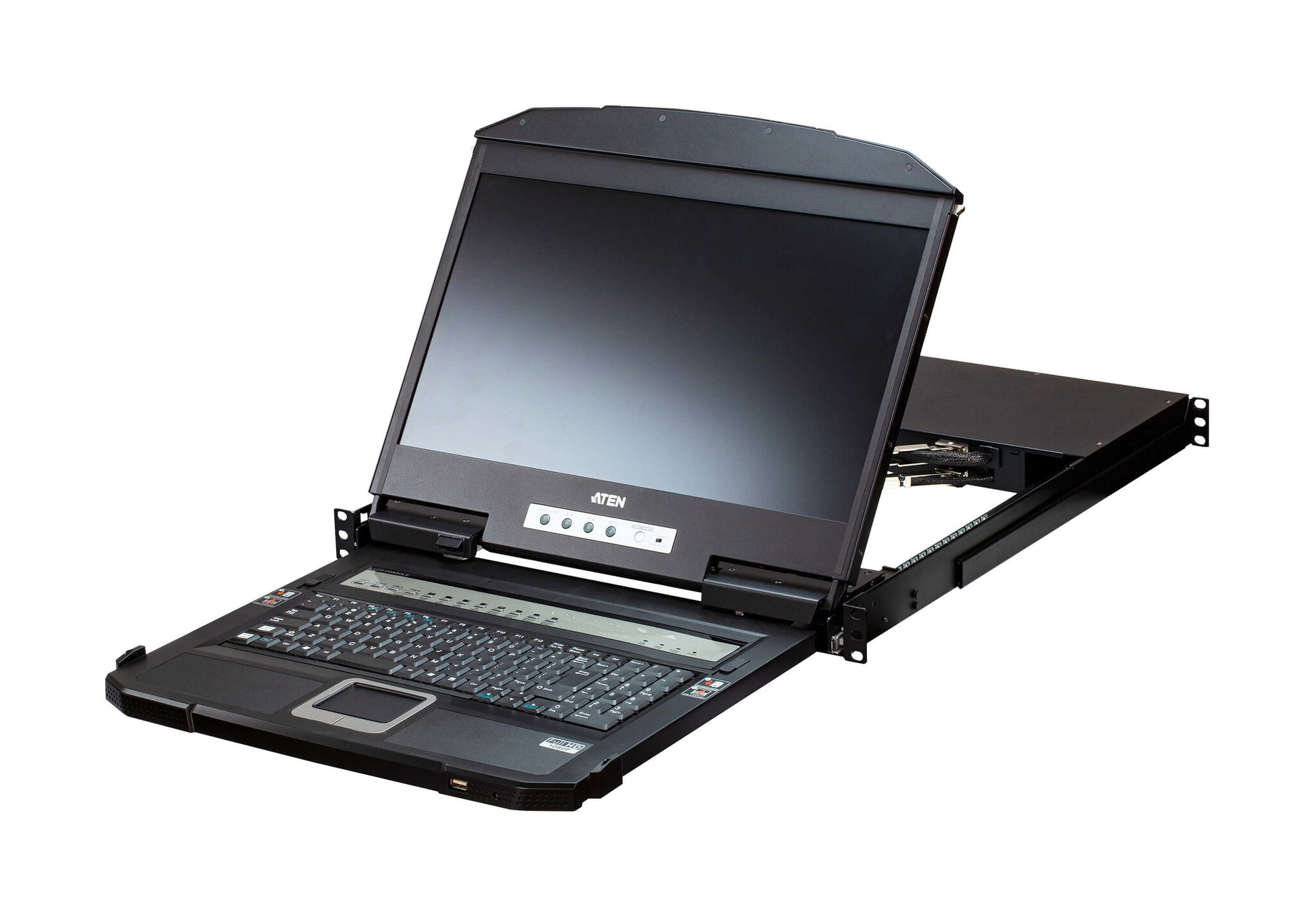

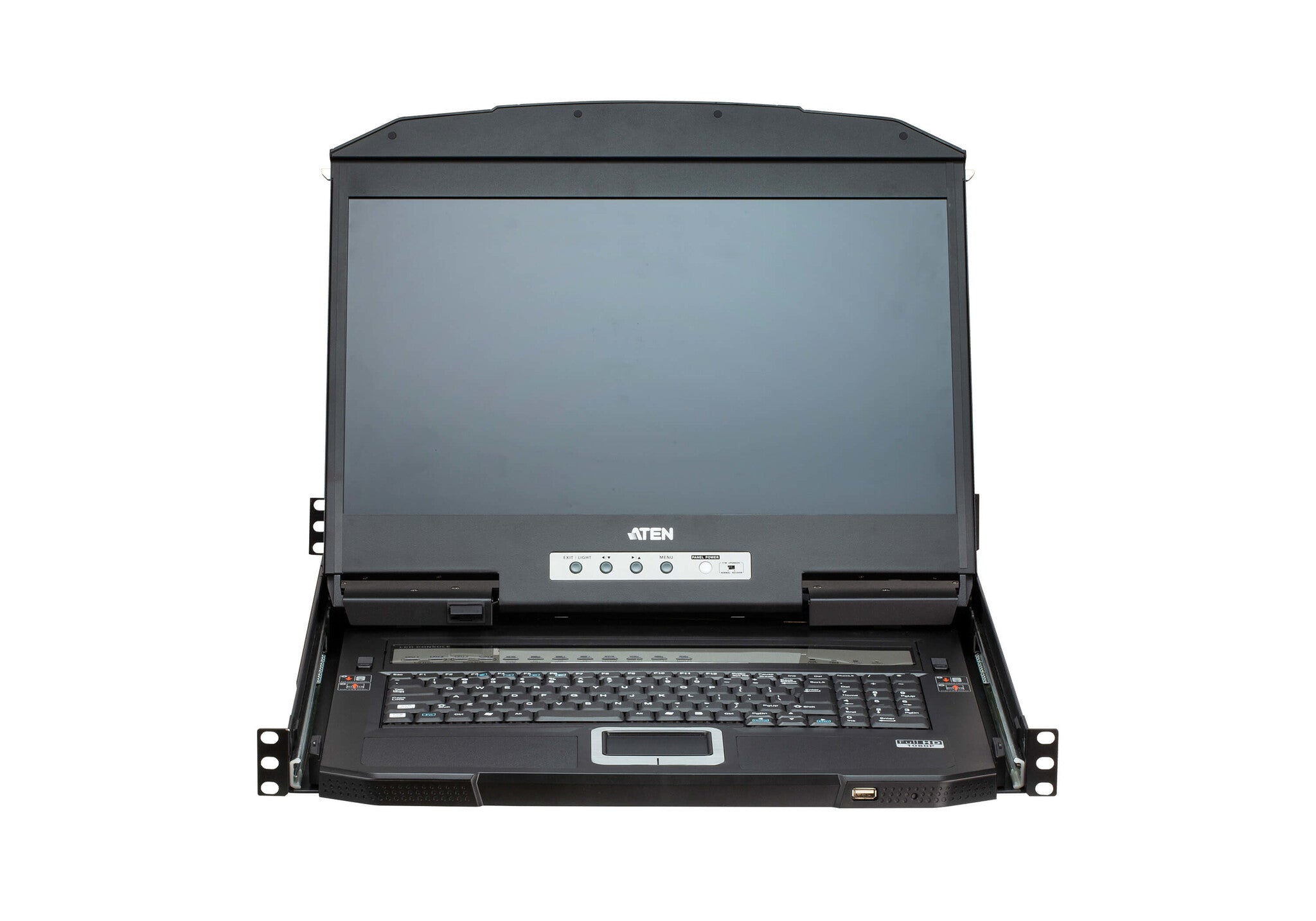

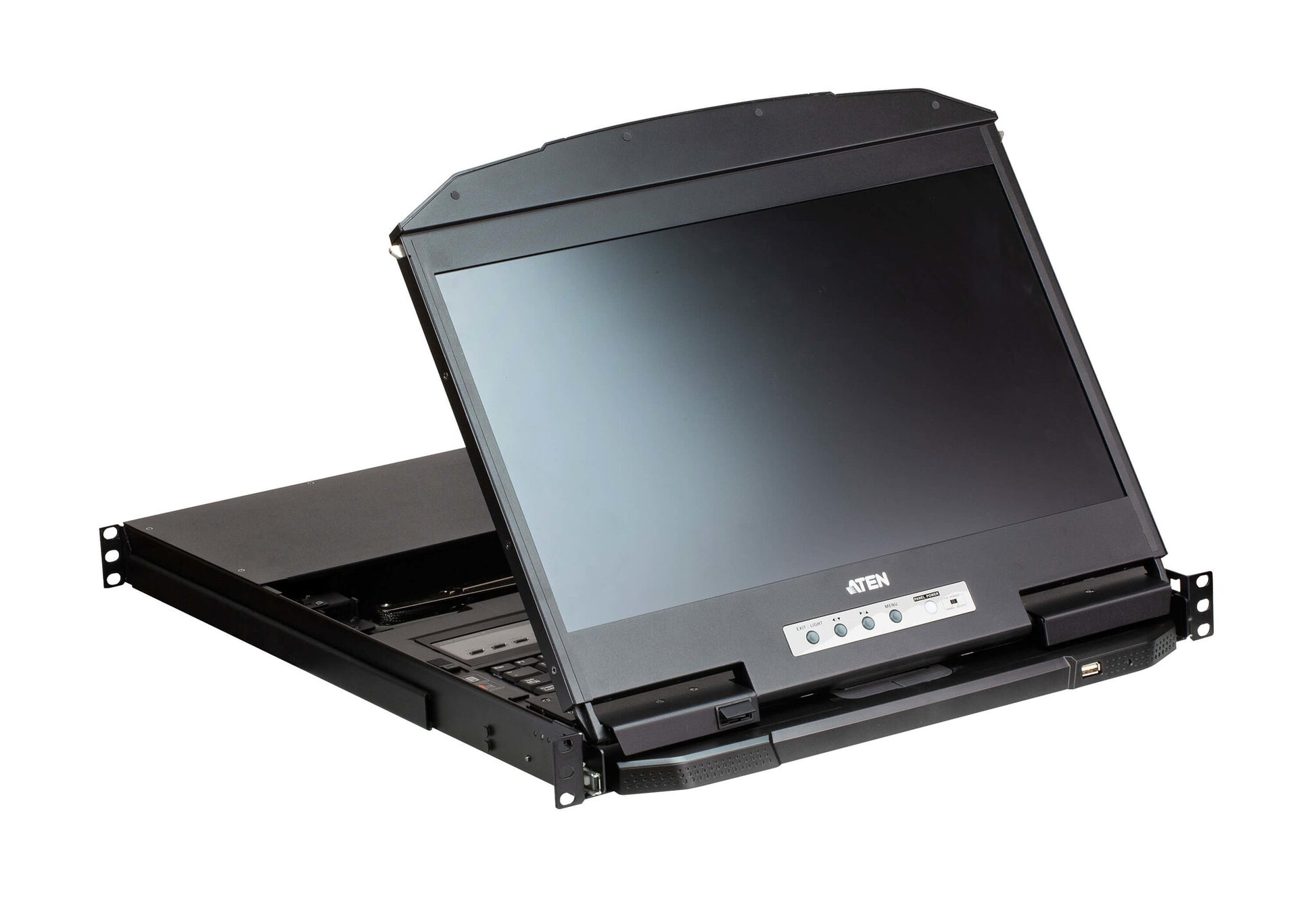

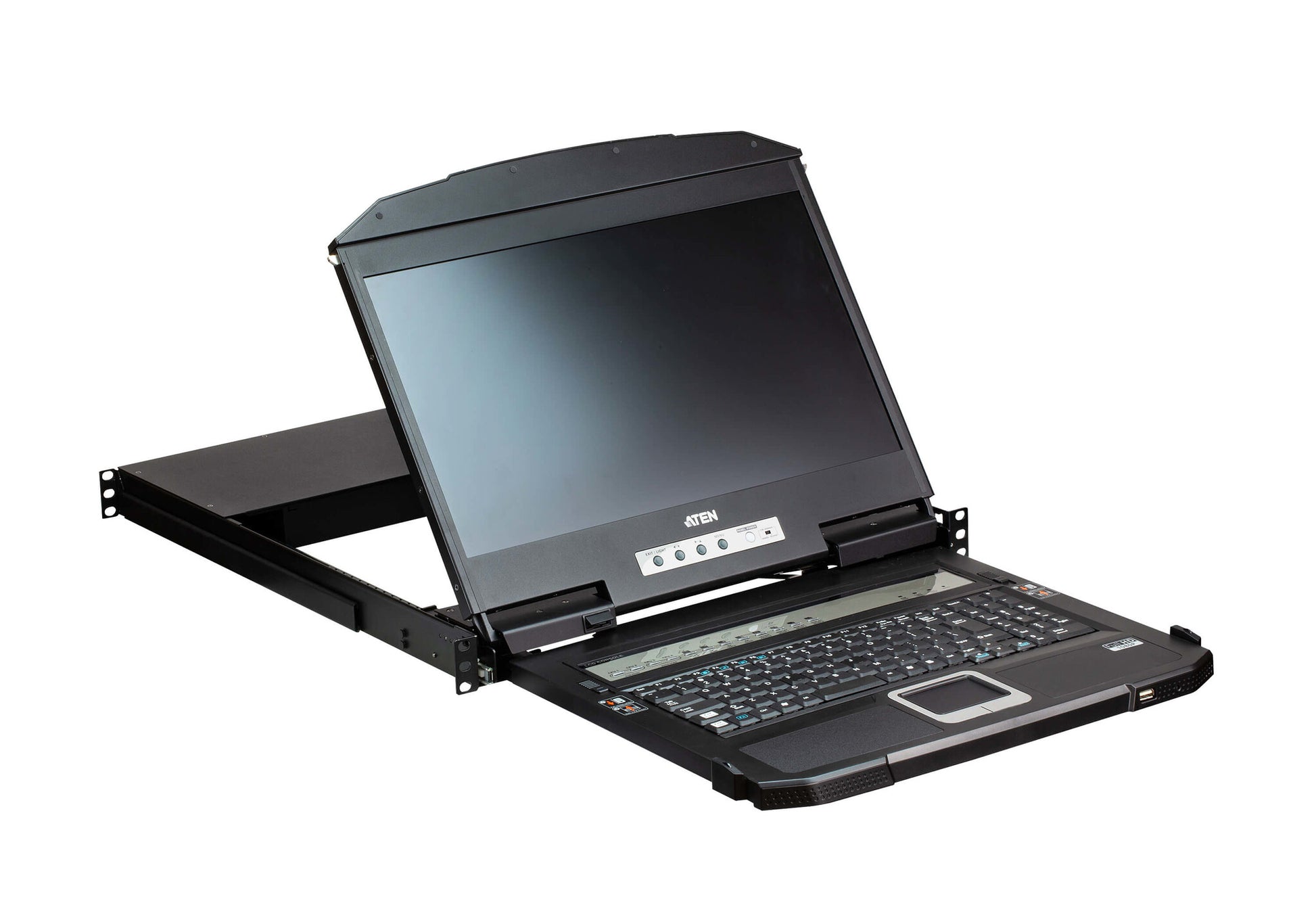

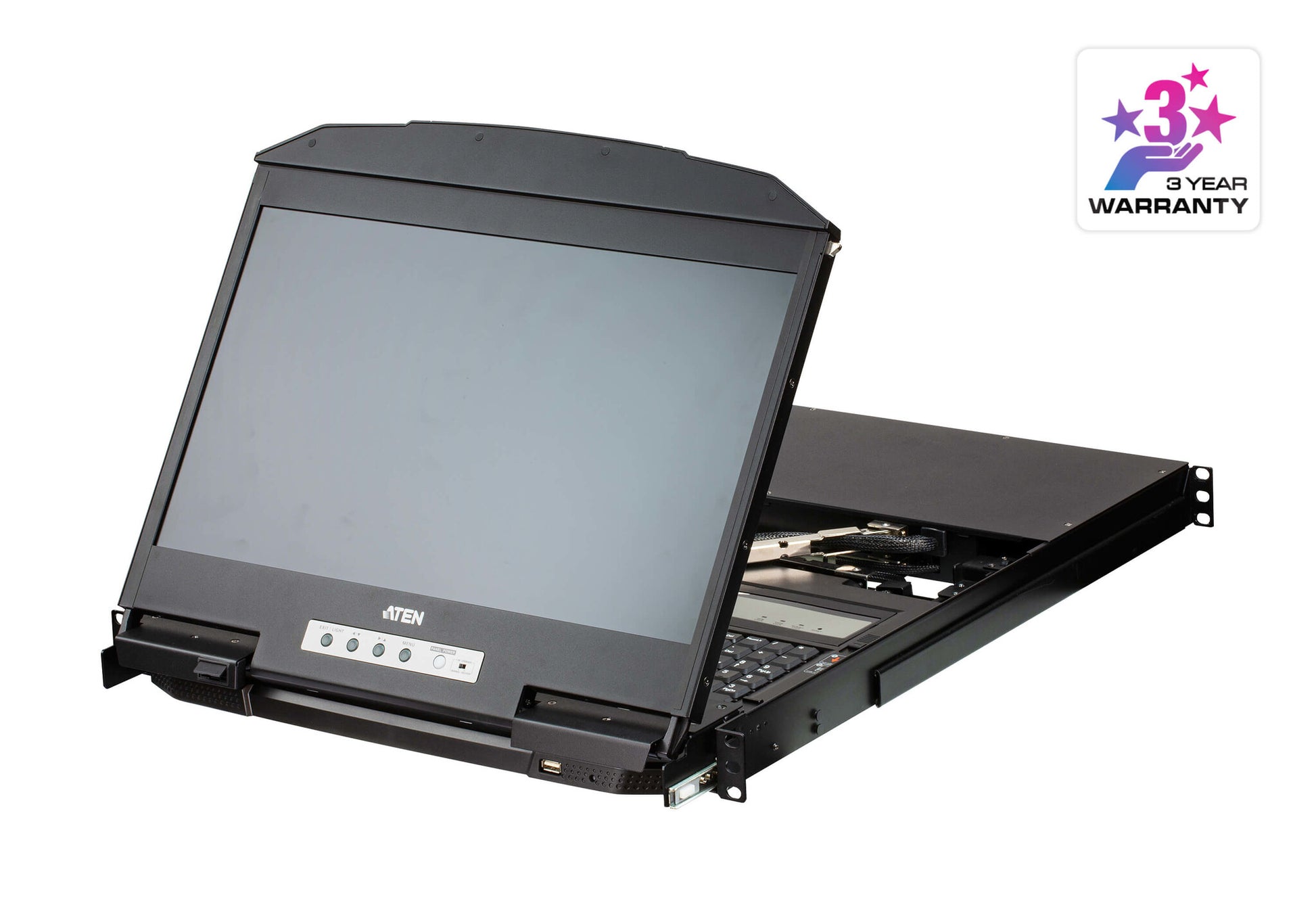

The ATEN CL3884NW LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable slide housing. The dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.
1x CL3884NW LCD KVM Switch with Standard Rack Mounting Kit
2x LIN5-28V1-V11G KVM Cable Sets (USB, HDMI, Audio; 1.8m)
2x KC06-0024-100G/200G L Brackets
1x LIN2-418K-E12G Power Cord
1x User Instructions
| Display |
|---|
| Display |
LCD |
| Display diagonal |
47 cm (18.5") |
| Technical details |
|---|
| Push button |
Yes |
| Product colour |
Black |
| Operating relative humidity (H-H) |
0 - 85% |
| Number of computers controlled |
16 |
| LED indicators |
Yes |
| Maximum resolution |
1920 x 1200 pixels |
| Rack mounting |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 Type-B ports quantity |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Keyboard |
|---|
| Keyboard language |
US English |
| Keyboard layout |
QWERTY |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Weight |
11.8 kg |
| Depth |
480.6 mm |
| Height |
42.8 mm |
| Width |
631 mm |
| Packaging data |
|---|
| Package height |
135 mm |
| Package depth |
718 mm |
| Package width |
668 mm |
| Package weight |
14.6 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Quick installation guide |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
14.6 kg |
| Master (outer) case height |
135 mm |
| Master (outer) case length |
718 mm |
| Master (outer) case width |
668 mm |
| Master (outer) case net weight |
11.8 kg |
