VE7833A-AT
Incl VAT
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
Shop safely
Secure your shopping experience with various safe and trusted payment methods.

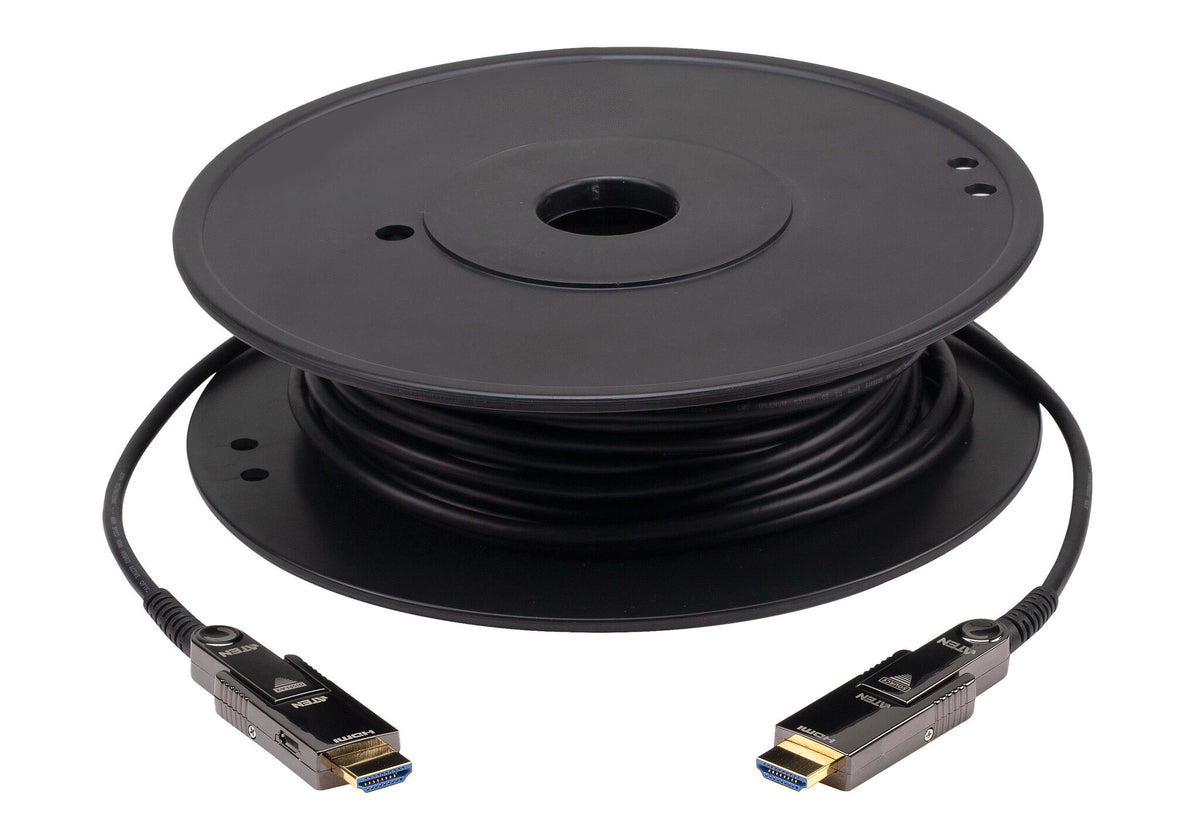

ATEN VE7833A optical cables utilize AOC technology that enables conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 30 m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions. This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar.

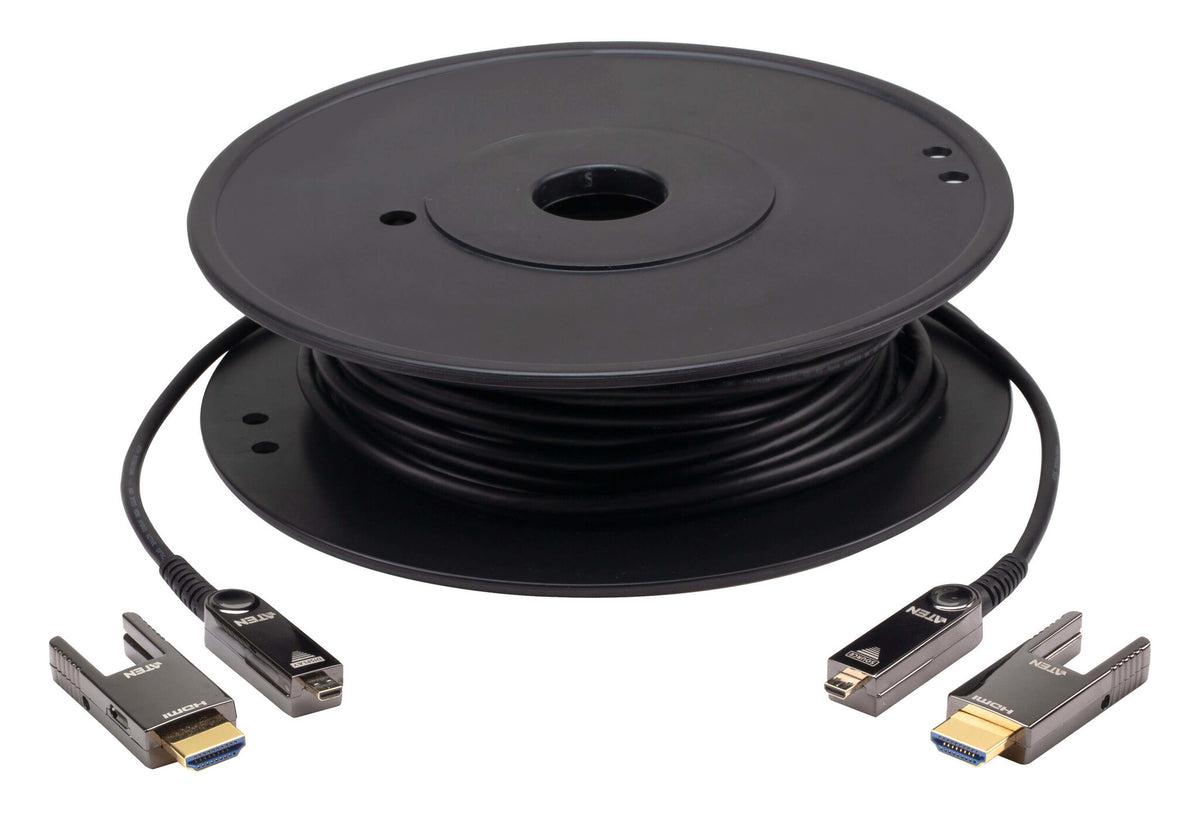

Engineered to meet the latest trend of integrator-friendly design, the VE7833A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
| Features | |
|---|---|
| Cable length | 39 m |
| Connector 1 | HDMI Type-A/HDMI Type-D |
| Connector 2 | HDMI Type-A/HDMI Type-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Audio Return Channel (ARC) | Yes |
| HDMI Ethernet channel | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Data transfer rate | 18 Gbit/s |
| High Dynamic Range (HDR) supported | Yes |
| Bandwidth | 600 MHz |
| AWG wire size | 30/24 |
| Connector contacts plating | Copper |
| Connector material | Gold |
| Cable material | Fiber optic |
| Cable jacket material | Plenum (OFNP) |
| Bend radius (min) | 2 cm |
| Plug and Play | Yes |
| Colour sampling | 4:4:4, 4:2:0, 4:2:2 |
| Certification | CE / FCC / RoHS2 / UL CMP-OF |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
|---|---|
| Cable diameter | 4.5 mm |
| Weight | 800 g |
| Package width | 225 mm |
| Package depth | 235 mm |
| Package height | 74 mm |
| Package weight | 1.2 kg |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 12 kg |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 265 mm |
| Master (outer) case gross weight | 13 kg |
