Highlight feature
More about this stand-out feature.
Regular price
R 10,637.76
Sale price
R 10,637.76
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Want next day delivery? Be quick!
Low stock! Only 1 left

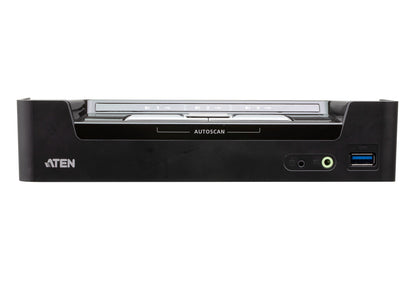

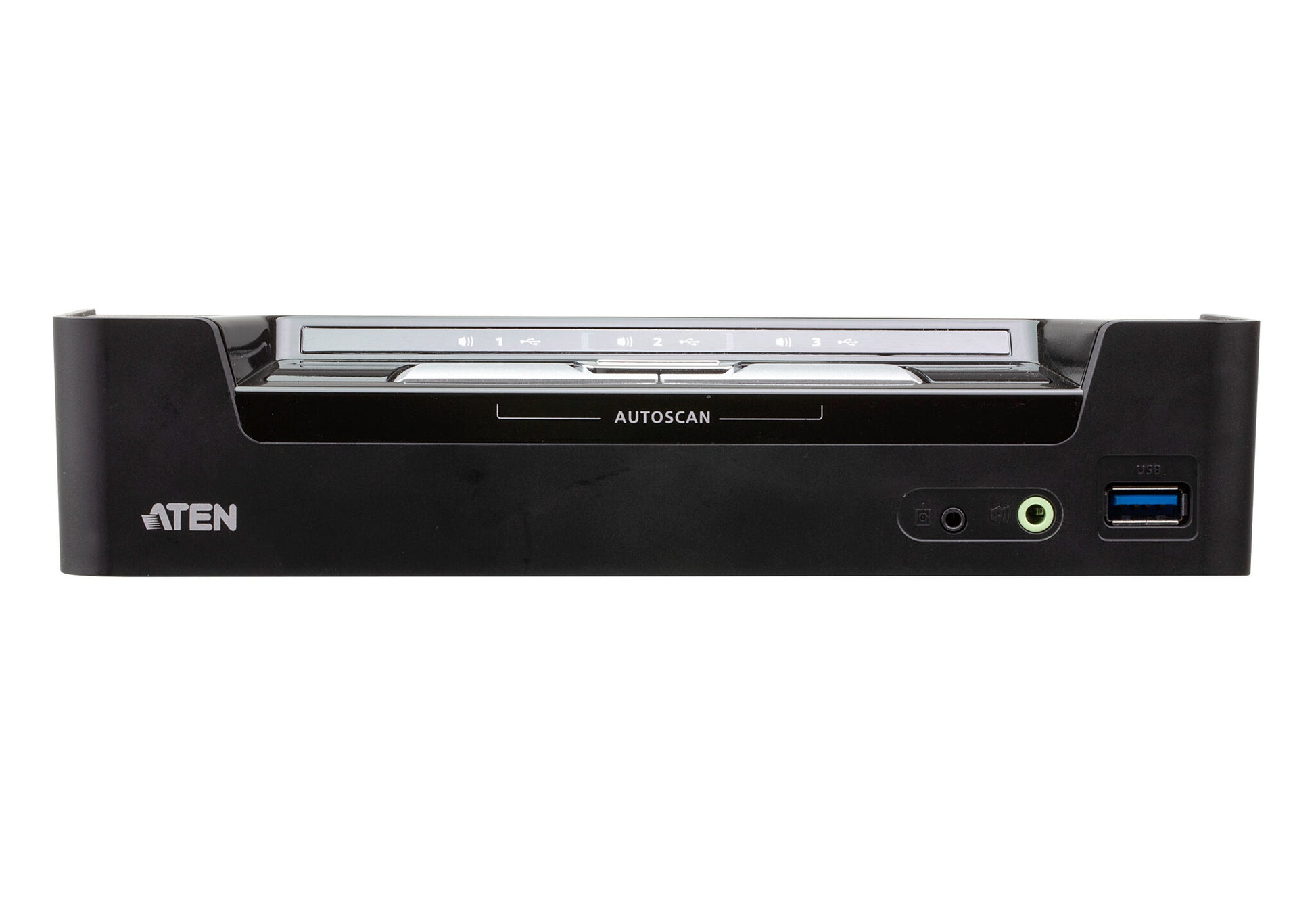

3-Port USB-C DisplayPort Hybrid KVMP™ Switch
1x CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort 1.2 Cables
2x LIN6-11C1-E12G USB 3.0 Type-A to Type-B Cables
1x LIN6-22B1-B12G USB-C Cable
3x LIN5-0205-21CG Audio Cables
1x 2XRT-0016G Remote Port Selector
1x User Instructions
[Optional] 0AD8-8012-70MG Power Adapter

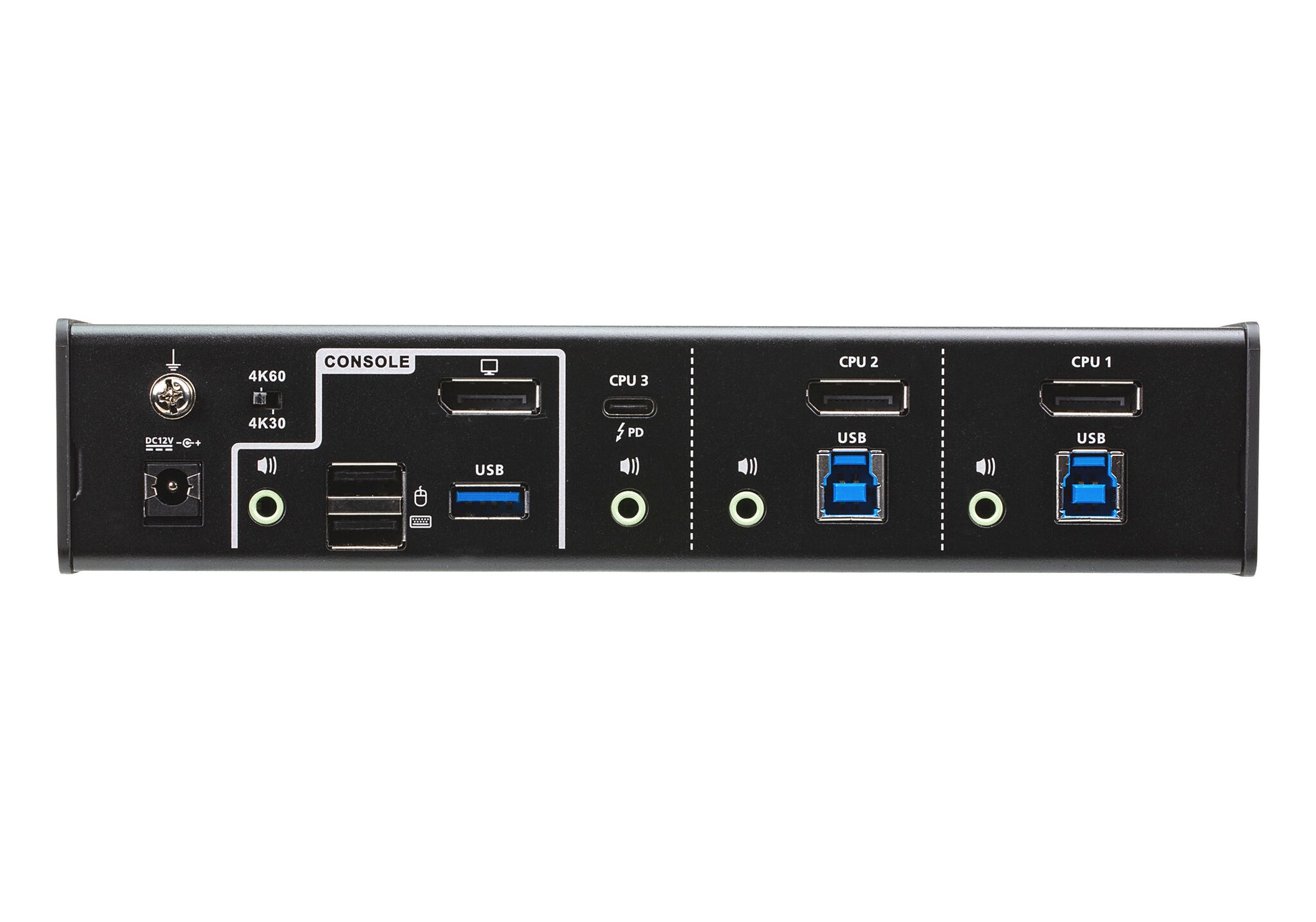

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Number of microphone inputs | 1 |
| Headphone outputs | 4 |
| Audio connections | Yes |
| USB connector type | USB Type-A, USB Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB hub | Yes |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 3 |
| DisplayPorts quantity | 2 |
| Video port type | DisplayPort |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 3 |
| Performance | |
|---|---|
| Scan interval | 1,5,99 s |
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Design | |
|---|---|
| Hot keys | Yes |
| Push button | Yes |
| LED indicators | Yes |
| Housing material | Metal, Plastic |
| Product colour | Black |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power consumption (typical) | 5.78 W |
| Input voltage | 12 V |
| Power source | DC |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 80% |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 960 g |
| Height | 44 mm |
| Depth | 75.4 mm |
| Width | 206.3 mm |
| Packaging data | |
|---|---|
| Package weight | 1.33 kg |
| Package height | 220 mm |
| Package depth | 265 mm |
| Package width | 95 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 7.19 kg |
| Master (outer) case height | 283 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 232 mm |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 4.8 kg |
